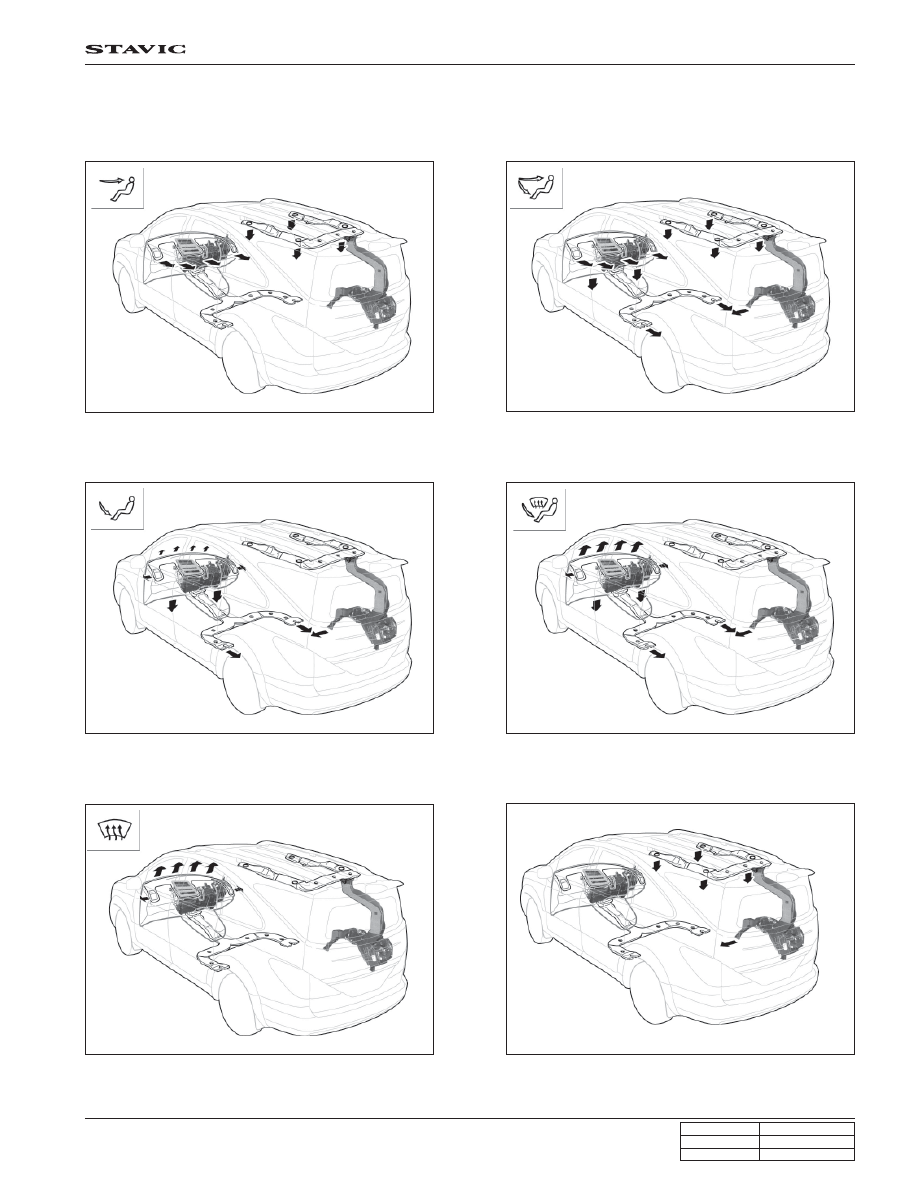

2) Ventilation Modes

* Vent mode

* Bi-level mode

* Floor mode

* Defrost and floor mode

* Defrost mode

* Rear air conditioning mode

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

6

3A

3. AIR CONDITIONER MODULE WIRING AND LAYOUT

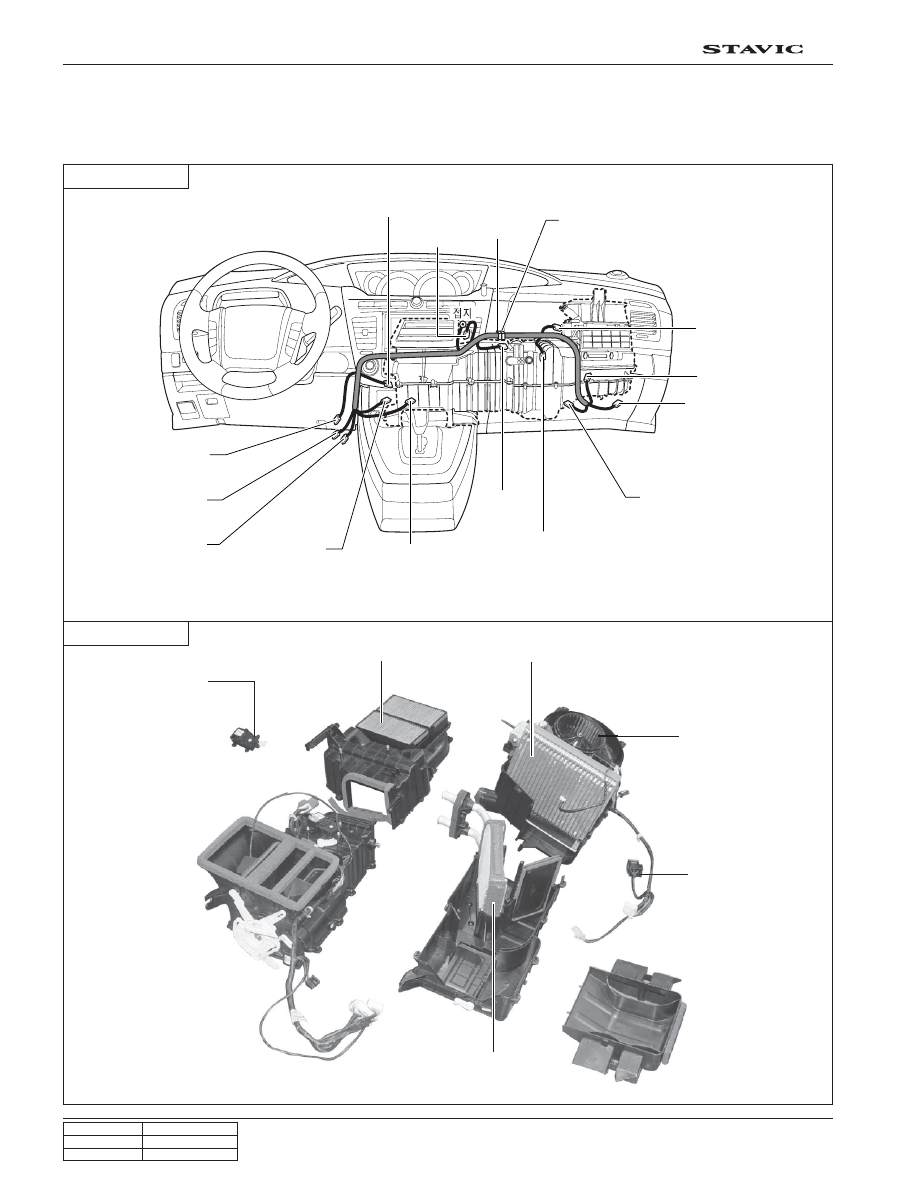

1) Front Air Conditioner Module

Wiring layout

Interior temperature

sensor (interior

humidity sensor)

C211B A/C wiring

C211 A/C wiring

A/C control

panel (FATC)

A/C control

panel (manual)

Air mix

motor

Thermo amp

(FATC, manual)

FATC: power transistor
Manual: blower resistance

Blower motor
(FATC, manual)

High speed relay

Air source
selection motor

C211A A/C wiring (FATC)

C211A A/C

wiring

(manual)

Duct sensor

Mode motor

Components

Air source selection

door actuator

Air conditioner filter

Blower

motor

Evaporator

Blower high

speed relay

Heater core

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

7

3A

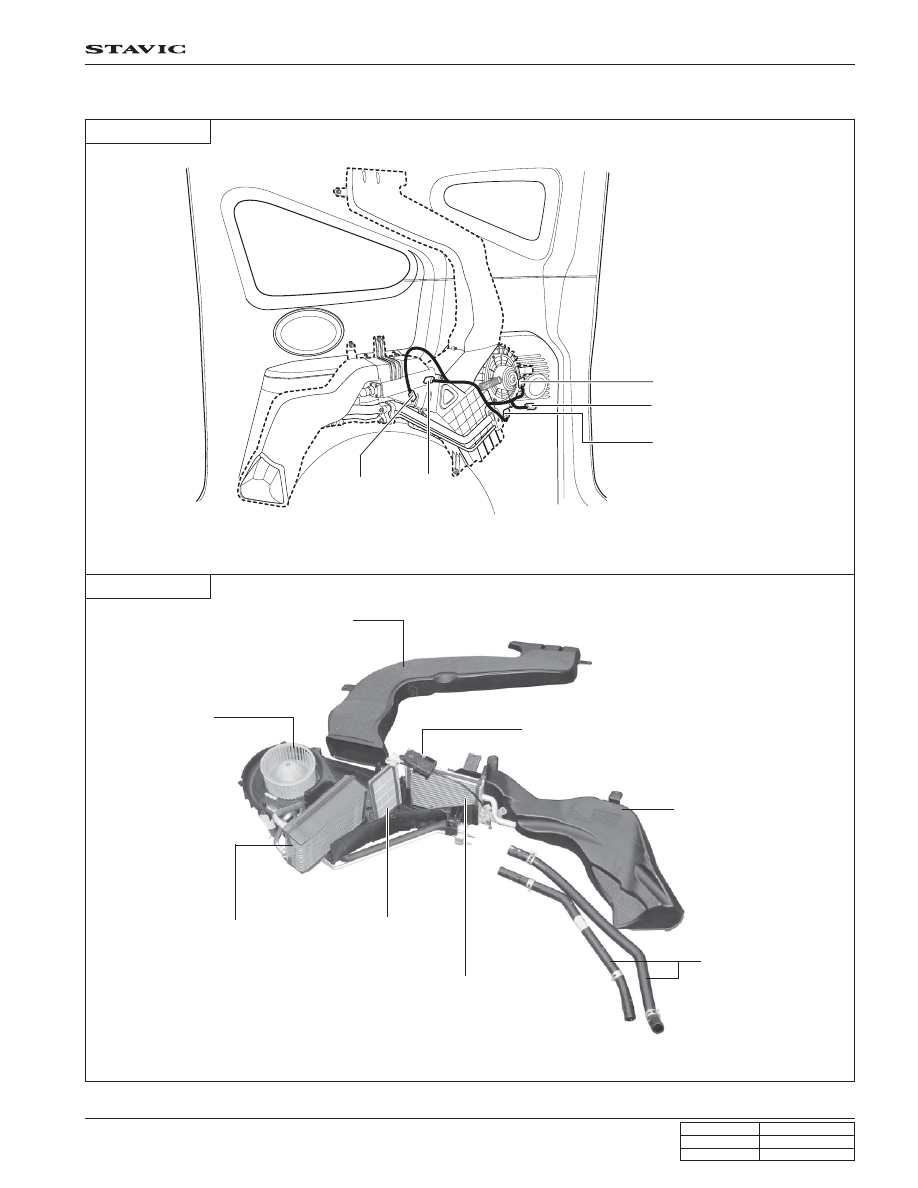

2) Rear Air Conditioner Module

Rear floor heater duct

Mixer door

Blower motor

Heater core

Evaporator

Roof air conditioner duct

Air mixer door actuator

Heater & air conditioner

pipes

Wiring layout

Components

Rear blower motor

Rear blower relay (Hi)

Rear power transistor

C305 A/C

wiring

(RR)

Air mix motor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

8

3A

4. AIR CONDITIONER CONTROLLER (UNIT)

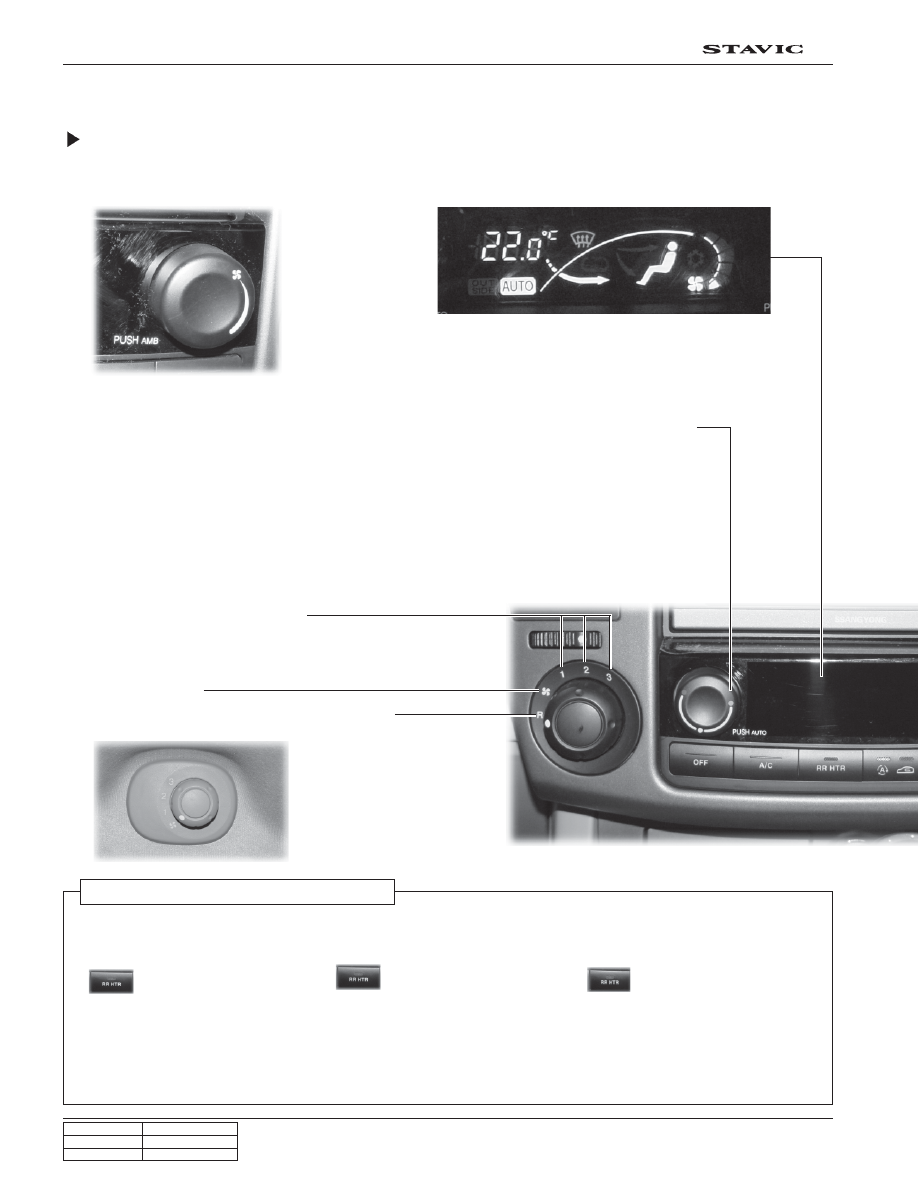

Full Automatic Air Conditioner Controller

Display window (VFD)

- Each switch mode appears as a symbol on the fluorescent

display and malfunction of each sensor in air conditioner
control system is also displayed.

Fan speed control switch and

AMP switch

- When controlling the fan speed by rotating

this switch in AUTO mode, the mode is

changed from AUTO to manual and the fan

speed can be changed in 6 stages.

- When pressing this switch, the outside tem-

perature measured by ambient temperature

sensor comes on for 5 seconds and then

returns back to preset temperature.

Rear fan speed control switch

The positions that can control in
3 stages in front seat.

(cannot control the rear fan speed in rear seats)

1. Front: Air conditioner operation

Rear: Heater operation

Front air conditioner: ON

Rear fan control switch: 1, 2, or 3 position

Rear heater switch: ON

Temperature control switch and
AUTO button

- When pressing the air conditioner AUTO mode

and temperature control dial switch, the system
operates in AUTO mode and can set the desired
temperature (18 ~ 32°C) by rotating.
To get the desired temperature, the air conditioner
controls compressor, door mode, air source door,
air mix door and blower motor automatically.

Rear blower OFF

Rear air conditioner switch: ON (can control
the rear fan speed in rear seats)

2. Front: No air conditioner operation

Rear: Heater operation

Front air conditioner: OFF

Rear fan control switch: 1, 2, or 3 position

Rear heater switch: ON

3. Rear: Heater operation and control

Rear air conditioner switch: R position

Rear heater switch: ON

Fan control switch in rear seats: can con-

trol the rear fan speed

Front/rear independent cooling/heating
