LAMP

STAVIC - 2004.09

26

2I

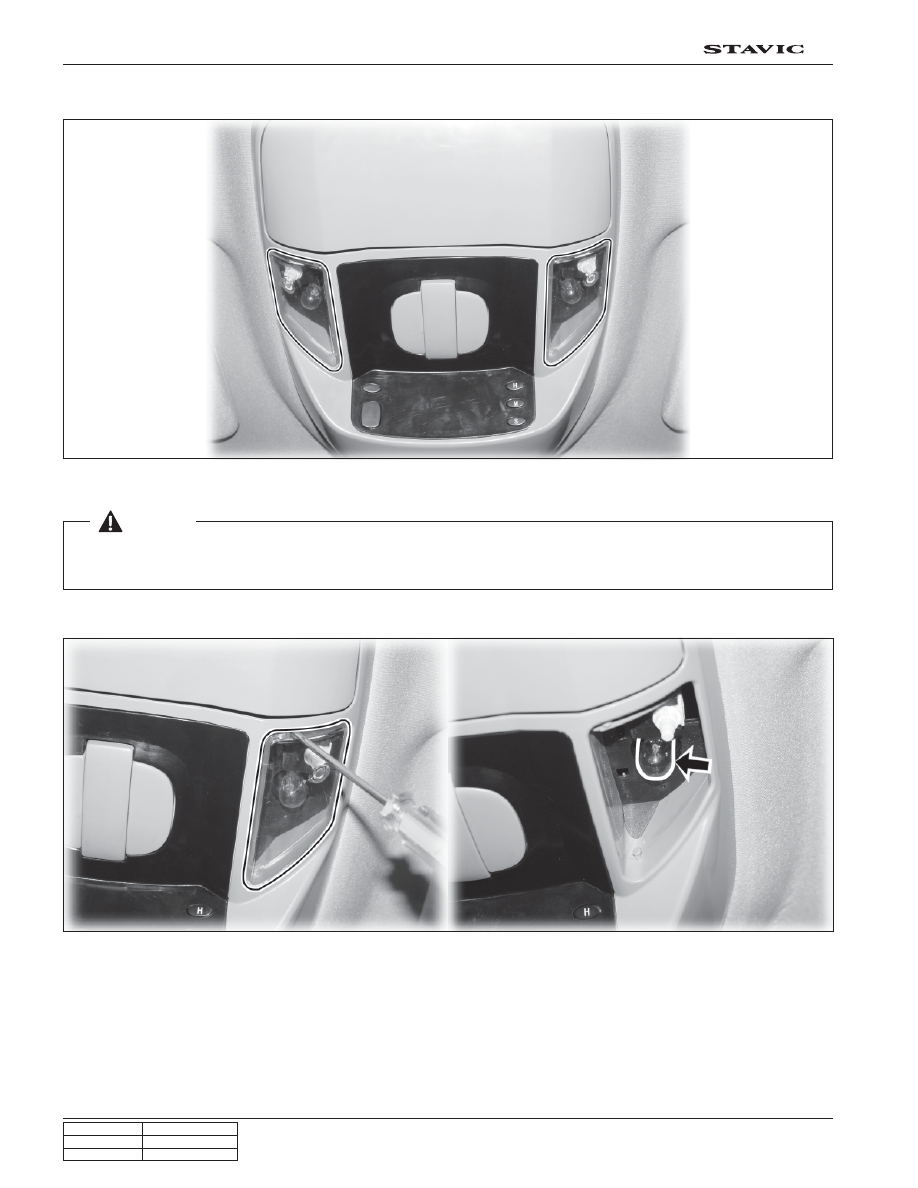

* when replacing the bulb

Remove the lamp cover (1) and pull out the bulb (2).

 [Notice]

1. Be careful not to damage the lamp cover when removing it.

2. Replace the bulb with new one with same specifications.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

2

3A

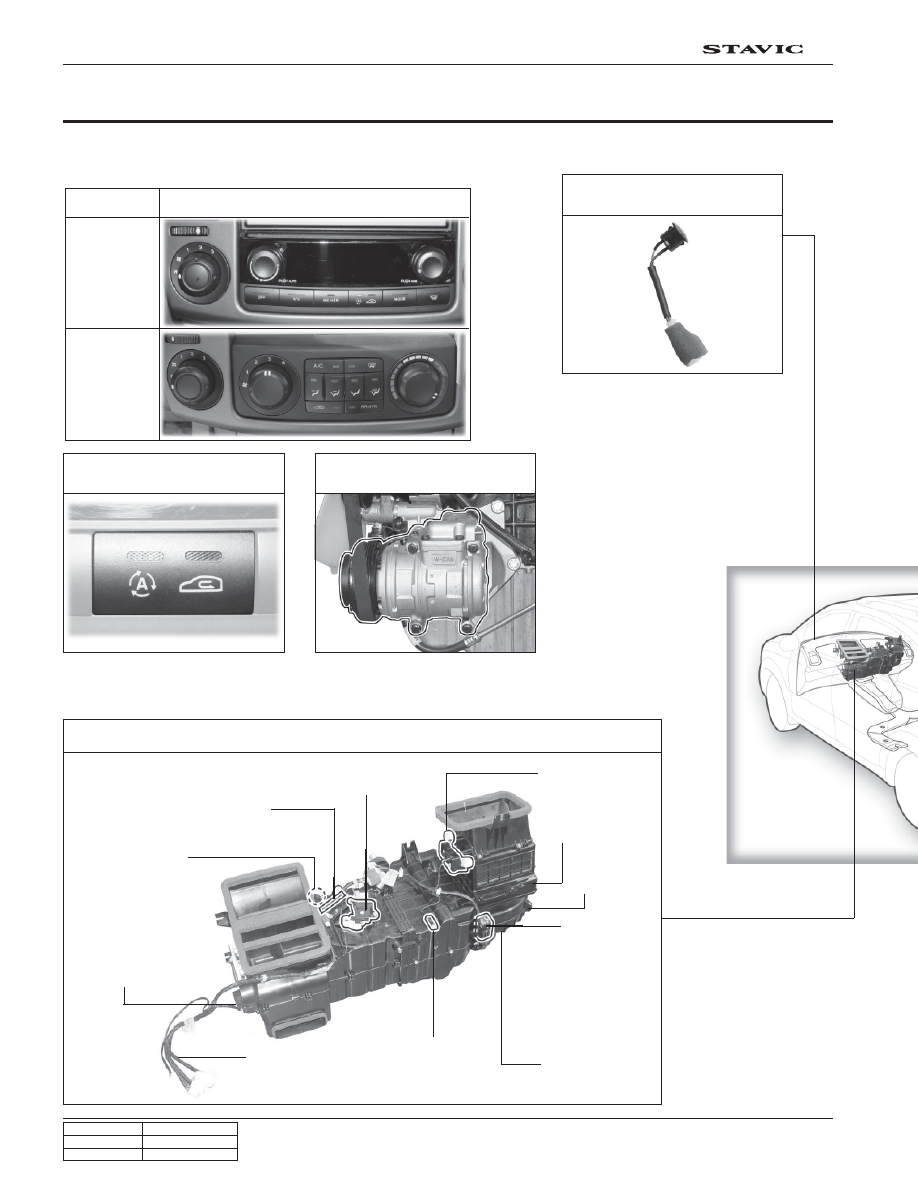

AIR CONDITIONING SYSTEM

1. SYSTEM LAYOUT AND COMPONENTS

Type

FATC

Manual air

conditioner

Air conditioner controller

Front air conditioner module assembly – inside instrument panel

Air conditioner

wiring

Blower motor

Power transistor

Air source door

actuator

Air mix door

actuator

Air conditioner filter

Duct temperature

sensor

Blower high

speed relay

Thermo AMP

PTC (If equipped)

Mode door

actuator

A function that turns on/off the air
source selection and air quality system.

Driven by engine and transmits refriger-
ant from condenser to inside of vehicle.

It changes sun load coming through front
windshield into current to input to FATC
controller.

Sun load sensor - instrument

panel upper left

AQS/Air source selection

switch

Compressor – engine right

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

3

3A

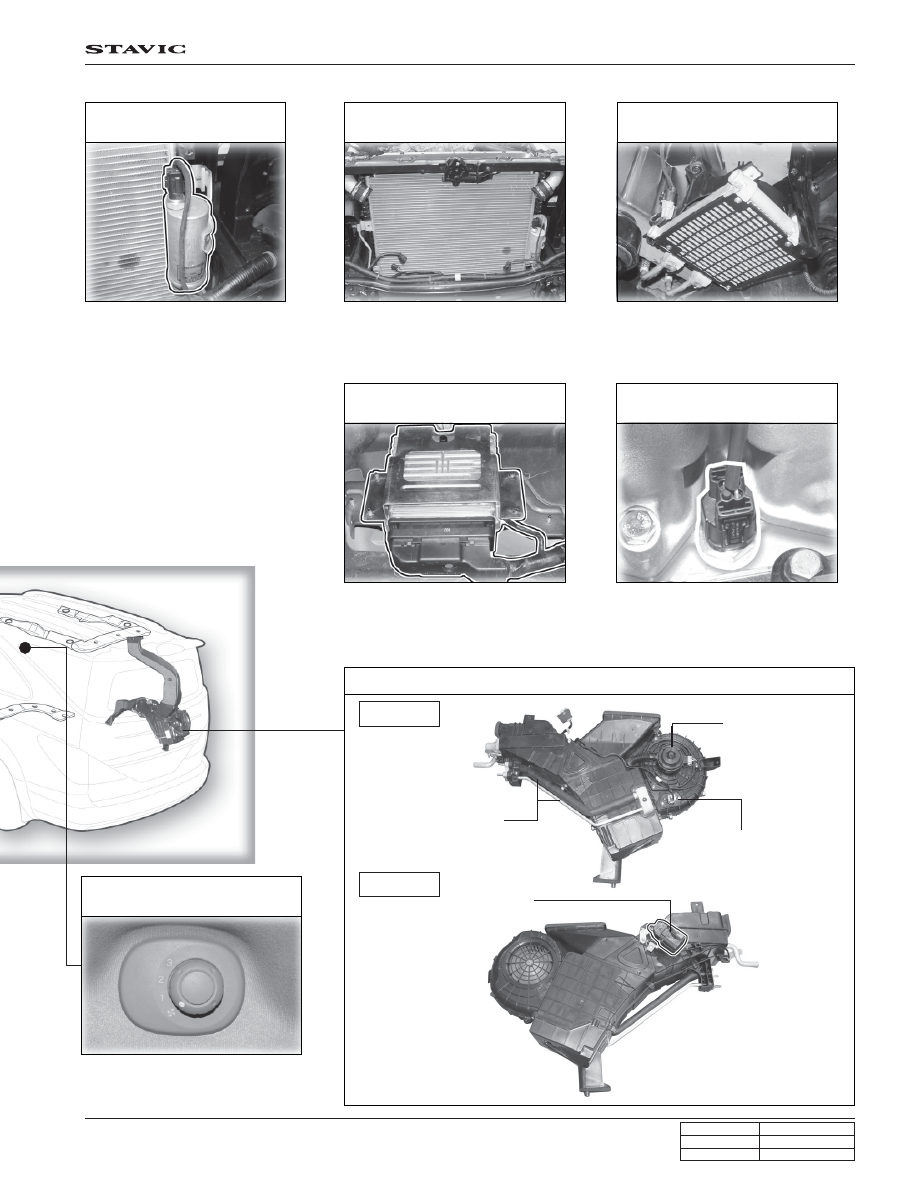

Receiver drier

– Condenser right

Condenser

Sub-condenser –

right wheel front

Engine ECU – passenger’s

footstep

Coolant temperature sensor

– on engine

Rear fan speed dial

Rear air conditioner module assembly – bottom of rear left

Absorbs moisture in the refrigerant and
reserves refrigerant to supply smoothly.

Installed in front of vehicle and condenses
vapor refrigerant into low temperature and
high pressure liquid refrigerant.

Condenses high temperature and high
pressure vapor refrigerant into low-tem-
perature-high-pressure liquid refrigerant.

Detects A/C AUTO switch position, cool-
ant temperature, engine condition and driv-
ing condition to control the air conditioner.

A sensor that detects coolant temperature
and transmits to engine ECU.

A switch that controls the rear air con-
ditioner module.

Blower motor

Power transistor

Air mix door

actuator

Air conditioner high

pressure/low pressure pipe

Front

Rear

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

4

3A

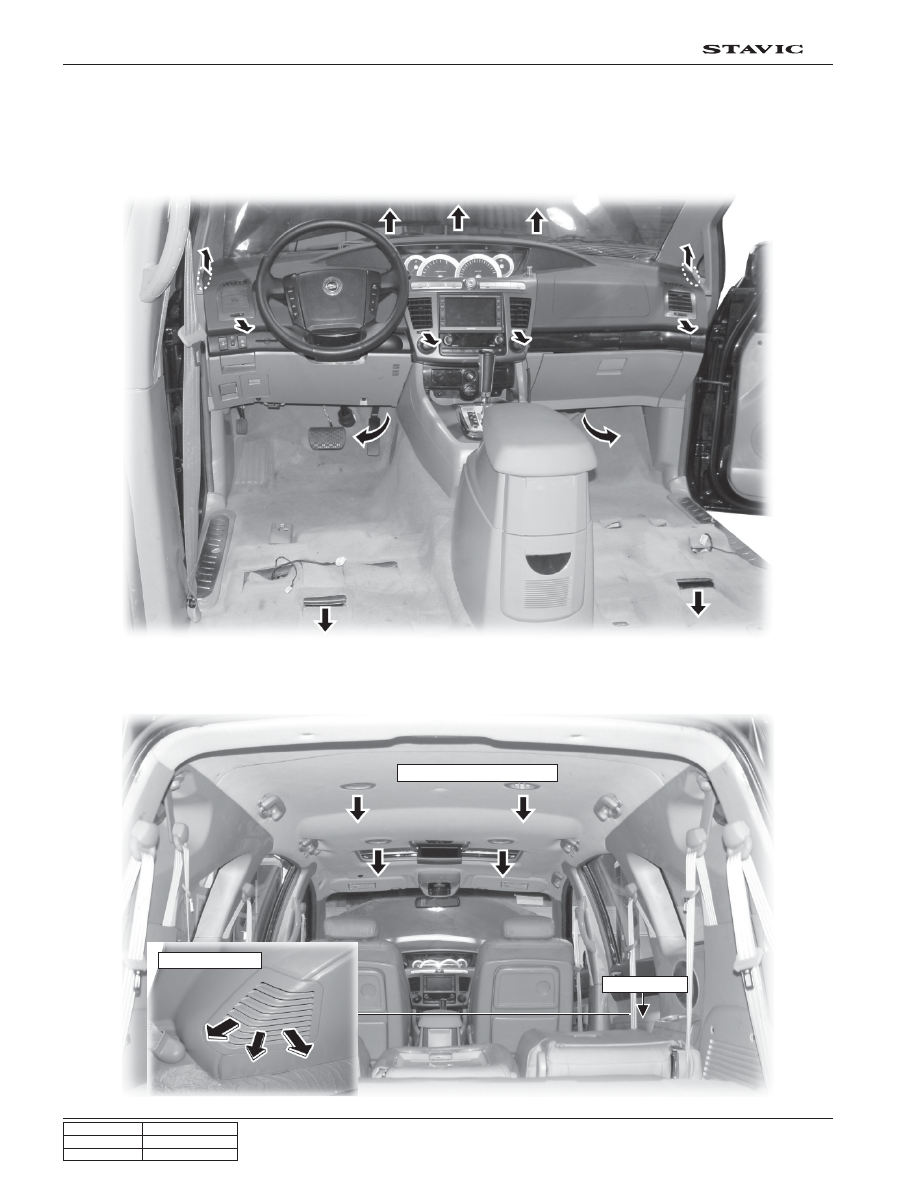

2. VENTILATION SYSTEM

1) Locations of Vents

Front Ventilation

Air conditioned air flows

Heated air flows

Heater vent

Rear ventilation
