SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 220

16

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

STAVIC - 2004.09

2B

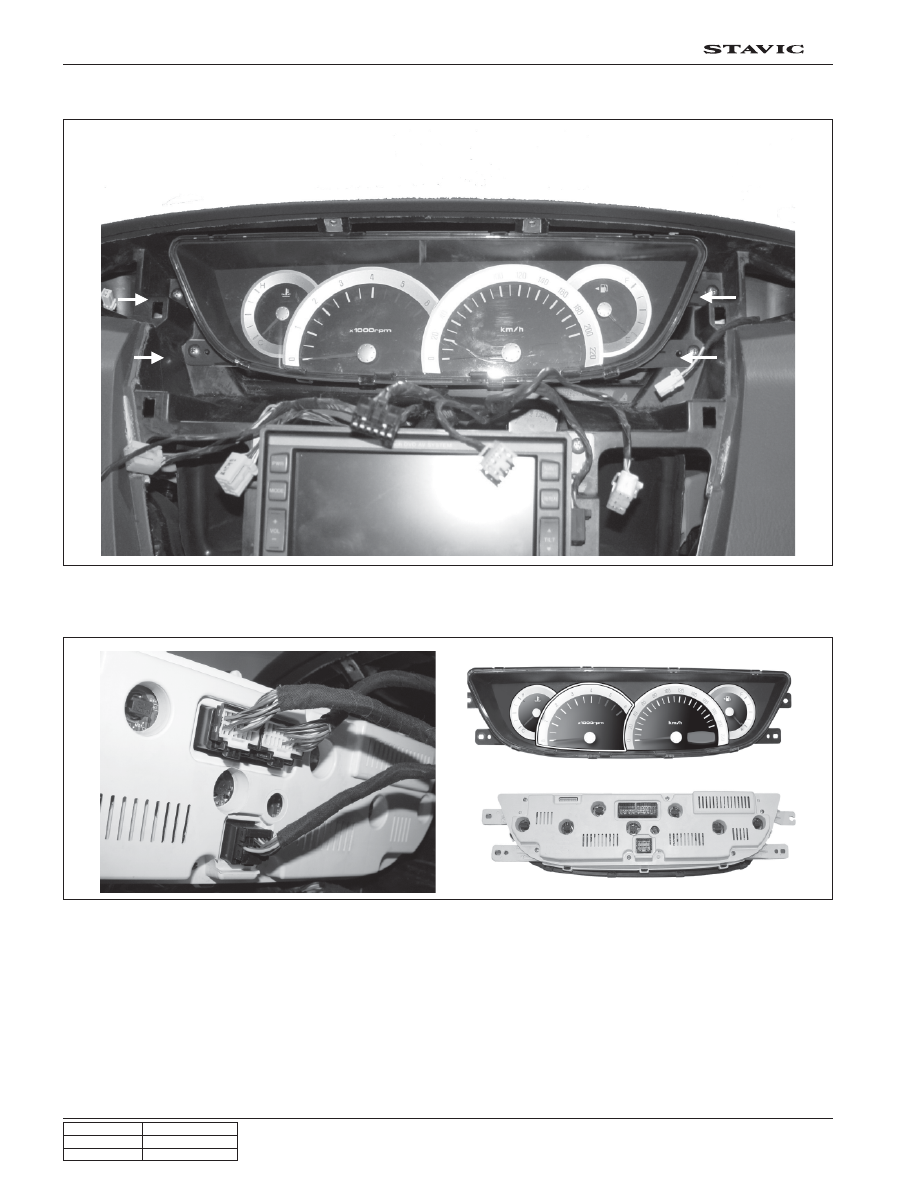

7. Unscrew four screws and pull out the meter cluster housing.

8. Disconnect the connector and remove the meter cluster housing.

17

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

STAVIC - 2004.09

2B

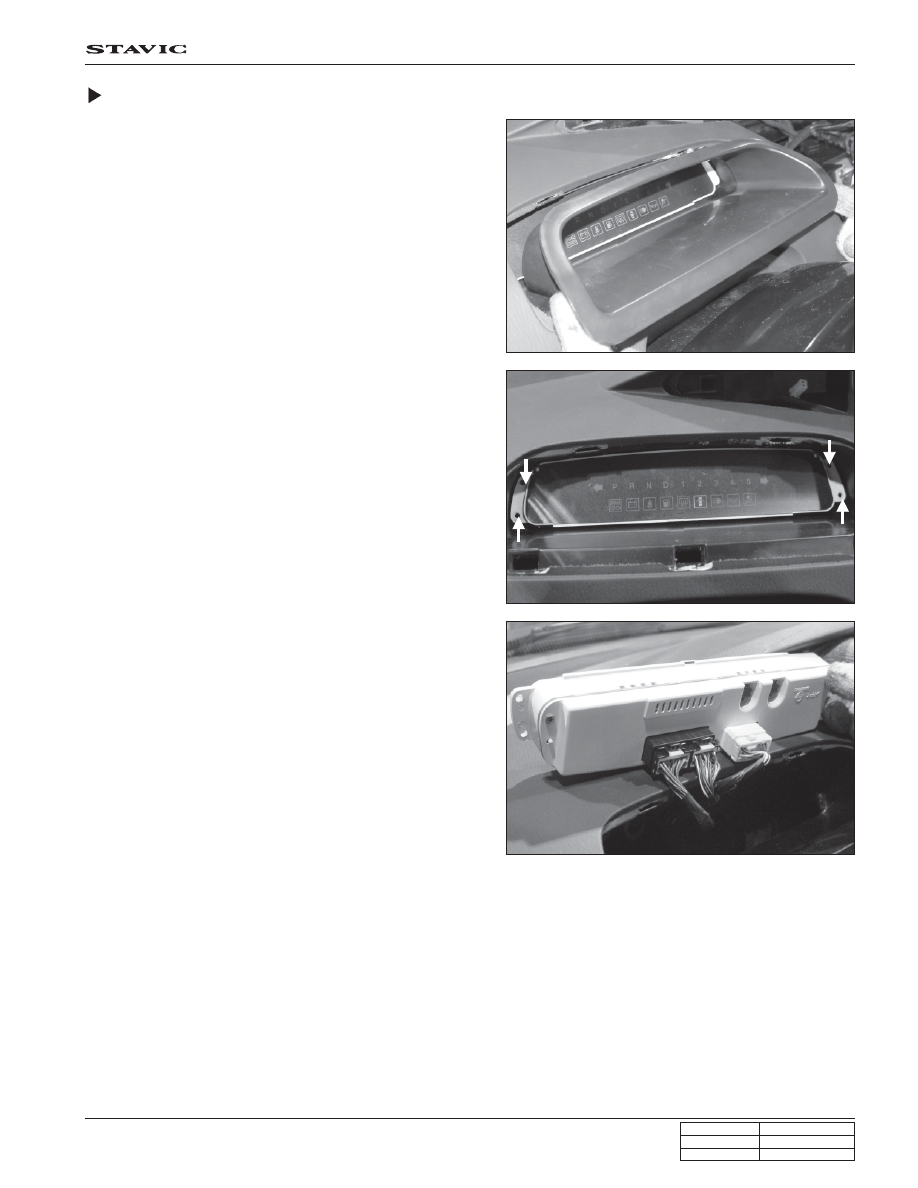

2. Unscrew the screws and pull out the indicator display

housing.

Indicator Display

1. Remove the indicator display cover.

3. Disconnect the connector and remove the indicator

display housing.

MEMO

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

....................................................................................................................................................................................................................................................................................................................................................................................................................................................

1

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

METER CLUSTER / INDICATOR DISPLAY ...... 2B-3

1. Appearance ................................................................. 2B-3

2. Connectors and circuit diagram ................................... 2B-4

3. Descriptions of indicator display .................................. 2B-6

4. Function description and inspection of meter cluster ... 2B-7

5. Warning & indicator panel ......................................... 2B-12

6. Removal and installation of meter cluster and indicator

display ...................................................................... 2B-14

Table of Contents

2B - Cluster / Warning

& Indicator Panel (2005 ~)
