RODIUS /STAVIC- 2005.07

30

2A

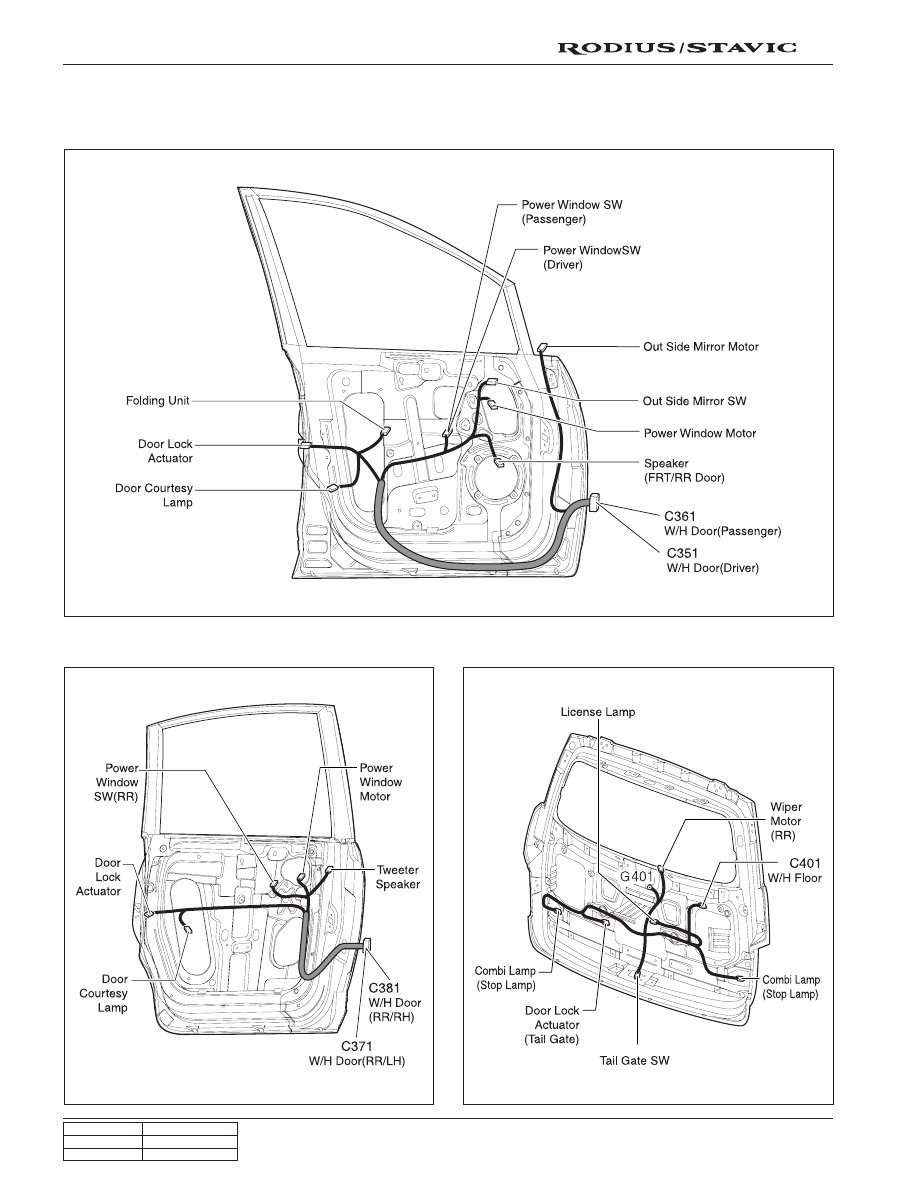

6) W/H Door

Front door

Rear door

Tailgate door

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC - 2005.07

31

2A

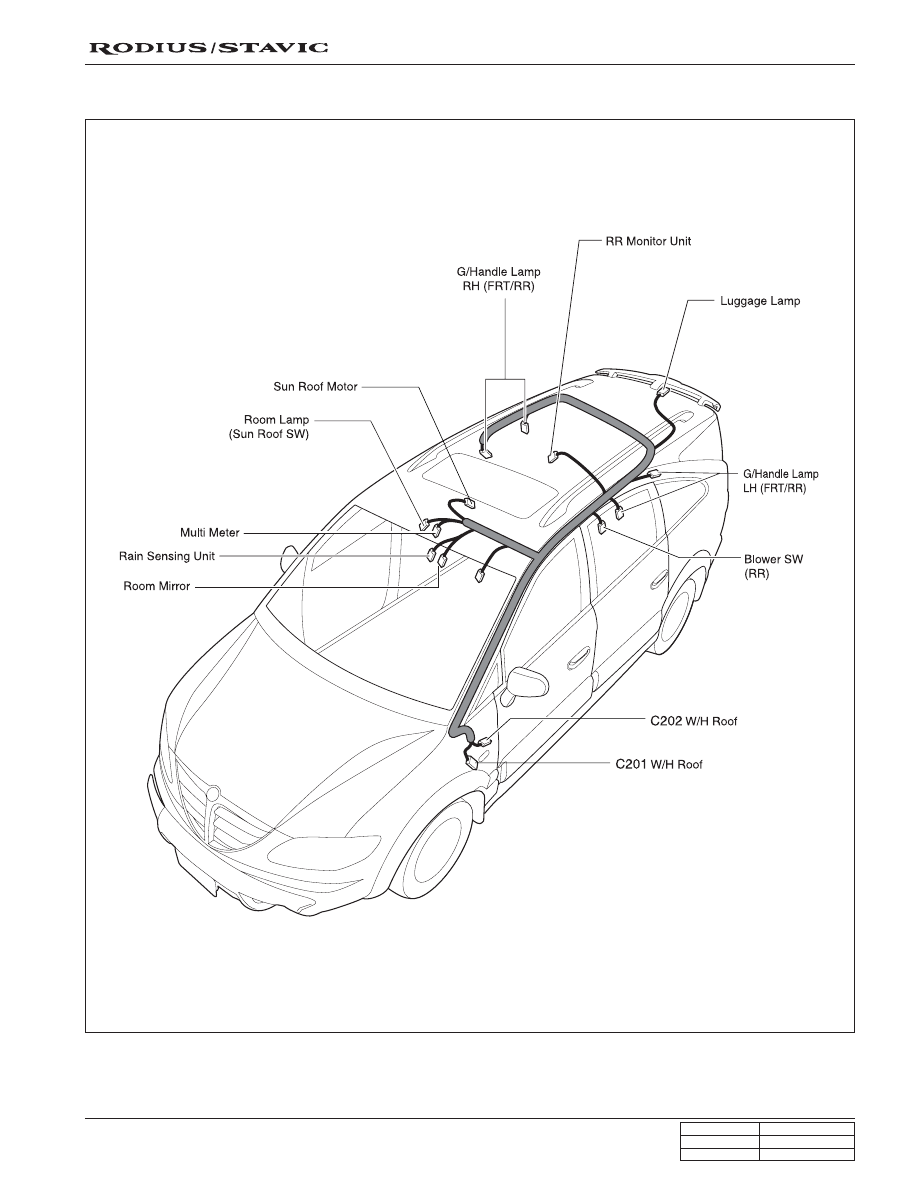

7) W/H Roof

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC- 2005.07

32

2A

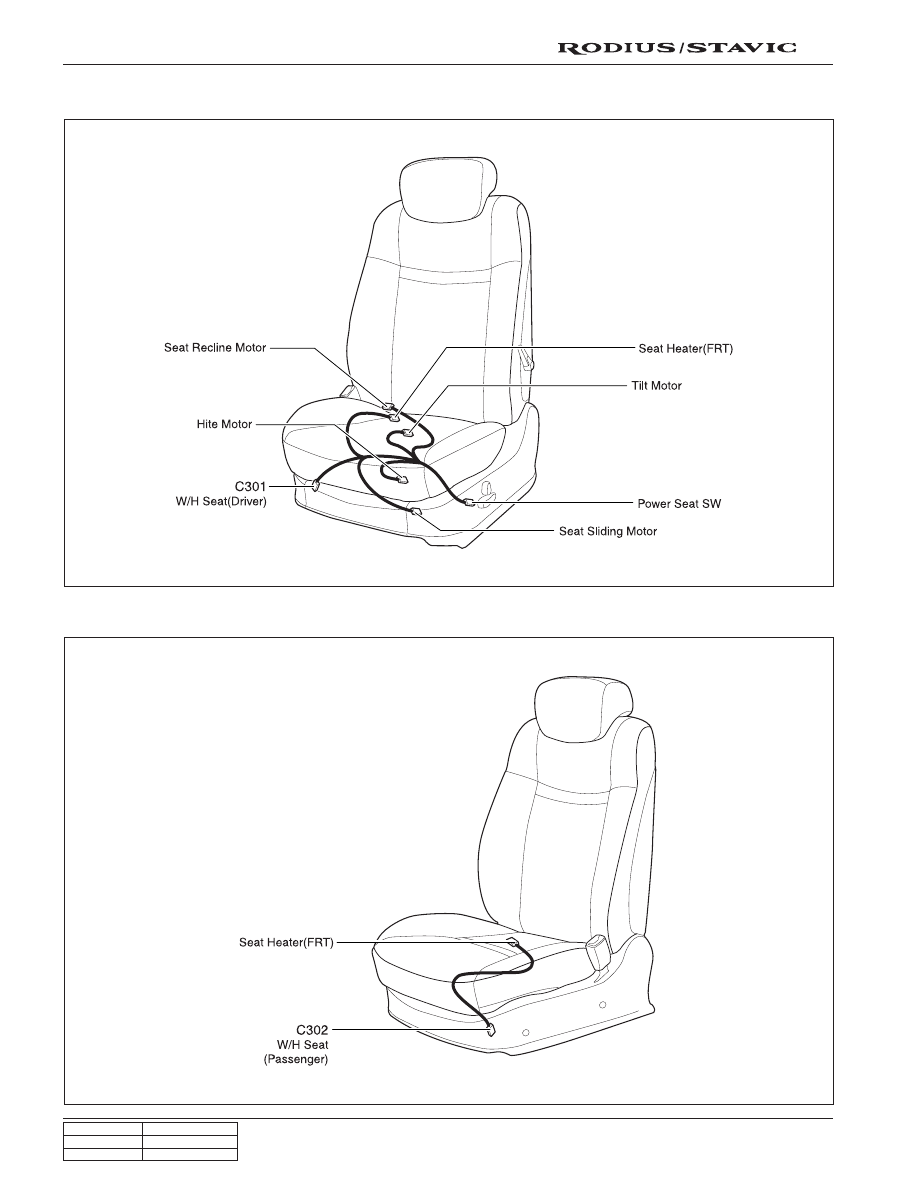

8) W/H Seat

Driver’s

Passenger’s

3

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

STAVIC - 2004.09

2B

METER CLUSTER / INDICATOR DISPLAY

1. APPEARANCE

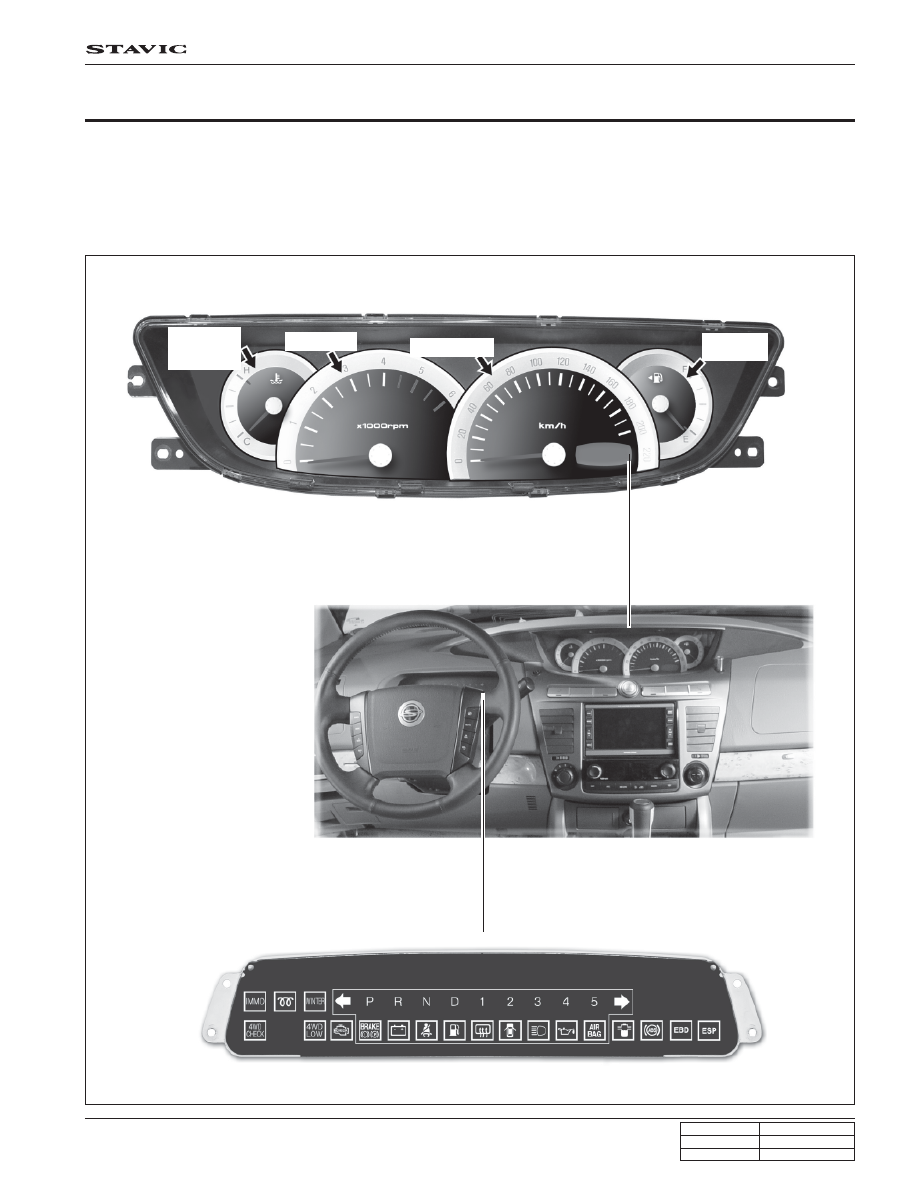

The instrument panel in this vehicle is different from conventional type of instrument panel. The meter cluster and
indicator display are separated. The meter cluster is located at the center of the dash panel, and the indicator display is
located in front of driver’s seat.

Meter cluster

Warning lamps and indicators

Speedometer

Coolant

temperature

gauge

RPM gage

Fuel level

gauge
