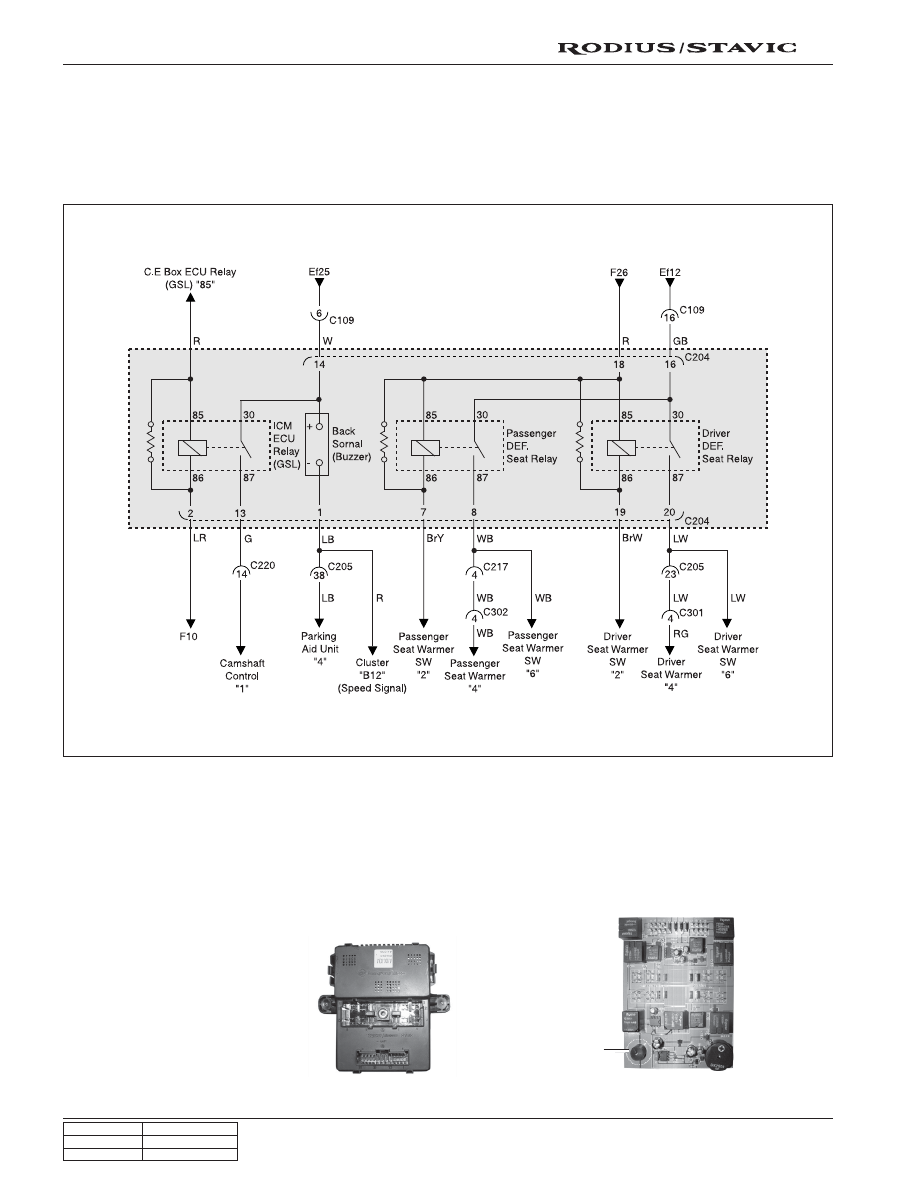

4) Seat warmer relay (front seats) / Back sonar

Each seat warmer installed in the front seats has its own relay in ICM box.

When pressing the seat warmer switch prepared for each front seat, the seat cushion and seatback get warm. The
thermistor in the seat maintains the warming temperature at around 45°C by cutting off or connecting the power to
the heated wire.

Parking Aid Sensors on Rear Bumper

In the parking aid system equipped vehicle, its control unit is installed inside of the rear quarter trim behind the driver’s
seat. The buzzer for the back sonar is installed in ICM box. For more details, refer to “Parking Aid System” section in
this manual.

Back sonar

buzzer

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC - 2005.07

23

2A

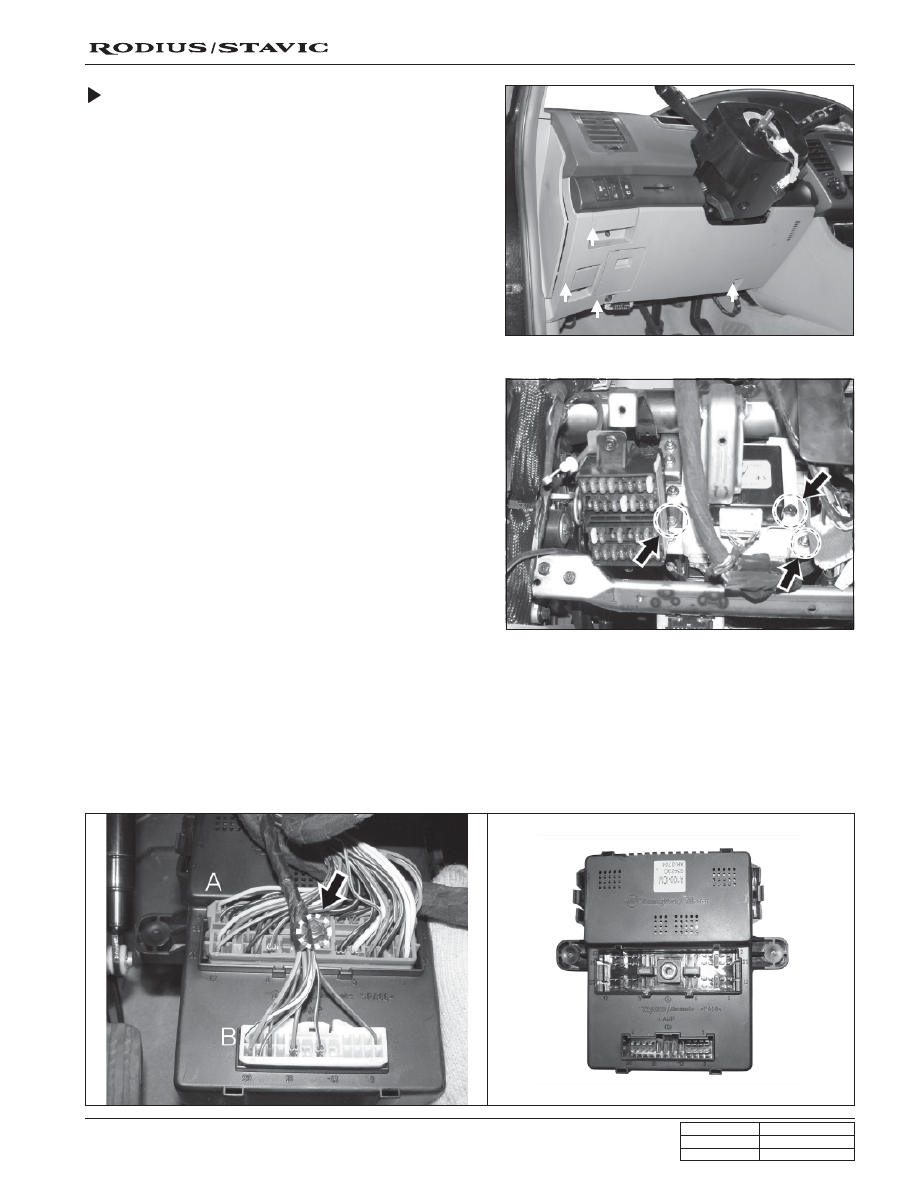

3. Unscrew the nuts and remove the ICM box.

Removal and Installation of ICM Box

1. Disconnect the negative battery cable.

2. Unscrew the screws from driver side instrument panel

undercover and remove the undercover.

4. Unscrew the connector mounting nuts from the back of the ICM box and disconnect the connector A and B.

5. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC- 2005.07

24

2A

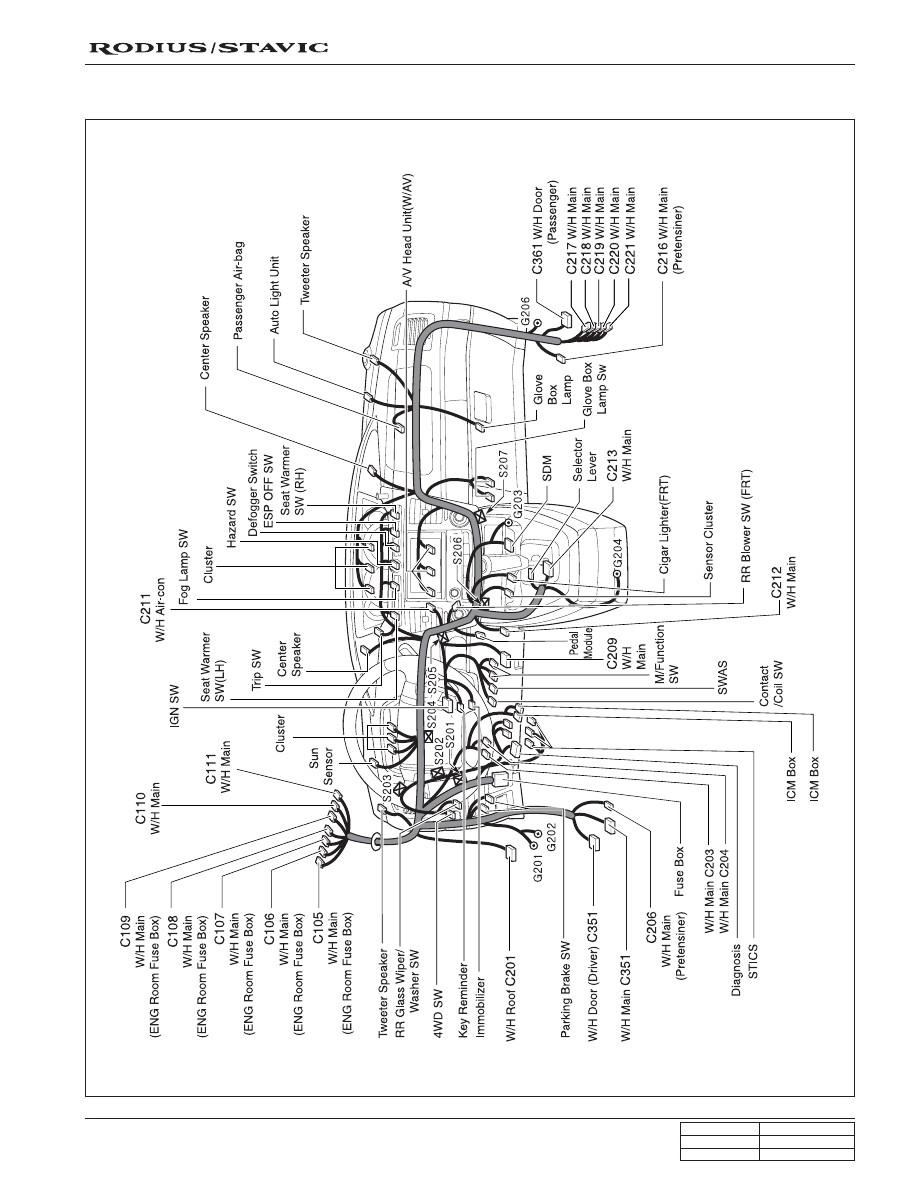

Wiring Harness, Connector & Ground Location

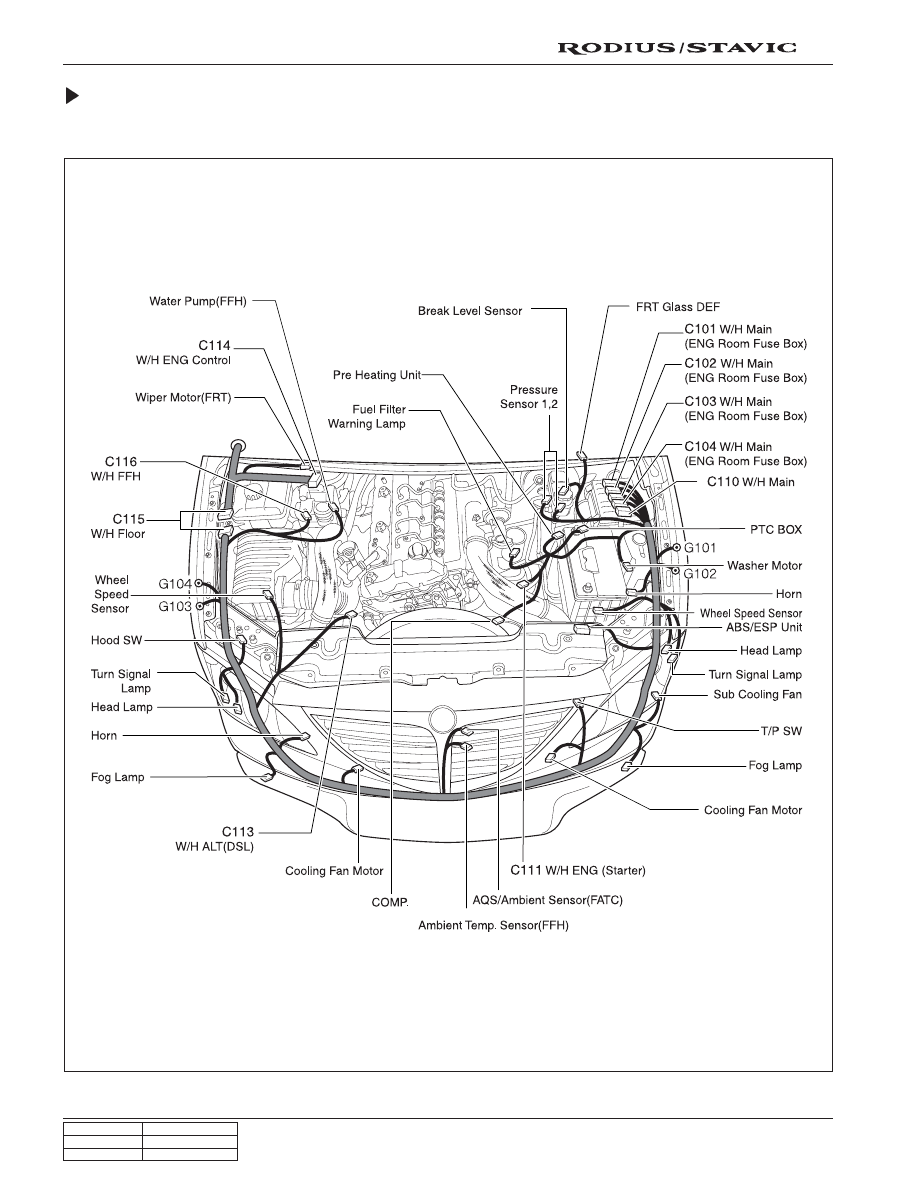

1) W/H Engine room

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC - 2005.07

25

2A

2) W/H Main
