ELECTRICAL SYSTEM

RODIUS /STAVIC- 2005.07

18

2A

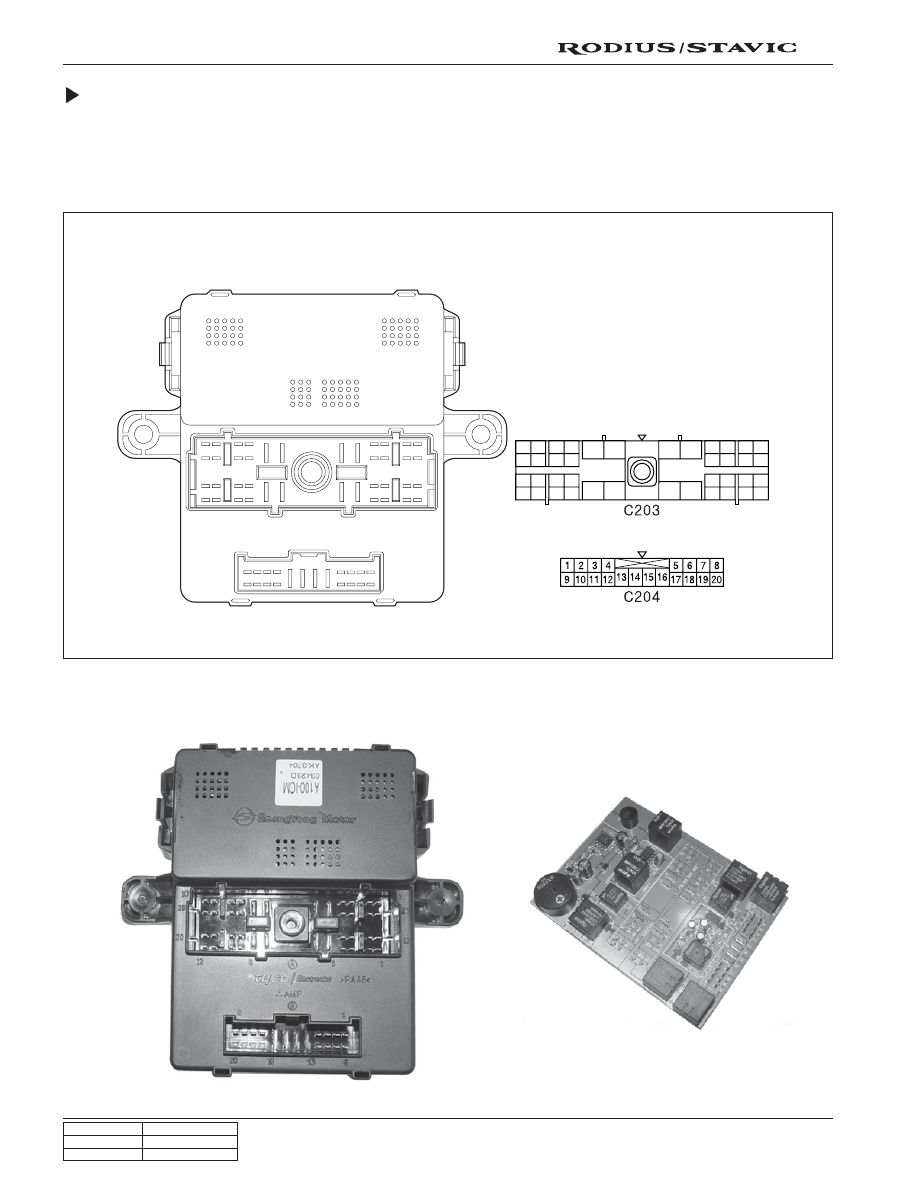

ICM Connector Arrangement (Based on Wiring Connectors)

Never apply battery power from the rear of ICM printed circuit board directly to inspect internal circuit of the ICM box.
Otherwise, the precise internal circuits and safety circuit can be destroyed. When inspecting the power supply and
others, the connectors should be removed before starting the inspection.

The pin arrangements shown in the figure are also based on the connectors.

1 2

3 4

13 14 15 16

21 22 23 24

25 26 27 28
37 38 39 40

29 30 31 32

17 18 19 20

9 10 11 12

5

6

33 34

35 36

7

8

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC - 2005.07

19

2A

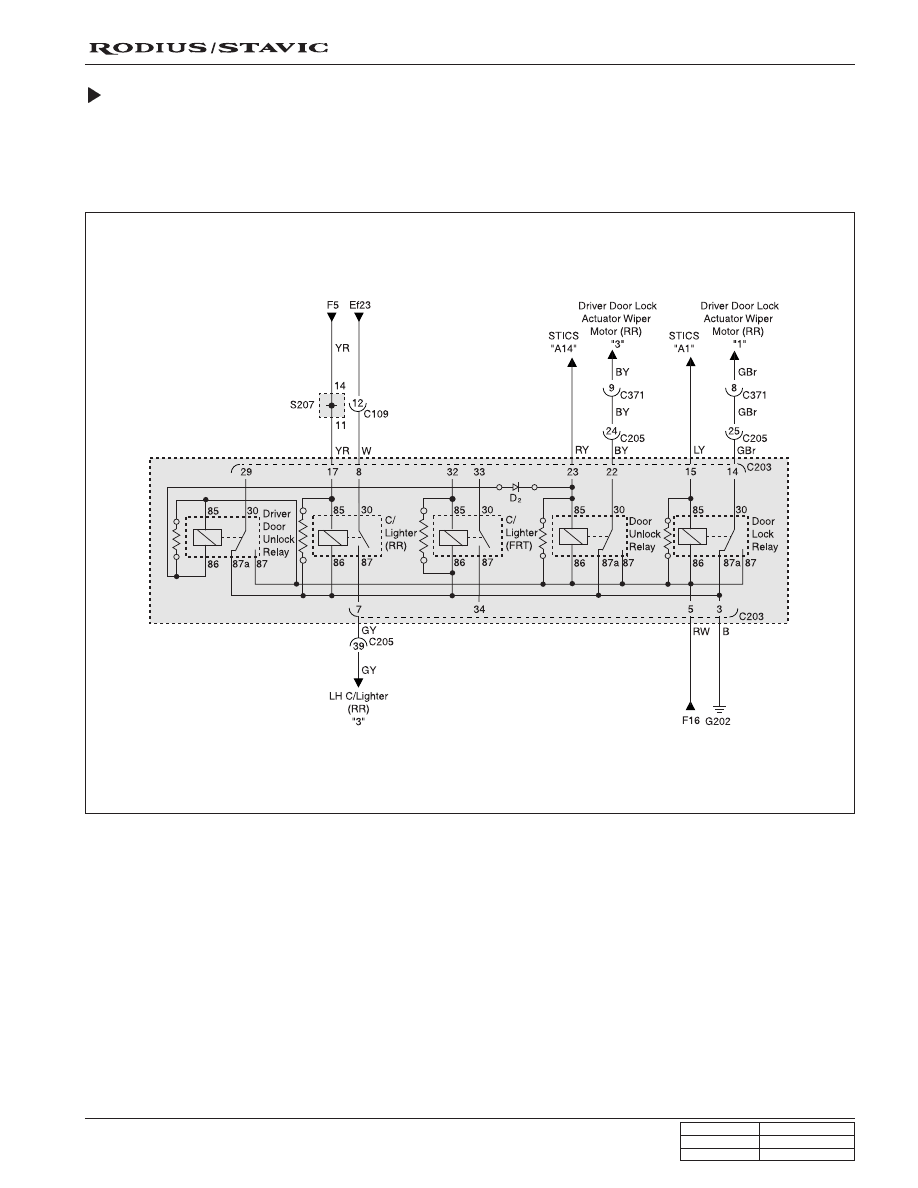

ICM Box Power Supply Circuit

The figure shows ICM box power supply circuit. For details, refer to the appropriate wiring diagrams.

1) Door lock relay / Cigarette lighter relay / Power outlet relay

This circuit is supplied the power through the relevant fuse and STICS. The supplied power magnetize the switch to
supply the power to the appropriate system.

To inspect this circuit, turn the switch on and check if the voltage from ICM box is within specified range. After then,
check the output through the ICM box.

Checking the condition of the relevant component in the system should be done before doing this inspection.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC- 2005.07

20

2A

The rain sensing system in this vehicle has a different control logic compared to conventional rain sensing system. In the
conventional rain sensing system, the rain sensor unit controls the wipers directly. However, in this vehicle, the rain
sensor communicates the data with STICS, and the STICS controls the wiper motor.

Signals from STICS to rain sensor unit contain the information that there is no rain under the current mode based on
following conditions;

- Washer switch is operating,

- Operating under MIST mode, or

- The multifunction wiper switch is in AUTO mode.

For more details, refer to the “Rain Sensing Wiper” section in this manual.

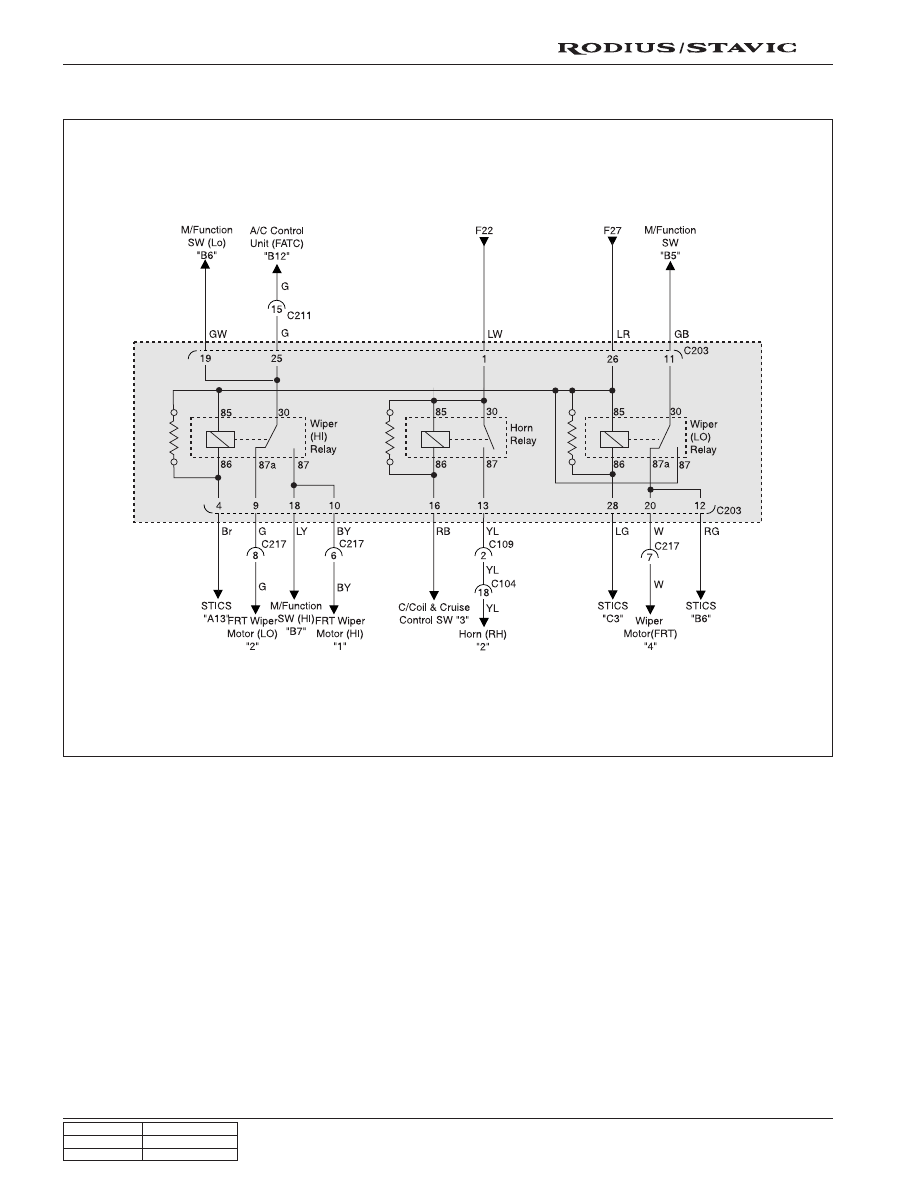

2) Wiper HI and LO relay / Horn relay

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC - 2005.07

21

2A

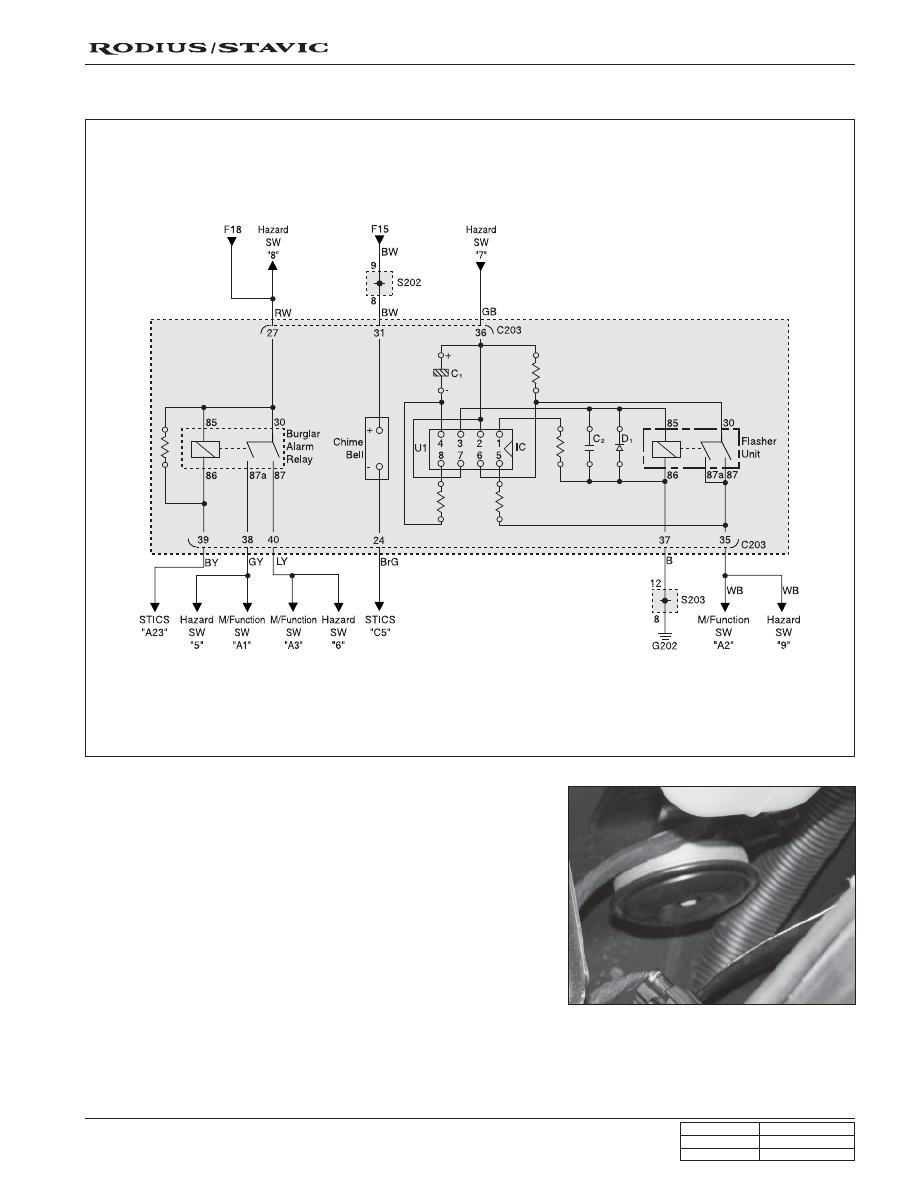

3) Flasher unit relay / Burglar relay / Chime bell

The relay and unit that controls the hazard warning flasher and turn
signal lamp is also installed in the ICM box as illustrated. Also, the
theft deterrent relay that operates the hazard warning flasher and the
theft deterrent horn is installed.

This vehicle has two separate horns in the engine compartment; a
horn (see figure) located in front of the battery is used for theft deter-
rent warning and beep sound during the operation of doors by remote
control key.
