SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 205

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

20

2A

The rain sensing system in this vehicle has a different control logic compared to conventional rain sensing system. In the
conventional rain sensing system, the rain sensor unit controls the wipers directly. However, in this vehicle, the rain
sensor communicates the data with STICS, and the STICS controls the wiper motor.

Signals from STICS to rain sensor unit contain the information that there is no rain under the current mode based on
following conditions;

- Washer switch is operating,

- Operating under MIST mode, or

- The multifunction wiper switch is in AUTO mode.

For more details, refer to the “Rain Sensing Wiper” section in this manual.

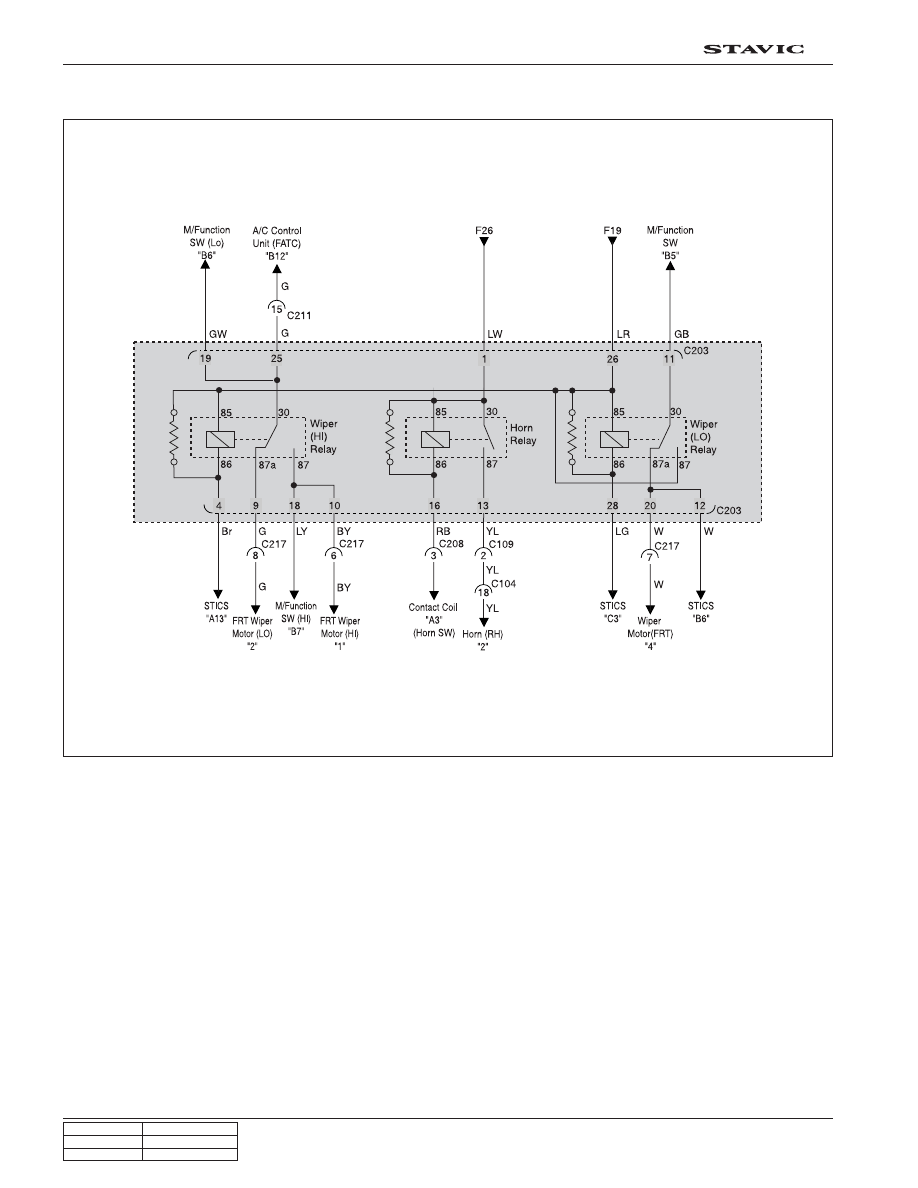

2) Wiper HI and LO relay / Horn relay

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

21

2A

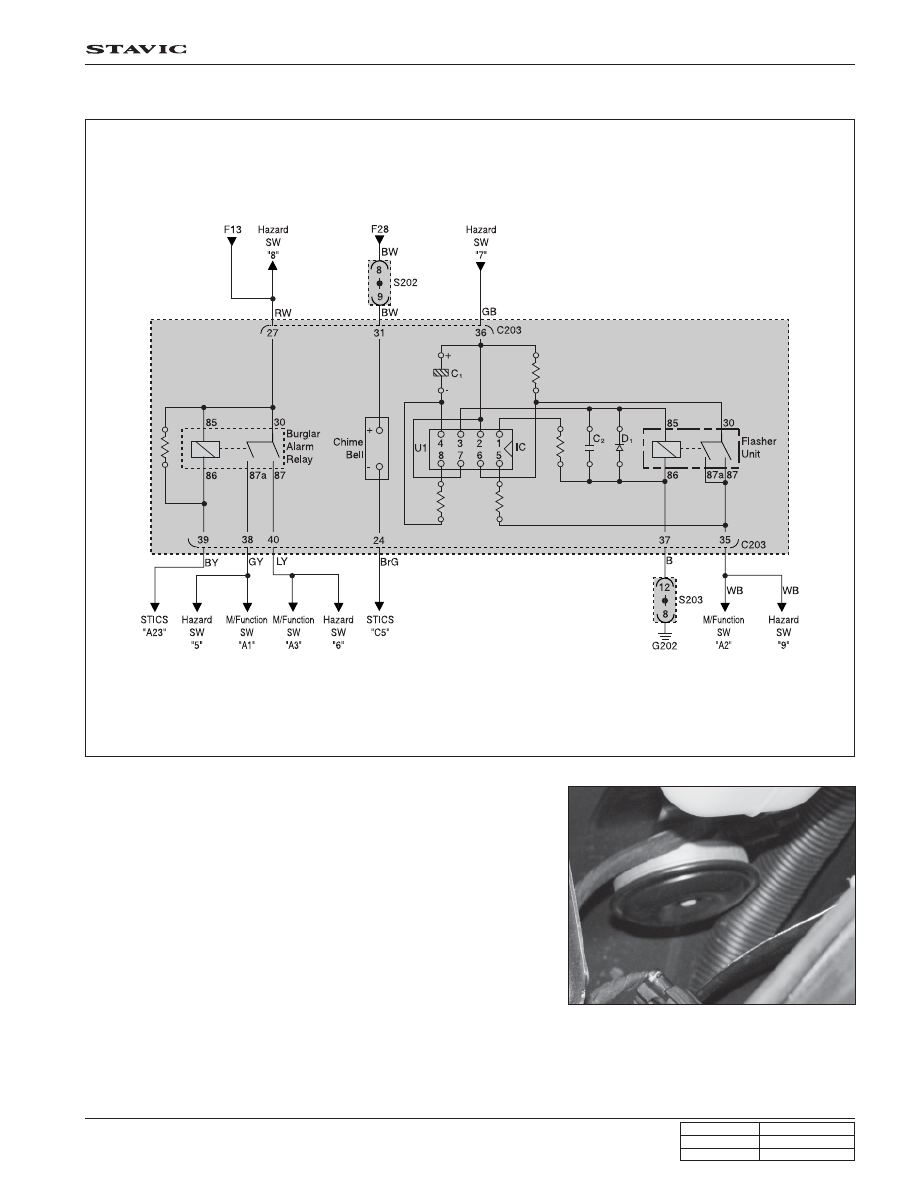

3) Flasher unit relay / Burglar relay / Chime bell

The relay and unit that controls the hazard warning flasher and turn
signal lamp is also installed in the ICM box as illustrated. Also, the
theft deterrent relay that operates the hazard warning flasher and the
theft deterrent horn is installed.

This vehicle has two separate horns in the engine compartment; a
horn (see figure) located in front of the battery is used for theft deter-
rent warning and beep sound during the operation of doors by remote
control key.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

22

2A

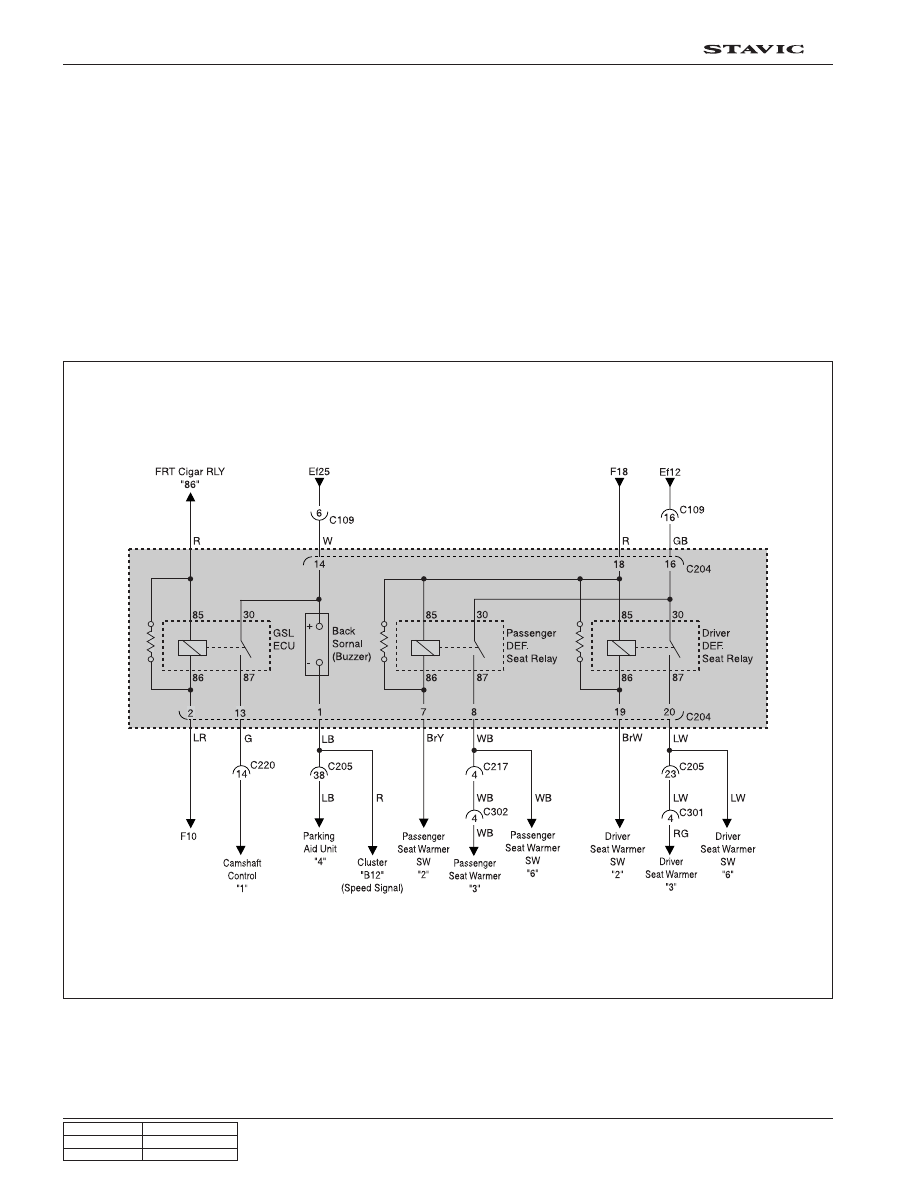

4) Seat warmer relay (front seats) / Back sonar

Each seat warmer installed in the front seats has its own relay in ICM box.

When pressing the seat warmer switch prepared for each front seat, the seat cushion and seatback get warm. The
thermistor in the seat maintains the warming temperature at around 45¡ÆC by cutting off or connecting the power to the
heated wire.

The heated glass (defogger) system contains the windshield heated glass, outside rearview mirror heated glass, and
tailgate heated glass.

When the seat warmer switch is operated, the seat warmer relay in engine compartment fuse box supplies the power to
tailgate glass and outside rearview mirrors. This is controlled by STICS. However, the windshield heated glass (deicer)
is controlled by the separate control unit installed behind the driver side instrument panel undercover.

The fuse (30A) for tailgate heated glass and outside rearview mirror heated glass and the fuse (15A) for windshield
heated glass are in the engine compartment fuse box.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

23

2A

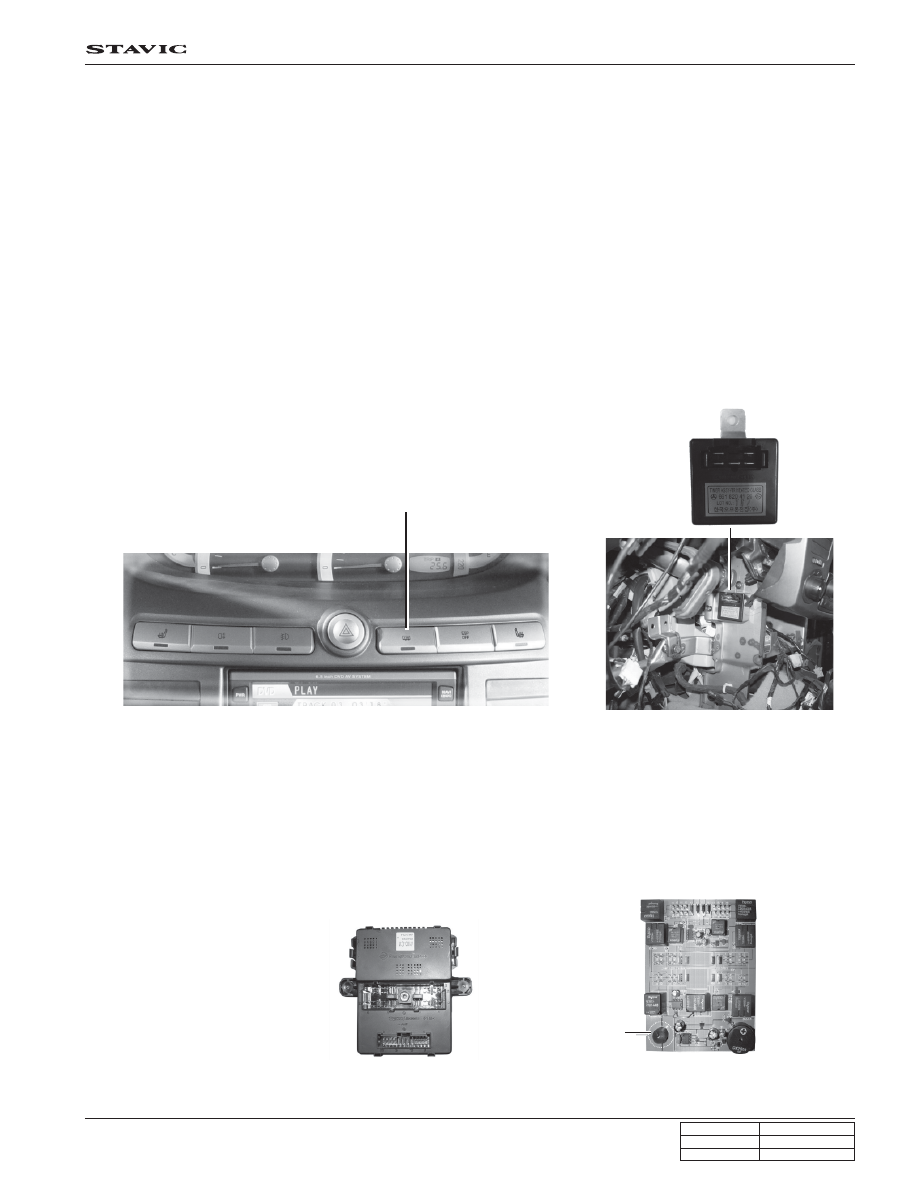

Tailgate Heated Glass, Outside Rearview Mirror Heated Glass (controlled by STICS)

1. The outside rearview mirror heated glass operates for 12 minutes when turning on the defogger switch while the

engine is running.

2. If the defogger switch is pressed again during the operation, the operation stops.

3. If the defogger switch is pressed again within 10 minutes after completion of the first operation, the defogger

system operates for 6 minutes just for once.

4. The defogger is not available when the ignition switch is in “OFF” position or the alternator is not running.

Windshield Heated Glass (controlled by separate unit)

The windshield heated glass control unit is installed behind the driver side Instrument panel undercover. Whenever
pressing the switch, the windshield heated glass operates for 12 minutes and turns off if pressed again during its
operation. If the switch is pressed again, it operates another 12-minute operation.

Parking Aid Sensors on Rear Bumper

In the parking aid system equipped vehicle, its control unit is installed inside of the rear quarter trim behind the driver’s
seat. The buzzer for the back sonar is installed in ICM box. For more details, refer to “Parking Aid System” section in
this manual.

Back sonar

buzzer

Defogger switch

Windshield heated glass unit
