Fuses and relays

Connector arrangement

FUSES AND RELAYS

Fuse and relay box is located in the engine compartment, and the interior fuse box is located under the driver side
instrument panel. Especially, ICM box, an integrated circuit of relays, is mounted along with STICS behind the driver
side instrument panel.

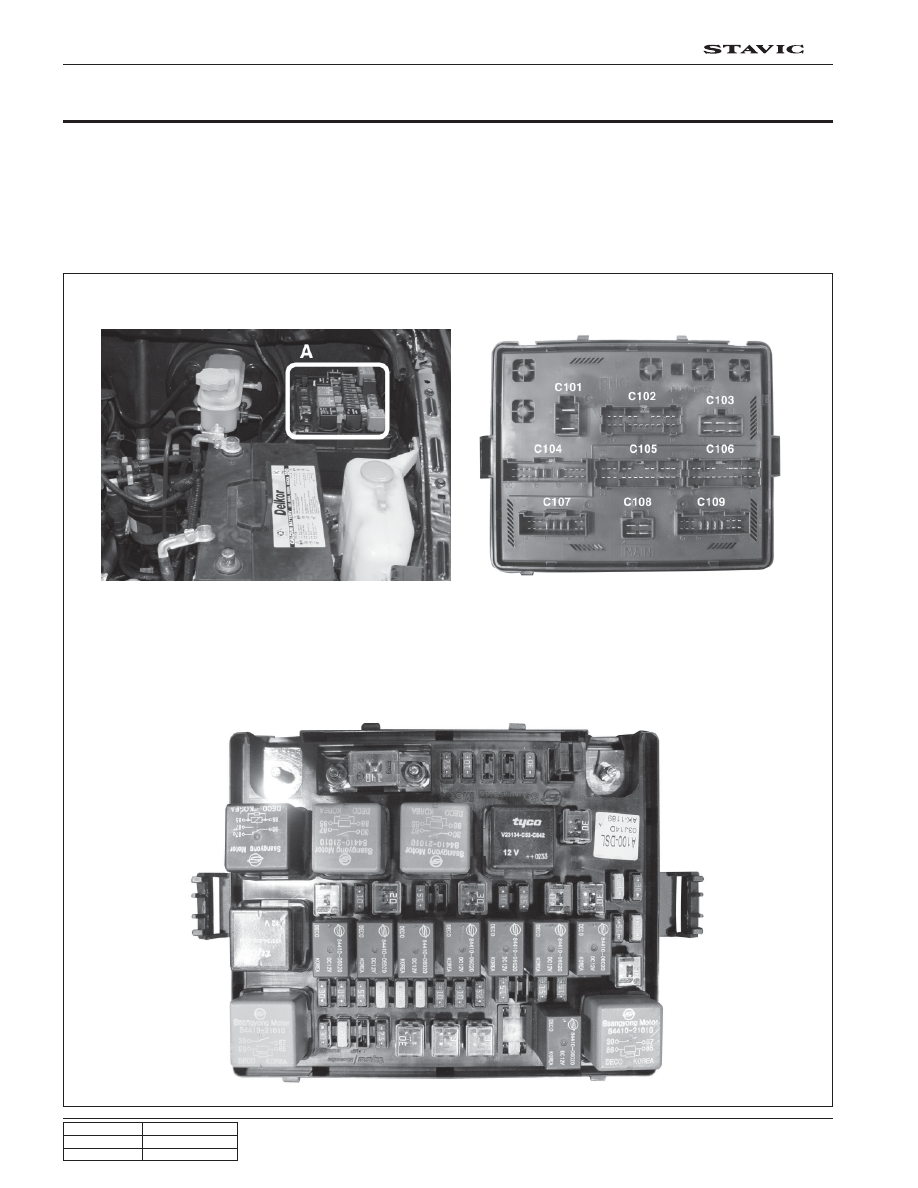

1. ENGINE COMPARTMENT FUSE AND RELAY BOX

Back of the fuse and relay box (after removal)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

13

2A

SB1

SB2

SB3

SB4

SB5

SB6

SB7

SB8

SB9

SB10

SB11

Ef1

Ef2

Ef3

Ef4

Ef5

Ef6

Ef7

Ef8

120A/140A

60A

30A

30A

30A

50A

30A

30A

30A

30A

30A

10A

15A

15A

10A

15A

20A

30A

15A

Generator (FFH, PTC)

ABS, ABS/ESP

IGN KEY “2”, Start RLY

Condenser Fan (High)

Condenser Fan (Low),

Condenser Fan

ENG MAIN RLY

Fuse Box “BATT-2”

Blower (FRT)

PWR Window (FRT)

PWR Window (RR)

Fuse Box “BATT-1”

A/C Compressor, A/C RLY

Fog Lamp (FRT)

DRL

Horn

ENG SNR 1

FFH, Window Shield Glass

ABS, ABS/ESP

Head Lamp (Low)

AV System

Glass HTD

Seat Warmer

Driver PWR Seat

Tail Lamp (LH)

Tail Lamp (RH)

Illumination

ENG ECU

Fuel Pump (GSL)

Head Lamp (High)

RR Blower

PWR Outlet (RR)

AV Head Unit, Tuner Unit

Buzzer

Out Side Mirror

Fuse NO.

Capacity

Usage

Fuse NO.

Capacity

Usage

20A

30A

15A

15A

20A

10A

10A

7.5A

15A

15A

15A

15A

20A

20A

15A

15A

Ef9

Ef10

Ef11

Ef12

Ef15

Ef16

Ef17

Ef18

Ef19

Ef20

Ef21

Ef22

Ef23

Ef24

Ef25

Ef26

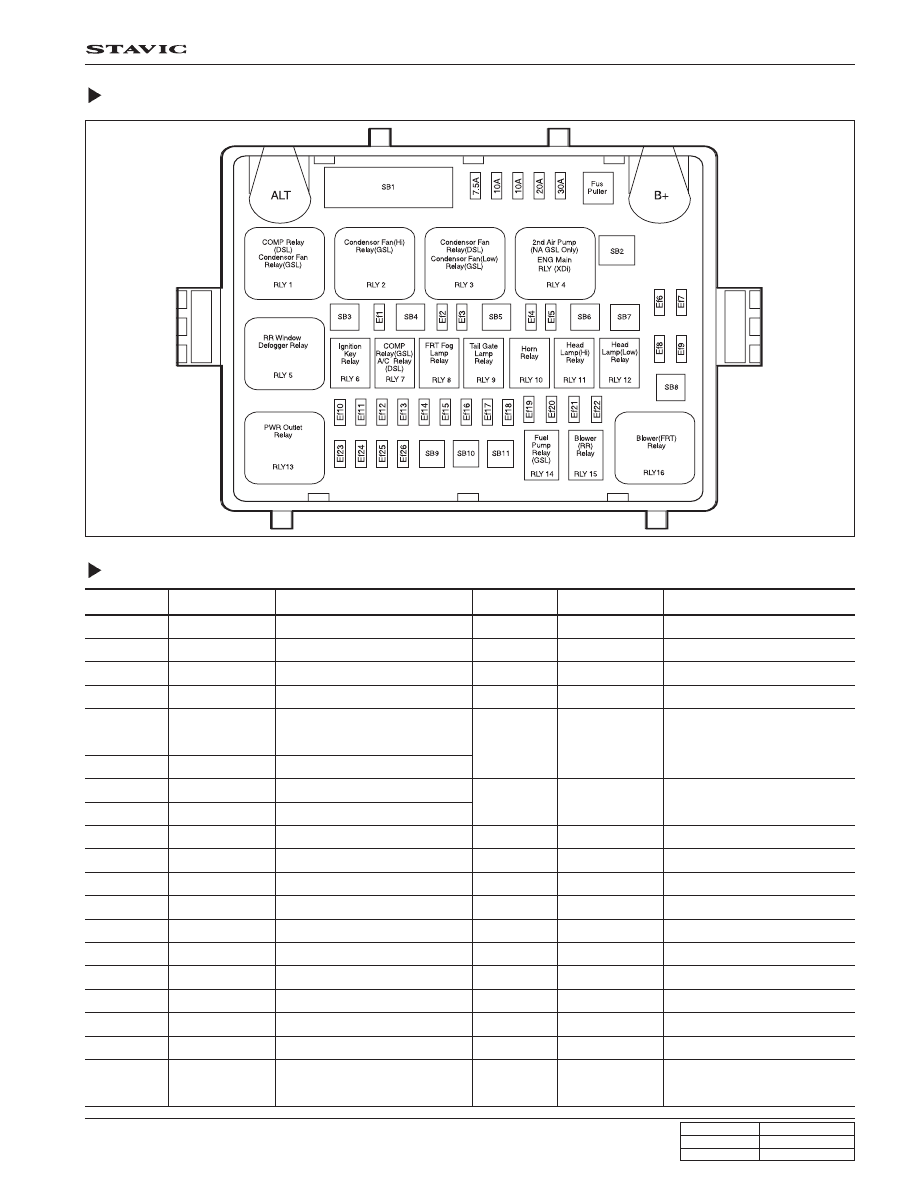

Arrangement of Fuses and Relays

Descriptions of Fuses and Relays

Ef13

Ef14

20A

20A

Sun Roof

4WD (TOD)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

14

2A

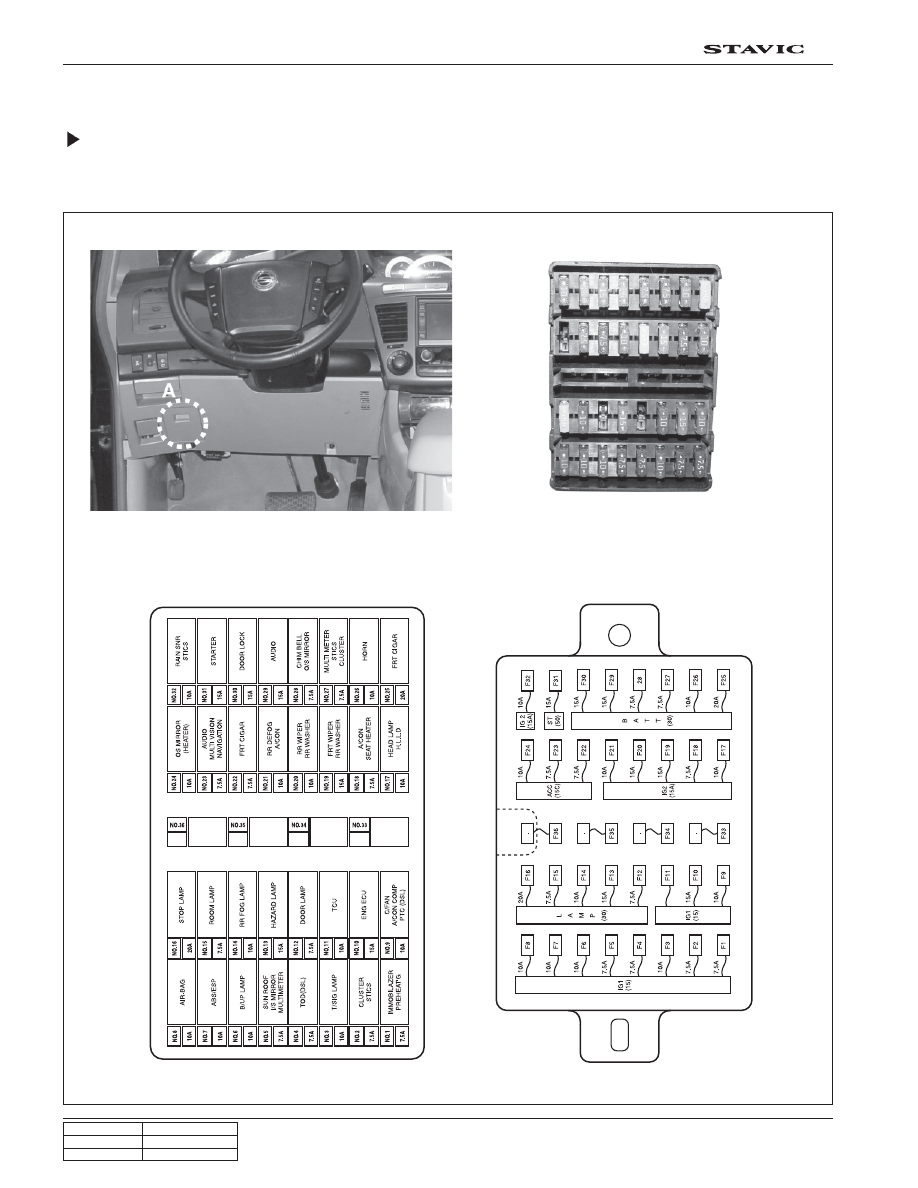

2. INTERIOR FUSE AND ICM BOX

Interior Fuse Box

• The interior fuse box is located in the lower area of driver side instrument panel.

• To check the fuses, open the driver side door and remove the fuse box cover.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

15

2A

ICM(Integrated Control Module) Box

The ICM box is installed along with RK STICS on the bracket behind the Instrument panel undercover.

It contains an integrated module with around 14 relays according to the vehicle model. Relays in the module are installed
on the integrated circuit with a safety circuit. This system operates with small current (by using transistor) and mini-
mizes the sparks that occur during operations (connection/disconnection) of relays; therefore its durability and wear
resistance has been greatly increased compared to the conventional relays.

Relays in the ICM box cannot be replaced respectively; so when the internal components (including relay) are defective,
ICM box should be replaced as an assembly.

ICM box

RK STICS
