DI05-20

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

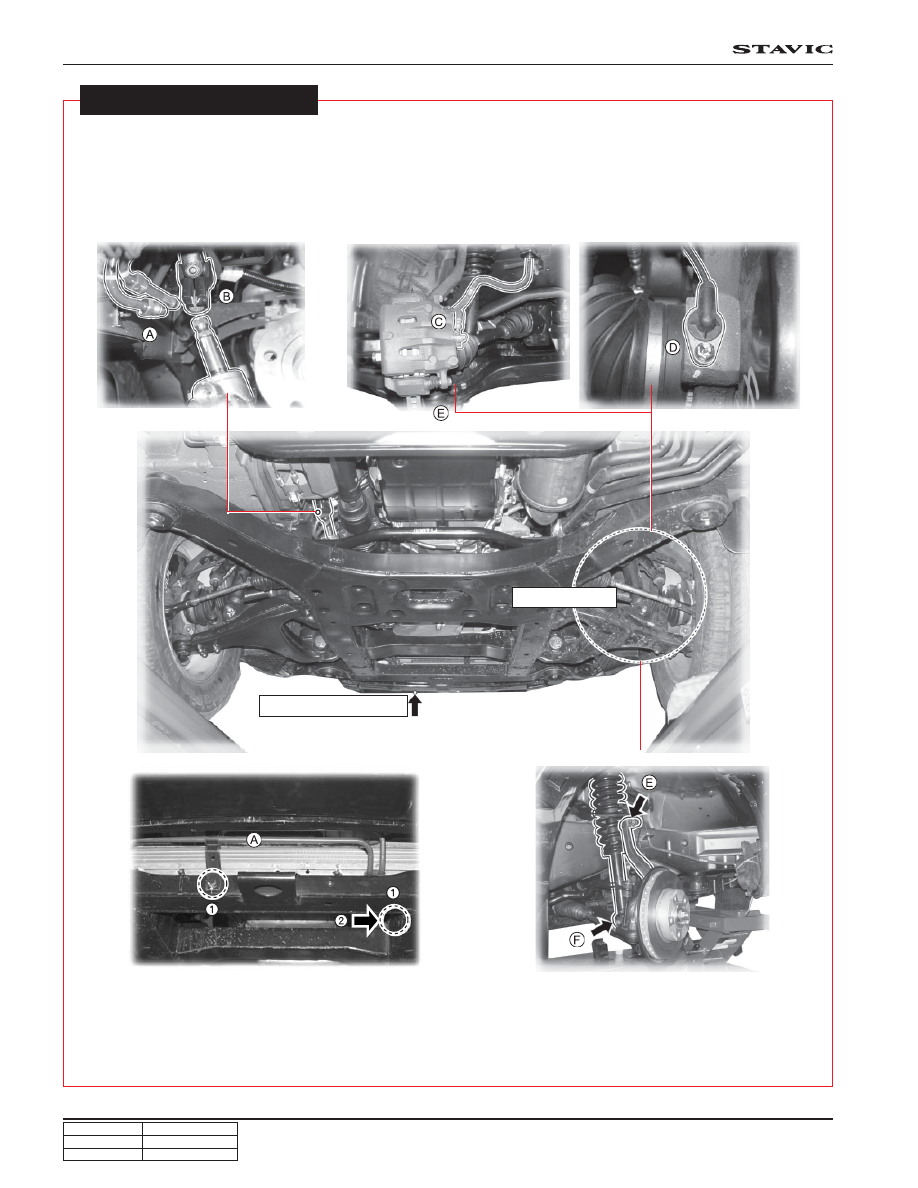

Connections on the Sub Frame

1. Remove the high and low pres-

sure pipes (A) of the steering
pump and lower arm shaft (B)
from the rear side of the sub
frame.

2. Remove the front brake caliper (D) and the wheel speed sensor (D).

(Attach the removed brake caliper and wheel speed sensor to the
vehicle after removing them.)

Power steering pipe

Suspension

3. Remove the high and low pressure pipes (A) of

the steering pump on the front side of sub
frame, and loosen the pipes.

4. Unscrew the bolts and nuts on the upper

end of the knuckle and lower end of the
shock absorber, and remove the knuckle
and shock absorber.

DI05-21

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

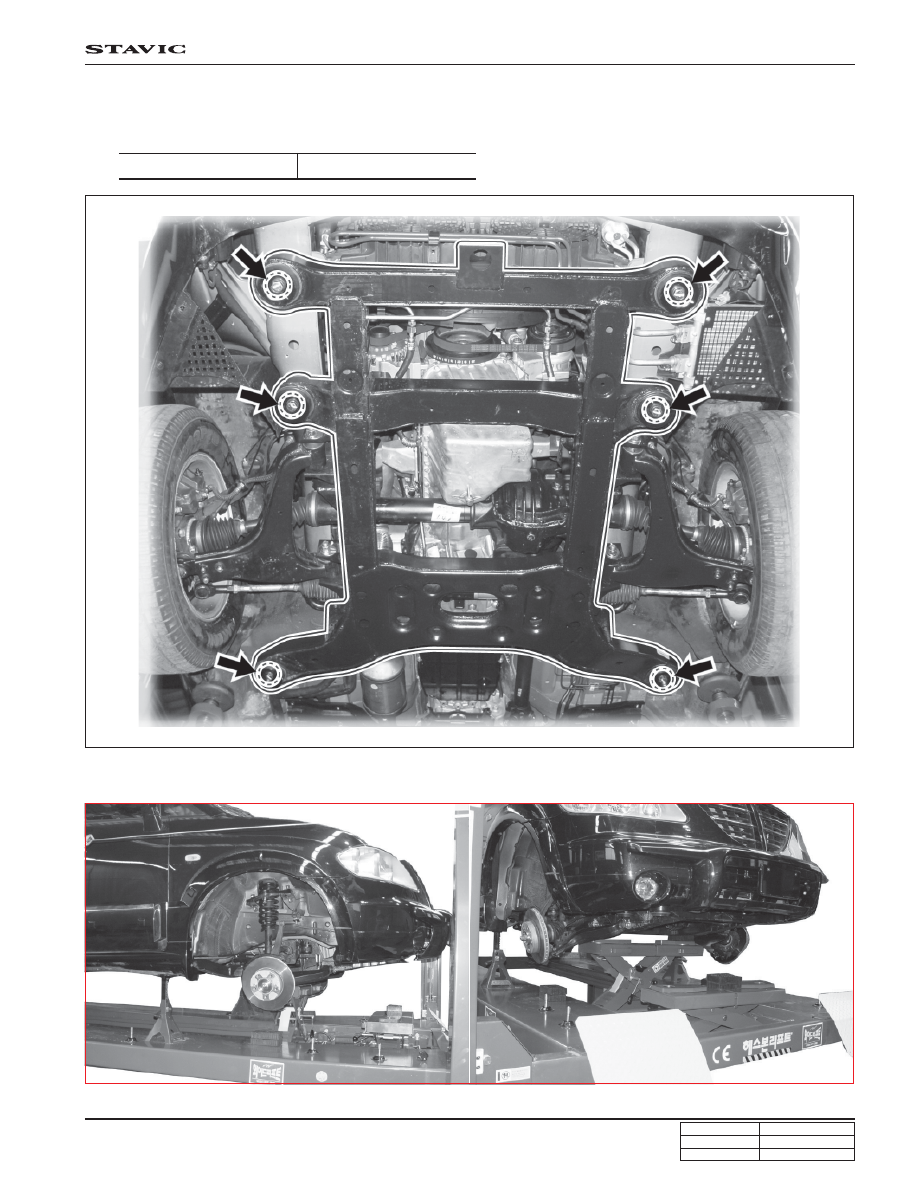

2. Place each auxiliary lift under the front and rear side of the sub frame while taking care of the center point

of gravity. Mark on the mounting bolts of the sub frame, and remove the bolts (19mm x 6).

Installation Notice

3. Remove the sub frame by lowering the auxiliary lifts.

Tightening torque

95 ~ 142 Nm

DI05-22

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

4. To prevent any damage, place the rubber blocks on the sub frame contact points in the 4-post lift before the sub

frame is lowered completely.

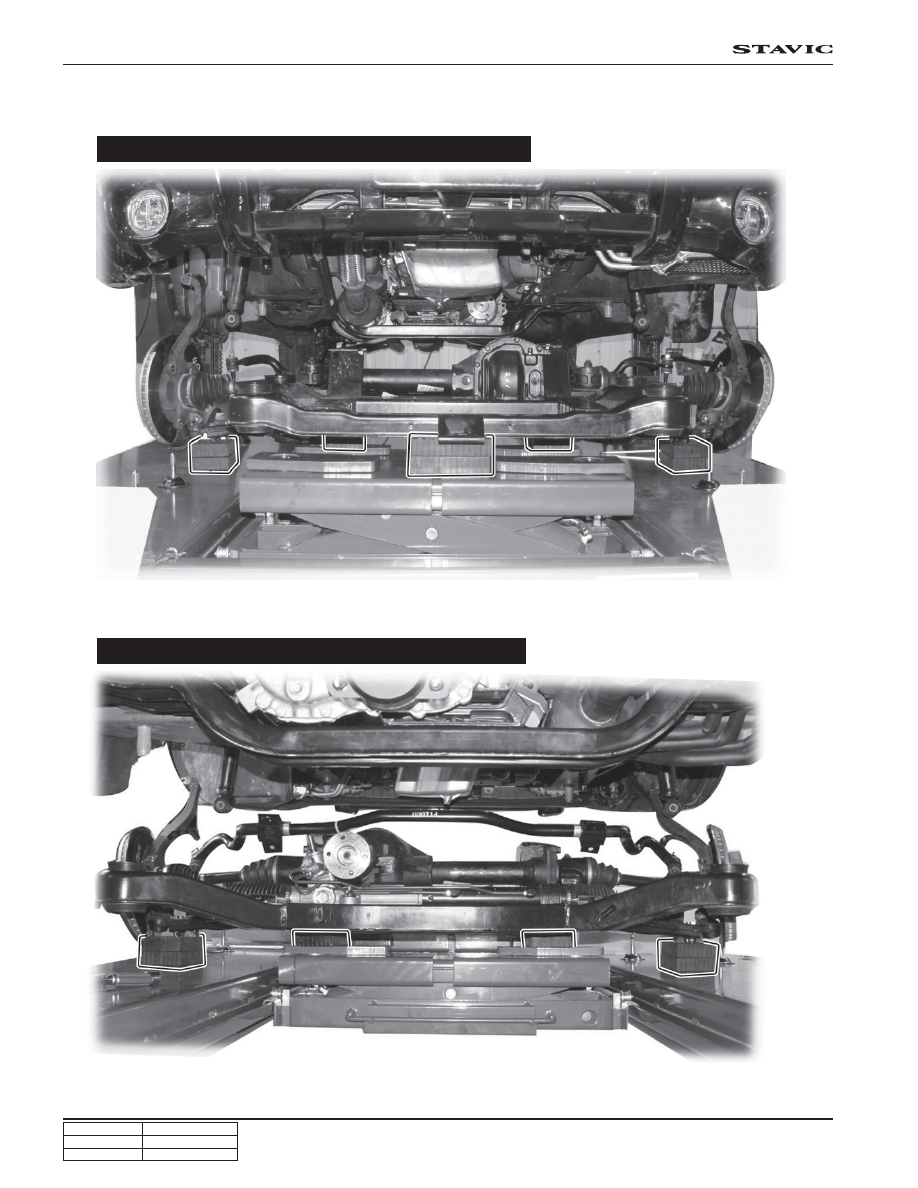

Rubber block installation points for front side of sub frame

Rubber block installation points for rear side of sub frame

DI05-23

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

6. Unscrew the oil pan bolts (10 mm) and remove the oil pan.

5. Install the sub frame in the reverse order of removal. Make sure that the sub frame is securely seated on the

mounting holes.
