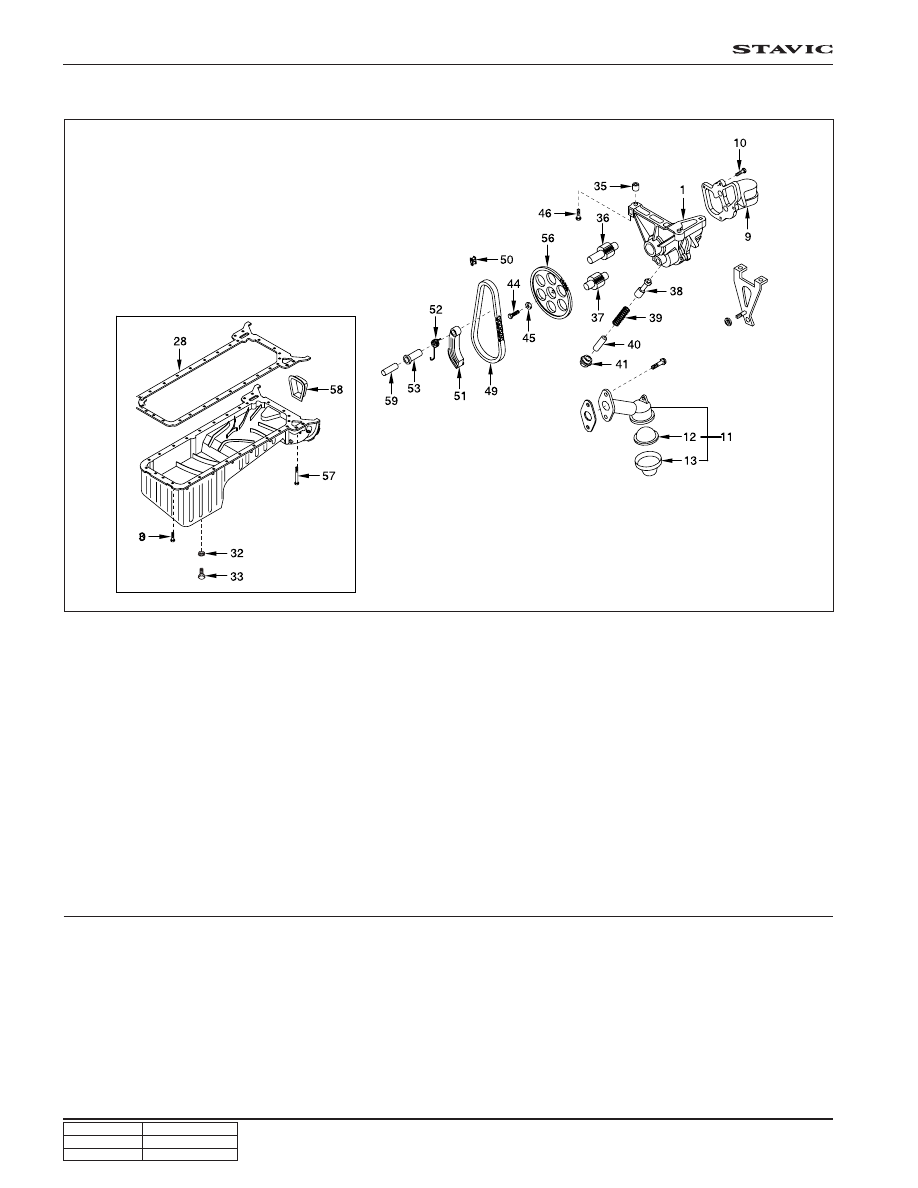

OIL PAN ASSEMBLY

1. Oil pump

9. Oil pump cover

10. Bolt

32. Drain plug washer

33. Drain plug .............. 25

± 2.5 Nm(replace the washer)

35. Spring pin

36. Oil pump drive shaft

37. Oil pump driven shaft

38. Oil pump relief valve piston

39. Spring

40. Oil pump relief valve pin

41. Oil pump relief valve plug

44. Bolt ................................................................... 10 Nm

45. Washer

46. Bolt

49. Oil pump roller chain

50. Oil pump chain lock link

51. Oil pump chain tensioner

52. Oil pump chain spring

53. Bush

56. Oil pump sprocket

57. Bolt

58. Dust cover

59. Cylindrical pin

DI05-17

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

BLANK

DI05-18

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

Removal and Installation of Oil Pan

Preceding works:

- Draining engine coolant

- Setting up the safety device for the sub frame and

removal of tires

- Removal of front propeller shaft

Procedures for Sub Frame Assembly

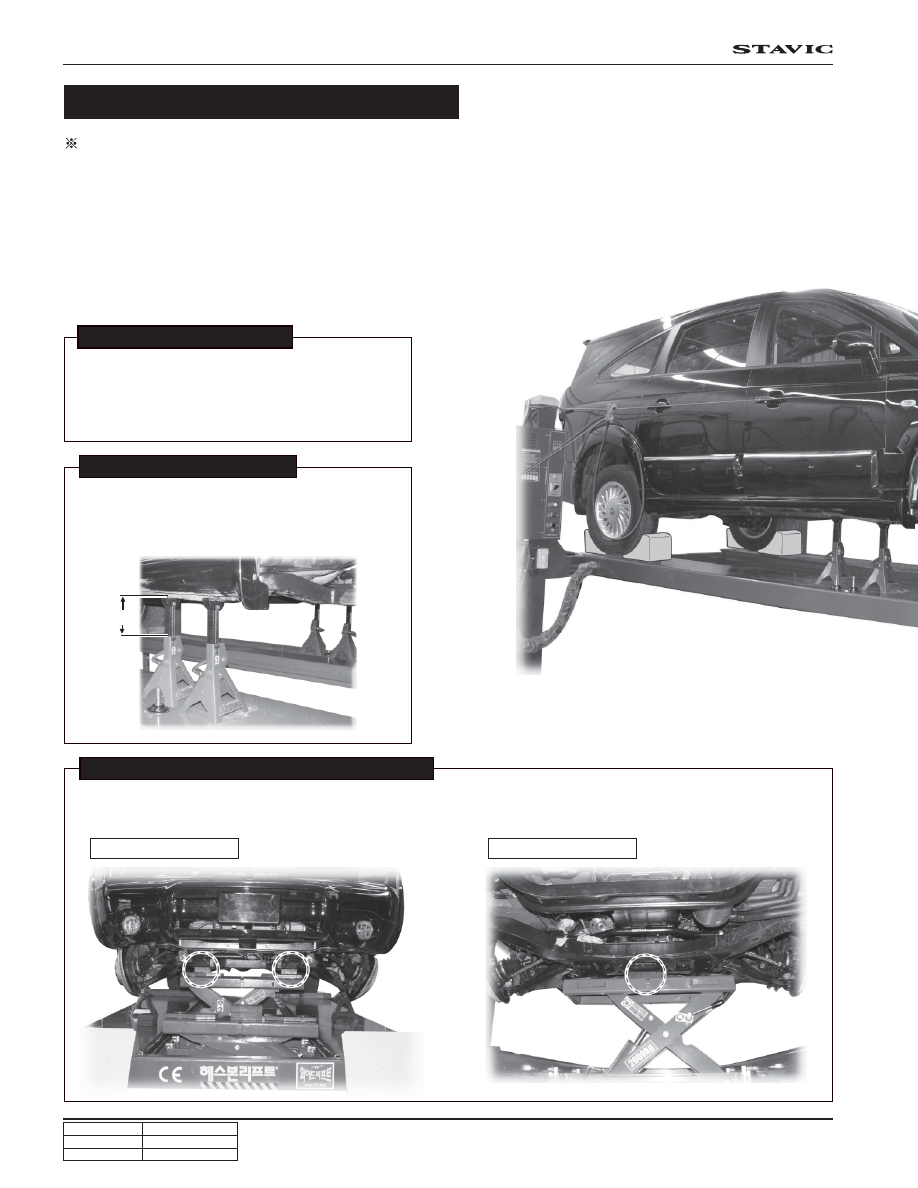

1. Placing the wheel chocks

The large portion of vehicle weight is applied to the
rear part of the vehicle when working on the 4-post
lift. Place the chocks under the rear wheels as
shown in the figure.

2. Installing the safety stands

To minimize the hazard, install two safety stands
under the sub frame before removing it. Pay particu-
lar attention that all the stands have same height.

3. Supporting points of auxiliary lift for sub frame

The auxiliary lift is used for removing and installing the sub frame. It should be located under the correct points in front
and rear sides of the sub frame. (The center point of gravity of sub frame is at the front axle mounting area.)

View from front side

View from rear side

16cm

DI05-19

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

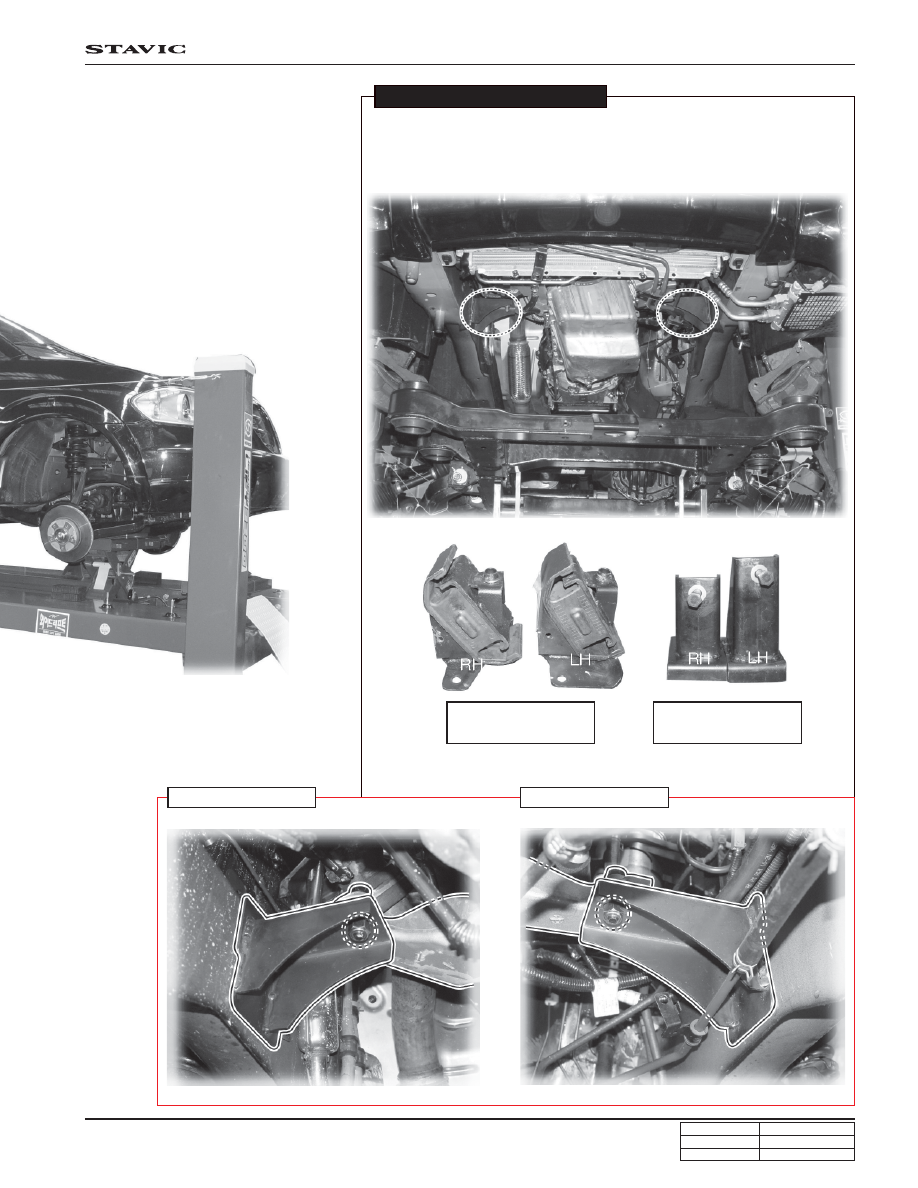

4. Installing the engine bracket

Remove the existing engine mounting brackets and install the special ser-
vice tools (temporary engine bracket) on the correct locations (dotted circles
in the figure) before removing the sub frame.

Special service tool

for engine mounting

Engine mounting

bracket

View from right side

View from left side

A9912 008 2B
