SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 102





DI04-1

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

EXHAUST SYSTEM

DI ENG SM - 2004.9

EXHAUST SYSTEM

 00

SECTION DI04

Table of Contents

EXHAUST SYSTEM LAYOUT ..................................... DI04-2

Components locator ............................................... DI04-2

Exhaust gas flows ................................................... DI04-3

Turbo charger assembly ......................................... DI04-5

EGR VALVE AND VACUUM MODULATOR ............... DI04-26

EGR system .......................................................... DI04-26

EGR valve and turbo charger actuator
control vacuum circuit ........................................... DI04-27

EXHAUST SYSTEM AND MUFFLER ........................ DI04-35

Muffler ................................................................... DI04-35

System overview ................................................... DI04-36

DI04-2

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

EXHAUST SYSTEM

DI ENG SM - 2004.9

Muffler

Exhaust manifold

EGR valve

Vacuum modulator

Turbo charger

Catalytic converter (DOC)

EGR pipe

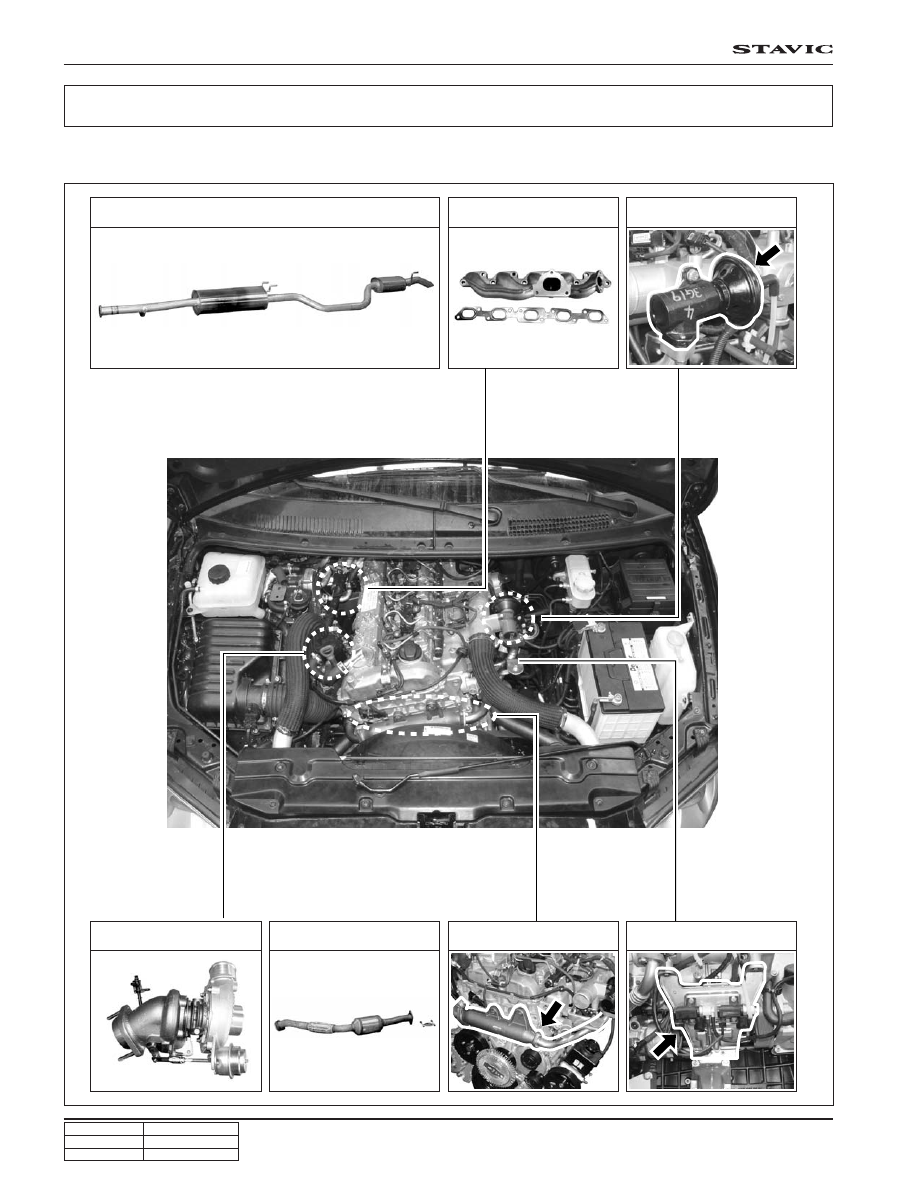

EXHAUST SYSTEM LAYOUT

COMPONENTS LOCATOR

DI04-3

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

EXHAUST SYSTEM

DI ENG SM - 2004.9

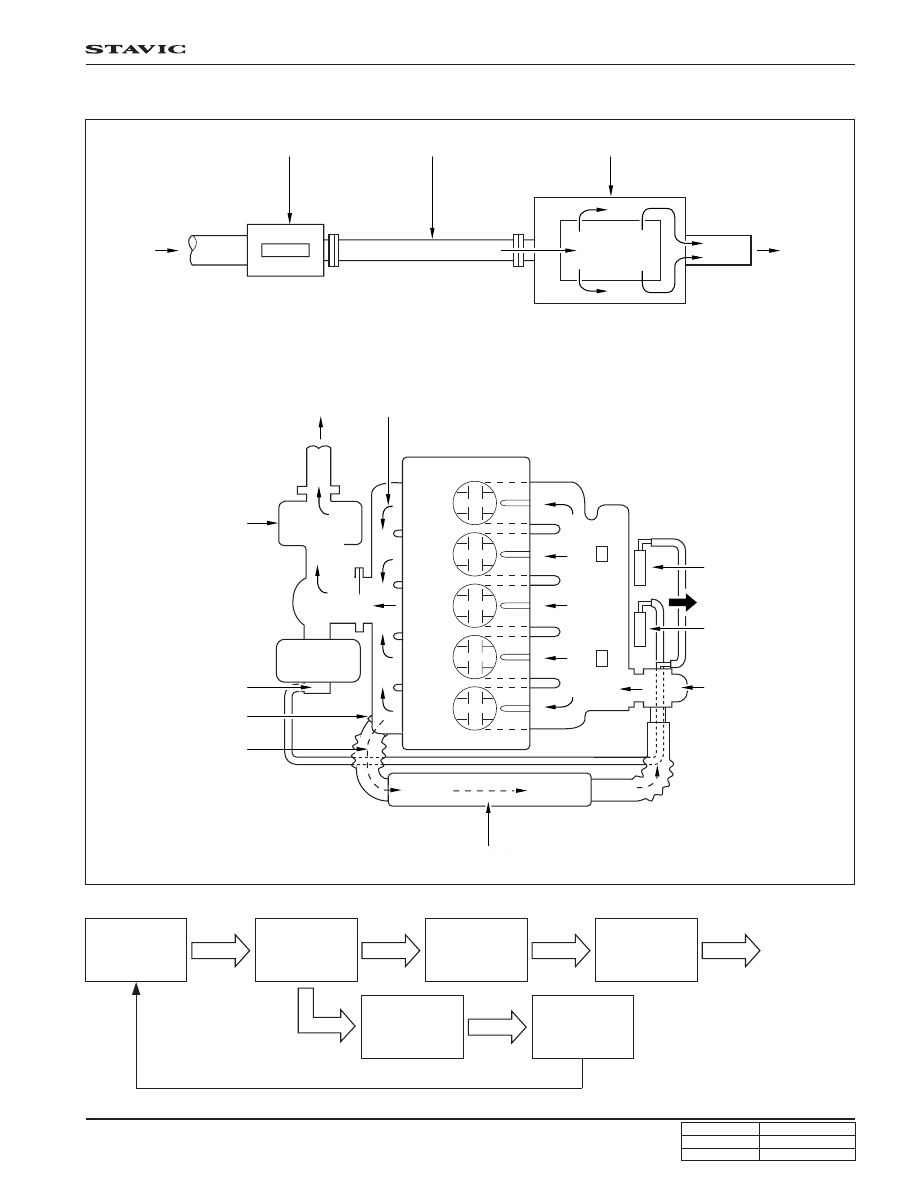

EXHAUST GAS FLOWS

Engine

-Combustion

Chamber-

Exhaust

Manifold

Turbo

Charger

Exhaust

Muffler

EGR Valve

Intake

Manifold

Atmosphere

A

Catalytic

converter

Exhaust

pipe

Muffler

Atmo-

sphere

A

Exhaust gas

EGR vacuum
modulator

To turbo
charger booster

Turbo charger
booster vacuum
modulator

EGR valve

EGR pipe

Blow-by gas

Exhaust manifold

Turbo charger

booster

Turbo charger

(turbine side)

DI04-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

EXHAUST SYSTEM

DI ENG SM - 2004.9

Tightening torque

35

± 3.5 Nm

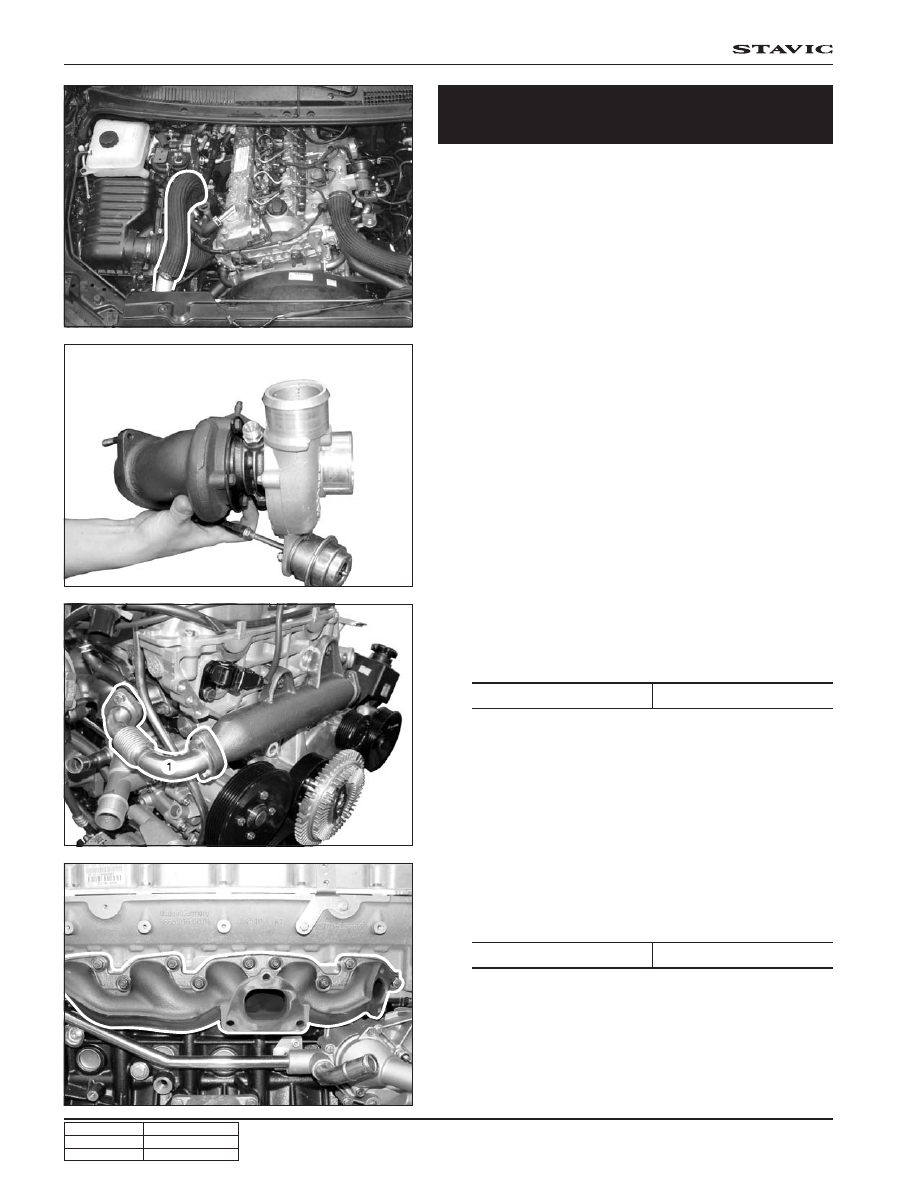

Exhaust Manifold
- Removal and Installation

1. Remove the two intake hoses from the turbo charger.

2. Remove the turbo charger assembly (refer to Turbo

Charger section).

3. Remove the #3 pipe of EGR valve from the exhaust

manifold.

Installation Notice

The #3 pipe of EGR valve is exposed to the high
temperature and pressure of exhaust gas. Replace
the gasket and pipe with new ones. Otherwise, it
may cause the leakage of exhaust gas.

4. Unscrew the nuts and remove the exhaust manifold and

gasket.

Installation Notice

Replace the gasket with new one.

5. Install in the reverse order of removal.

Tightening torque

40

± 4.0 Nm
