SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 100

DI03-13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.9

Intercooler - Removal and Installation

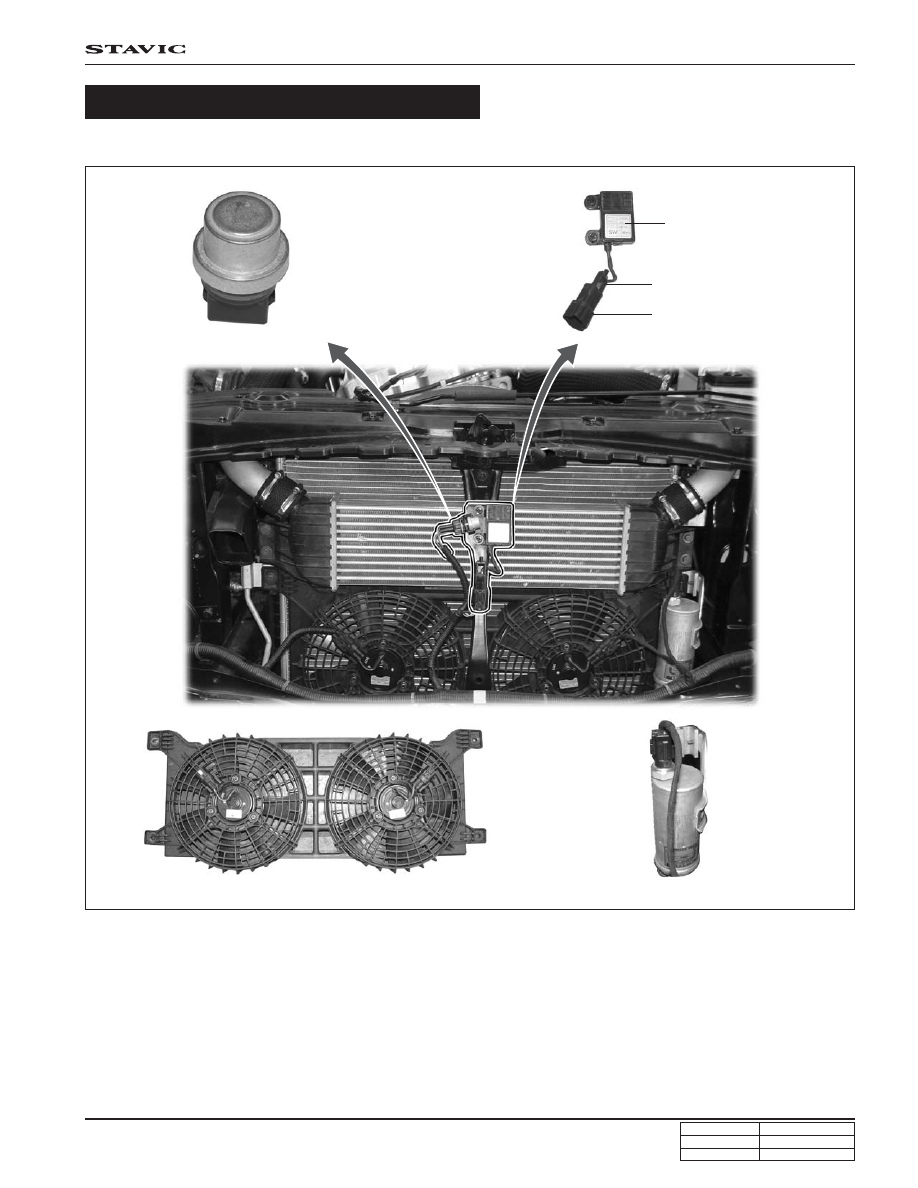

1. Disconnect all wiring harnesses and related connectors from the front side of radiator assembly.

Ambient temperature switch

[for FFH]

[for air conditioner]

AQS sensor

Ambient temperature
sensor

Connector

Electric fans

Receiver drier

DI03-14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.9

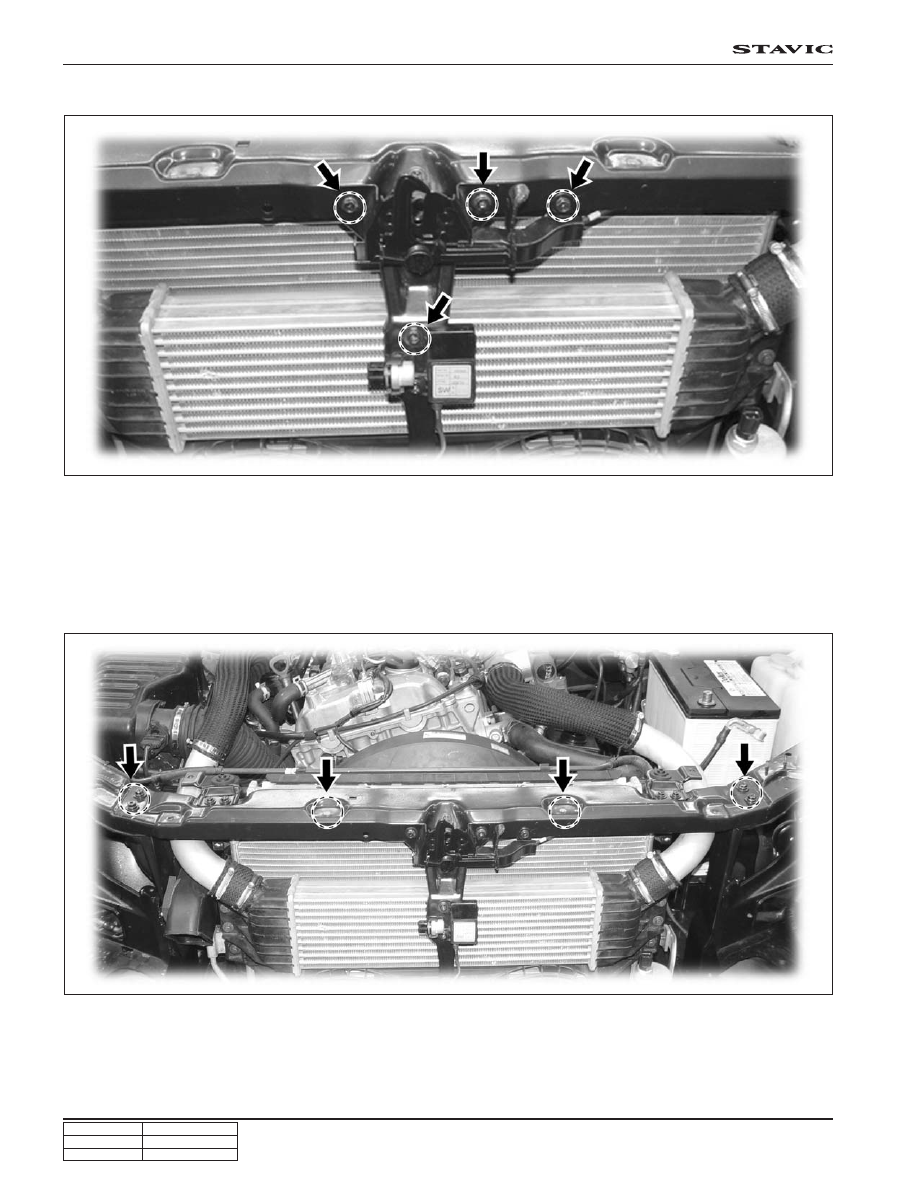

2. Remove the front end center member.

3. Remove the hood latch cable and remove the radiator support upper member.

DI03-15

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.9

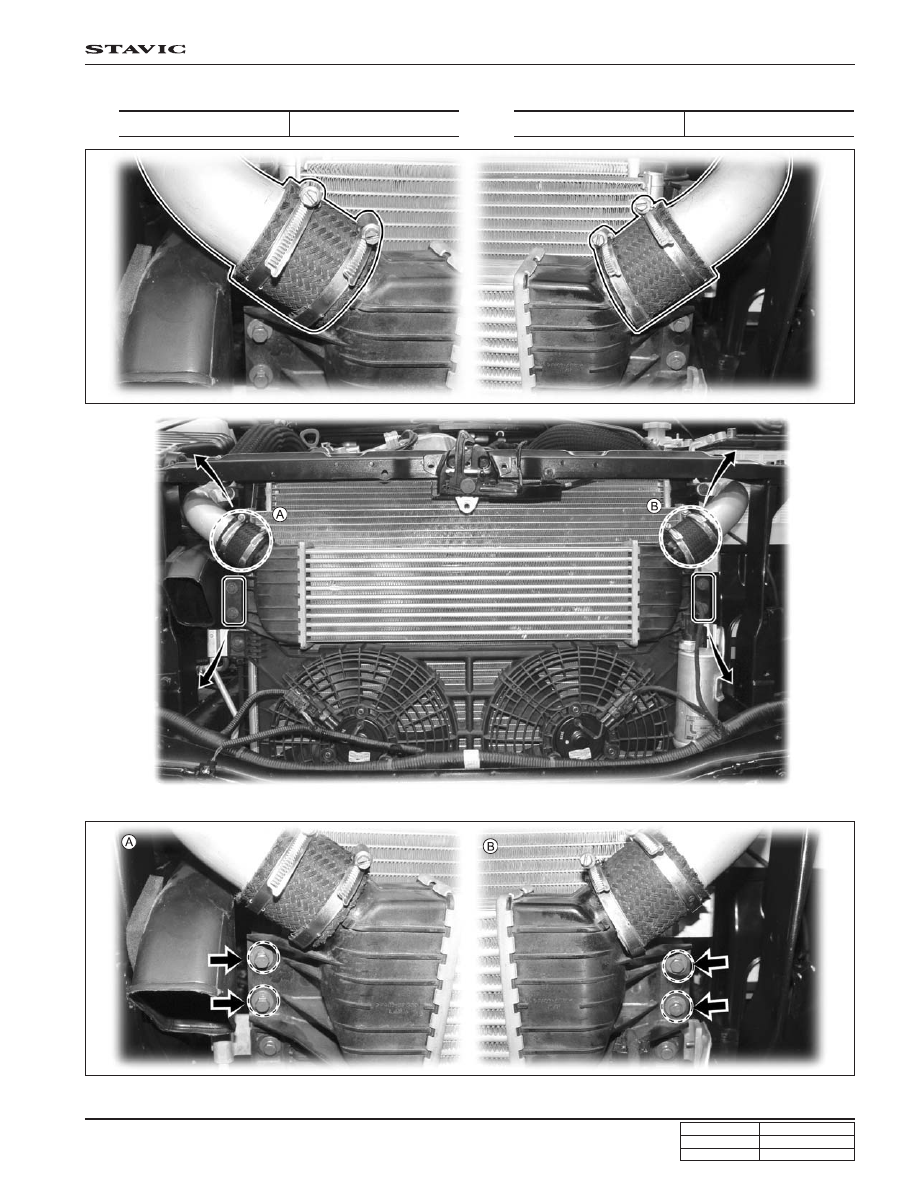

4. Remove the intercooler inlet hose.

6. Unscrew the bolts and remove the intercooler assembly.

5. Remove the intercooler outlet hose.

Tightening torque

6 ~ 7 Nm

Tightening torque

6 ~ 7 Nm

7. Install in the reverse order of removal.

DI03-16

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.9

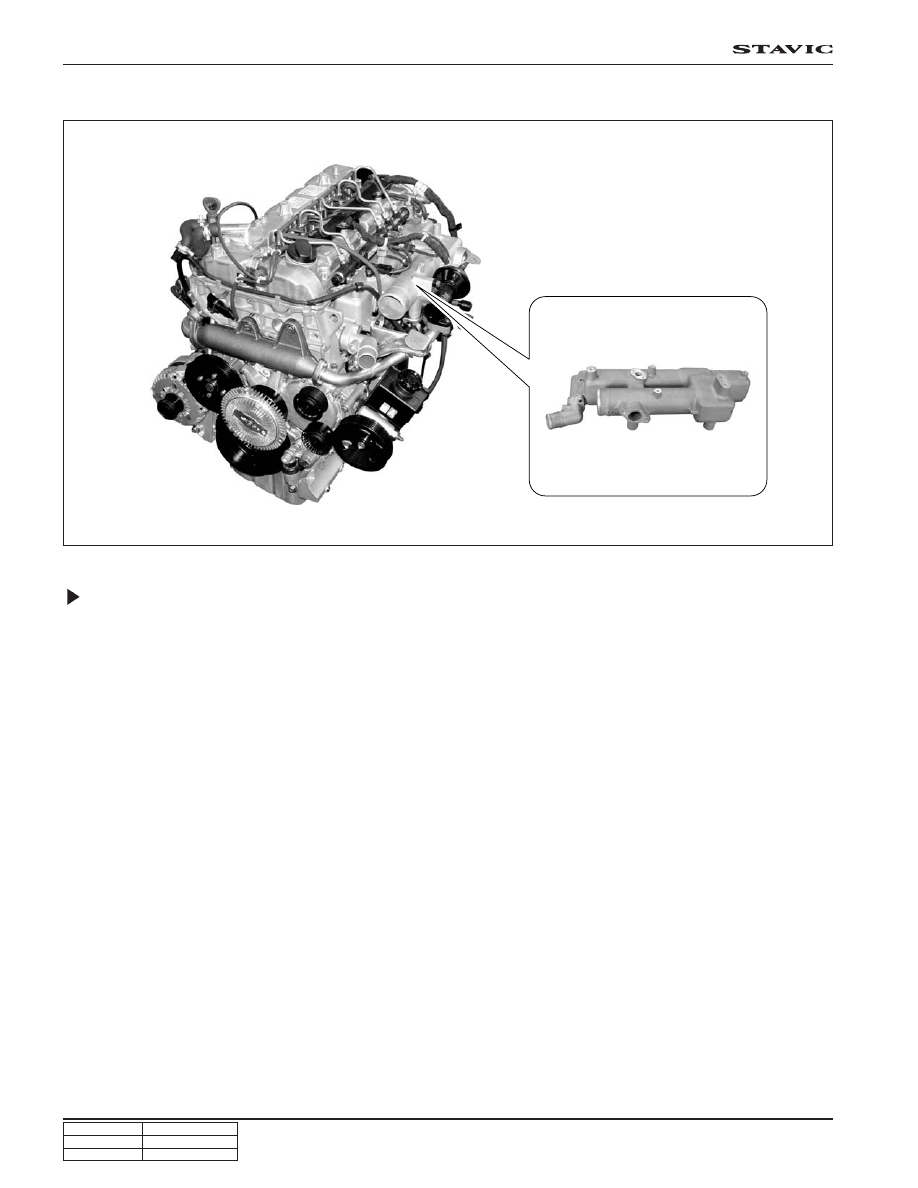

INTAKE MANIFOLD ASSEMBLY

System Characteristics

• Shape that delivers the required capacity of compressed air from turbo charger to inlet port

• Optimized EGR gas mixture in inlet chamber

• Maximized intake efficiency with helical and tangential inlet port

- Improving the swirl ratio in low and mid operating range

- Improving the acceleration/fuel economy and reducing the maintenance in low and mid operating range

• Integrated inlet port and coolant outlet port
