ENGINE HOUSING

DI ENG SM - 2004.9

1. No.1 compression ring

2. No.2 compression ring

3. Oil ring

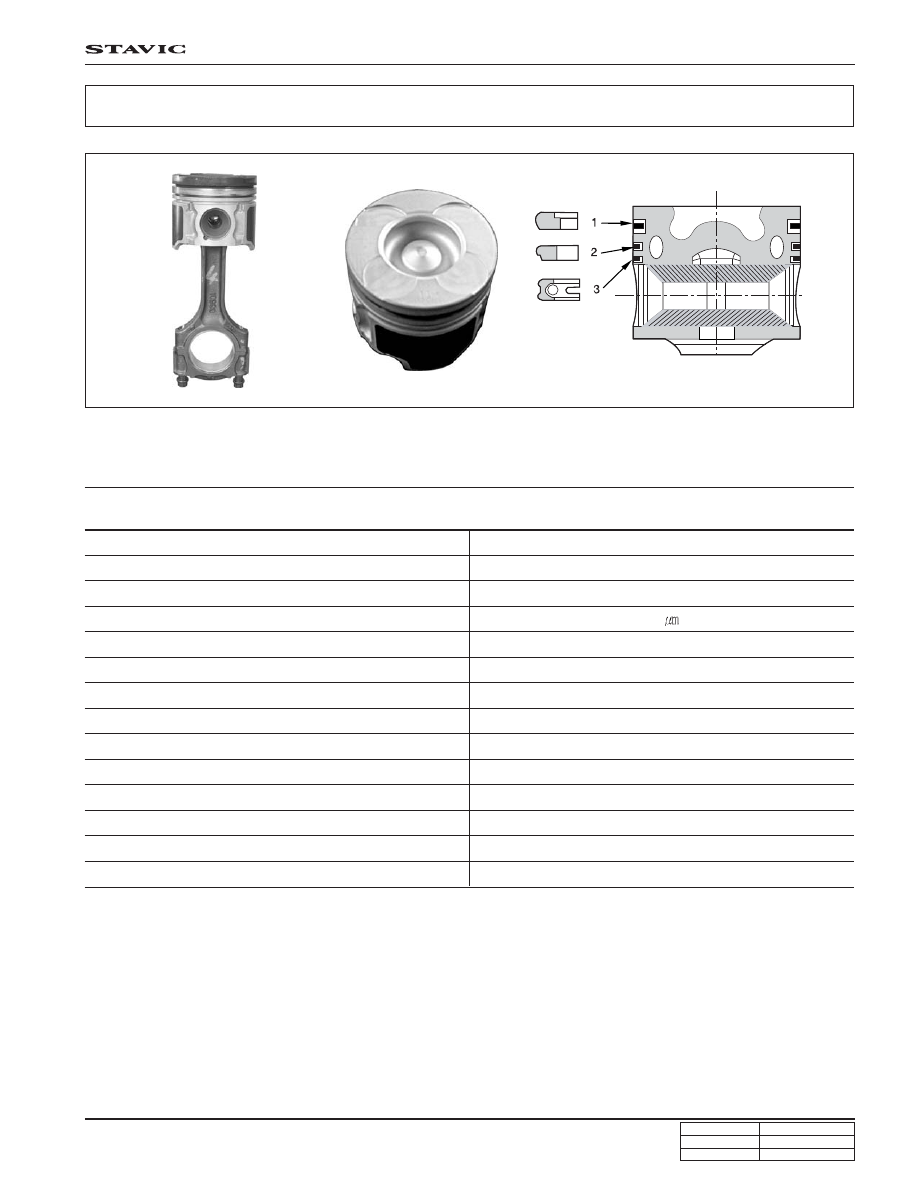

PISTON AND CONNECTING ROD

Description

Cylinder bore diameter

Piston outer diameter (D1)

Clearance between bore and piston

Piston cooling gallery

Pin offset

Compression ratio

Length of piston pin

Material of top ring / coating

Tightening torque of connecting rod bolt

Permissible weight difference of connecting rod

Thickness of connecting rod bearing (Red)

Thickness of connecting rod bearing (Yellow)

Thickness of connecting rod bearing (Blue)

D27 DT ENG

φ 86.2

(0~0.018)

mm

φ 86.133

(±0.009)

mm

74

Applied

0.15 mm (Thrust)

18 : 1

71.2 mm

Steel / Gas nitride

40 ± 5.0 Nm, 90° + 10°

4 g

1.806 ~ 1.809 mm

1.809 ~ 1.812 mm

1.812 ~ 1.815 mm

DI02-44

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

PISTON RING

1. No.1 compression ring

2. No.2 compression ring

3. Oil ring

5. Coil spring and oil control ring

6. Hook spring

Replacement of Piston Ring

• Measure piston ring end play.

- Piston ring end play (mm)

1st groove: 0.20 ~ 0.35

2nd groove: 0.20 ~ 0.35

3rd groove: 0.20 ~ 0.40

- Clearance between piston ring and piston (mm)

1st compression ring: 0.075 ~ 0.119

2nd compression ring: 0.050 ~ 0.090

3rd oil ring: 0.030 ~ 0.070

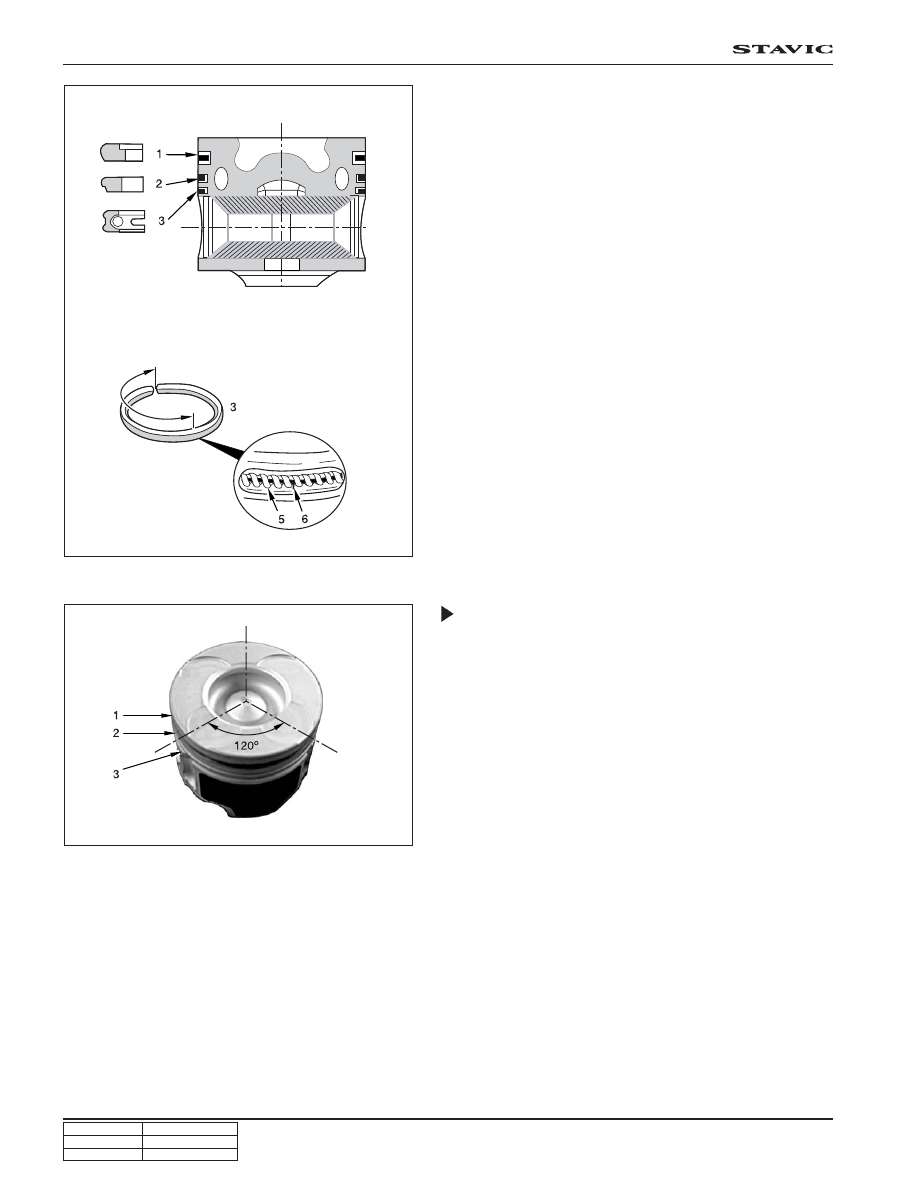

• Install the piston so that “Y” marking on piston head is

facing in the direction of travel. Arrange the piston ring
ends to be 120° apart.

• Adjust the hook spring joint in the oil ring 180 ° away from

the ring end.

DI02-45

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

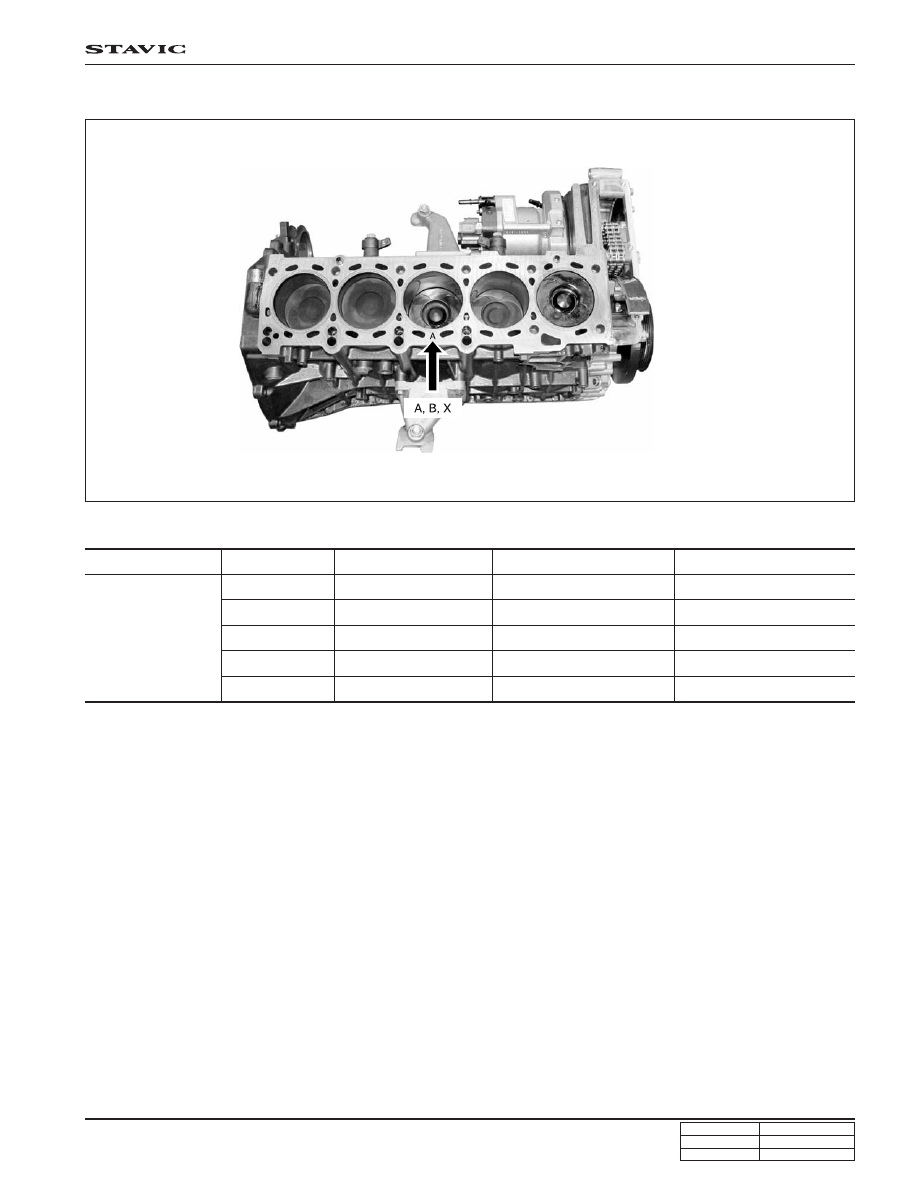

CYLINDER INNER DIAMETER AND PISTON SIZE

(Unit : mm)

Engine

D27DT

Code

A

X

B

+ 5

+ 10

Used piston

A or X

A, B or X

B or X

+ 5

+ 10

Cylinder Diameter

86.200 ~ 86.206

86.206 ~ 86.212

86.212 ~ 86.218

86.250 ~ 86.260

86.300 ~ 86.310

Piston Diameter

86.124 ~ 86.130

86.129 ~ 86.137

86.136 ~ 86.142

86.167 ~ 86.181

86.217 ~ 86.231

DI02-46

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

DISASSEMBLY AND REASSEMBLY

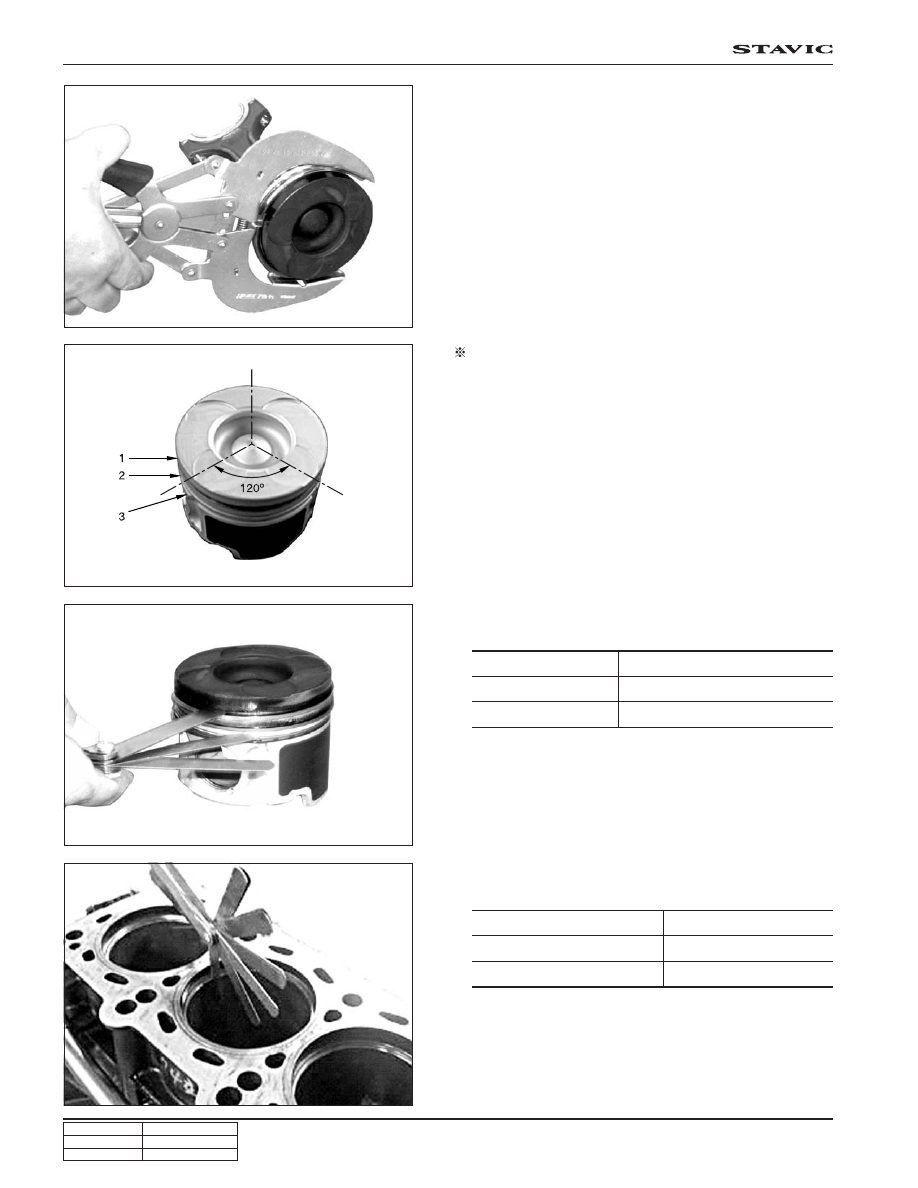

1. Install the compression ring and oil ring on the piston

with a special tool.

2. Check the clearance of piston oil ring and compression

ring with a thickness gauge and adjust if necessary.

3. Check the clearance of piston rings with a thickness

gauge and adjust if necessary.

Notice

• Install the No.1 and No.2 pistons so that “Y” marking

on piston head is facing upward.

• No.1 piston ring is thicker than No.2 piston ring.

• Arrange the oil ring end to opposite position of

current ring end.

• Oil ring is not directional.

• Make sure that the piston ring end is not aligned to

axial direction and lateral direction.

1st groove

2nd groove

3rd groove

0.20 ~ 0.35 mm

0.20 ~ 0.35 mm

0.20 ~ 0.40 mm

No.1 compression ring

2nd compression ring

3rd oil ring

0.075 ~ 0.119 mm

0.050 ~ 0.090 mm

0.040 ~ 0.080 mm

Arrange the piston ring ends to be 120° apart.

* Piston ring end play (mm)

1st groove: 11.0 mm

2nd groove: 10.5 mm

3rd groove: 7.0 mm
