1F-16

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

Camshaft Position Sensor Output
Wave Inspection

1. Measure the output wave between the ECM terminals

No. 104 and No. 106 using the scan tool or the
oscilloscope while engine speed is at idle.

Notice

Replace the CAM sensor if cannot get the out-put
wave as shown in the figure.

Camshaft Position Sensor Power
Supply Inspection

1. Disconnect the CMP sensor Connector.

2. Measure the voltage between the No. 1and No. 3 pin of

the CMP sensor connector while the ignition switch is in
“ON” position.

Notice

If the measured value is not within the specified value,
check the cable.

Specified value

11  ~  14V

1F-18

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

Effect

-

Idle speed is improved

Blow-by gas is decreased

Valve overlap is decreased

Torque is increased

Fuel loss is decreased

NOx is decreased

Engine overrun is prohibited

Engine RPM

Engine stop

0 ~ 1,500 rpm

1,500 ~ 4,300 rpm

Above 4,300 rpm

Camshaft Position

Retard

Retard

Advanced

Retard

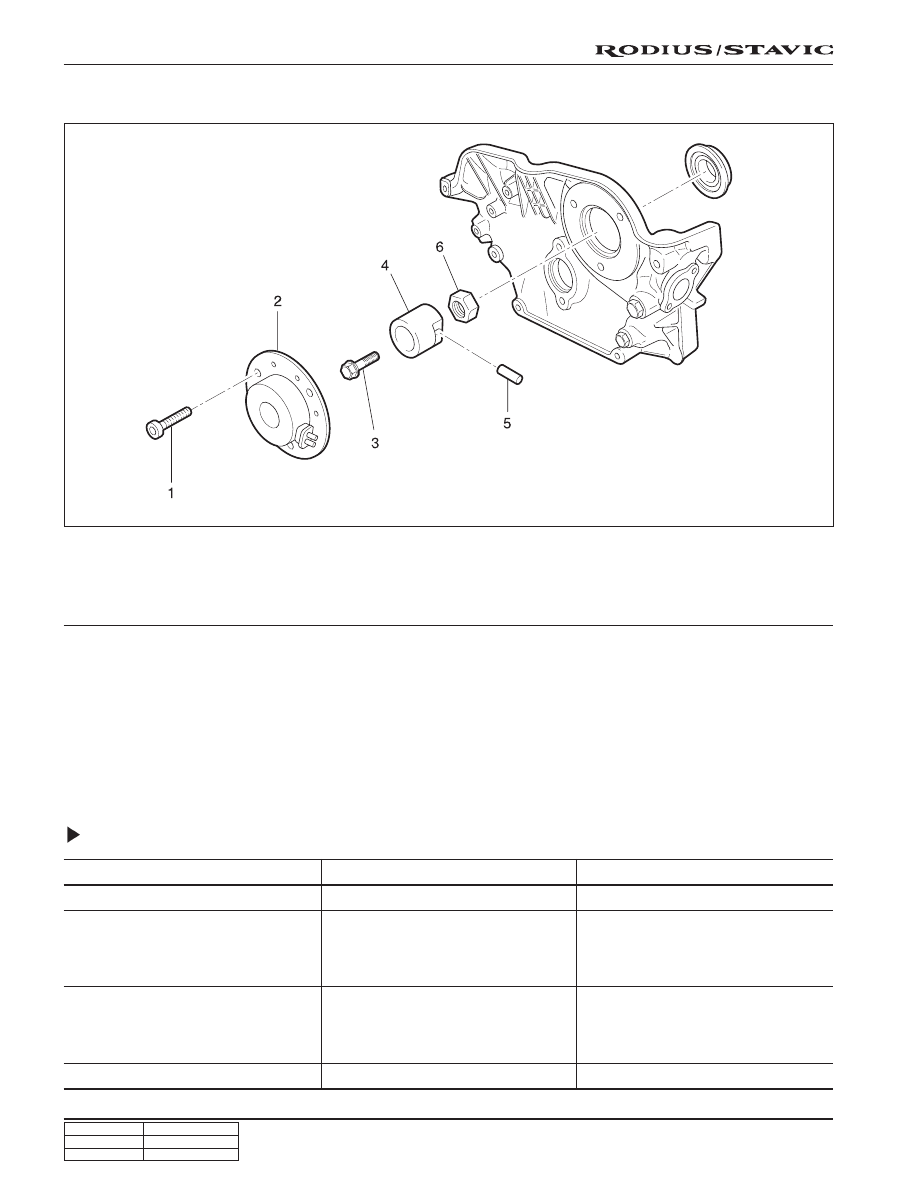

CAMSHAFT ACTUATOR

When the engine is running, the camshaft actuator rotates the intake camshaft hydraulically and mechanically relative
to the camshaft sprocket by 32° crank angle to the “advanced” position and back to the “retard” position.

The camshaft actuator is actuated electro-mechanically by the Engine Control Module (ECM).

The positioning time of apporx. 1 second is dependent on the engine oil pressure at the camshaft actuator and on the oil
viscosity and oil temperature, respectively.

The camshaft indicator on the camshaft sprocket provides the camshaft rotational speed to the position sensor as an
input parameter for the engine ignition control unit.

Operation Condition of Camshaft Actuator

1. Bolt

2. Camshaft actuator

3. Bolt

4. Armature

5. Roll pin

6. Nut

1F-19

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

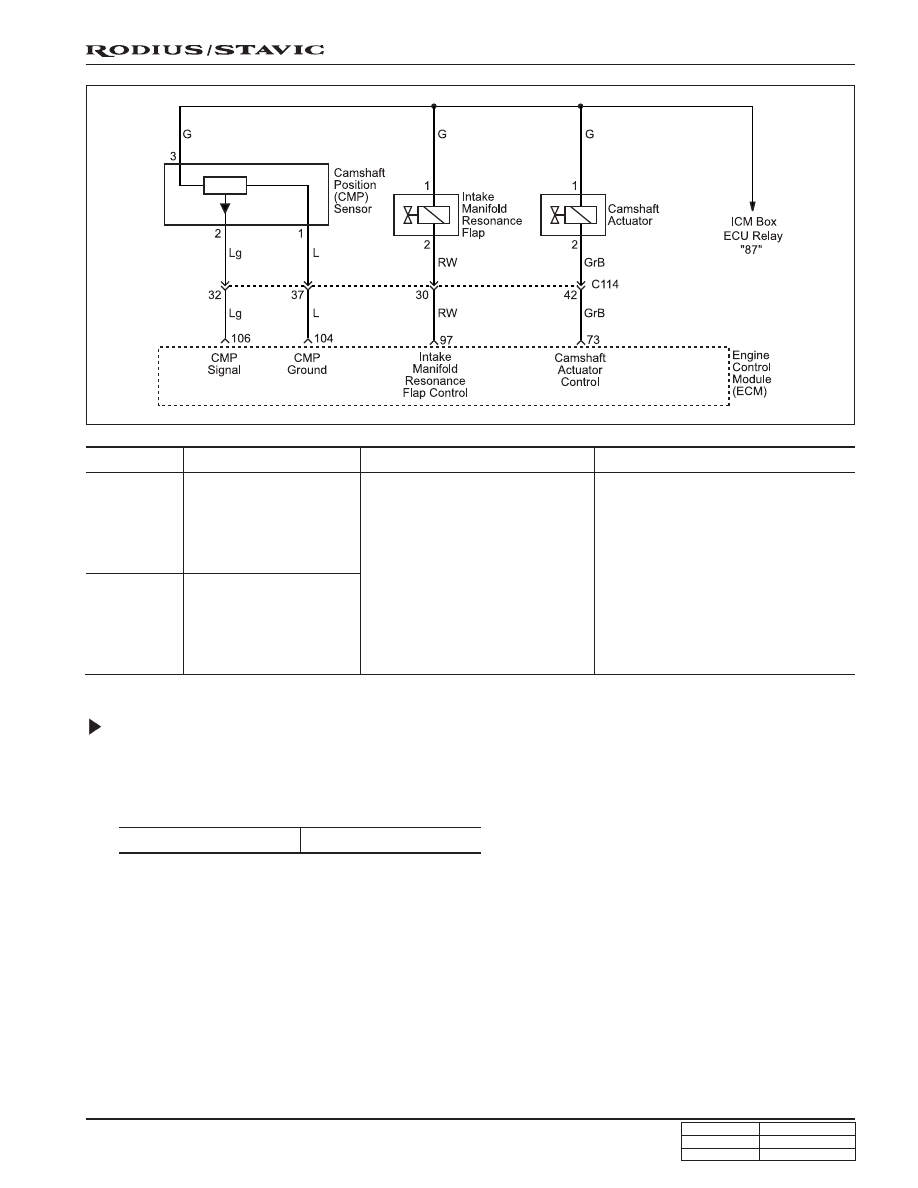

Camshaft Actuator Current Consumption Inspection

1. Run the engine to reach the coolant temperature above 70 °C.

2. Increase the engine rpm up to 2000 rpm

3. Measure the current between the No. 1 and No. 2 pin of the camshaft actuator connector.

Specified value

1 ~ 1.5 A

Failur Code

Description

Trouble Area

Maintenance Hint

• Monitoring the actual operational

status through scan tool

• Inspection the ECM pin 73 about

short circuit or open

• Inspection the power source short

circuit or open to cam actuator

• Inspection the magnet and

hardware

• Inspection the ECM

Camshaft actuator short

circuit to battery

When malfunction of cam

phasing control

226

Camshaft actuator

short circuit to ground

or open

227

Notice

If the measured value is not within the specified value, check the cable.

1F-20

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

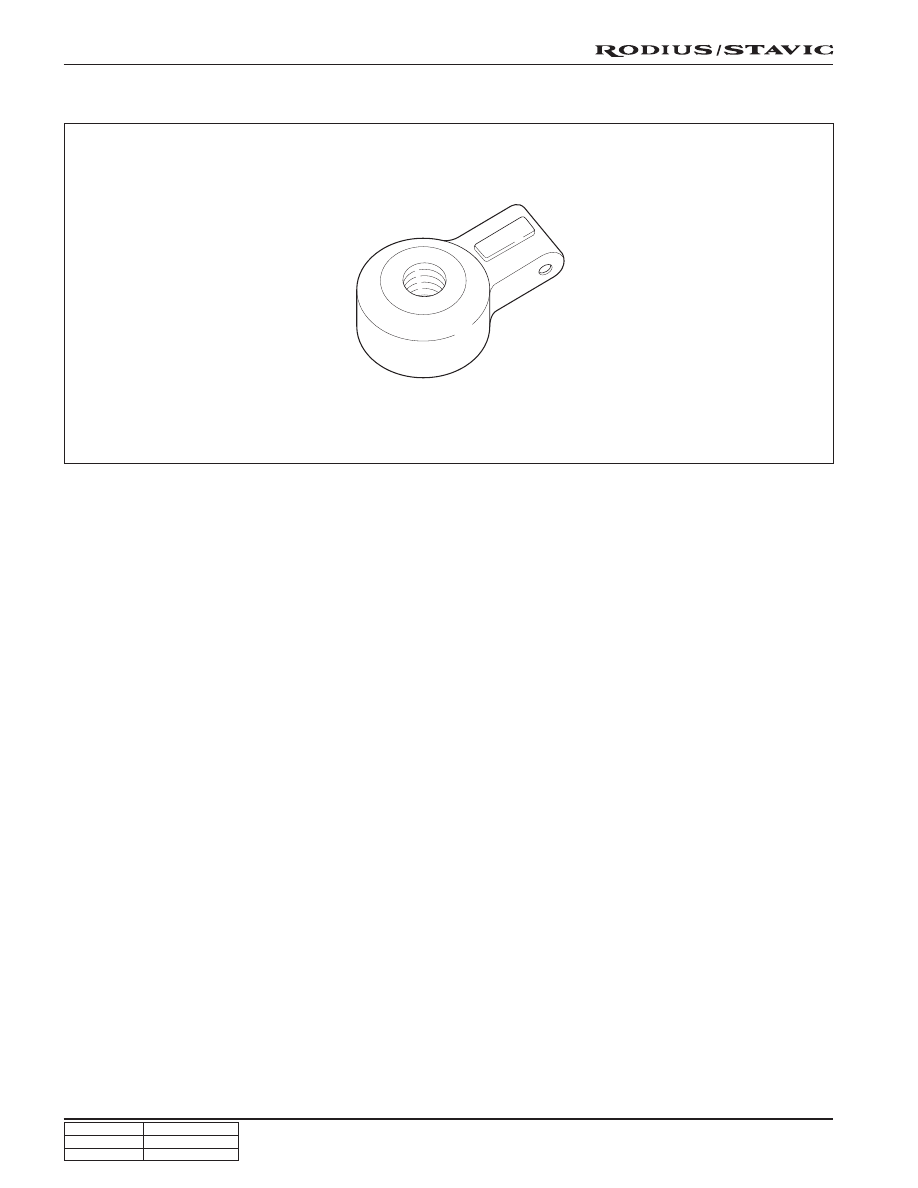

KNOCK SENSOR (KS)

The Knock Sensor (KS) detects abnormal knocking in the engine. The two KS are mounted in the engine block near the
cylinders. The sensors produce an output voltage which increases with the severity of the knock. This signal is sent to
the Engine Control Module (ECM) via a shielded cable. The ECM then adjusts the ignition timing to reduce the spark
knock.
