ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

Crankshaft position

sensor signal failure (no
engine revolution signal)

Crankshaft position

sensor signal failure

(rpm > max. value)

Crankshaft position

sensor signal failure

(gap recognition failure)

Crankshaft position

sensor adaptation failure

Even through cam position

recognition is normal, no crank-
shaft position signal recognition

When more than applicable

revolution values or implausible

to 60-2 teeth scan tool

When implausible recognition of

cam and crank angle signal or

intermittent sensing the signal or

error count of undetected gap.

When faulty crank angle

sensor adaption

17

18

20

67

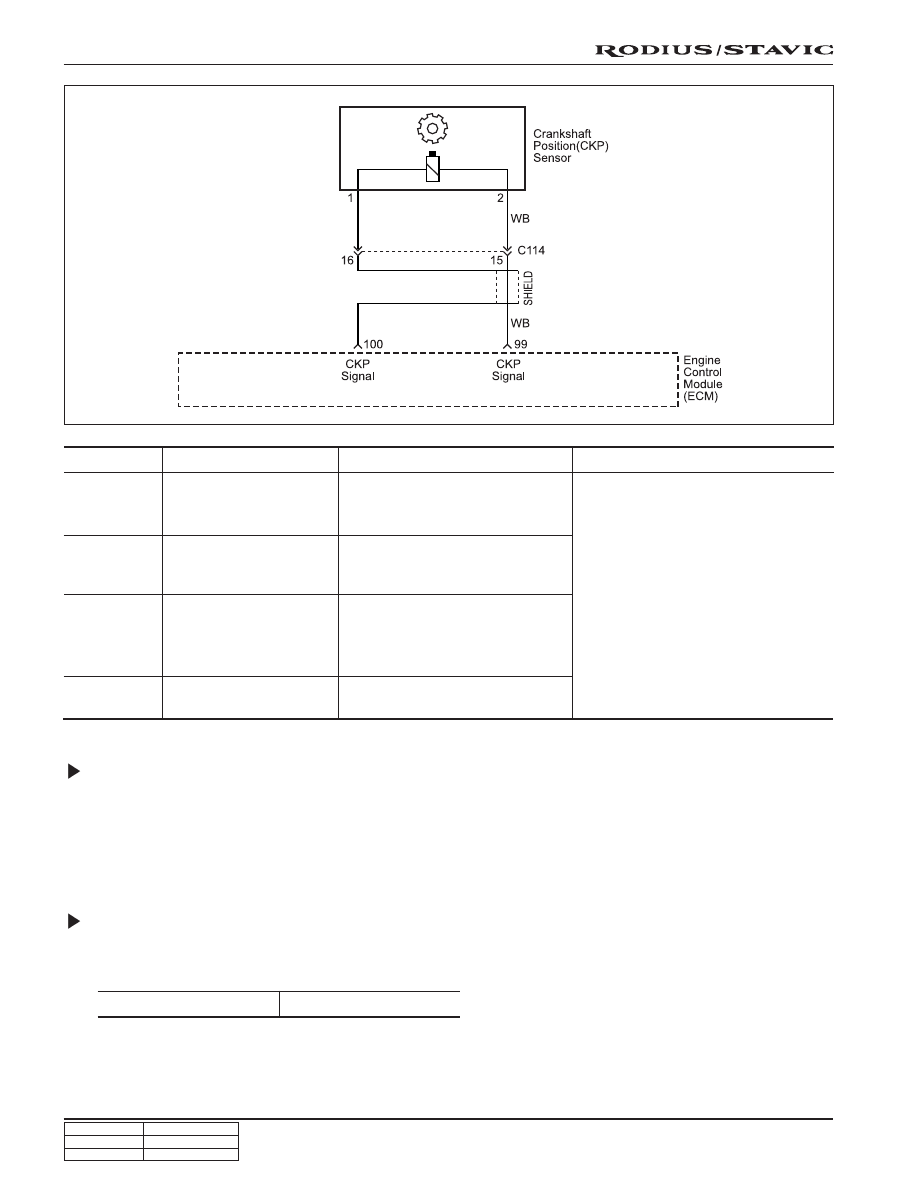

Circuit Description

The 58X reference signal is produced by the CKP sensor. During one crankshaft revolution, 58 crankshaft pulses will be
produced. The ECM uses the 58X reference signal to calculate engine rpm and CKP. The ECM constantly monitors the
number of pulses on the 58X reference circuit and compares them to the number of Camshaft Position (CMP) signal pulses
being received. If the ECM receives and incorrect number of pulses on the 58X reference circuit, this failure code will set.

Crankshaft Position Sensor Resistance Inspection

1. Disconnect the coupling “E” of ECM while the ignition switch is in “OFF” position.

2. Measure the resistance between the coupling terminal pin No. 99 and No. 100 using a multimeter.

Notice

Measure the insulator resistance of the CKP sensor if out of the specified value.

Failur Code

Description

Trouble Area

Maintenance Hint

• Monitoring the actual rpm through

or scan tool

• Inspection the ECM pin 100, 99

about short circuit with bad
contact

• Inspection the CKP sensor

• Inspection the air gap between

sensor and drive plate

• Inspection the drive plate (teeth

condition)

• Inspection the ECM

Specified value

1,050 ~ 1,400

 Ω

1F-13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

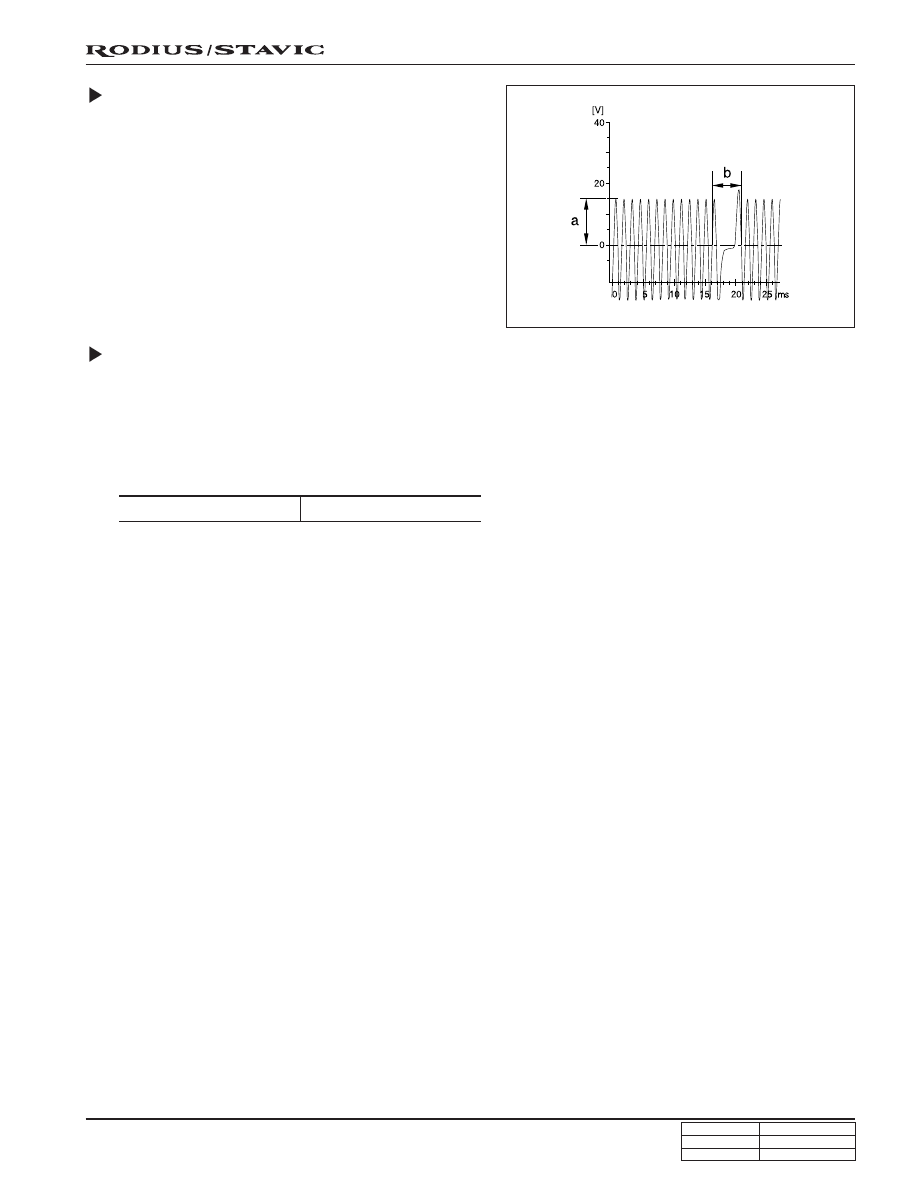

Crankshaft Position Sensor Output
Wave Inspection

1. Measure the output wave between the ECM terminals

No. 99 and No. 100 using the scan tool or the oscilloscope
while engine cranking (start motor activated).

Notice

Check the segment or crankshaft position sensor and
air gap if cannot get the output wave as shown in the
figure.

Crankshaft Position Sensor
Insulator Resistance Inspection

1. Disconnect the coupling from ECM while the ignition

switch is in “OFF” position.

2. Measure the resistance between the coupling terminal

pin No. 100 and No. 69 using a multimeter.

Notice

Measure the check and ground terminal of the CKP
sensor if out of the specified value.

Specified value

>20 k

Ω

1F-14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

CAMSHAFT POSITION (CMP) SENSOR

The Camshaft Position (CMP) sensor sends a CMP signal to the Engine Control Module (ECM). The ECM uses this
signal as a “synchronized pulse” to trigger the injectors in the proper sequence. The ECM uses the CMP signal to
indicate the position of the #1 piston during its power stroke. This allows the ECM to calculate true sequential fuel
injection mode of operation.

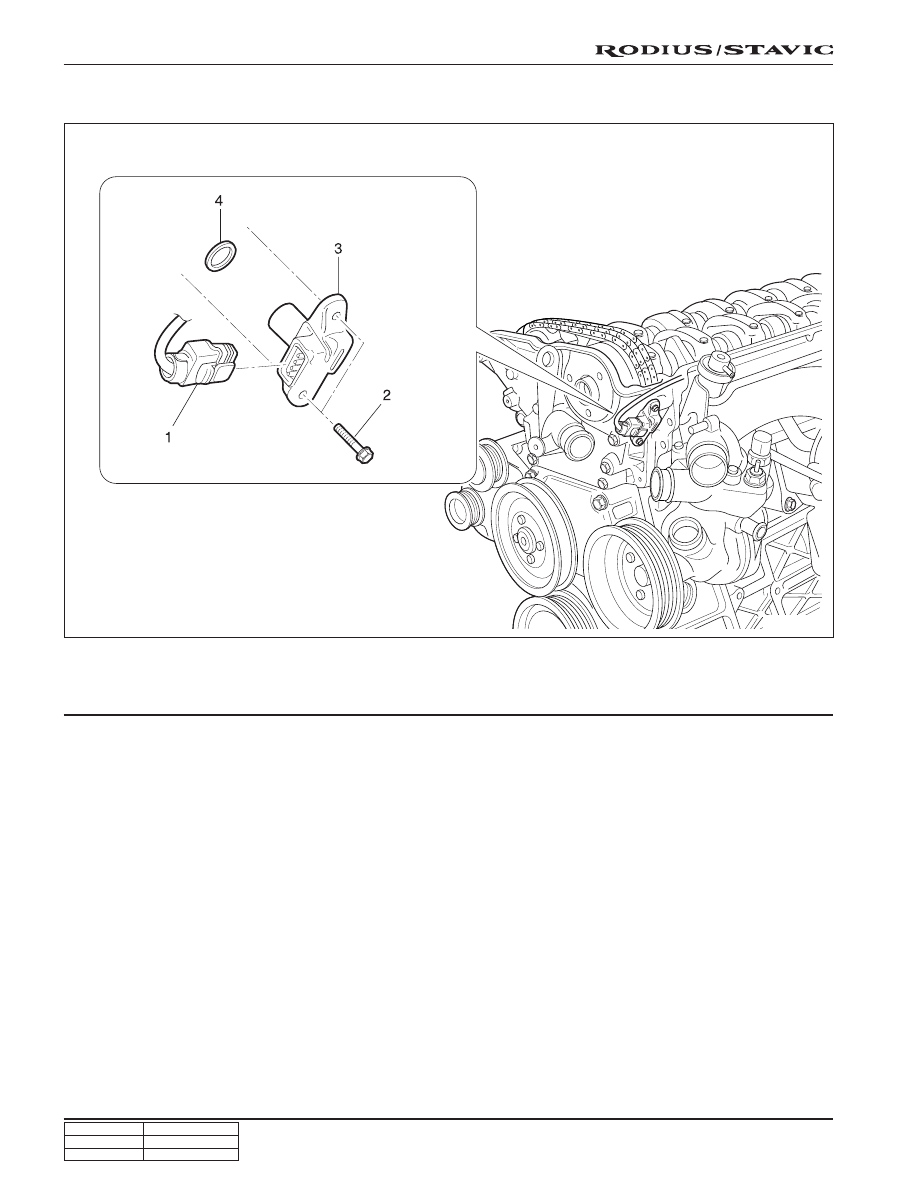

1. Camshaft position sensor connector

2. Bolt

3. Camshaft position sensor

4. O-ring

1F-15

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

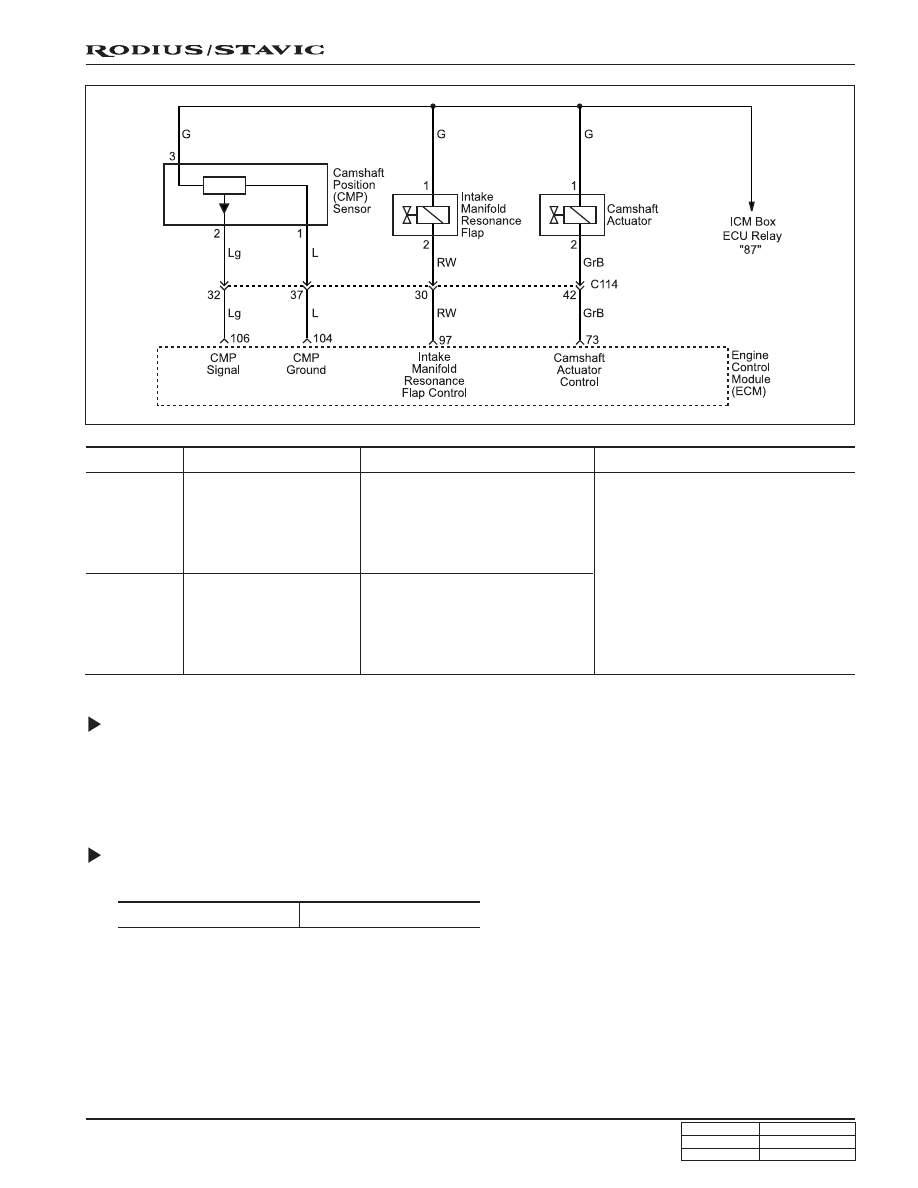

Circuit Description

The CMP sensor sends a cam position signal to the ECM. If the cam position signal is lost while the engine is running,
the fuel injection system shifts to a calculated sequential fuel injection mode based on the last fuel injection pulse, and
the engine continuous to run.

Camshaft Position Sensor Signal Voltage Inspection

1. Measure the voltage between the ECM terminal No. 11 and No. 106 while the engine speed is at idle.

Notice

The signal voltage will be changed in the range of 1.2 ~ 1.7V.

Specified value

1.2 ~ 1.7V

Failur Code

Description

Trouble Area

Maintenance Hint

• Inspection the source voltage of

CMP sensor

• Inspection the ECM pin 106, 104

about short circuit or open with
bad contact

• Inspection the CMP sensor

• Inspection the damage of sensor

or sprocket

• Inspection the ECM

Camshaft position

sensor signal : No. 1

cylinder recognition

failure

When no cam recognition signal

during TN 24 counts more.

(maintain the constant low or

high level)

19

Camshaft position

sensor signal : No. 1

cylinder synchroniza-

tion failure

When synchronization fault of

cylinder 1

(TDC recognition)

58
