1B-41

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

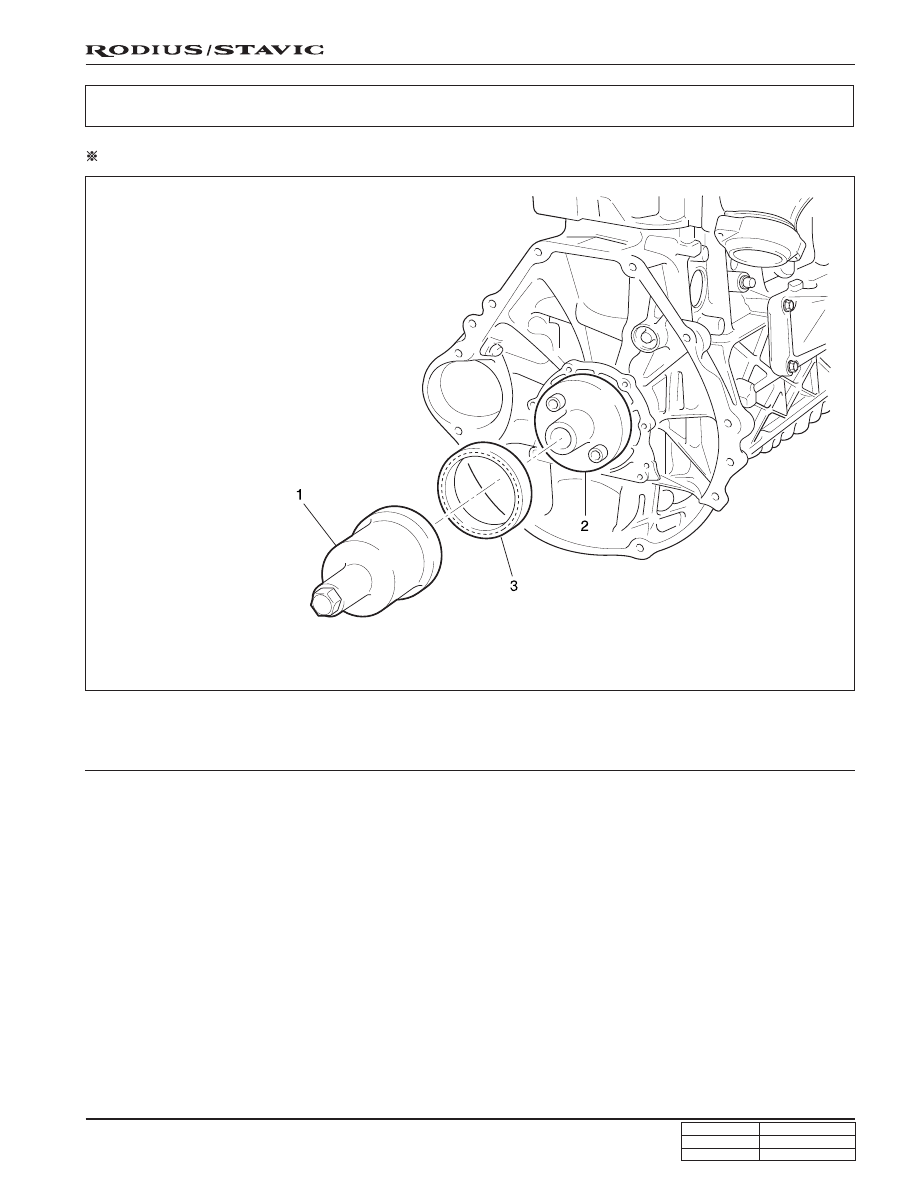

Preceding Work: Removal of flywheel or drive plate

1. Special tool

2. Special tool

3. Crankshaft rear seal

CRANKSHAFT REAR RADIAL SEAL

1B-42

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

Tools Required

W9911 0020B (601 589 03 43 00)

Crankshaft Rear Seal Installer

Replacement Proceudre

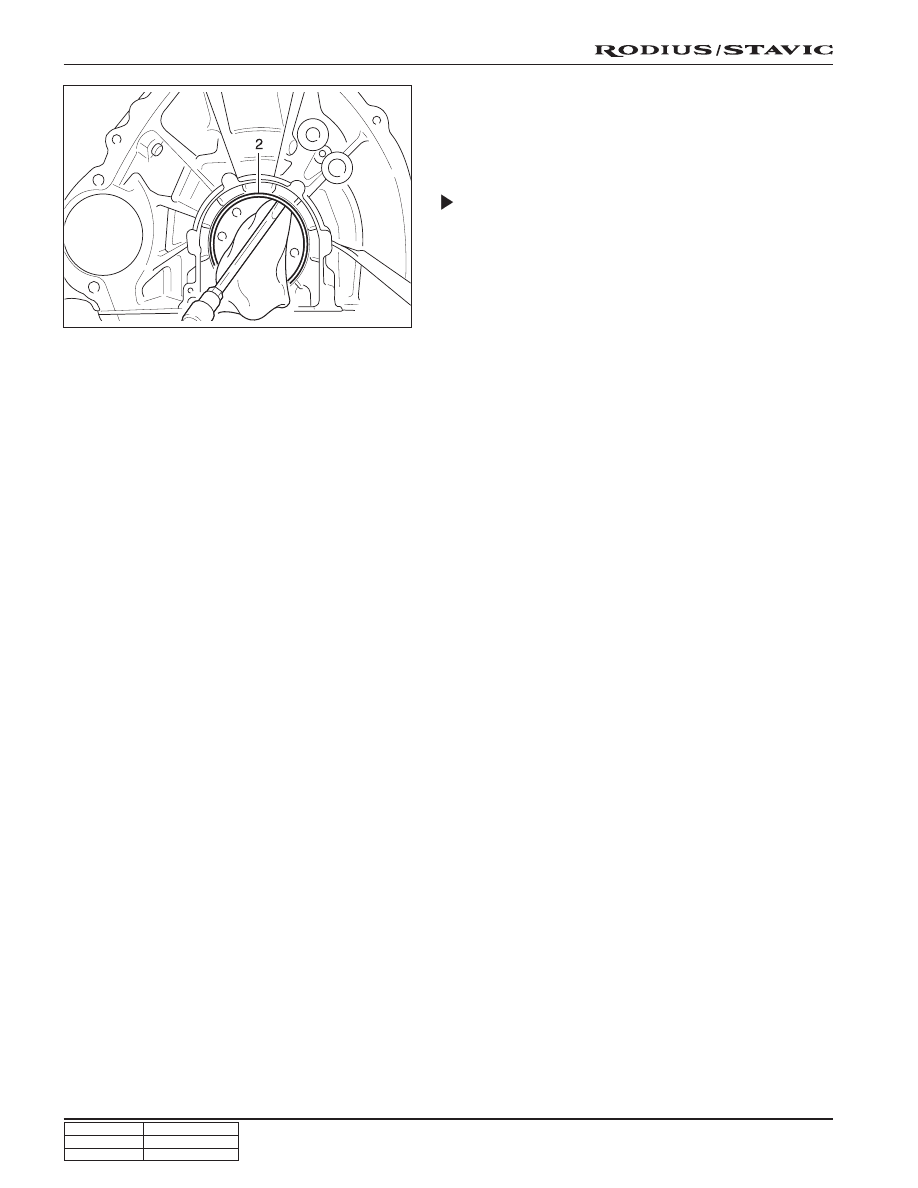

1. Remove the radial seal with a screw driver.

Notice

Use a clean cloth not to damage the radial seal
mounting hole and the crankshaft.

2. Install the crankshaft rear seal installer W9911 0020B

(601 589 03 43 00) (2) to the crankshaft.

3. Apply the engine oil on the crankshaft rear seal installer

W9911 0020B (601 589 03 43 00) (2).

Notice

Do not use the grease.

4. Install the radial seal on the inner parts assembler.

5. Press in the crankshaft rear seal installer W9911 0020B

(601 589 03 43 00) (1) until the radial seal is stopped.

6. Check for leaks while operating the engine.

1B-43

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

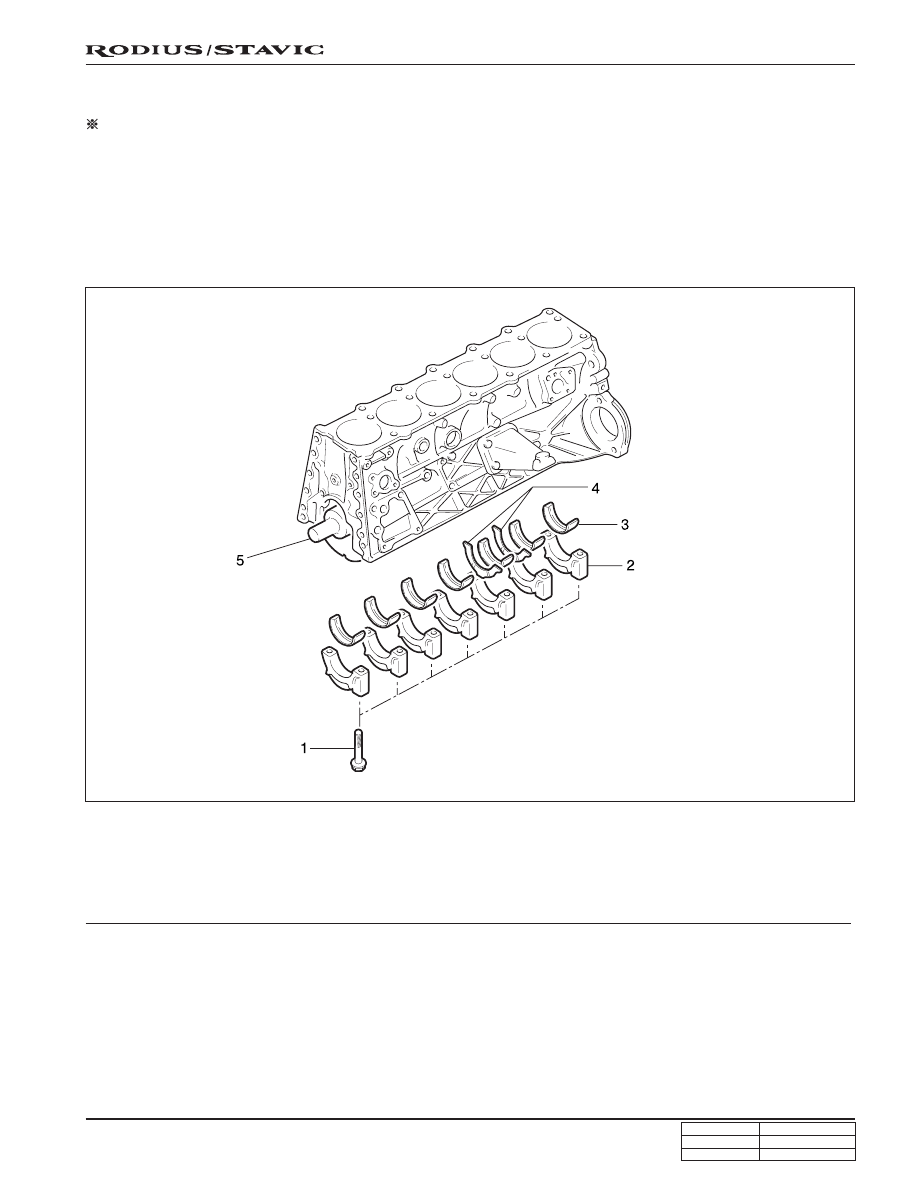

CRANKSHAFT

Preceding Work: Removal of engine assembly

Removal of timing gear case cover

Removal of cylinder head

Removal of crankshaft sealing rear cover

Removal of oil pan

Removal of oil pump

Removal of baffle plate

1. Crankshaft bearing cap bolt  (M8 x 55, 14 pieces)

................... 1st step: 50 ~ 60 Nm (37 ~ 44 lb-ft)

2nd step: 90° + 5°

2. Crankshaft bearing cap

3. Crankshaft lower main bearing

4. Crankshaft lower thrust bearing

5. Crankshaft

1B-44

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

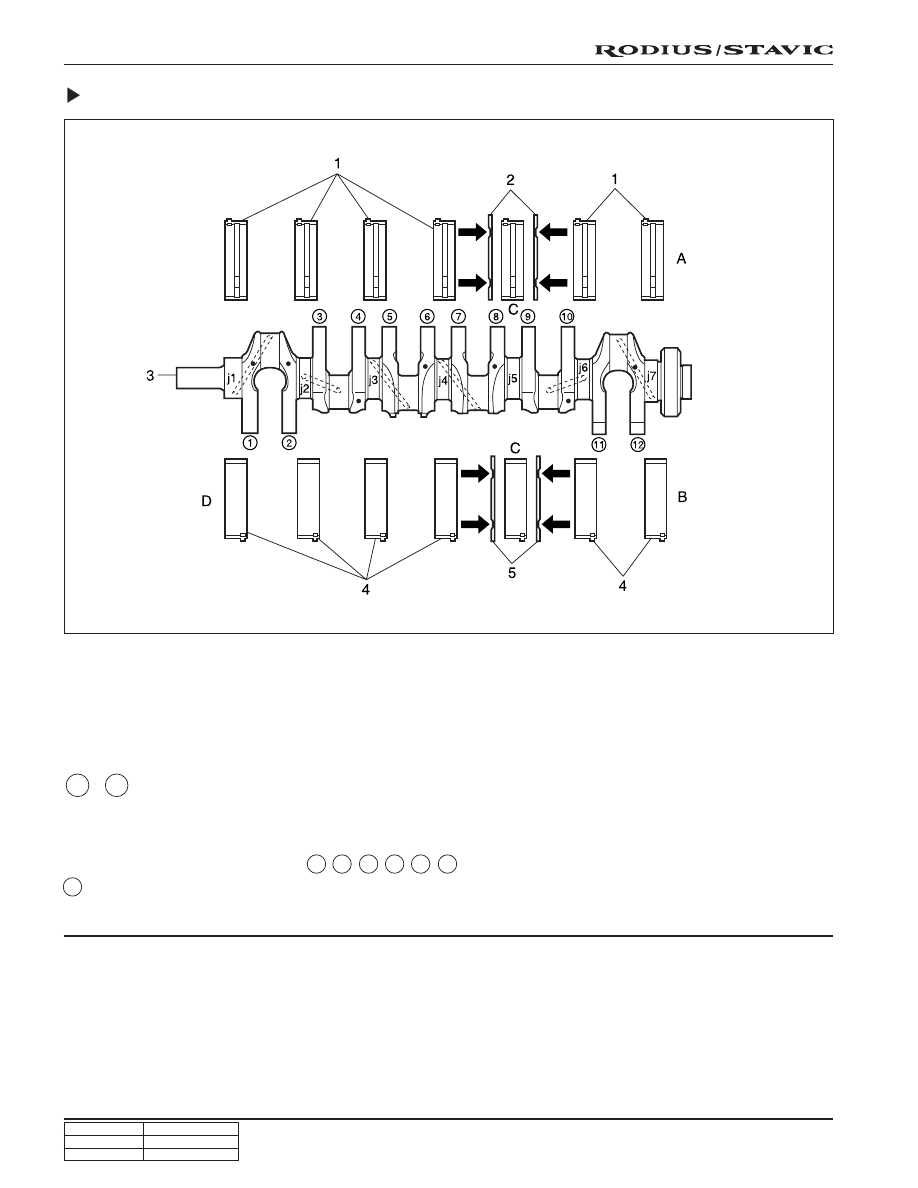

Arrangement of the Thrust Bearing and the Main Bearing

Weight Balance/Color Marking Point

Journal Main Bearing #1 - #7

Color Dot Marking

A. Crankcase side

B. Bearing cap side (oil pan side)

C. Axial fit bearing (number 5 bearing point)

D. Radial bearing

1. Upper main bearing

2. Upper thrust bearing

3. Crankshaft

4. Lower main bearing

5. Lower thrust bearing

The color dot marking are put on the  1 ,  2 ,  4 ,  6 ,  8 , 10 ,

12  and it indicates the diameter of crankshaft journal by

color as below.

1   -  12

 j1 - j7

•
