03-36

ISOFIX Child Restraint Systems Installation Suitability for Various ISOFIX Positions

▶

Mass group

Size Class

Fixture

Vehicle ISOFIX Positions

Front

Passenger

Rear

Centre

Rear Out

Board

CARRYCOT

F

ISO/L1

X

X

X

G

ISO/L2

X

X

X

GROUP 0    UP TO 10KG

E

ISO/R1

X

X

IUF

GROUP 0+   UP TO 13KG

E

ISO/R1

X

X

IUF

D

ISO/R2

X

X

IUF

C

ISO/R3

X

X

X

GROUP I 9 TO 18KG

D

ISO/R2

X

X

IUF

C

ISO/R3

X

X

X

B

ISO/F2

X

X

IUF

B1

ISO/F2X

X

X

IUF

A

ISO/F3

X

X

IUF

Suitable for ISOFIX forward child restraints systems of universal category approved for use in

this mass group.

Suitable for particular ISOFIX child restraint systems (CRS) given in attached list.
These ISOFIX CRS are those of the “specific vehicle”, “restricted” or “semi-universal”

categories.

ISOFIX position not suitable ISOFIX child restraint systems in this mass group and/or this size

class.

IUF:

IL:

X:

03-37

7410-01

7) Warning For Child Restraint

Use only the officially approved child restraint.

Ssangyong is not responsible for the personal injury and property damage due to the defect of child

restraint.

Use only the child restraint with proper type and size for your baby.

Use only the child restraint at proper location.

Child restraint has 5 categories based on the weight as below:

GROUP 0: 0 ~ 10KG

GROUP 0+: 0 ~ 13KG

GROUP I: 9 ~ 18KG

GROUP II: 15 ~ 25KG

GROUP III: 22 ~ 36KG

Group 0 & 0+

Rear facing child restraint fitted on the rear seat

Group I

Forward facing child restraint fitted on the rear seat

Group II & III

Booster seat fitted on the rear seat with seat belt fastened

Always follow the installation and use instructions provided by the manufacturer of the booster seat.

-

-

-

-

-

-

-

03-38

Driver power seat

▶

7. CIRCUIT DIAGRAM

03-39

7410-01

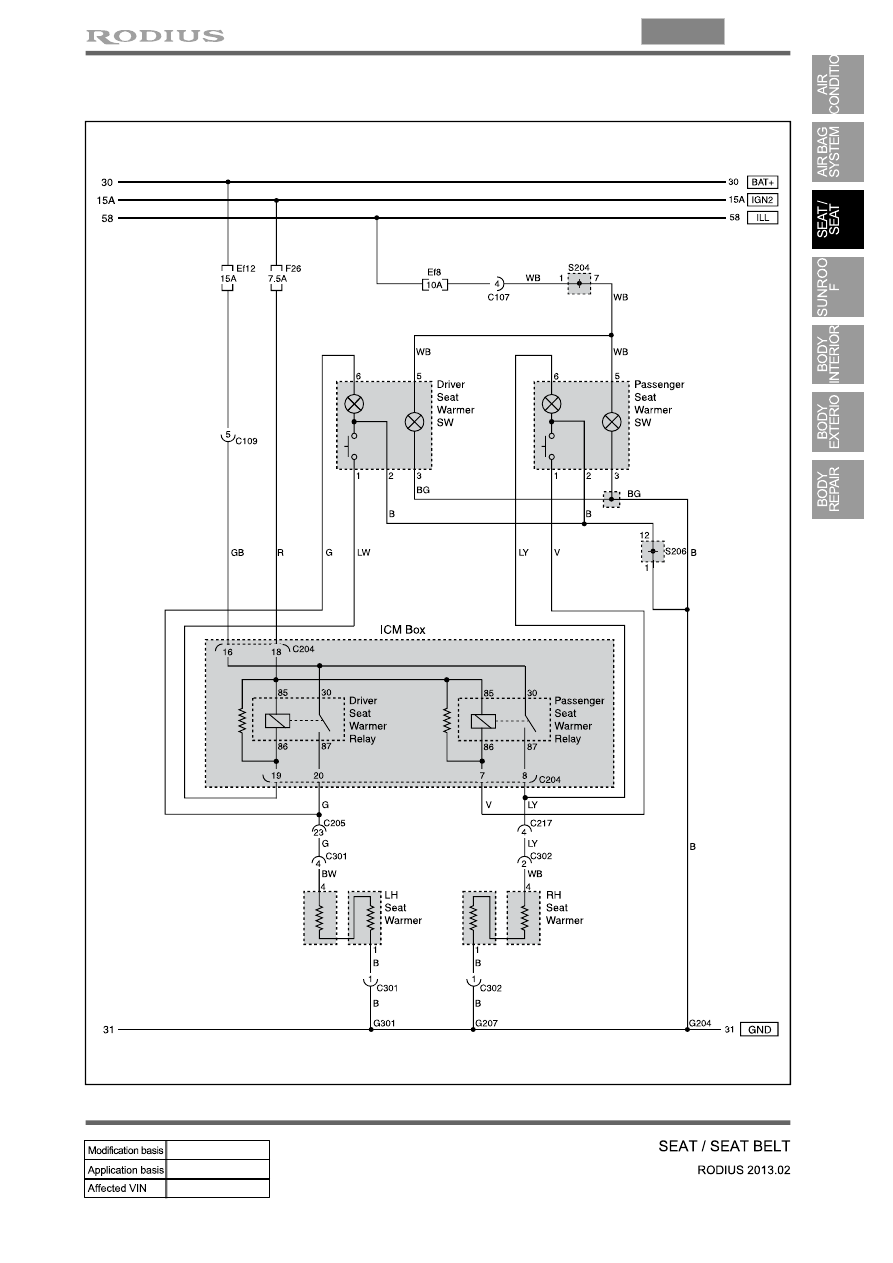

FRT seat warmer

▶
