03-28

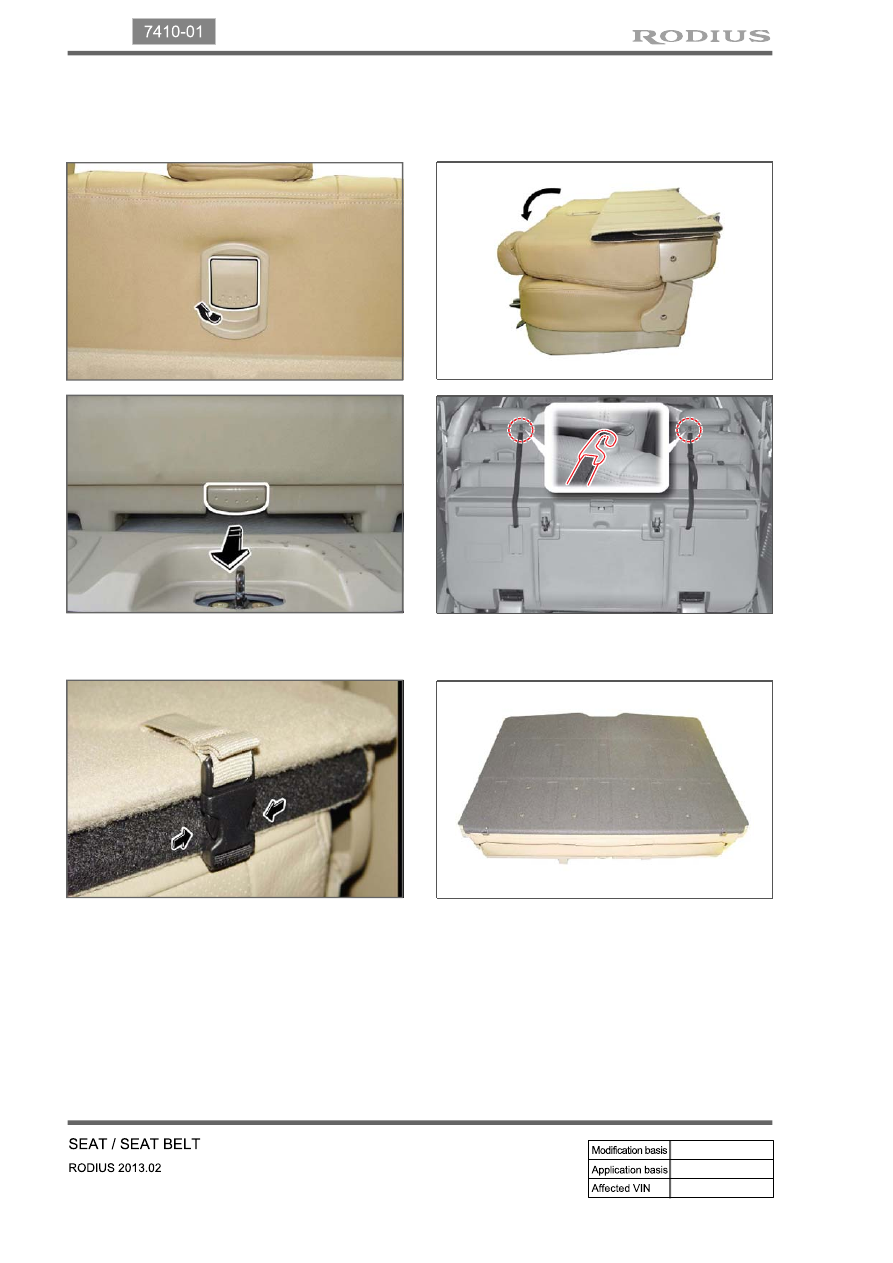

(8) Rear 3rd seat

Pull the lever behind back seat to fold the back seat.

-

As the seat is folded, disconnect hook and spread out the board

-

03-29

7410-01

Driver & Front

Passenger

Seat Warmer Switches

3) To Activate Driver & Front Passenger Seat Warmer

Operating condition

▶

Turn the ignition key to the "ON" position and start the engine.

If the cranking signal is inputted, the seat warmer stops working during cranking.

Operation description

▶

When pressing the seat warmer switch for the driver and/or front passenger seat with IGN ON, the

seat warmer operates. Press the switch again to stop the seat warmer.

Operation procedures

▶

When pressing the seat warmer switch for the driver and/or front passenger seat, the seat warmer

relay in the ICM box is activated to supply power to the seat warmer.

ICM Box

Driver & Front

Passenger

Seat Warmer Activated

The driver and front passenger seat warmers have separate circuits, allowing them to function

independently.

03-30

6. CHILD RESTRAINTS AND PREGNANT WOMAN

1) Pregnant Women

We recommend that pregnant women use the seat belts throughout their pregnancy. Keeping the

mother safe is the best way to keep the baby safe.

Infants and tiny children should always be restrained in an infant or child restraint.

Never install  a rear-facing child restraint in the front seat with front passenger air bag.

A child in a rear-facing child restraint installed in the front seat can be seriously injured if the front

passenger air bag inflates. Secure a rear-facing child restraint in the rear seat.

A front-facing child restraint should be secured in the rear seat whenever possible. If installed in the

front passenger seat, adjust the seat as far back as it will go.

When installing a child restraint system, follow the instructions provided by the manufacturer.

When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from

the vehicle.

In a collision an unrestrained child, even a tiny baby, can become a missile inside the vehicle. The

force required to hold even an infant on your lap can become so great that you could not hold the

child, no matter how strong you are.

Do not allow a child in the cargo areas while the vehicle is moving.

If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle.

Never allow a child to put the shoulder belt under an arm or behind their back.

Please note that the three point seat belt is designed for a person who is taller than 140 cm.

-

-

-

-

-

-

-

-

-

-

2) Child Restraints

When transporting infants or small children, an appropriate child restraint system should always be
used. The child restraint system should be appropriate for your child’s weight and height and
properly fit the car’s seat. Accident statistics indicate that children are safer when properly

restrained in the rear seat rather than in the front seat.

3) Securing Methods of Child Restraint System

Child restraint systems are designed to be secured in vehicle seats by seat belts or the latch system

(ISOFIX seat - if equipped).

Pregnant women should wear 3-point seat belt whenever possible according to the professional

recommendations by her doctor.

Pregnant women should wear the lap portion of the belt across the thighs and as snugly and low

as possible.

-

-

03-31

7410-01

4) Infant and Child Safety

Children that are too small to use the seat belts must be properly secured in a child restraint system.

Do not place a child restraint system in the front seat. The infant or child could be severely injured

by an air bag inflation in case of an accident.
Use only the qualified child restraint systems. Follow the manufacturer’s instructions for

installation and use of the child restraint systems.

Do not carry your child on your lap while driving. You cannot resist against the impact pressure in

an accident. The child could be crushed between you and the parts of vehicle.

Remember that a child restraint seat left in a concealed vehicle can cause it to be very hot. Check

the seating surface before putting your child in the child restraint.

When your child restraint is not in use, remove it from the vehicle or keep it secured with a seat

belt to prevent it from being thrown forward in case of a sudden stop or an accident.
When installing a child restraint, do not let the seat belts come across the child’s neck.

-

-

-

-

-

-

Child seat

▶
