03-20

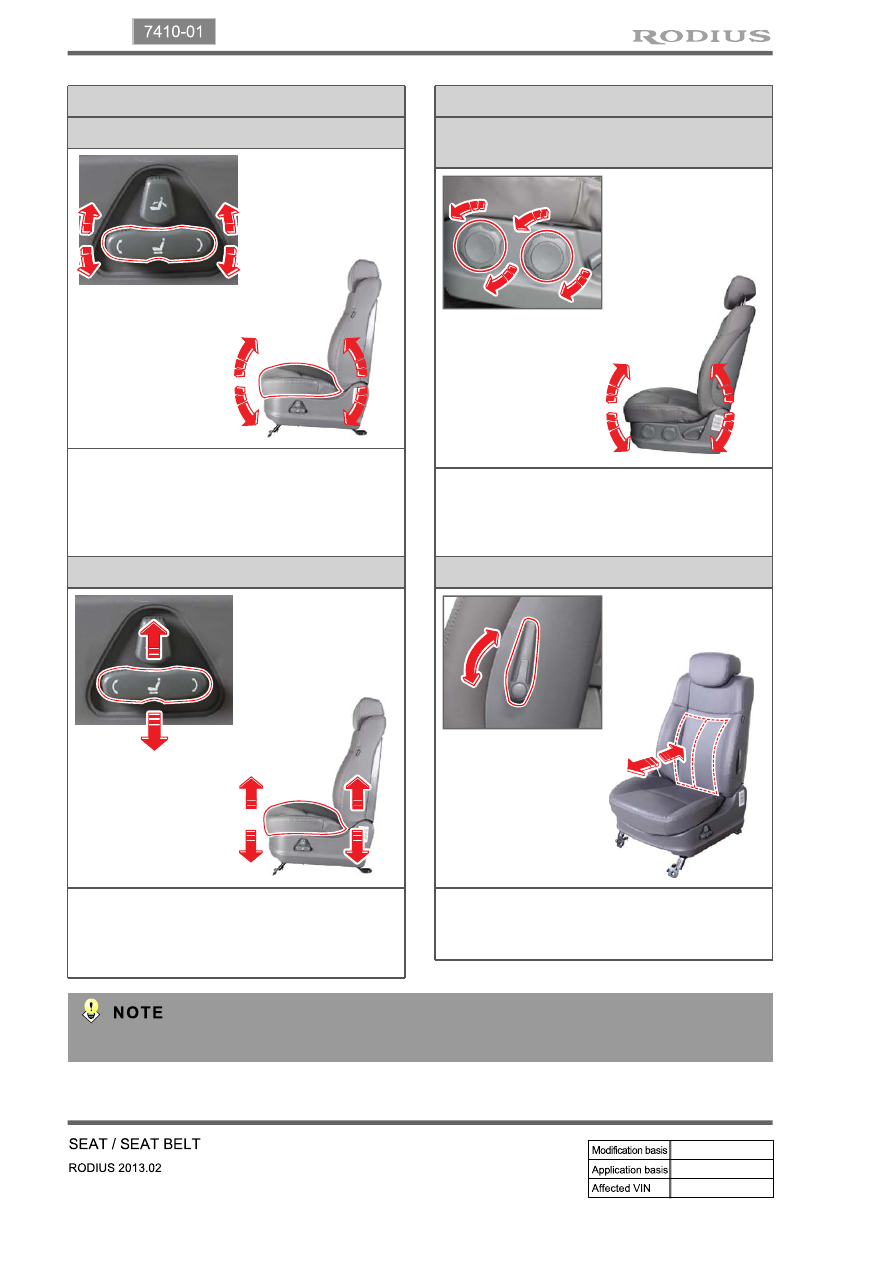

Power Seat

To adjust seat cushion angle

When moving the front and rear parts of the
slide switch upwards or downwards, the front
and rear up/down motors rotate the rails to
move the front and rear side of the cushion
up/down.

To adjust seat height

When moving the slide switch up/down,
the front rear up/down motor rotates the rail to
move the whole seat cushion up/down.

Manual Seat

To adjust seat cushion angle and

height

Turn the adjusting knob on the side of the seat
clockwise or anticlockwise to adjust the height
or angle of the front side or rear side of the
cushion.

To adjust driver seat lumbar support

When you raise and lower the adjusting lever
on the power and manual seats, the lumbar
support goes in and out of the seat.

The lumbar support is only fitted to the vehicle without the seat air bag.

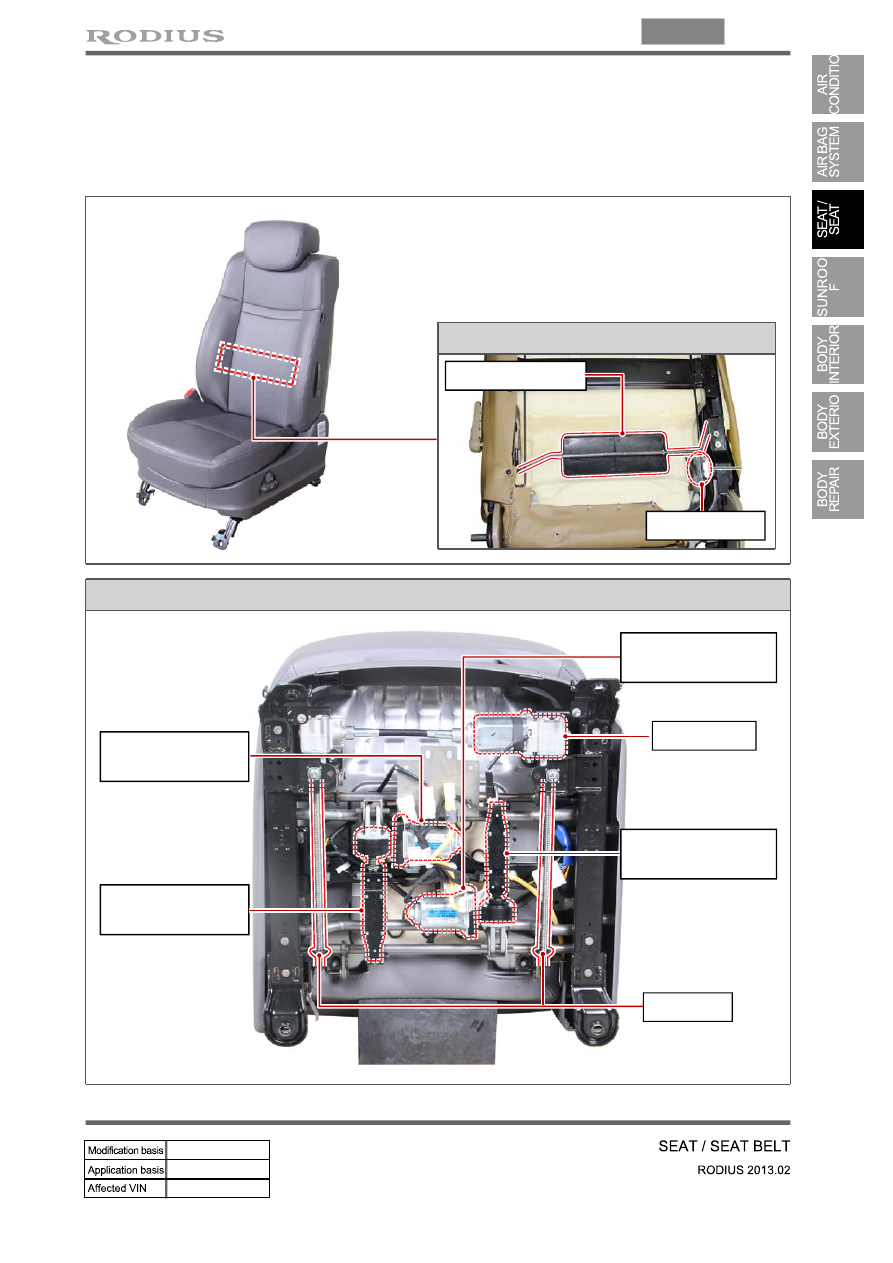

03-21

7410-01

Internal Configuration of Seat Cushion

2) Front Seat Mechanism (Based on Power Seat)

Internal Configuration of Seatback

Lumbar support

Recline motor

Seat cushion rear

up/down motor

Seat cushion rear

up/down rail

Slide motor

The descriptions in this chapter are based on the driver’s seat and rear 1st seat.

(1) Components

Slide rail

Seat cushion front

up/down rail

Seat cushion front

up/down motor

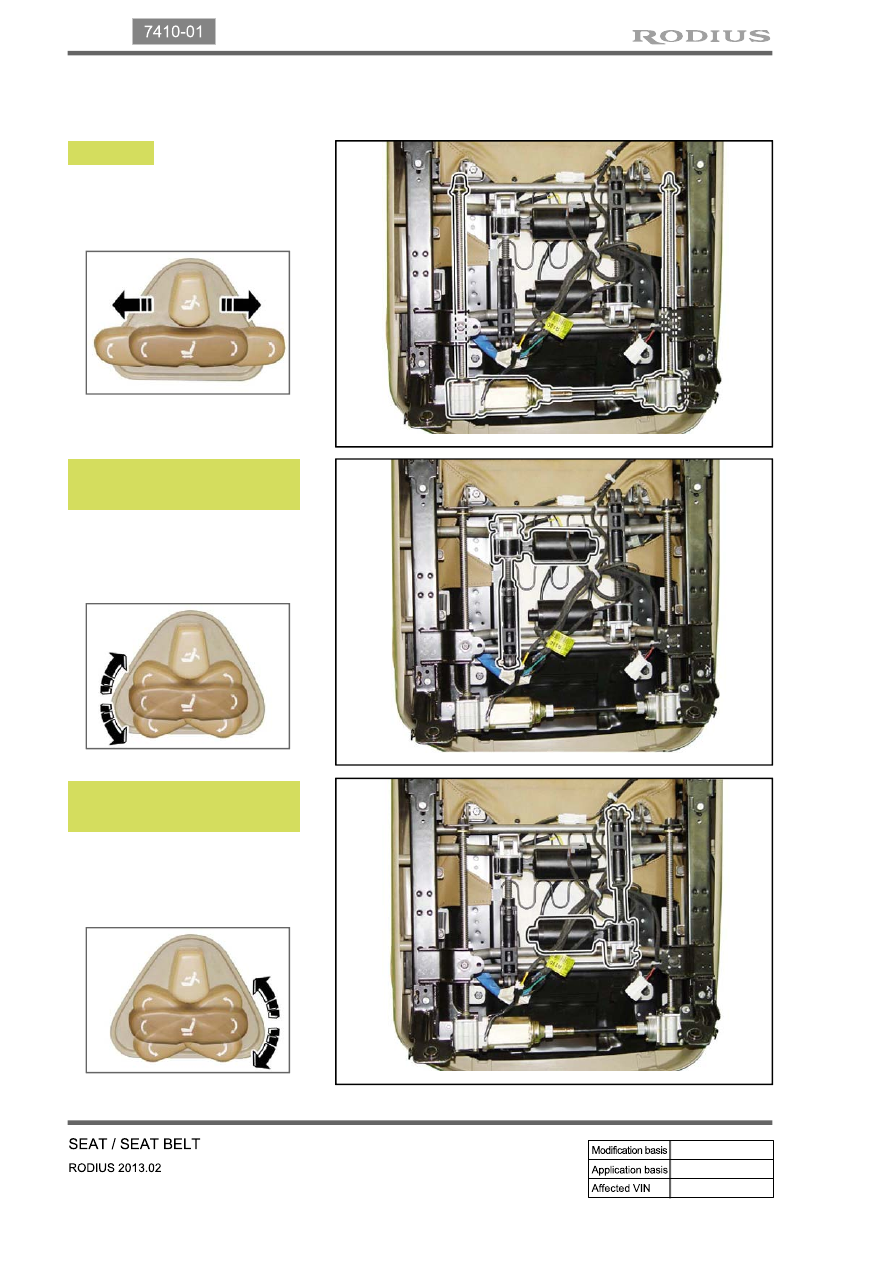

03-22

Seat cushion angle adjustment (rear

end)

Front side of seat moves

up/down controlled by seat

position control switch

(2) Operation of seat

Sliding

Seat moves from front to rear

controllde by sliding control

switch

Seat cushion angle adjustment

(front end)

Rear side of seat moves

up/down controlled by seat

position control switch

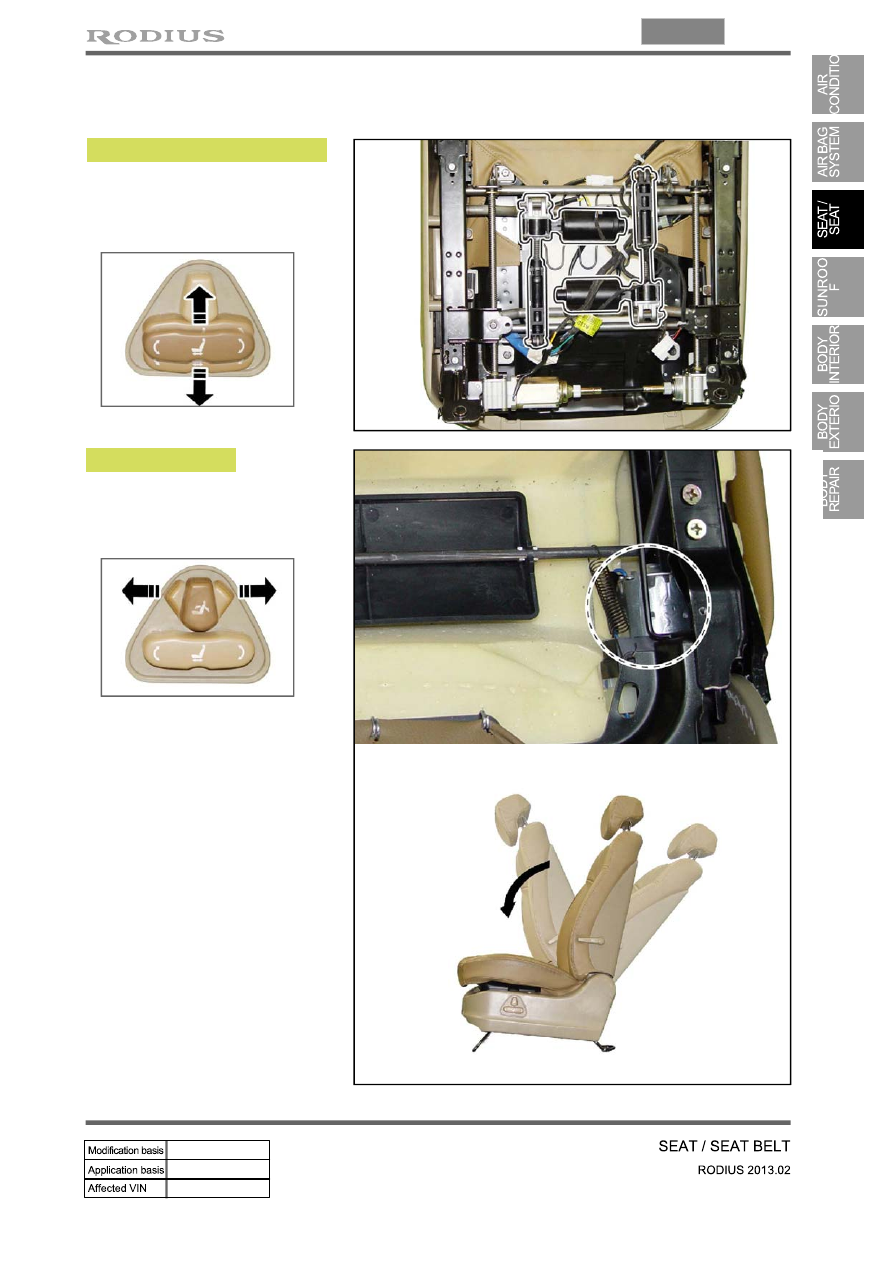

03-23

7410-01

Seat cushion height adjustment

Seat moves up/down

controlled by seat height

control switch

Seatback reclining

Seat back reclining controlled

by seat reclining control switch
