SsangYong Rodius (2013 year). Manual - part 177

12-12

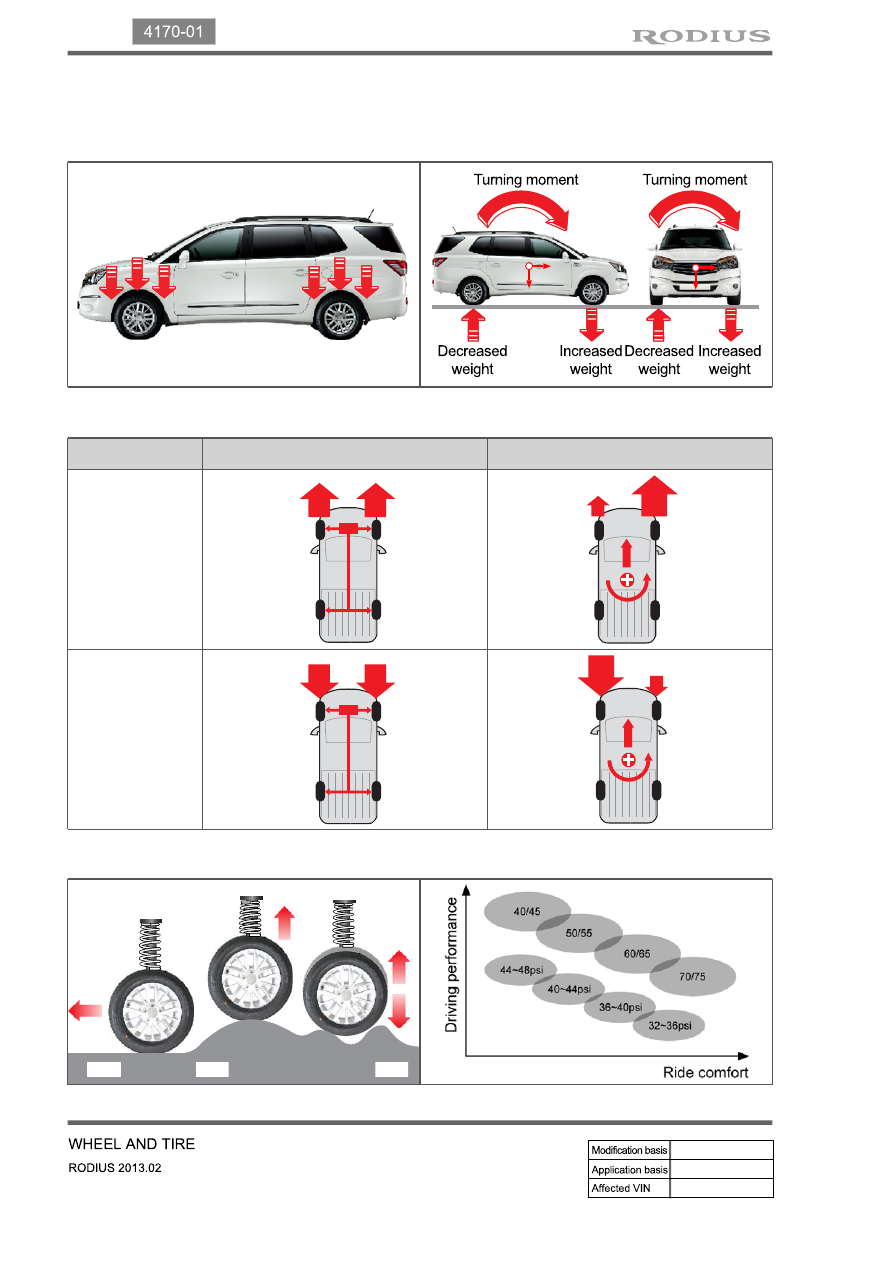

Even friction coefficient road

Uneven friction coefficient road

Driving Force

Braking Force

Supporting the Vehicle Weight

▶

Transferring the Driving Force & Braking Force to Road

▶

5. FUNCTIONS OF TIRE

Supporting the Vehicle Weight

▶

01-3

6810-30

1. SPECIFICATION

Item

FATC Manual

A/C controller

Rated voltage

DC 12 V

DC 12 V

Operating voltage

DC 9 to 16 V

DC 9 to 16 V

Current consumption

2 A

2.5 A

Operating temperature

-30~75℃

-30~80℃

Dark current

2 mA or less

-

A/C compressor

Diameter of pulley

120 mm

Rated voltage

DC 12 V

Current consumption

2.2 A

Refrigerant fluid

PAG RL 897 150cc

Condenser

Size

655.8wX485.6hX16.0t

Receiver drier

Moisture absorbent

XH-9

Pressure switch

Refrigerant pressure sensor

Front heater &

A/C module

Heating capacity

7000 Kcal/hr

Cooling capacity

6200 Kcal/hr

Expansion valve

Block type

Rear heater &

A/C  module

Heating capacity

4300 Kcal/hr

Cooling capacity

3200 Kcal/hr

Refrigerant

type

R134a

Volume

1050g ± 30g

PTC heater

Material

barium titanate (BaTiO3)

Power consumption

1,000 W

01-4

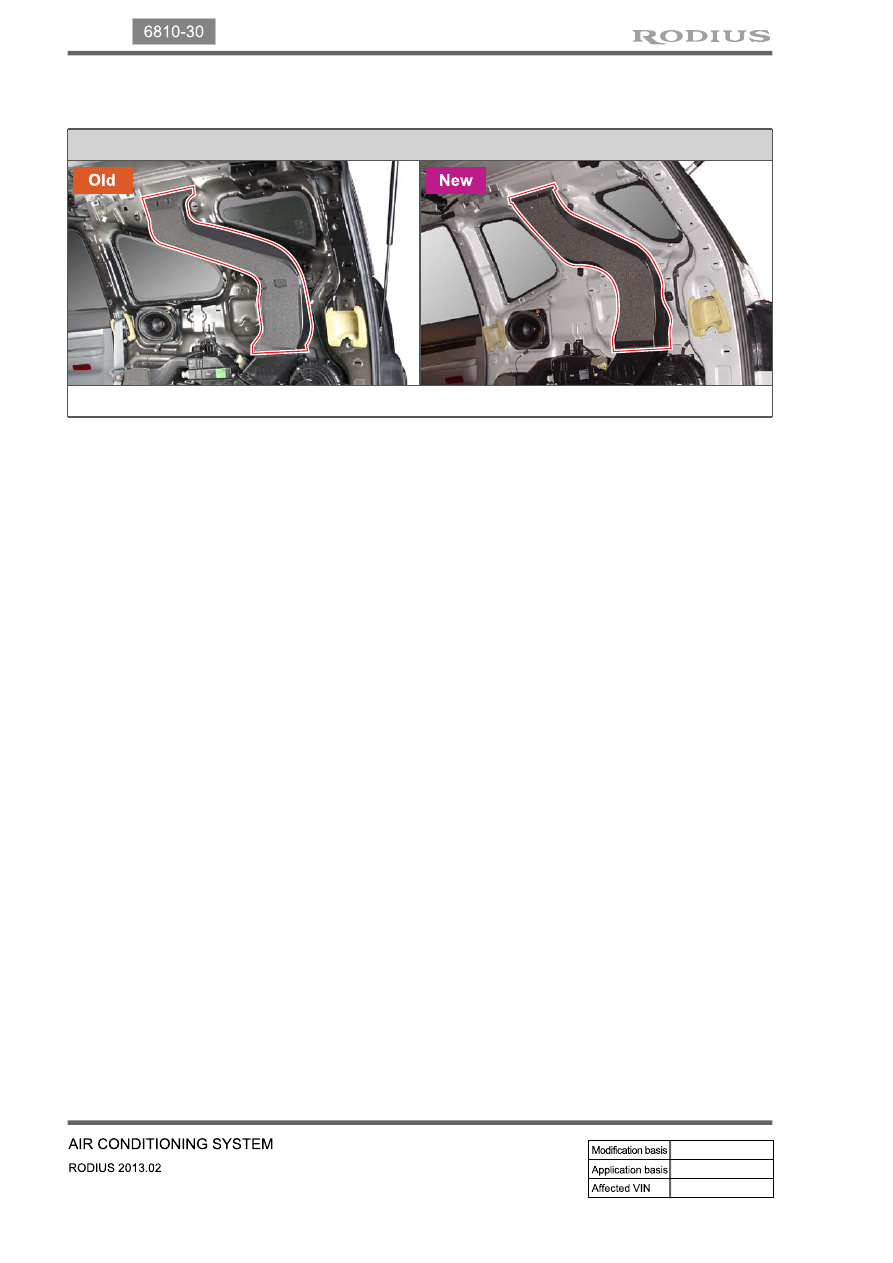

Rear cooler duct

Appearance changed

2. MAJOR CHANGES
