08-20

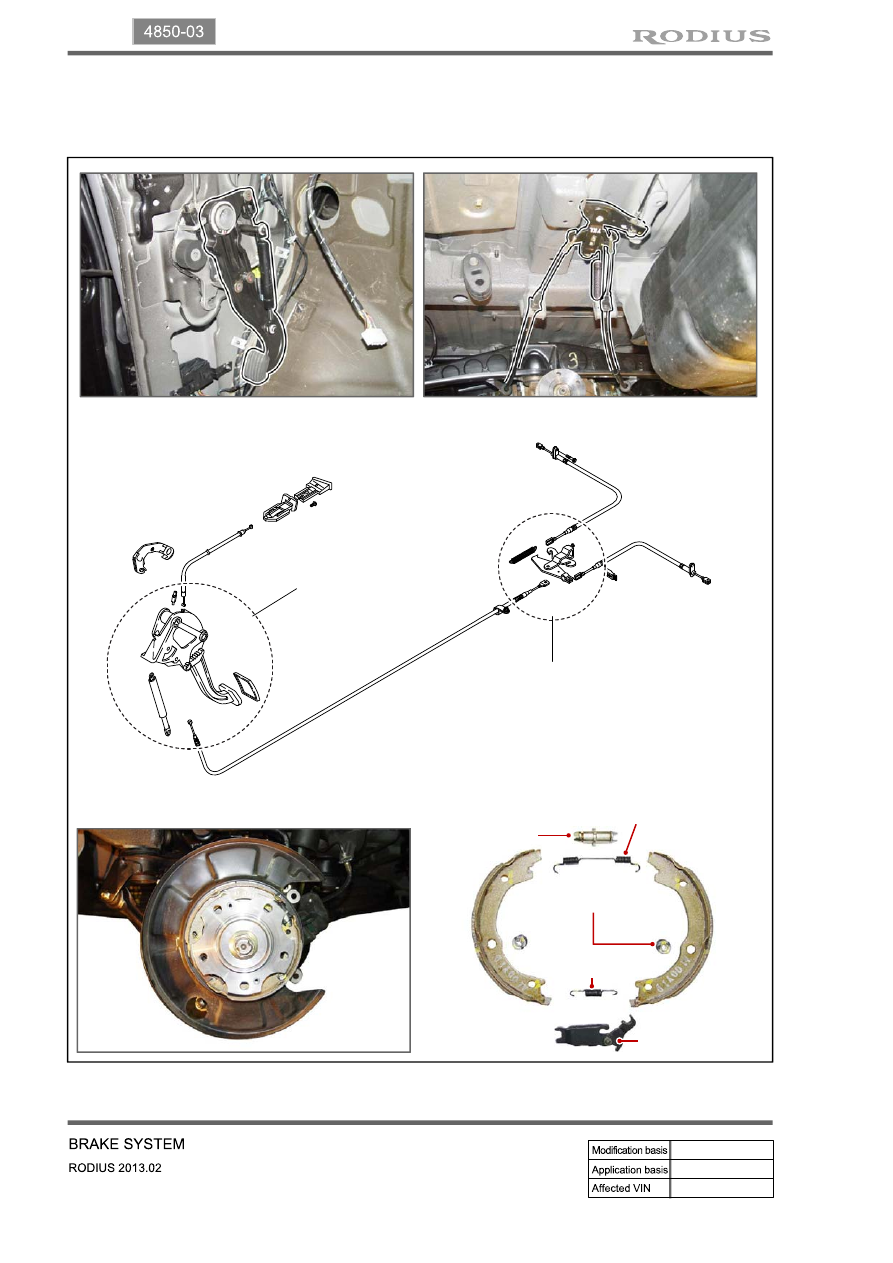

4) Parking Brake

▶Parking Brake Controls

Operating lever

Return spring - lower

Shoe holding

spring

Return spring - upper

Adjusting bolt

Pedal assembly

Equalizer assembly

08-21

4850-03

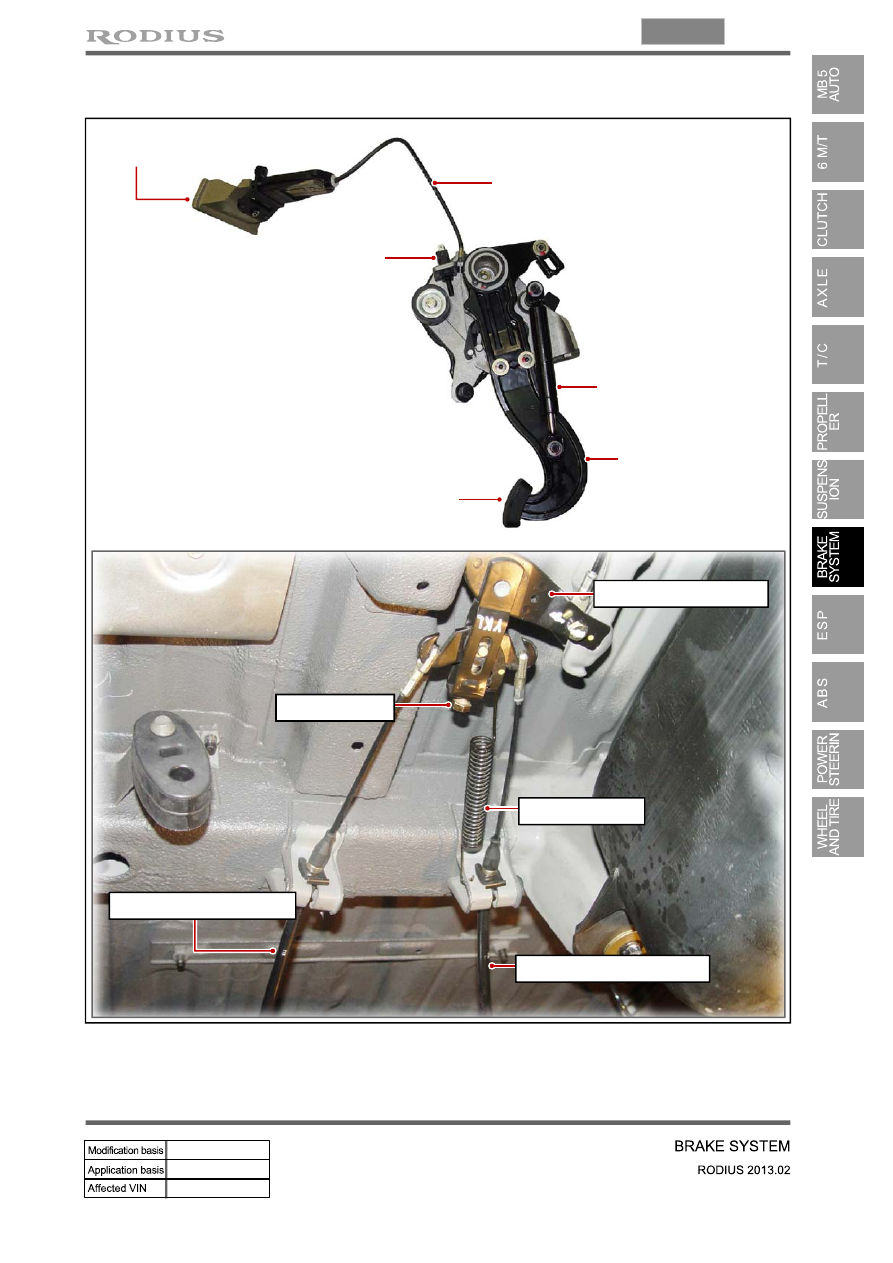

Parking brake switch

Release lever

Brake damper

Pedal assembly

Pedal

Rear brake cable - LH

Rear brake cable - RH

Tension spring

Equalizer bolt

Equalizer assembly

Release cable

09-3

4891-01

1. SPECIFICATIONS

1) Pressure Sensor

Unit

Description

Location

ABS

ESP

HECU

(Hydraulic &

Electronic Control

Unit)

CPU:MCU60 (32bit)

Clock Frequency:

28 MHz

Memory: 128~256 KB

CPU:MCU60 (32bit)

Clock Frequency:

28 MHz

Memory:256~512 KB

Under the front washer

reservoir

Wheel Speed

Sensor

Active type wheel speed

sensor

Active type wheel speed

sensor

On each wheel

Front air gap:
0.3 ~ 1.3mm,

Rear air gap:

0.3 ~ 1.3 mm

Steering Wheel

Angle Sensor

N/A

Maximum angular speed:

1500°/sec

Operating voltage:

9~16 V

Under the steering

wheel

Sensor Cluster

N/A

Integrated with yaw rate

sensor and lateral sensor

Under the audio

assembly

Pressure Sensor

N/A

Analog output

Under the master

cylinder

Description

Specification

Supplying voltage

approx. 5 V (4.75~5.25 V)

Max. pressure

350 bar

09-4

2) Sensor Cluster

3) Steering Wheel Angle Sensor

Air gap between sensor and rotor

Front

0.3 ~ 1.3 mm

Rear

0.3 ~ 1.3 mm

Current (at 2.75 km/h)

IHIGH  :  14 mA

ILOW  :  7 mA

Voltage (when turning the steering wheel one turn per second)

7.5 ~ 20 V

4) Active Wheel Speed Sensor

Operating voltage

     9~16 V

Maximum output current

     10 mA

Max. current consumption

100 ma

Maximum detection angle speed

     1500˚/s

Operating temperature

     -30~75℃

Supplying voltage

     9 to 16 V (battery voltage)

       Description

      Specification

Description

Specification

Description

Specification

Supplying voltage

approx. 5 V (4.75~5.25 V)

Output voltage while in stationary

approx. 2.5 V (Ignition ON)

Output range

0.2~4.8 V

Operating start speed

4˚/s
