SsangYong Rodius (2013 year). Manual - part 142
01-16

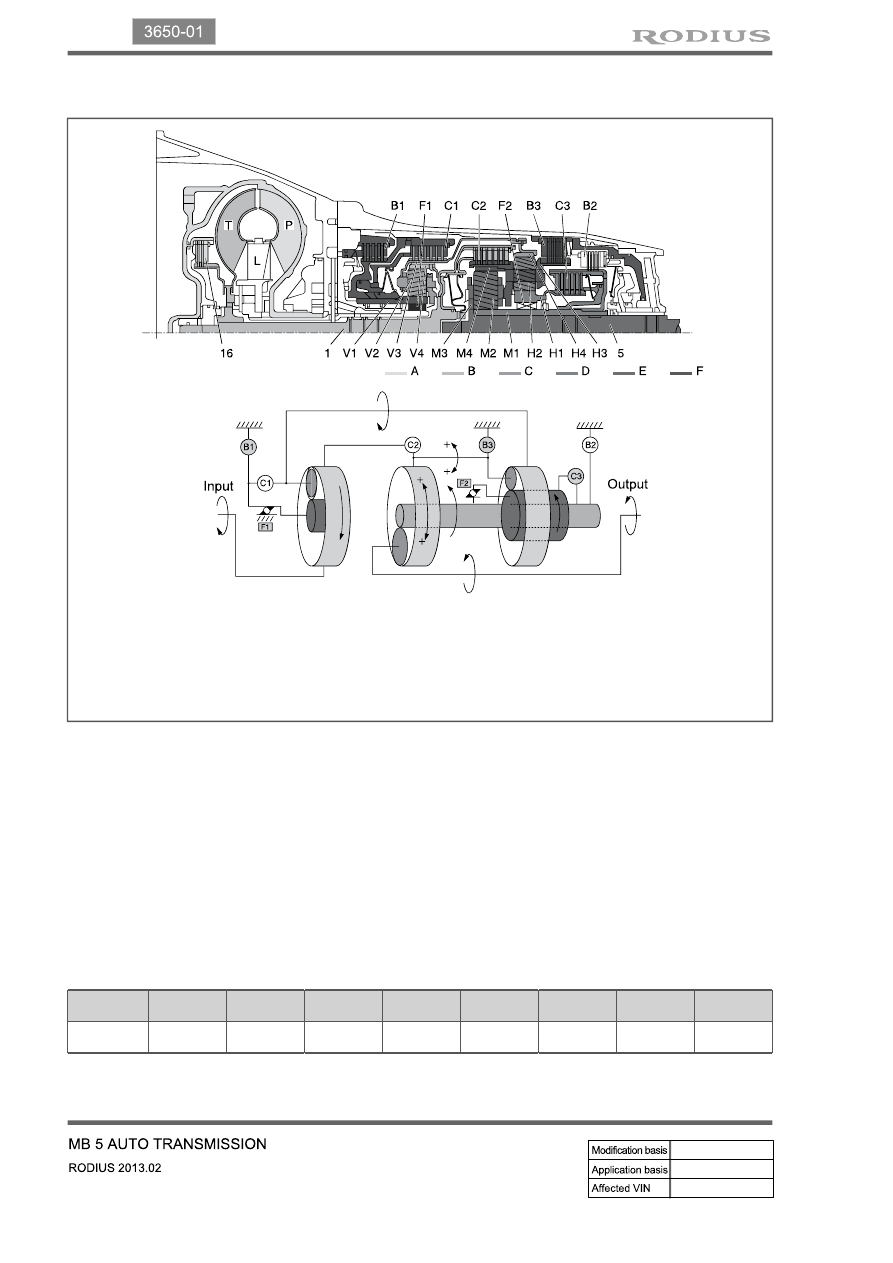

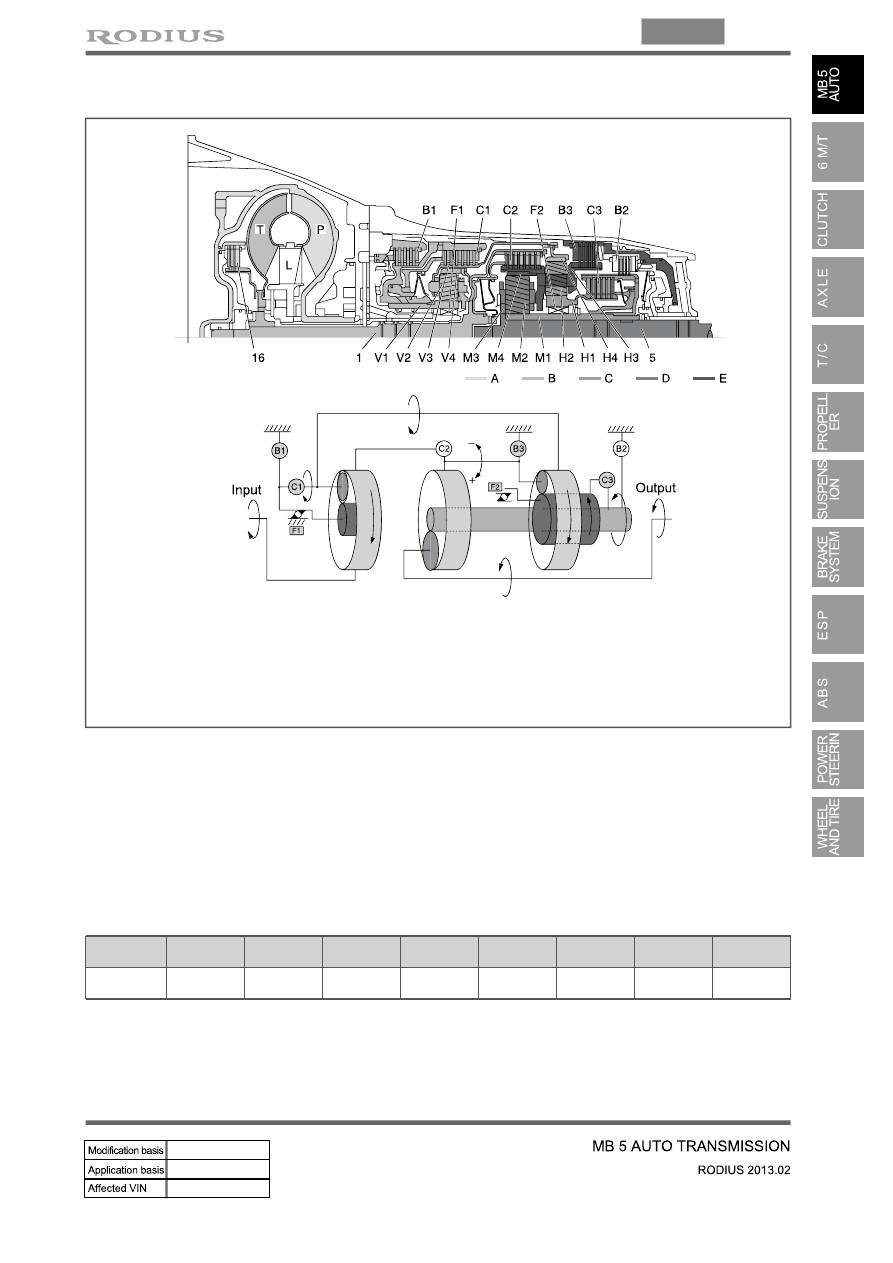

▶Reverse 1st Gear (3.167)
Torque converter lockup clutch
Engine speed
Transmission, input shaft
1st gear ratio
2nd gear ratio
16.
A.
B.
C.
D.
Mounting elements
Mounting elements
Rear planetary gear set
Stator
E.
F.
H.
L.
Center planetary gear set
Impeller
Turbine wheel
Front planetary gear set
M.
P.
T.
V.
Input shaft: Clockwise rotation
Front ring gear: Clockwise rotation
Front sun gear: Locked by one-way clutch F1
Front planetary gear carrier: Clockwise rotation (reduced speed)
Rear planetary gear ring gear: Clockwise rotation
Rear planetary gear carrier: Locked by B3
Rear sun gear and center sun gear: Counterclockwise rotation (increased speed)
Center ring gear: Locked by B3
Center planetary gear carrier: Counterclockwise rotation (reduced speed)
Output shaft: Counterclockwise rotation
-
-
-
-
-
-
-
-
-
-
Gear
C1 C2 C3 B1 B2 B3 F1 F2
R (S)
●
●
●
●
3)
3) Overrun
