01-4

Item

W5A330(300)

W5A580(400)

M/P, S/P solenoid
valve(23℃)

Resistance

5.0 ± 0.2 Ω

Operating distance

0.6 mm

Operating current

0 ~ 1 A

Lockup solenoid
valve(25℃)

Resistance

2.5 ± 0.2 Ω

Operating distance

0.2 mm

Operating current

1.5 ~ 2.0 A

Operating range

3rd to 5th gears

Speed sensor

Resistance

HALL type

Operating voltage

6 V

Start lockout switch

Switch contact

ON(D position)

Switch contact

OFF(P, N position)

Mode switch

W(Winter)

S(Standard)

One-way clutch

F1, F2

Planetary gear set

Plain planetary gear:
3(number of pinion)

3, 4, 3

4, 4, 4

Disc clutch

Disc: C2*, C2, C3*

Single plate type*

Disc brake

Disc: B1*, B2, B3

Single plate type*

Item

Specification

01-5

3650-01

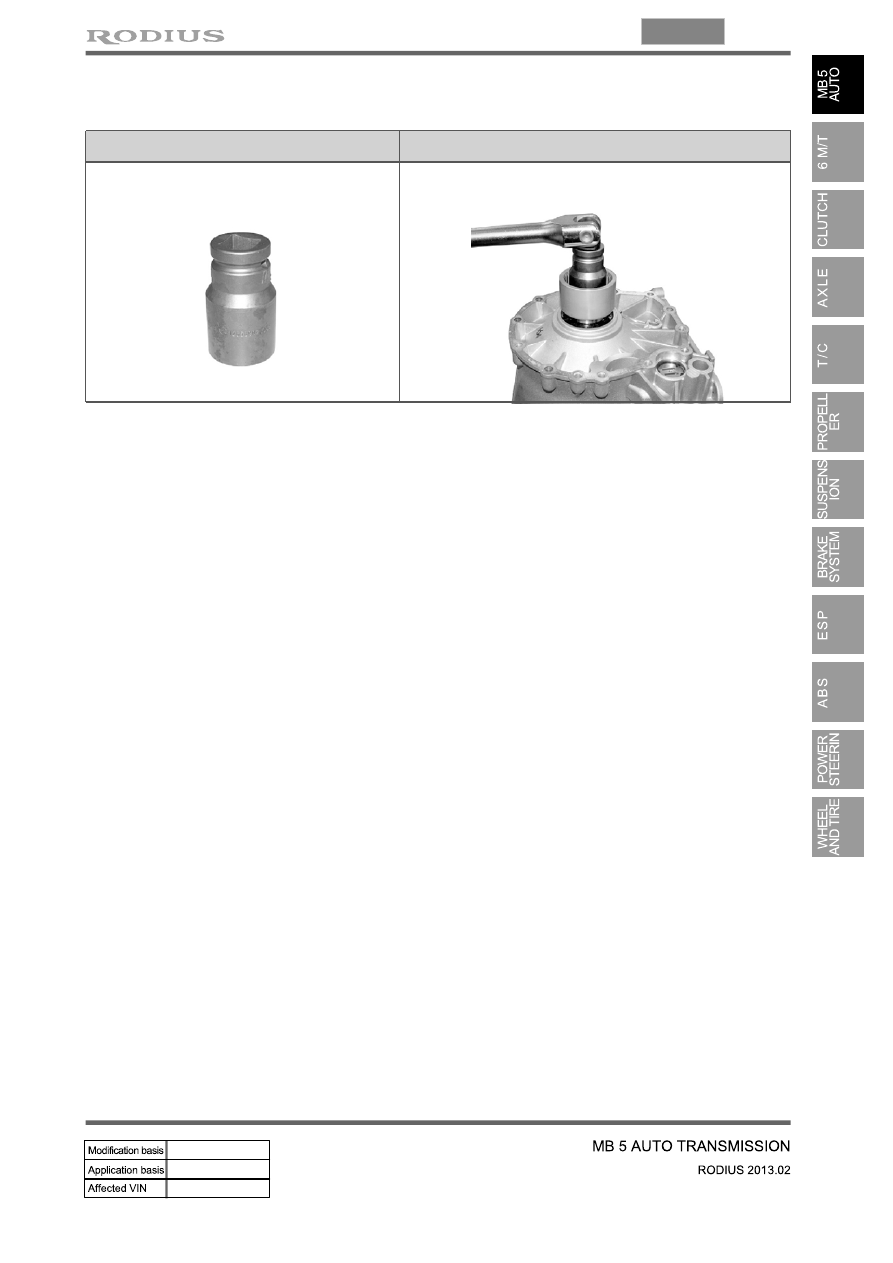

Part Name/Part Number

Description

126589 020900
Piston collar nut

Install and remove the output shaft collar nut

2. SPECIAL SERVICE TOOLS

01-6

3. TIGHTENING TORQUE

Description

Tightening Torque (Nm)

Remark

Oil drain plug (oil pan)

14

Hexagon, 5 mm

Oil filler pipe (upper)

8 ~ 10

-

Oil filler pipe (lower)

8 ~ 10

-

Oil cooler pipe

30 ~ 38

-

Oil pan

8

T 30

Torque converter housing/oil pump

20

-

Transmission rear mounting bracket
(left/right)

36 ~ 44

-

Transmission rear mounting bracket
(center)

20

-

Torque converter mounting bolt

42

-

Converter housing/engine

75 ~ 90

-

Converter housing/transmission housing

20

T 45

Valve body

8

T  30

Valve body side cover

4

T 30

Solenoid valve

8

-

12-point collar nut

200

12-point, 30 mm

B2 housing bolt

16

T 45

Selector lever unit mounting bolt

6

-

01-7

3650-01

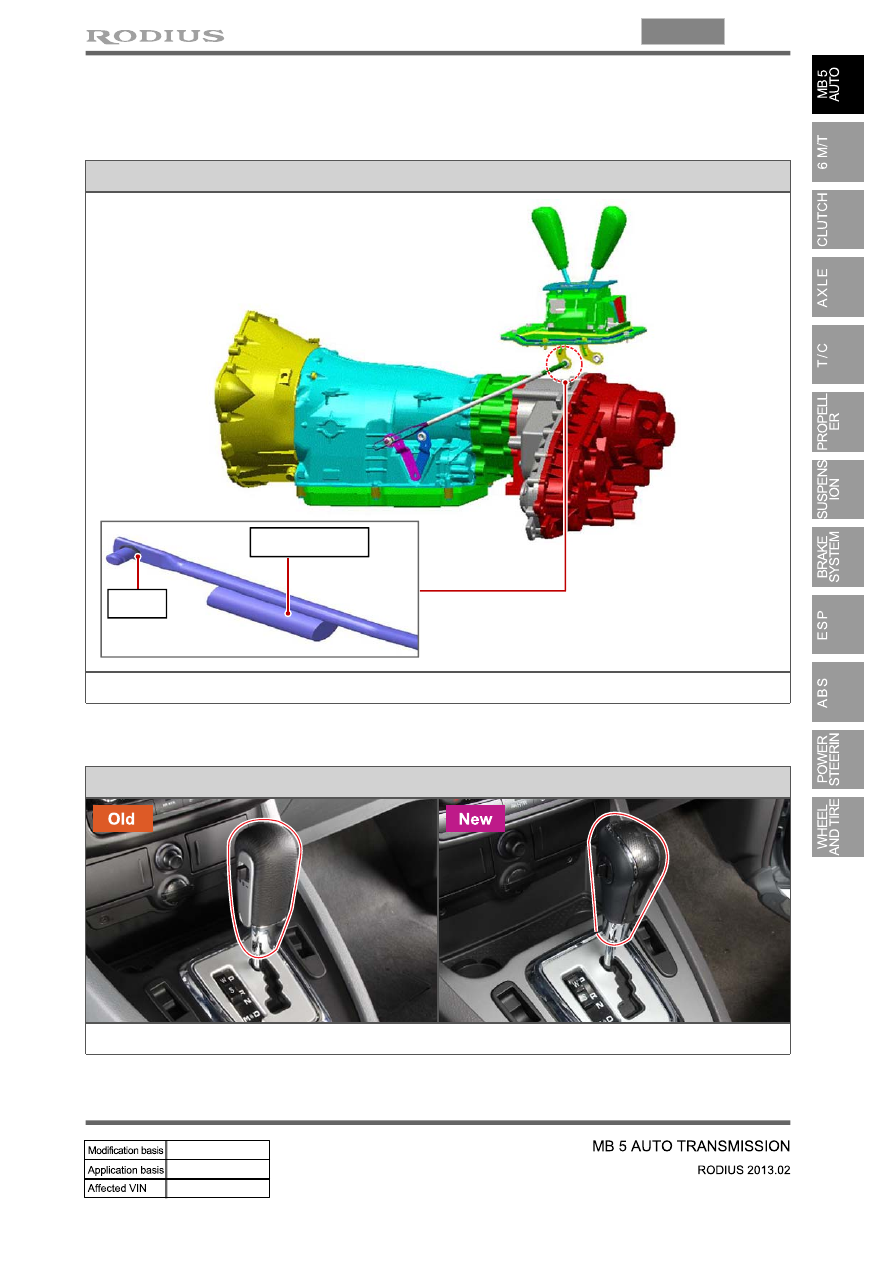

TGS A/T rod

O-ring and mass damper used for reducing noise and vibration

Mass damper

TGS A/T rod changed

▶

O-ring

TGS A/T knob changed

▶

TGS A/T knob

Changed to metal/wood grain pattern type

4. MJOR CHANGES
