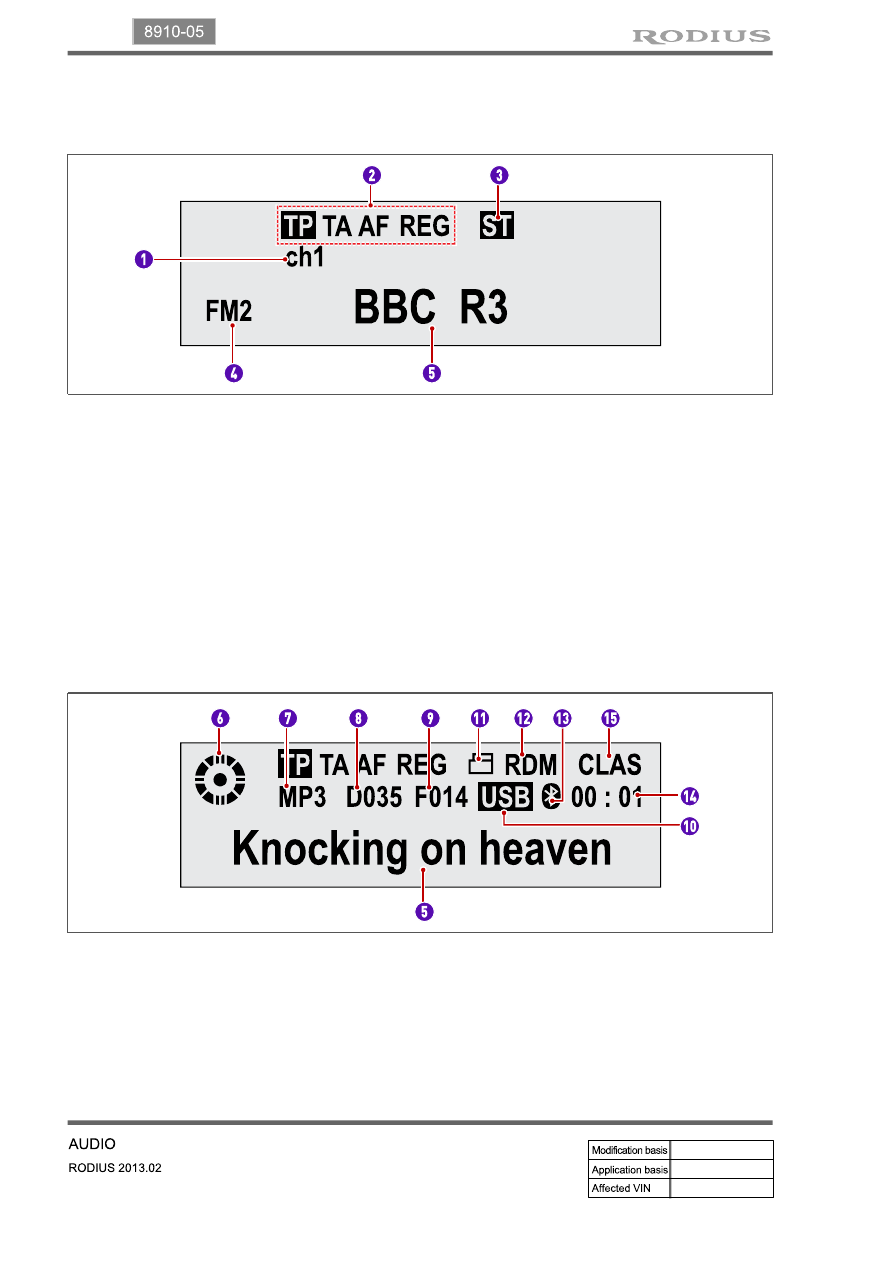

2) LCD Screen Description

Radio function

▶

Preset channel number

RDS indicator

1.

2.

Stereo indicator

Band indicator

Multi-function display area

Disc indicator

Media indicator

CDP - lights up when an audio CD is loaded.

MP3 - lights up when a MP3 file is loaded.

WMA - lights up when a WMA file is loaded.

3.

4.

5.

6.

7.

CD/MP3/WMA mode

▶

Current folder (directory) number

Current file (track) number

USB indicator

Folder select mode indicator

Playback mode indicators

RPT (Repeat), INT (Intro), RDM (Random)

8.

9.

10.

11.

12.

Bluetooth function indicator

Playing time

EQ (Equalizer) indicator

POP, ROCK, COUNTRY, VOICE, JAZZ,

CLASSIC

13.

14.

15.

TP lights up when a TP (Traffic Program)

station is tuned in.

TA lights up when TA (Traffic Announcement

standby) function is on.

REG lights up when a REG (Regional) station

is tuned in.

AF lights up when AF (Alternative

Frequencies search) function is on.

-

-

-

-

11-15

8910-05

3) Audio Setting

If you press the "SETUP" button, the text "EQ" appears in the display. When you turn the volume
control dial, the texts appear in the following order: "EQ" ↔ "TONE" ↔ "BT".

When the specific text appears, press the ENTER button to set the entry. However, if no choice has

been made within 5 seconds, the Setting mode is quit automatically.

Press SET button to enter the Setting mode. “EQ”, “TONE” and “BT” appear on the display.
Rotate TUNE dial to select the “EQ” menu, then press ENTER button.

Rotate TUNE dial to select the desired EQ style, then press ENTER button.

1.

2.

3.

Selecting the Equalizer style

▶

If no key input is made for 5 seconds, the current status is saved and the Setting mode is quit.

*

If no key input is made for 5 seconds, the current status is saved and the Setting mode is quit.

*

By rotating the TUNE dial, you can select one of the following EQ Styles.
EQ OFF ↔ POP ↔ ROCK ↔ COUNTRY ↔ VOICE↔ JAZZ ↔ CLASSIC ↔ ....

-

By rotating the TUNE dial, you can select one of the following Tone Control items.
BASS ↔ MIDDLE ↔ TREBLE ↔ BALANCE ↔FADER ↔ PREVIOUS ↔ ....

-

Press SET button to enter the Setting mode. “EQ”, “TONE” and “BT” appear on the display
Rotate TUNE dial to select the “TONE” menu, then press ENTER button.

Rotate TUNE dial to select the desired Tone control item, then press ENTER button.

1.

2.

3.

Setting the sound (TONE)

▶

Rotate TUNE dial to adjust the value of the level or balance, then press ENTER button.

4.

BASS: adjust the bass sound level (-7 to +7).

MIDDLE: adjust the treble sound level (-7 to +7).

TREBLE: adjust the treble sound level (-7 to +7).

BALANCE: adjust the sound balance between the right and left speakers (LEFT15 to RIGHT15).

FADER: adjust the sound fade between the front and rear speakers (FRONT15 to REAR15).

PREVIOUS: return to the TONE menu.

-

-

-

-

-

-

11-16

By rotating VOLUME dial, you can select one of the following Bluetooth Setting items.
PAIR ↔ SELECT ↔ PRIORITY ↔ DELETE ↔PREVIOUS ↔ PAIR ↔ ...

-

Press SET button to enter the Setting mode. “EQ”, “TONE” and “BT” appear.
Rotate TUNE dial to select the “BT” menu, then press ENTER button.

Rotate TUNE dial to select the desired Bluetooth Setting item, then press ENTER button.

1.

2.

3.

Setting the Bluetooth mode

▶

Rotate TUNE dial to select device list or adjust value, then press ENTER button.

4.

PAIR: enter the pairing (Key Code: 00xx).

SELECT: selects one of 5 Bluetooth devices for connection.

PRIORITY: selects the priority of connection.

DELETE: deletes a Bluetooth device.

PREVIOUS: return to the BT menu.

-

-

-

-

-

Incase of the delete selecting

Rotate TUNE dial to select the “YES” or “NO”, then press ENTER button.

YES: Deletes the selected Bluetooth device list.

NO: Cancels the Delete operation.

6.

Incase of the pair selecting

Follow steps 2 to 4 in 17 page “Pairing your phone and car audio system” to complete the

pairing.

5.

01-3

3650-01

Diameter( Torque converter)

270 mm

Lockup function

Yes

Gear ratios

1st

3.595

2nd

2.186

3rd

1.405

4th

1.000

5th

0.831

Reverse:
S mode / W mode

3.167/1.926

Driving type

2WD(4WD)

Fluid specification

Shell ATF 134

Fluid capacity

approx. 8 ℓ

Selected lever
indication

P.R.N.D Mechanical

D+/D- Electrical

Parking lock system

Brake switch(signal) → TGS lever

Reverse lock system

CAN → TGS lever

Selected lever
indication

P.R.N.D Lever

position

1, 2, 3, 4, 5

CAN

Oil temperature
sensor

Resistance: R, D

0.5 ~ 2.5 kΩ

Resistance: P, N

20 kΩ

TCU EGS

52

Shift solenoid
valve(25℃)

Resistance

3.8 ± 0.2 Ω

Operating distance

0.2 mm

Operating current

1.5 ~ 2 A

Item

Specification

Input torque

450 Nm

1. SPECIFICATIONS

W5A580(2WD) / W5A400(4WD)

▶
