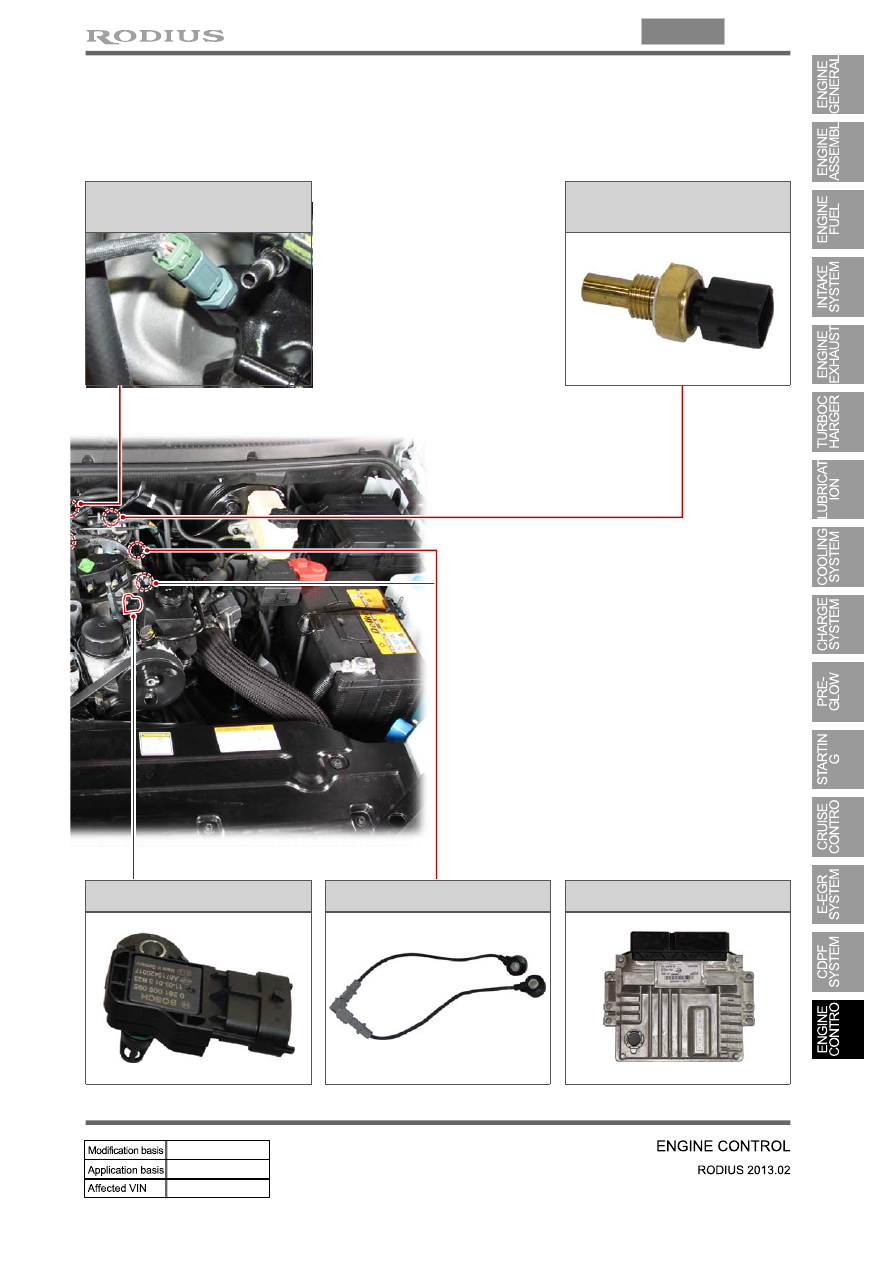

Fuel Temperature

Sensor

Coolant Temperature Sensor

Knock Sensor (2)

T-MAP Sensor

D20DTR ECU

15-8

2. SYSTEM OPERATION

1) Input/Output of ECU

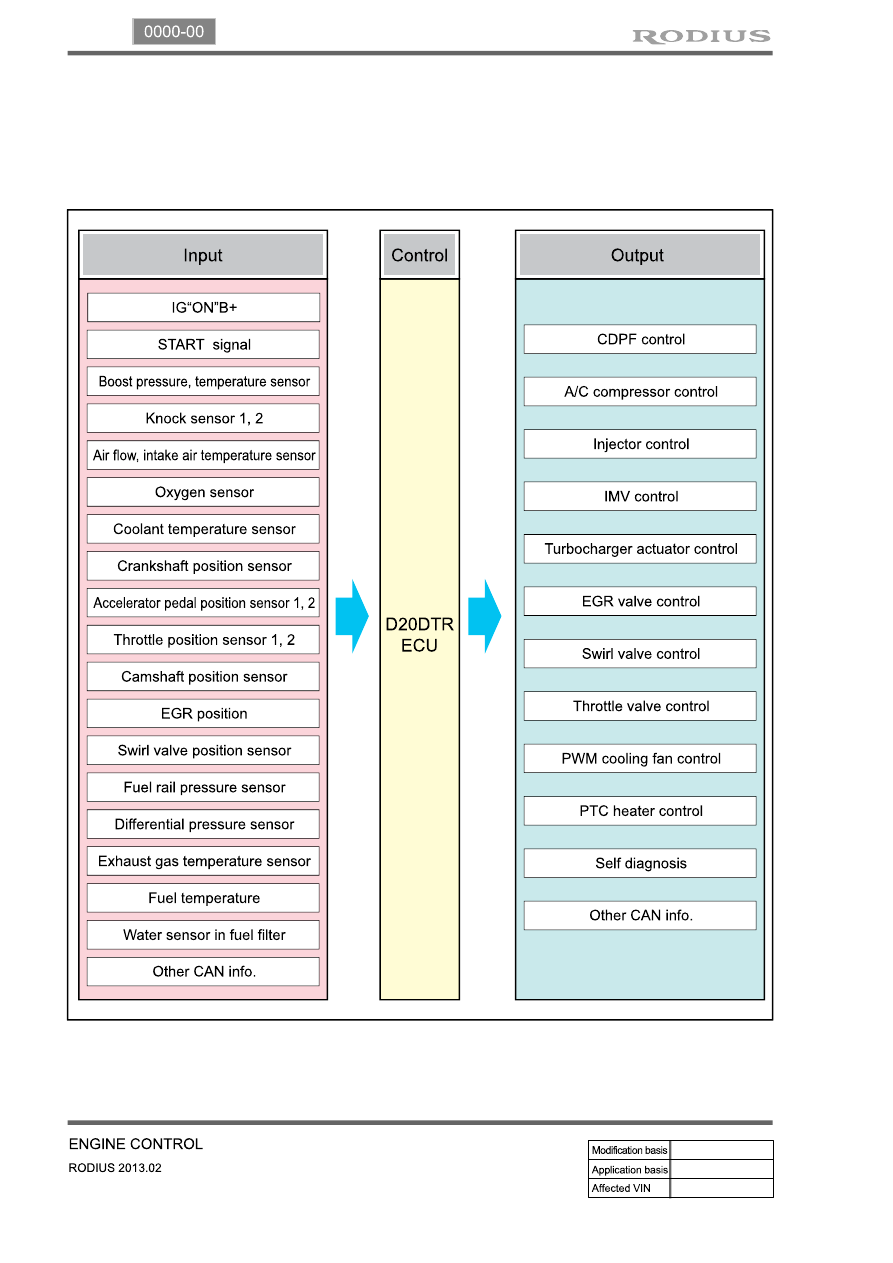

(1) ECU Block diagram

15-9

0000-00

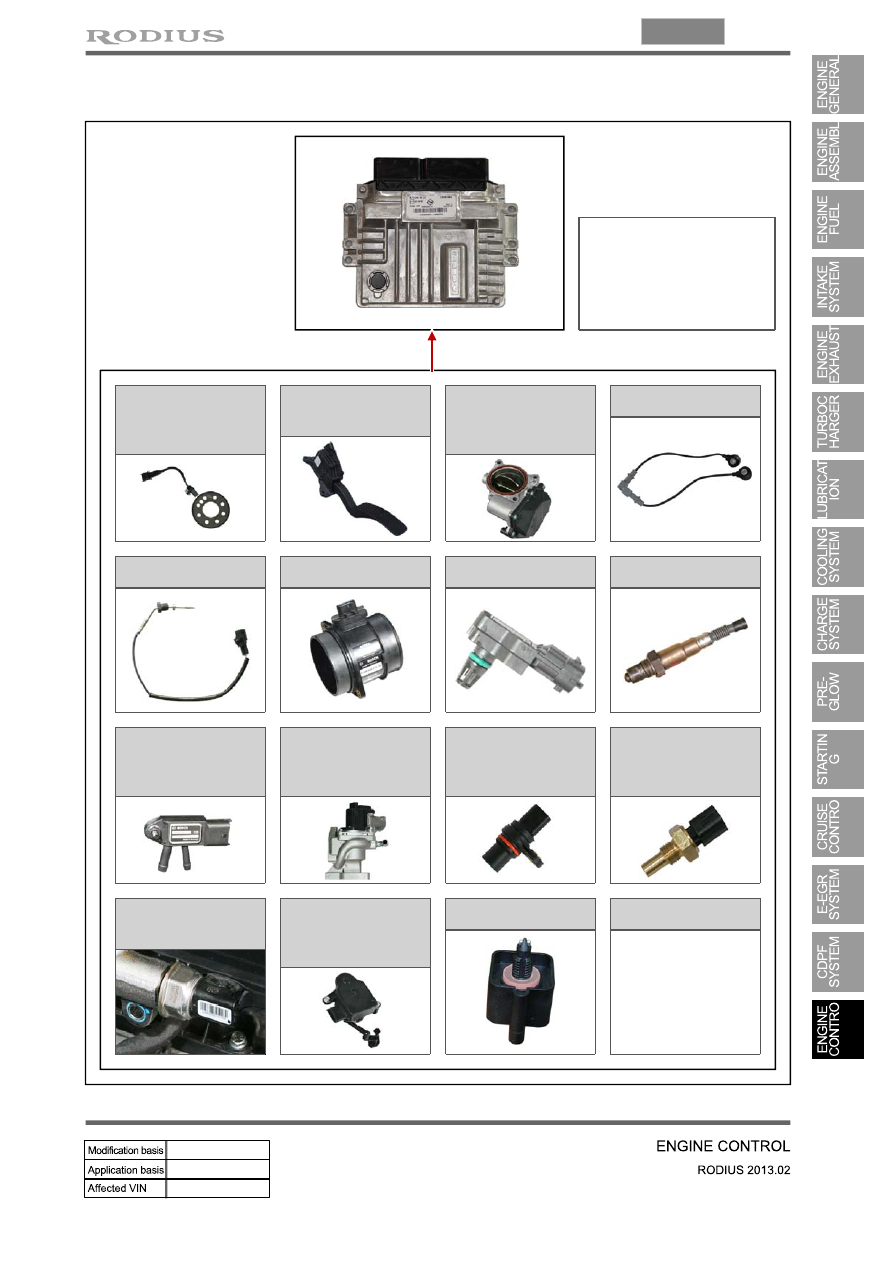

Fuel rail pressure

Water sensor

(2) Components for ECU Input

CAN

- ABS & ESP
- GCU
- Indicator/
  Warning Lamp,
  Meter Cluster
- TCU

Swirl valve

position

sensor

Differential

pressure sensor

E-EGR valve

position

sensor

Camshaft position

sensor

Coolant

temperature

sensor

EGT sensor

HFM sensor

Oxygen sensor

T-MAP sensor

Crankshaft

position

sensor

Accelerator pedal

sensor

Throttle

position

sensor

Knock sensor

- Auto cruise switch
- Refrigerant pressure
  sensor
- Blower switch signal
- Brake pedal signal

15-10

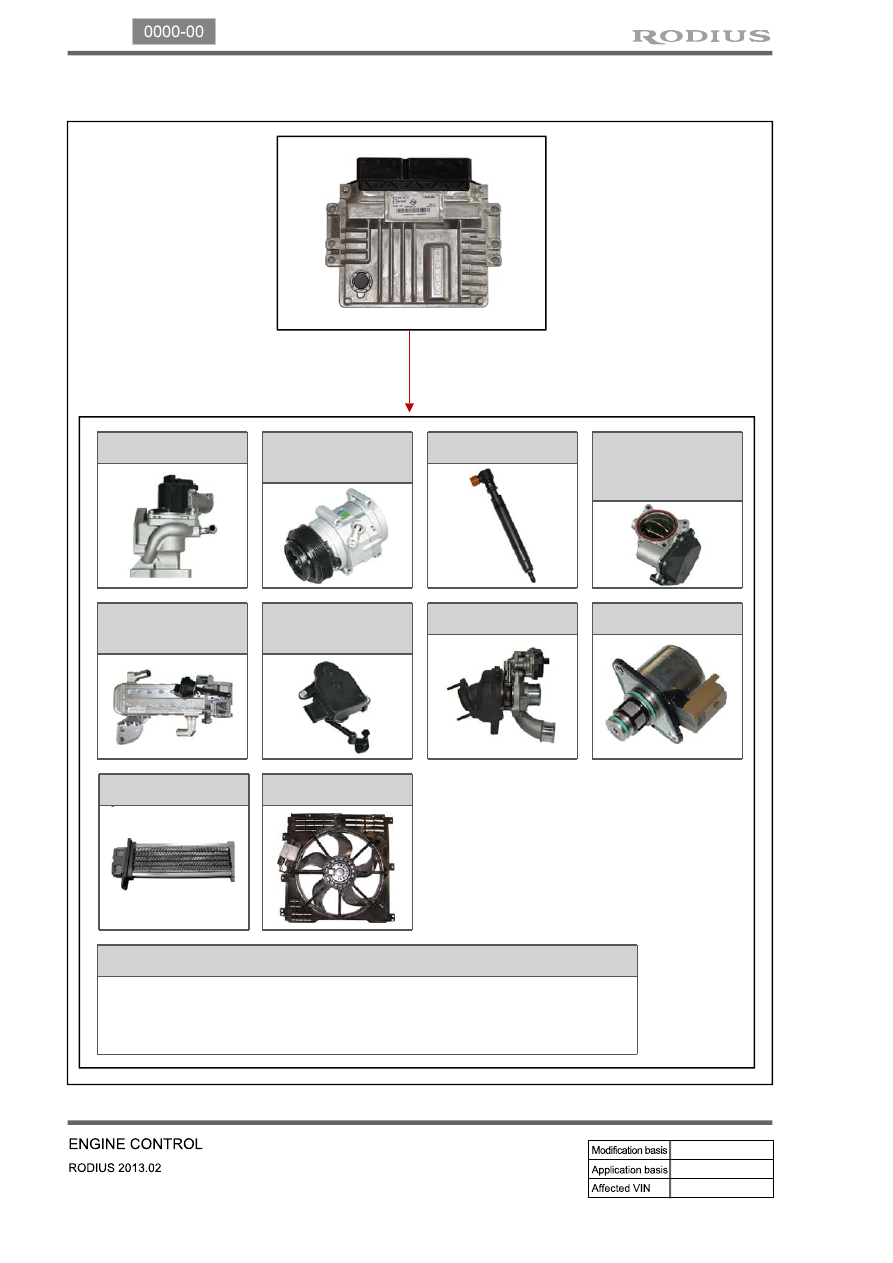

(3) Components for ECU Output

CAN

E-EGR cooler

bypass valve

- TCU

- Self diagnosis

Cooling fan

E-EGR valve

Variable swirl

valve

E-VGT actuator

IMV valve

A/C

compressor

Injector

Throttle  position

sensor

- ABS & ESP unit

- GCU

- Indicator/Warning Lamp, Meter Cluster

PTC heater
