SSANGYONG  MY2002

9H-4  SEATS

KAA9H070

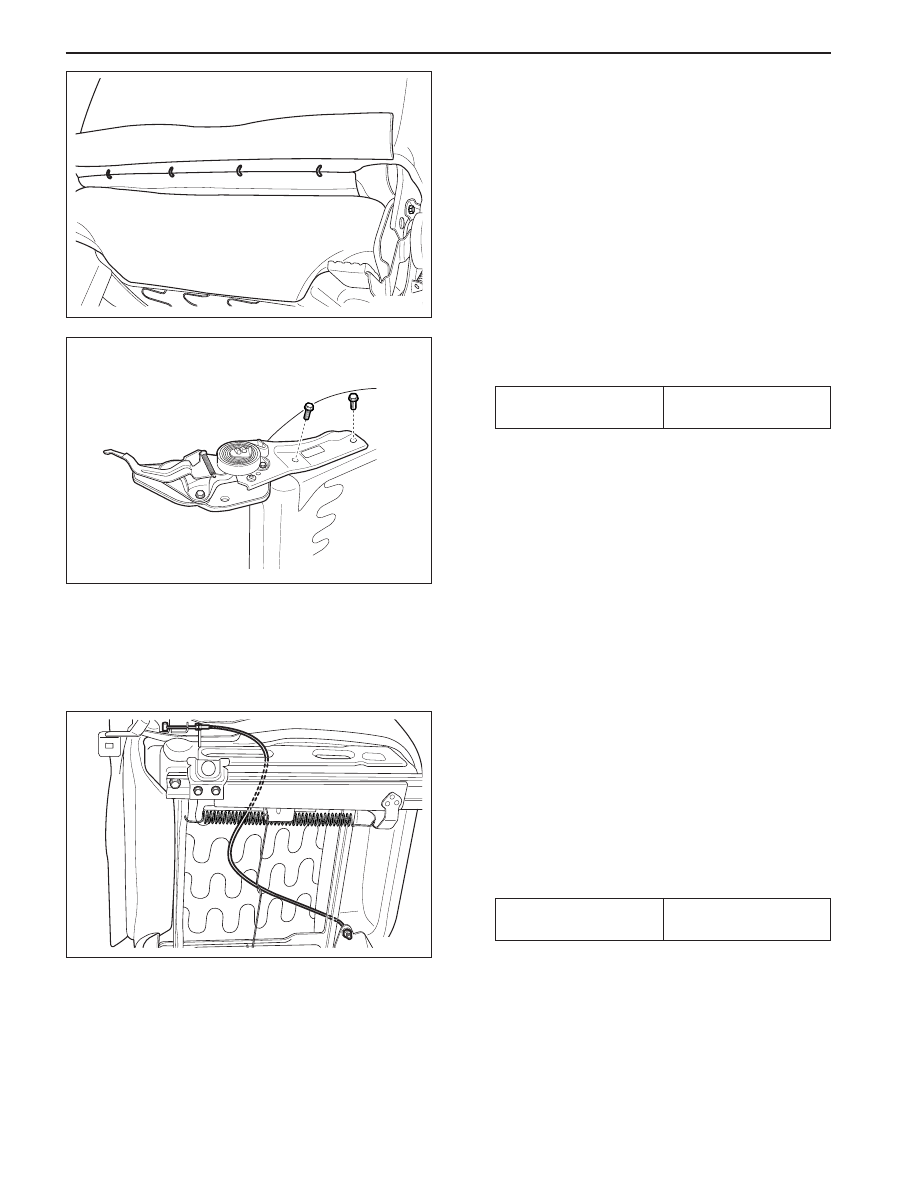

FRONT SEAT GUIDE RAIL

Removal and Installation Procedure

1. Remove the front seat from the vehicle. Refer to

in this section.

2. Remove the front seat trim. Refer to “front seat

trim” in this section.

3. Remove the bolts and the guide rail.

Installation Notice

KAA9H050

6. Remove the bolts and the seatback.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

7. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

34.3 - 55.9 N•m

 (25 - 41 lb-ft)

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

4. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

17.6 - 25.5 N•m

 (12 - 18 lb-ft)

KAA9H040

FRONT SEATBACK

Removal and Installation Procedure

1. Remove the front seat from the vehicle. Refer to

“front seat” in this section.

2. Remove the head restraint. Refer to “head

restraint” in this section.

3. Remove the seat recliner lever. Refer to “seat

recliner lever” in this section.

4. Remove the seat trim. Refer to “seat trim” in this

section.

5. Remove the seatback cover.

SEATS  9H-5

SSANGYONG  MY2002

KAA9H100

KAA9H080

KAA9H090

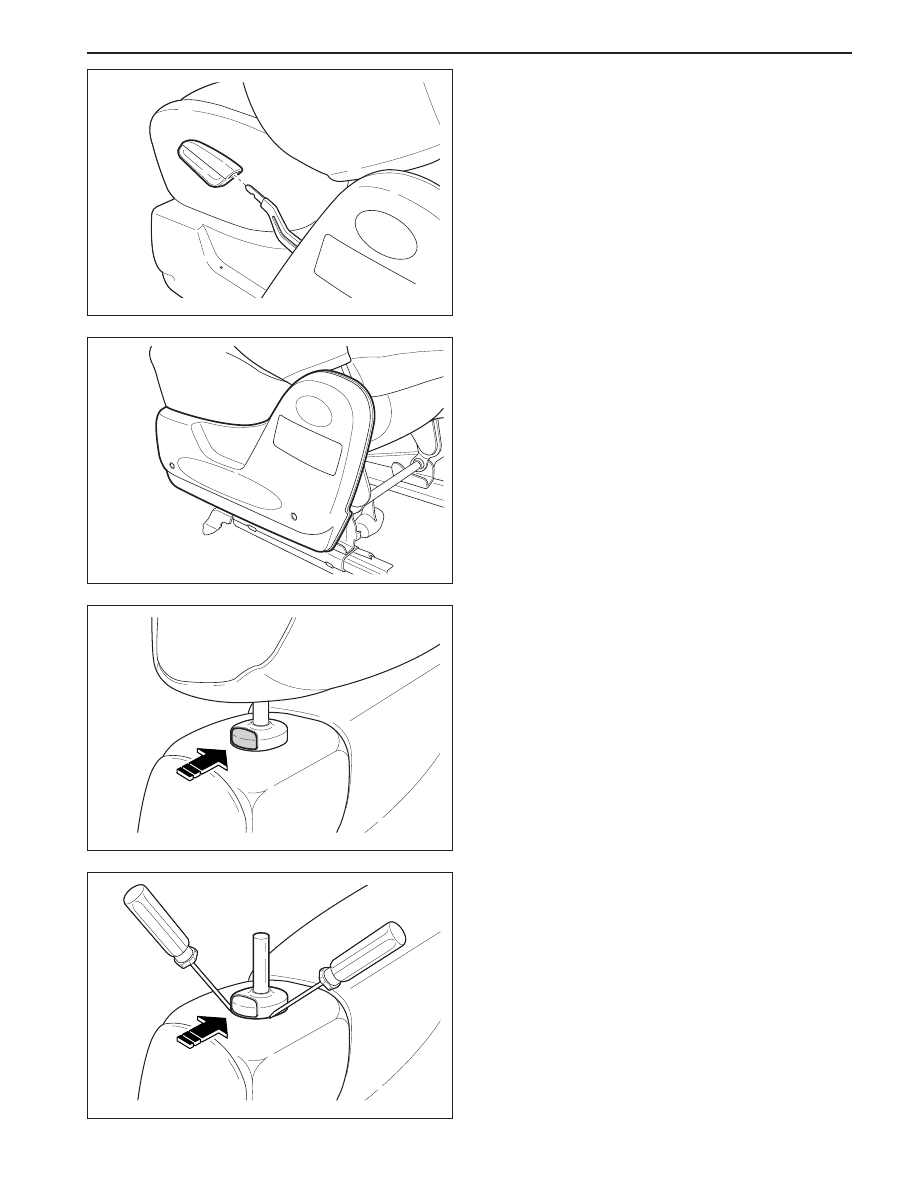

FRONT SEAT TRIM

Removal and Installation Procedure

1. Remove the recliner lever by rubber hammer. Refer

to “seat recliner lever” in this section.

2. Remove the screws and the seat trim.

3. Installation should follow the removal procedure

in the reverse order.

FRONT SEAT RECLINER LEVER

Removal and Installation Procedure

1. Remove the seat recliner lever by rubber hammer.

2. Installation should follow the removal procedure

in the reverse order.

HEAD RESTRAINT

Removal and Installation Procedure

1. Press in the head restraint adjust button and

remove the head restraint from the seatback.

KAA9H110

2. Insert two flat head screwdrivers down the front

and back side of the guide sleeves.

3. With the screwdrivers, press in the retaining

latches and remove the guide sleeves.

4. Installation should follow the removal procedure

in the reverse order.

SSANGYONG  MY2002

9H-6  SEATS

KAA9H120

KAA9H130

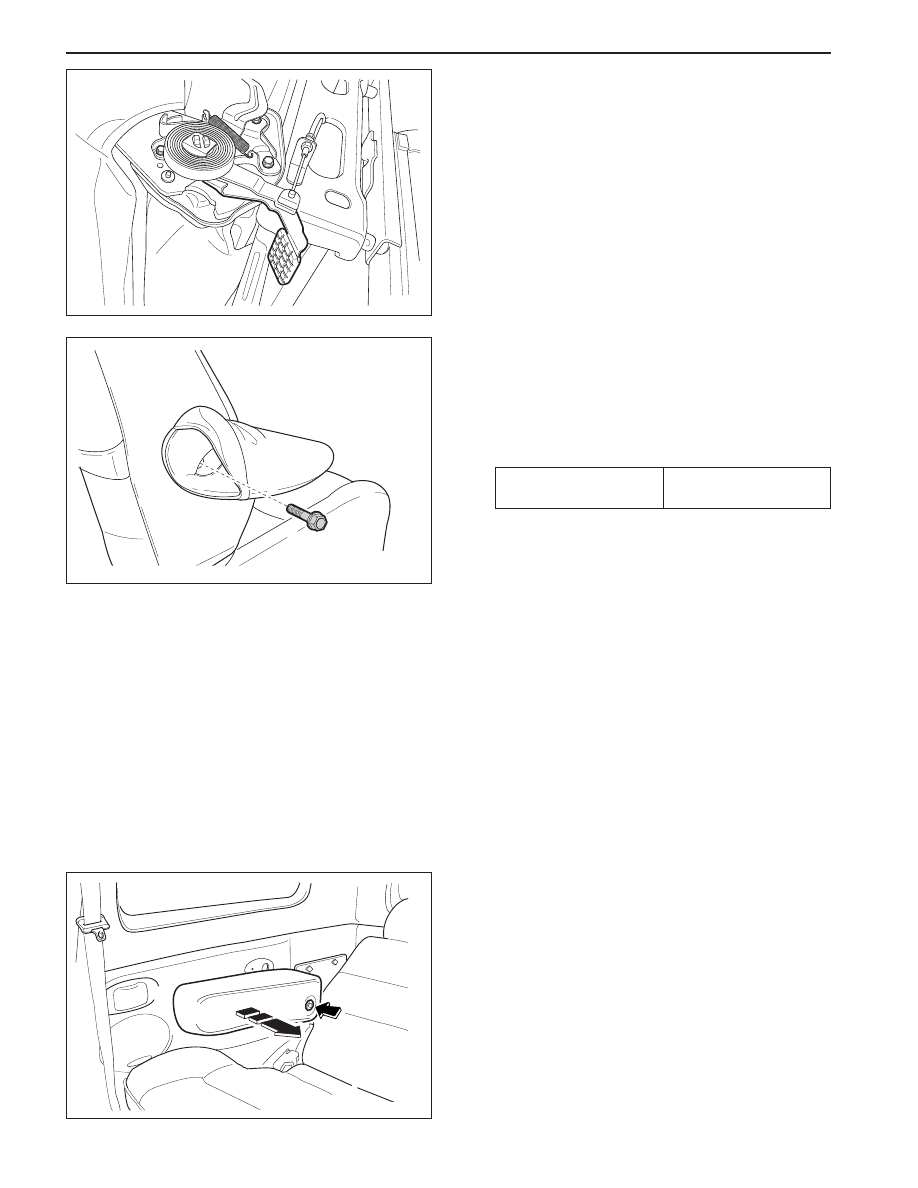

WALK IN DEVICE

Removal and Installation Procedure

1. Remove the front seat. Refer to “front seat” in this

section.

2. Remove the seat recliner. Refer to “seat recliner”

in this section.

3. Remove the seat trim. Refer to “seat trim” in this

section.

4. Remove the walk in device assembly.

5. Installation should follow the removal procedure

in the reverse order.

FRONT SEAT ARMREST

Removal and Installation Procedure

1. Remove the arm rest cover.

2. Remove the arm rest mounting bolt.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

3. Remove the arm rest.

4. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

17.6 - 25.5 N•m

 (12 - 18 lb-ft)

KAA9H180

REAR SEAT ARMREST

Removal and Installation Procedure

1. Push the button in the arm rest.

2. Turn and remove from the side quarter trim panel.

3. Installation should follow the removal procedure

in the reverse order.

SEATS  9H-7

SSANGYONG  MY2002

;;;;

;;;;

;;;;

yyyy

yyyy

yyyy

KAA9H150

KAA9H160

3. Remove the bolts and the rear seat.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

4. Installation should follow the removal procedure

in the reverse order.

KAA9H140

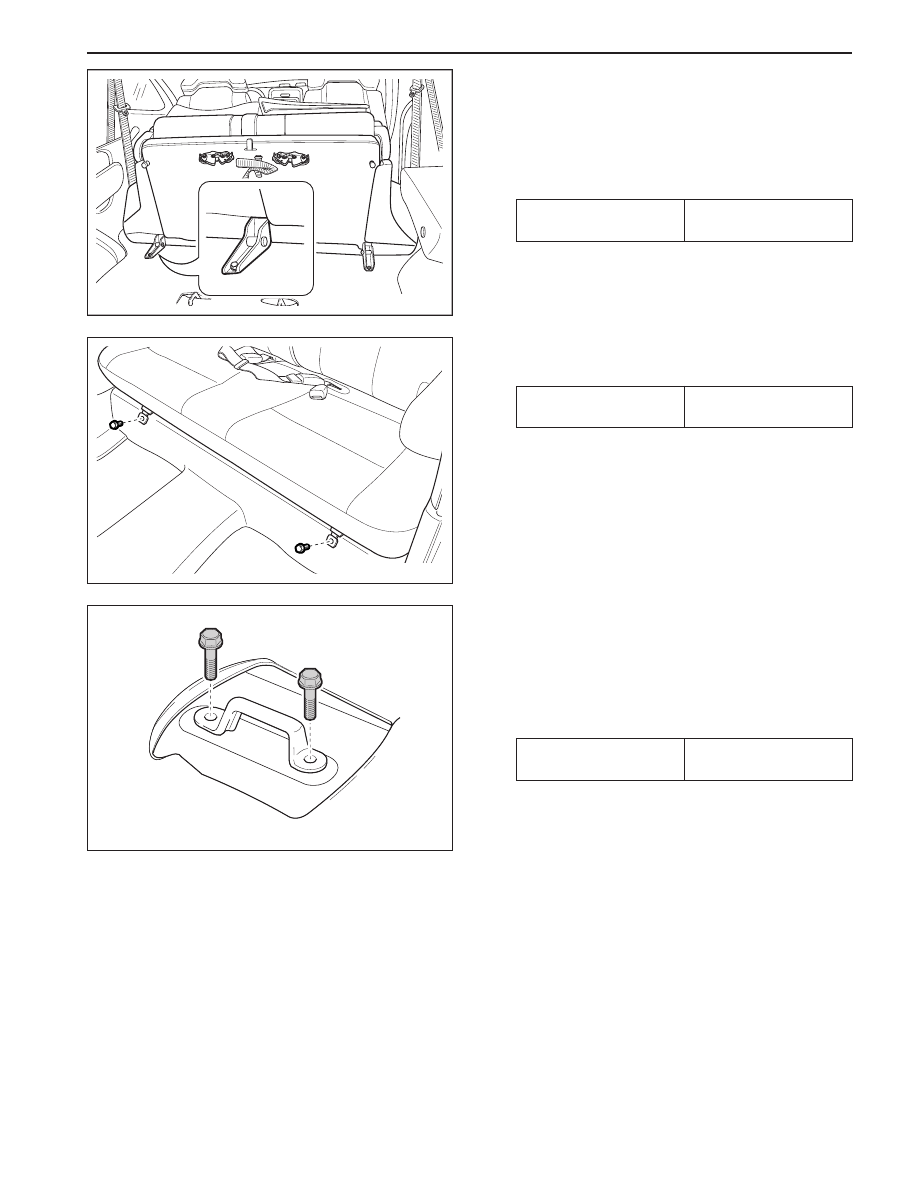

REAR SEAT

Removal and Installation Procedure

1. Lift up the rear seat from the floor.

2. Remove the bolts.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

50/50 SPLIT REAR SEAT CUSHION
HINGE

Removal and Installation Procedure

1. Remove the bolts and the rear seat cushion hinge.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correctfasteners to prevent premature
corrosion.

2. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

19.6 - 31.4 N•m

 (14.5 - 23.2 lb-ft)

Tightening Torque

19.6 - 31.4 N•m

 (14.5 - 23.2 lb-ft)

Tightening Torque

34.3 - 53.9 N•m

 (25 - 39 lb-ft)
