INTERIOR TRIM  9G-5

SSANGYONG  MY2002

E

F

KAA9G060

KAA9G050

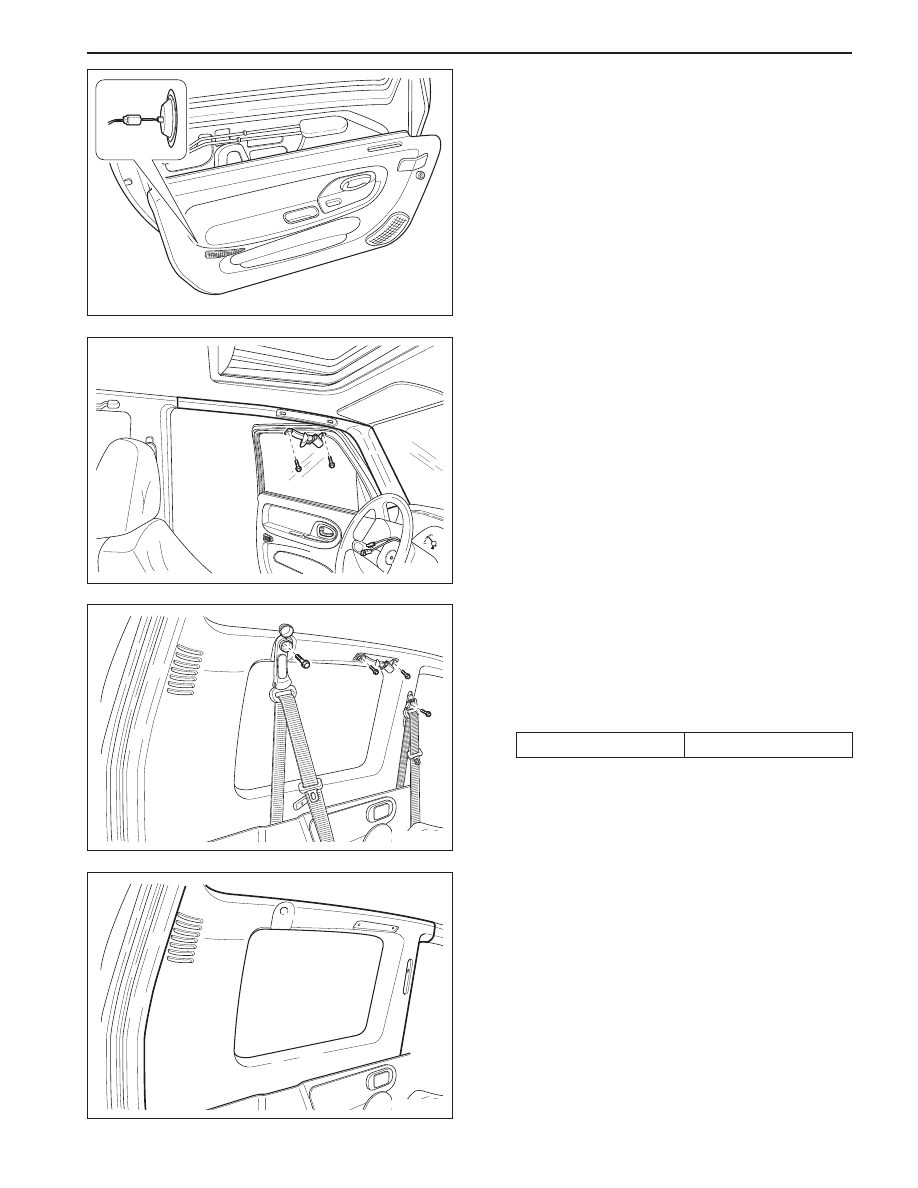

A-PILLAR TRIM PANEL

Removal and Installation Procedure

1. Remove the roof assist handle with the screws.

2. Remove the A-pillar trim panel.

3. Installation should follow the removal procedure

in the reverse order.

6. Disconnect the electrical connector.

7. Remove the door trim panel.

8. Installation should follow the removal procedure

in the reverse order.

KAA9G080

KAA9G070

3. Remove the upper quarter trim panel.

4. Installation should follow the removal procedure

in the reverse order.

UPPER QUARTER TRIM PANEL

Removal and Installation Procedure

1. Remove the roof assist handle with the screws.

2. Remove the seat belt anchor with the bolt.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

Tightening Torque

45  N•m (33 lb-ft)

SSANGYONG  MY2002

9G-6  INTERIOR TRIM

;

;

;

y

y

y

KAA9G100

KAA9G090

2. Remove the armrest. Refer to Section 9H “SEATS”.

3. Remove the ashtray and compartment lamp from

lower quarter trim panel.

4. Remove the roof rear trim and back panel cover.

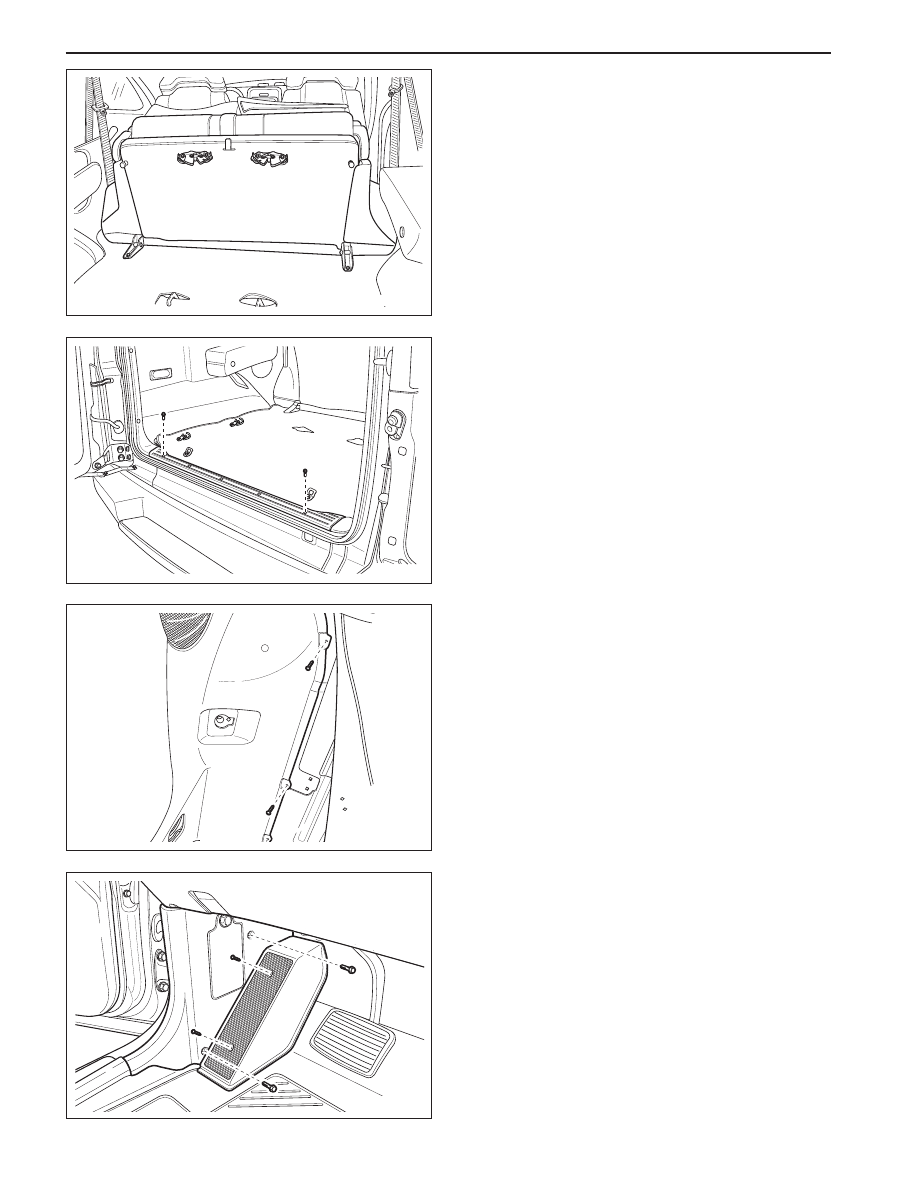

LOWER QUARTER TRIM PANEL

Removal and Installation Procedure

1. Lift up the rear seat from the floor.

KAA9G120

KAA9G110

COWL SIDE TRIM PANEL

Removal and Installation Procedure

1. Remove the cowl side trim panel. Refer to front

rocker trim panel in this section.

2. Remove the cowl side trim panel with the screws.

3. Installation should follow the removal procedure

in the reverse order.

5. Remove the lower quarter trim panel with the

screws.

6. Installation should follow the removal procedure

in the reverse order.

INTERIOR TRIM  9G-7

SSANGYONG  MY2002

KAA9G140

KAA9G130

FLOOR CONSOLE

Removal and Installation Procedure

1. Remove the screws.

2. Remove the floor console.

3. Disconnect the electrical connector.

4. Installation should follow the removal procedure

in the reverse order.

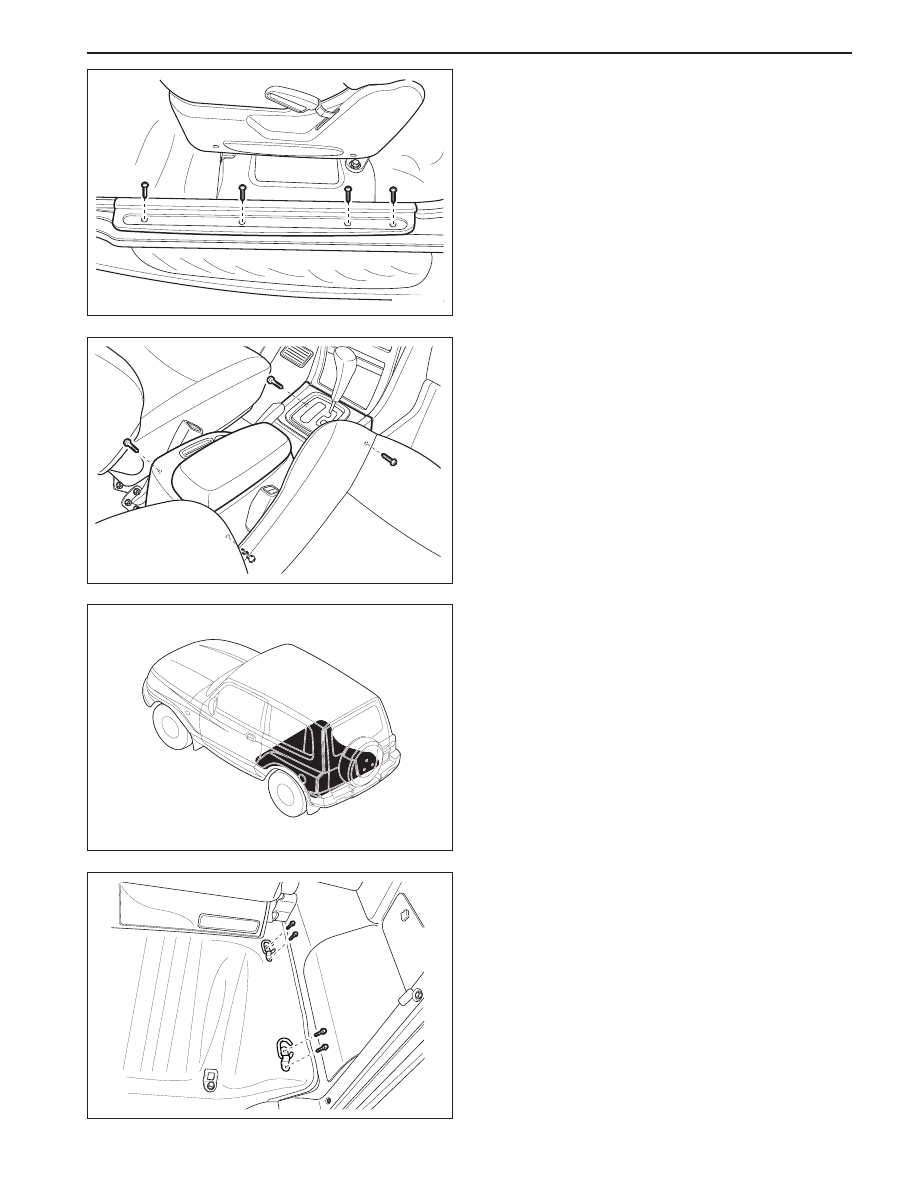

FRONT ROCKER TRIM PANEL

Removal and Installation Procedure

1. Remove the screws.

2. Remove the rocker trim panel.

3. Installation should follow the removal procedure

in the reverse order.

KAA9G160

KAA9G150

6. Remove the luggage hook with the mounting

screws.

7. Remove the front seat. Refer to Section 9H, Seats.

FLOOR CARPET

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the rear seat. Refer to Section 9H, Seats.

3. Remove the bolts and the left and the right lower

seat belt anchors.

4. Remove the child seat anchor. Refer to Section

9H, Seats.

5. Remove the floor carpet screws.

SSANGYONG  MY2002

9G-8  INTERIOR TRIM

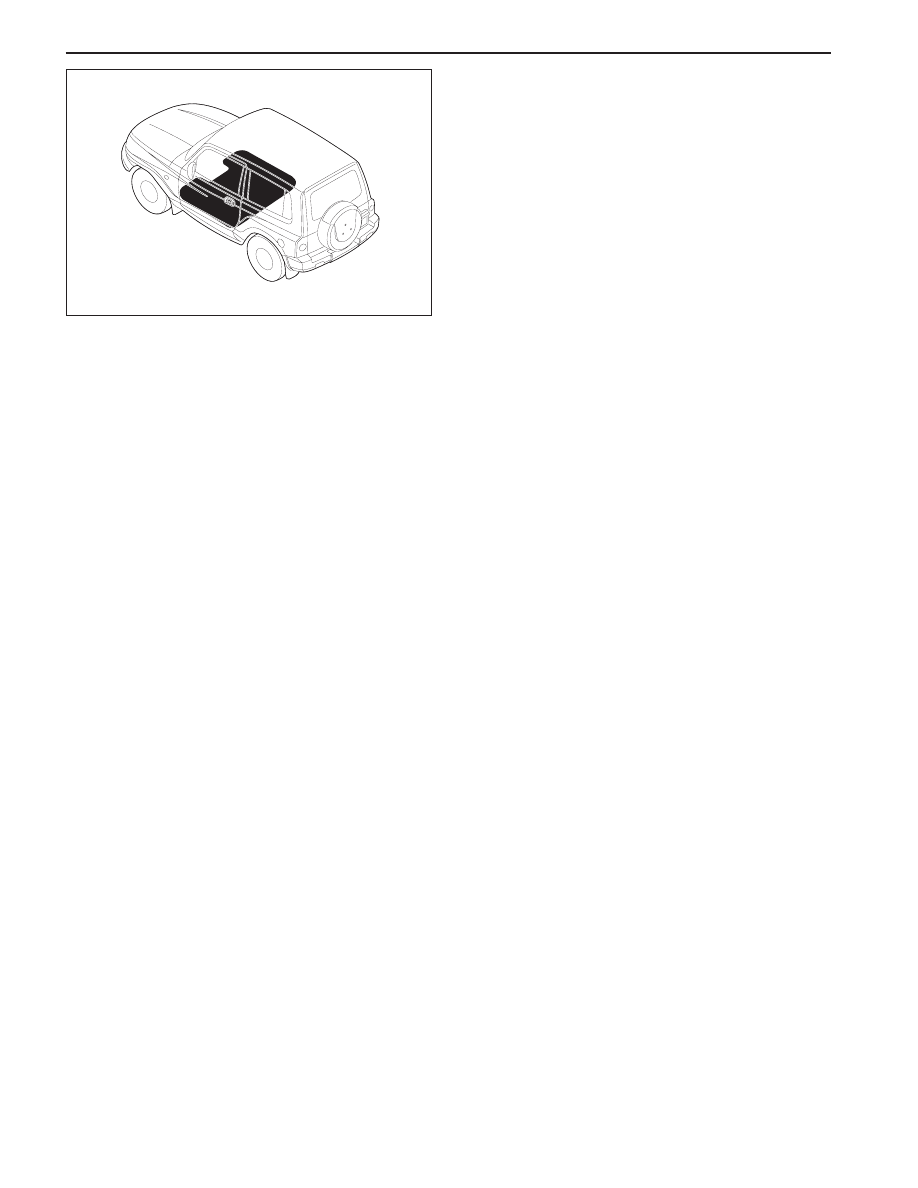

KAA9G170

8. Remove the kick panel. Refer to “Kick Panel” in

this section.

9. Remove the lower quarter trim panel. Refer to

“Lower Quarter Trim Panel” in this section.

10. Remove the front floor carpet.

11. Installation should follow the removal procedure

in the reverse order.
