SsangYong Korando II (1996-2006 year). Manual - part 438

Description and Operation .................................. 9G-2

Interior Trim Panels ............................................. 9G-2

Floor Console ..................................................... 9G-2

Floor Carpet ........................................................ 9G-2

Components Locator ........................................... 9G-3

Interior Trim ........................................................ 9G-3

Repair Instructions ............................................... 9G-4

On-Vehicle Service Unit Repair ............................... 9G-4

Door Trim Panel .................................................. 9G-4

SECTION 9G

INTERIOR TRIM

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

A-Pillar Trim Panel ............................................... 9G-5

Upper Quarter Trim Panel .................................... 9G-5

Lower Quarter Trim Panel .................................... 9G-6

Cowl Side Trim Panel .......................................... 9G-6

Front Rocker Trim Panel ...................................... 9G-7

Floor Console ..................................................... 9G-7

Floor Carpet ........................................................ 9G-7

Specifications ...................................................... 9G-9

Fastener Tightening Specifications ...................... 9G-9

SSANGYONG  MY2002

9G-2  INTERIOR TRIM

DESCRIPTION AND OPERATION

INTERIOR TRIM PANELS

The interior trim panels are molded plastic and fasten
with screws or plastic clips.

FLOOR CARPET

The floor carpets are divided front and rear floor carpet.

FLOOR CONSOLE

The floor console fits over the tunnel in the floor of the
vehicle and extends from under the center of the
instrument panel to the rear seat area. The floor console
contains the transaxle shift lever, parking brake lever,
a storage compartment and coin storage

INTERIOR TRIM  9G-3

SSANGYONG  MY2002

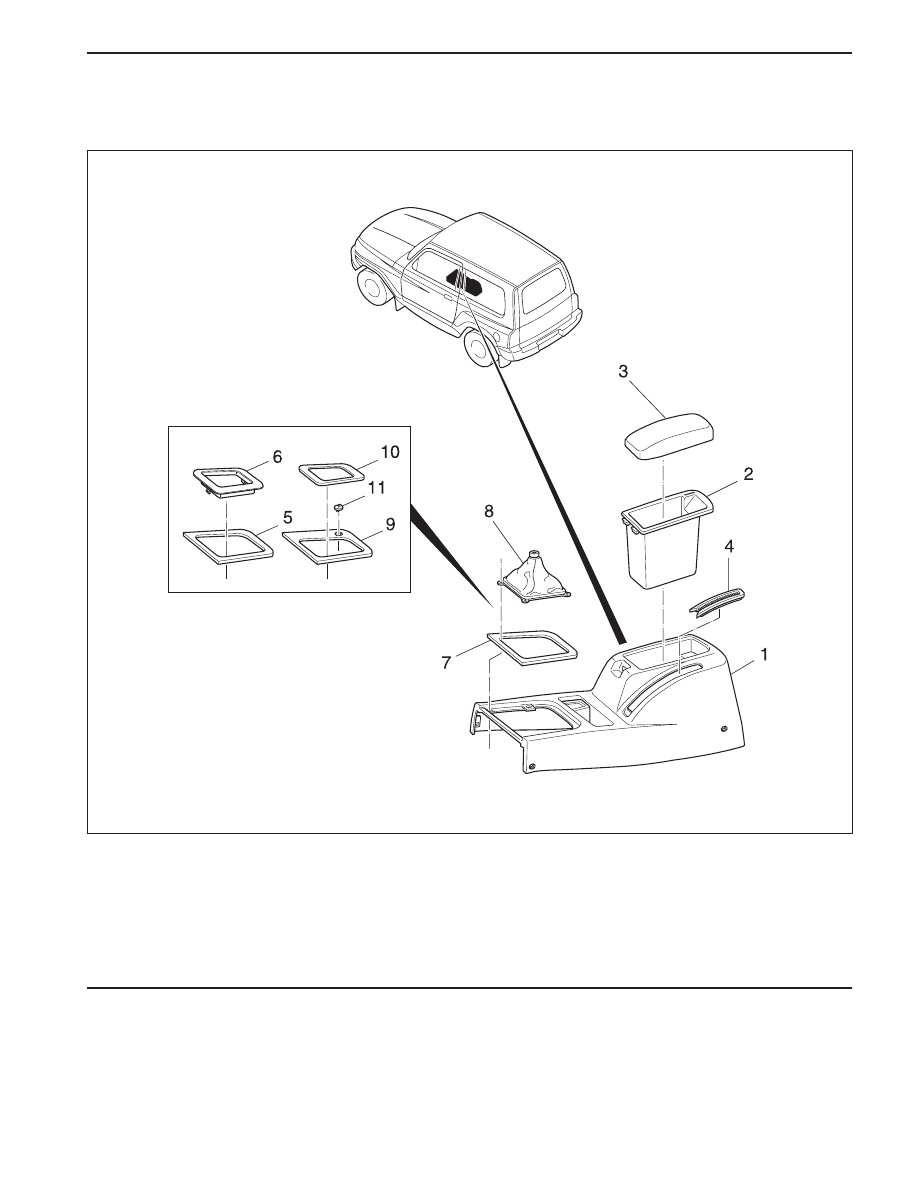

COMPONENTS LOCATOR

INTERIOR TRIM

1 Console Box
2 Tray
3 Arm Rest
4 Parking Lever Strip
5 Facia (BTRA A/T)
6 Indicator Cover

7 Facia (M/T)
8 Boot Assembly (M/T)
9 Facia (MB A/T)

10 Rear Facia Strip
11 Rear Facia Cap

KAA9G010

SSANGYONG  MY2002

9G-4  INTERIOR TRIM

;;;;

;;;;

;;;;

;;;;

yyyy

yyyy

yyyy

yyyy

KAA9G030

KAA9G040

3. Remove the power window control switch.

4. Disconnect the power window control switch

electrical connector.

5. Remove the door trim panel screws.

KAA9G020

ON-VEHICLE SERVICE

UNIT REPAIR

DOOR TRIM PANEL

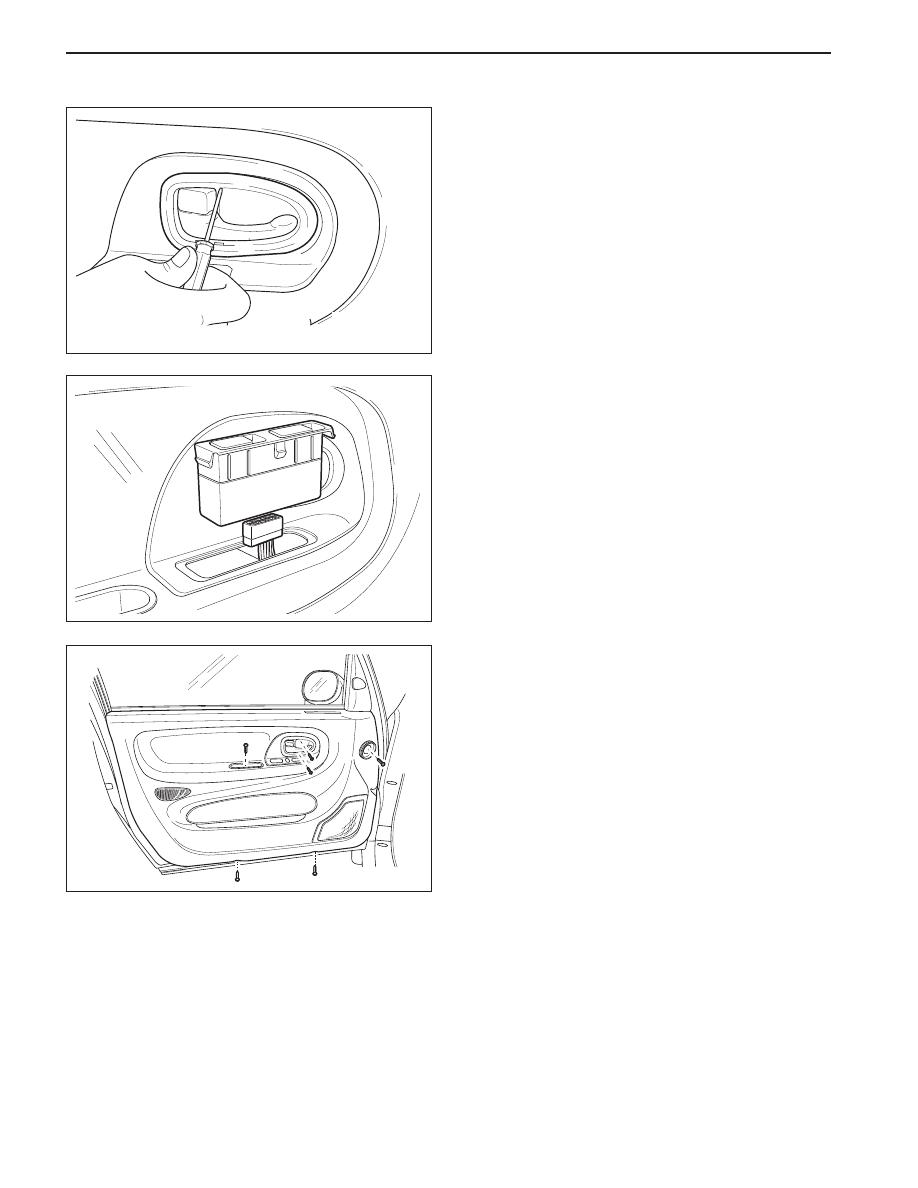

Removal and Installation Procedure

1. Lower the window.

2. Pry off the inside door handle trim bezel.

REPAIR INSTRUCTIONS
