PROPELLER SHAFT   3C-3

SSANGYONG MY2002

PROPELLER SHAFT

Inspection Procedure

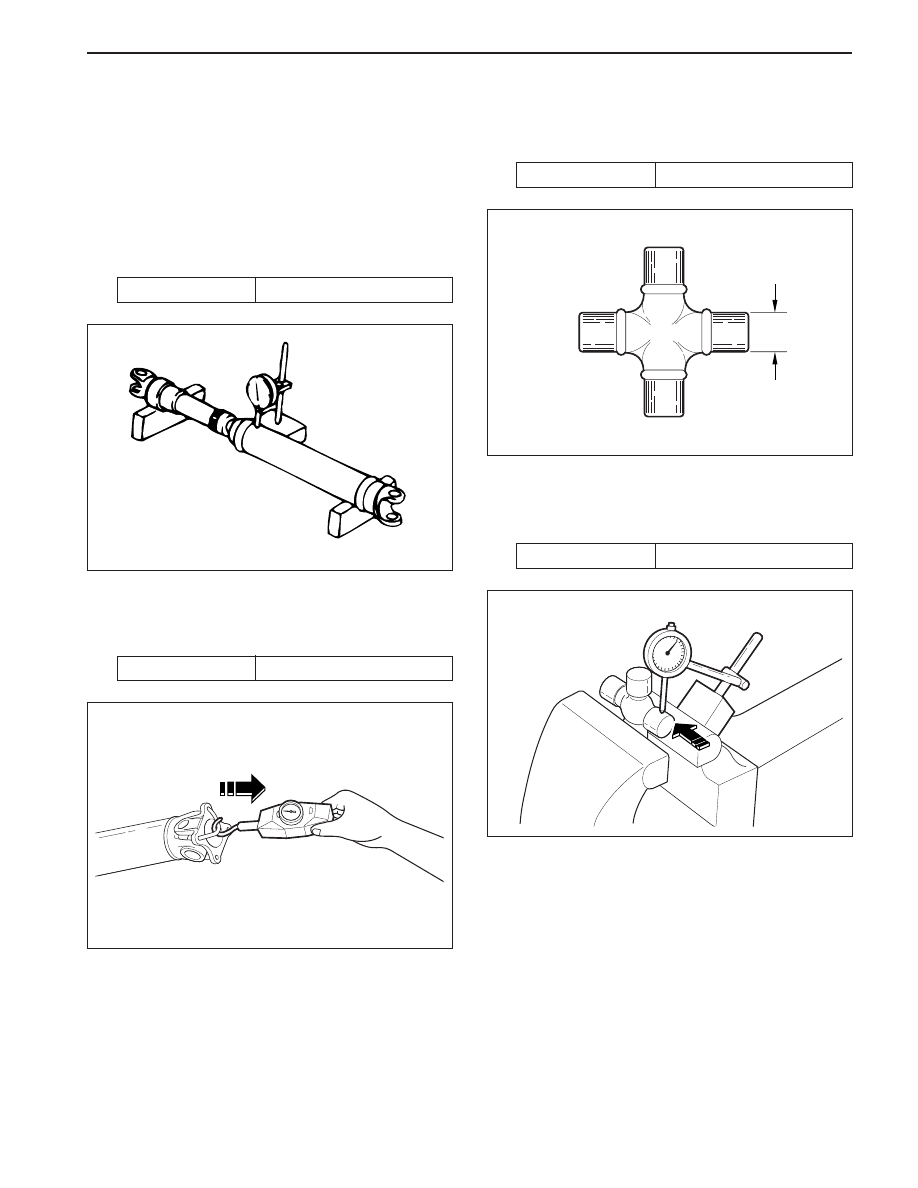

1. Visually check the propeller shaft.

2. Using a dial indicator, measure propeller shaft

runout by turning the shaft. If runout exceeds limit,
replace the propeller shaft or correct it.

Adjustment Notice

DIAGNOSTIC INFORMATION AND PROCEDURES

KAA3C020

Specification

0.4 mm (0.016 inch)

3. Measure the universal joint starting torque.

Adjustment Notice

Specification

0.54 N•m (4.78 lb-in)

KAA3C030

4. Measure the spider outer diameter.

Adjustment Notice

Specification

16.668 mm (0.656 inch)

KAA3C040

4. Measure the spider outer diameter.

Adjustment Notice

Specification

0.064 mm (0.0025 inch)

KAA3C050

SSANGYONG MY2002

3C-4  PROPELLER SHAFT

KAA3C070

KAA3C080

KAA3C060

ON-VEHICLE SERVICE

FRONT PROPELLER SHAFT

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

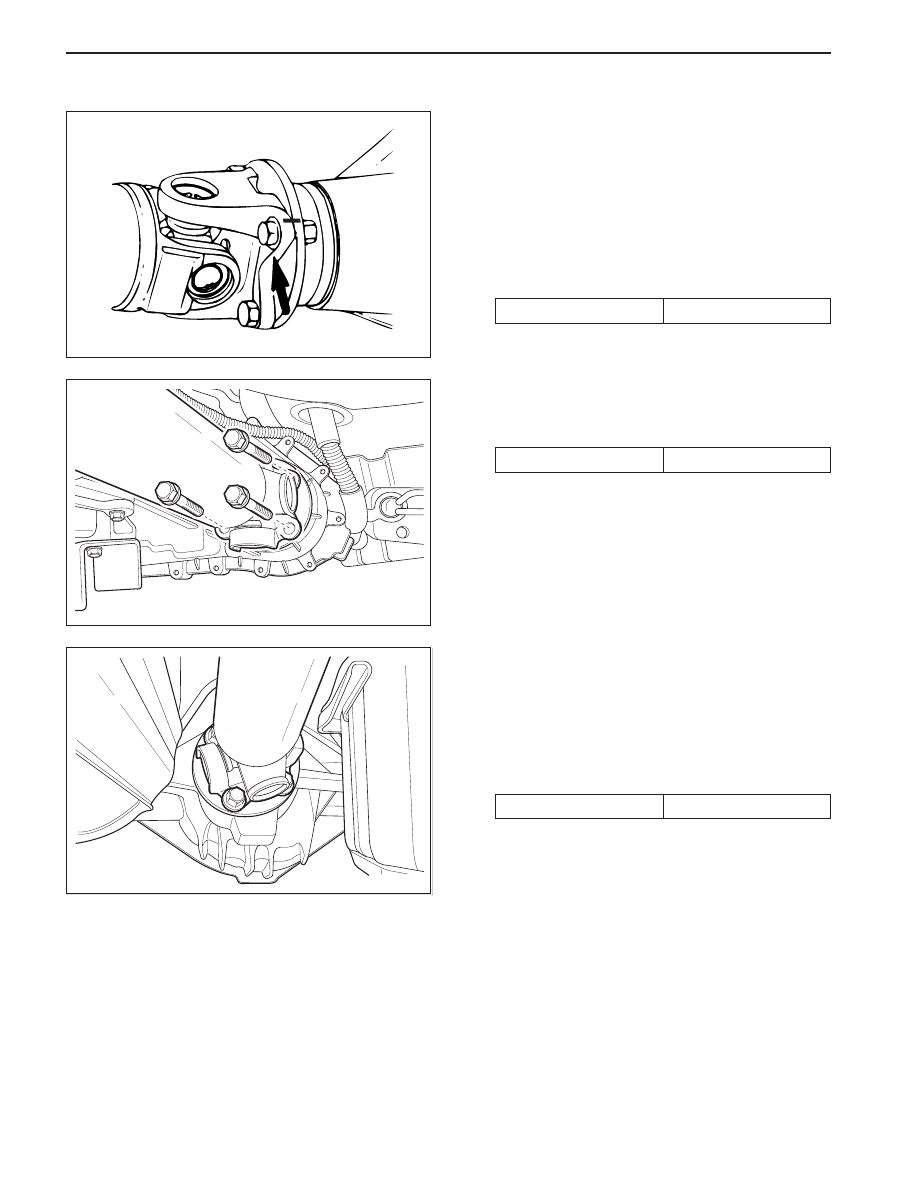

2. Remove the front propeller shaft-to-front axle

assembly bolts.

Installation Notice

REPAIR INSTRUCTIONS

Tightening Torque

7.0 - 8.5 kg•m

•

Make alignment marks on the front propeller
shaft and front axle housing.

3. Remove the front propeller shaft-to-transfer case

bolts.

Installation Notice

Tightening Torque

8.1 - 8.9 kg•m

4. Remove the front propeller shaft.

5. Installation should follow the removal procedure in

the reverse order.

REAR PROPELLER SHAFT

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the rear propeller shaft-to-rear axle assem-

bly bolts.

Installation Notice

Tightening Torque

7.0 - 8.5 kg•m

•

Make alignment marks on the rear propeller
shaft and rear axle housing.

PROPELLER SHAFT   3C-5

SSANGYONG MY2002

KAA3C090

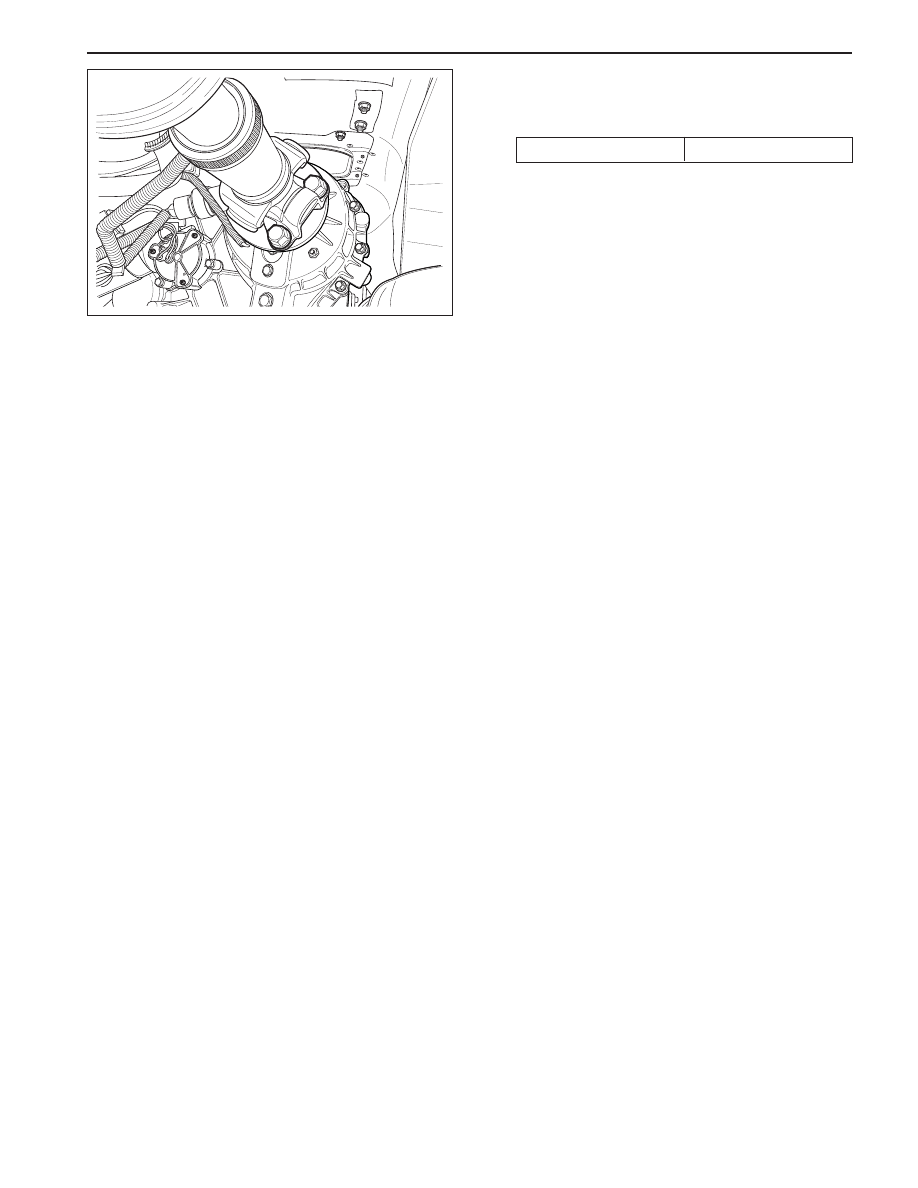

3. Remove the rear propeller shaft-to-transfer case

bolts.

Installation Notice

Tightening Torque

8.1 - 8.9 kg•m

4. Remove the rear propeller shaft.

5. Installation should follow the removal procedure in

the reverse order.

SSANGYONG MY2002

3C-6  PROPELLER SHAFT

UNIT REPAIR

PROPELLER SHAFT

Removal and Installation Procedure

1. Remove the front propeller shaft. Refer to “Front

Propeller Shaft” in this section.

2. Place alignment marks before removing the spider.

KAA3C100

KAA3C120

KAA3C110

KAA3C130

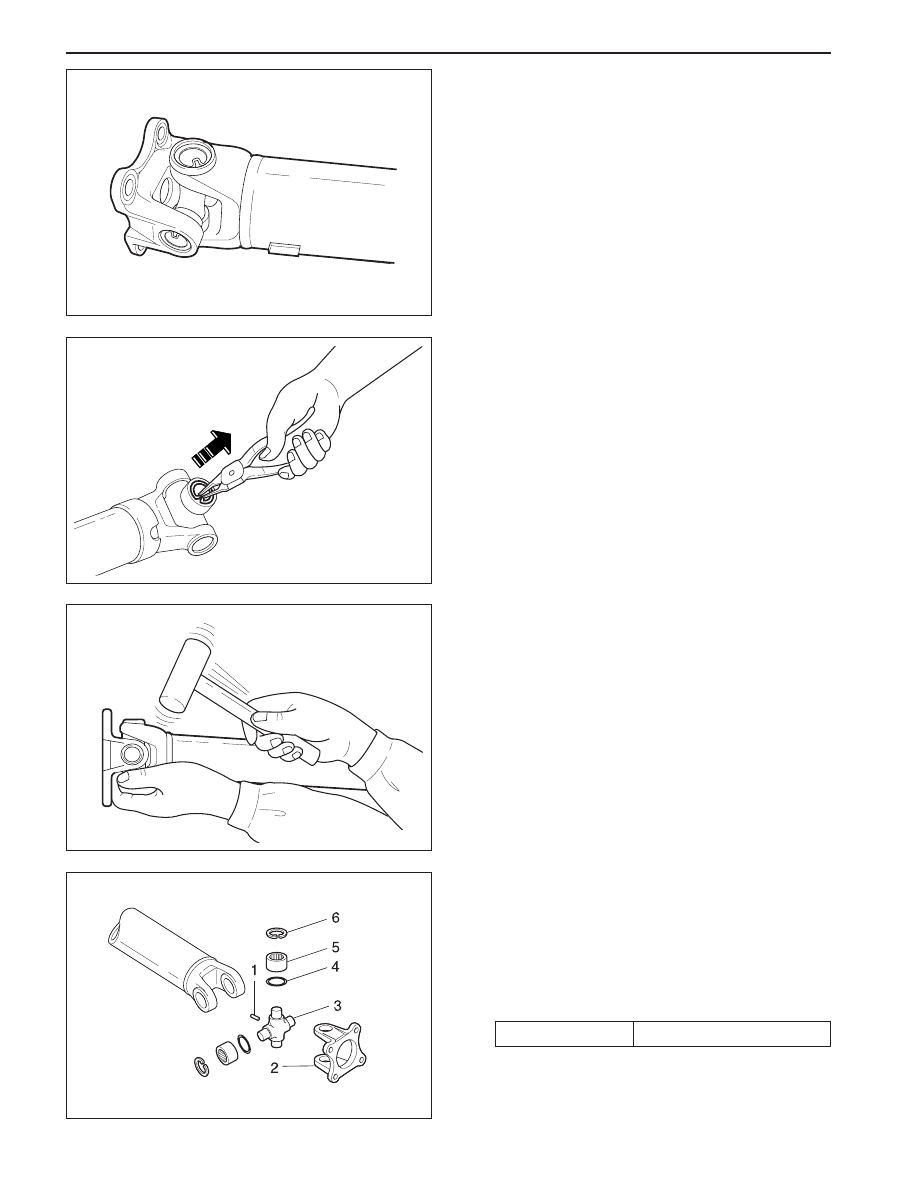

3. Using a snap ring pliers, remove the snap ring.

4. Slightly tapping the yoke shoulder using a brass

hammer, remove the bearing. Remove the
remaining bearings in the same way.

5. Disassemble the universal joint parts.

Installation Notice:

•

Clean the disassembled parts and replace them
if damaged.

•

Apply grease to the inner of the bearing cap of
the needle roller bearing and assemble the needle
roller.

Grease

EP#2
