SECTION 2D

REAR SUSPENSION

TABLE OF CONTENTS

Components Locator ............................................ 2D-2

Diagnostic Information and Procedures ............... 2D-3

Excessive Friction Check ..................................... 2D-3

Repair Instructions ................................................ 2D-4

On-Vehicle Service ................................................. 2D-4

Rear Stabilizer ..................................................... 2D-4

Rear Stabilizer Link .............................................. 2D-4

Rear Shock Absorber ........................................... 2D-5

Lower Trailing  Link ................................................ 2D-5

Upper Trailing Link ................................................ 2D-6

Rear Coil Spring ................................................... 2D-6

Lateral Rod .......................................................... 2D-7

Specifications ....................................................... 2D-8

Fastener Tightening Specifications ....................... 2D-8

Special Tools and Equipment ............................... 2D-9

Special Tools Table ............................................... 2D-9

SSANGYONG  MY2002

2D-2  REAR SUSPENSION

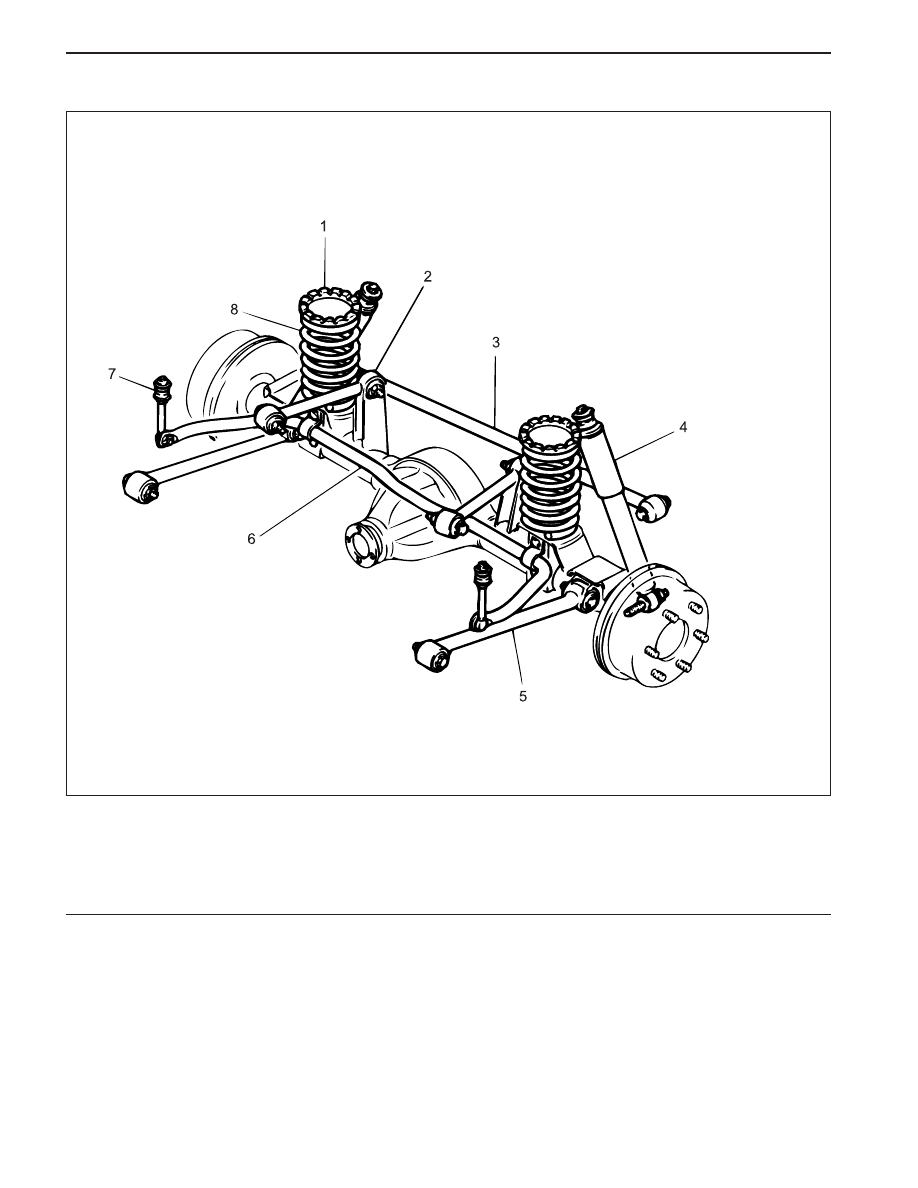

COMPONENT LOCATOR

1 Rear Coil Spring Seat
2 Upper Trailing Link
3 Lateral Rod
4 Rear Shock Absorber

5 Lower Trailing  Link
6 Rear Stabilizer
7 Rear Stabilizer Link
8 Rear Coil Spring

KAA2D010

REAR SUSPENSION  2D-3

SSANGYONG  MY2002

DIAGNOSTIC INFORMATION AND PROCEDURES

EXCESSIVE FRICTION CHECK

Ball Joint Inspection

Check excessive friction in the rear suspension as fol-
lows:

1. With the aid of a helper, lift up on the rear bumper

and  raise the vehicle as high as possible. Slow
release the bumper and allow the car to assume
normal trim height.

2. Measure the distance from the floor to the center

of the  bumper.

3. Push down on the bumper, release slowly, and

allow the car to assume normal trim height.

4. Measure the distance from the floor to the center

of the  bumper.

The distance between the two measurements should
be  less than 12.7 mm (0.50 inch). If the difference
exceeds this limit, inspect the control arms for damage
or wear.

SSANGYONG  MY2002

2D-4  REAR SUSPENSION

ON-VEHICLE SERVICE

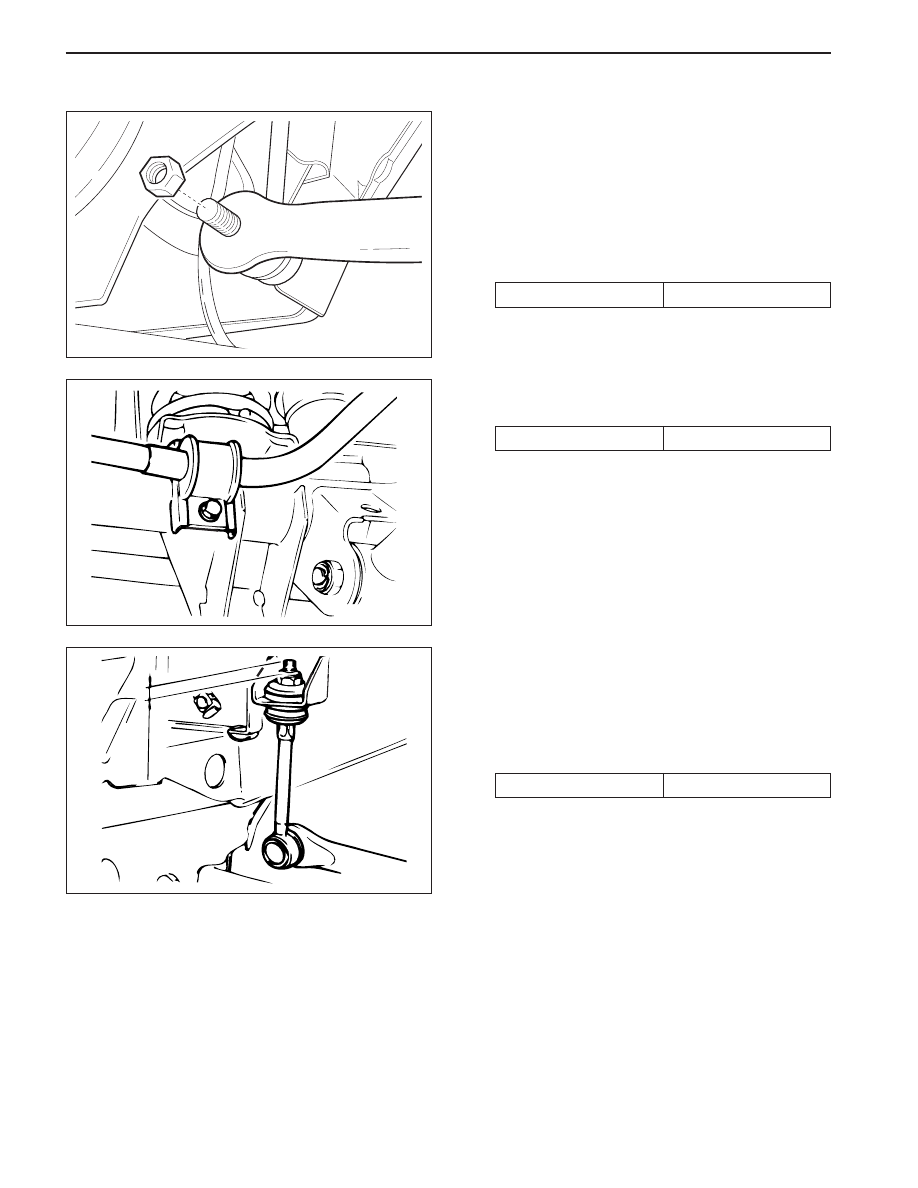

REAR STABILIZER

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the rear stabilizer-to-rear stabilizer link nut.

Installation Notice

KAA2D020

KAA2D030

KAA2D040

3. Remove the rear stabilizer mounting bolts.

Installation Notice

4. Installation should follow the removal procedure in

the reverse order.

REPAIR INSTRUCTIONS

Tightening Torque

70  N•m (52 lb-ft)

Tightening Torque

38  N•m (28 lb-ft)

REAR STABILIZER LINK

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the rear stabilizer link-to-body frame nut.

Installation Notice

•

The distance between the end of the nut and
the end of the rear stabilizer link should be 10 -
13 mm (0.39 - 0.51 inch) at the connection of
the rear stabilizer link and body.

Tightening Torque

38  N•m (28 lb-ft)
