SSANGYONG  MY2002

2C-14  FRONT SUSPENSION

UNIT REPAIR

HUB AND BEARING

Tools Required

DW340-021-01  Handle

DW340-021-02  Front Inner Bearing Race Installer

DW340-021-03  Front Outer Bearing Race Installer

Disassembly and Assembly Procedure

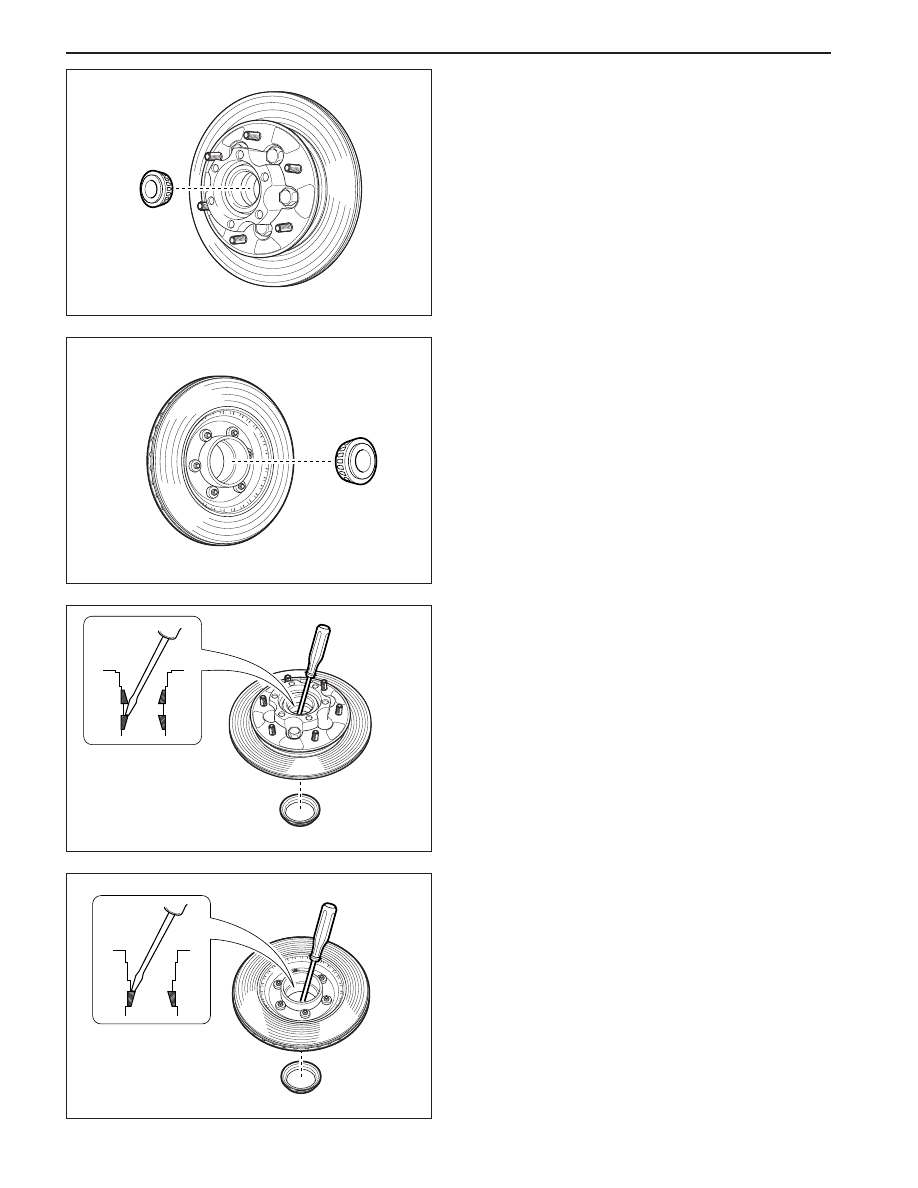

1. Remove the front hub and bearing assembly.

Refer to  “Front Hub Bearing Assembly” in this
section.

2. Remove the outer bearing

3. Remove the inner seal.

Notice:

•

The inner seal must be discard and replaced
with new parts.

4. Remove the inner bearing.

6. Remove the outer bearing race.

KAA2C260

KAA2C270

KAA2C280

5. Remove the inner bearing race.

KAA2C290

FRONT SUSPENSION  2C-15

SSANGYONG  MY2002

Notice:

•

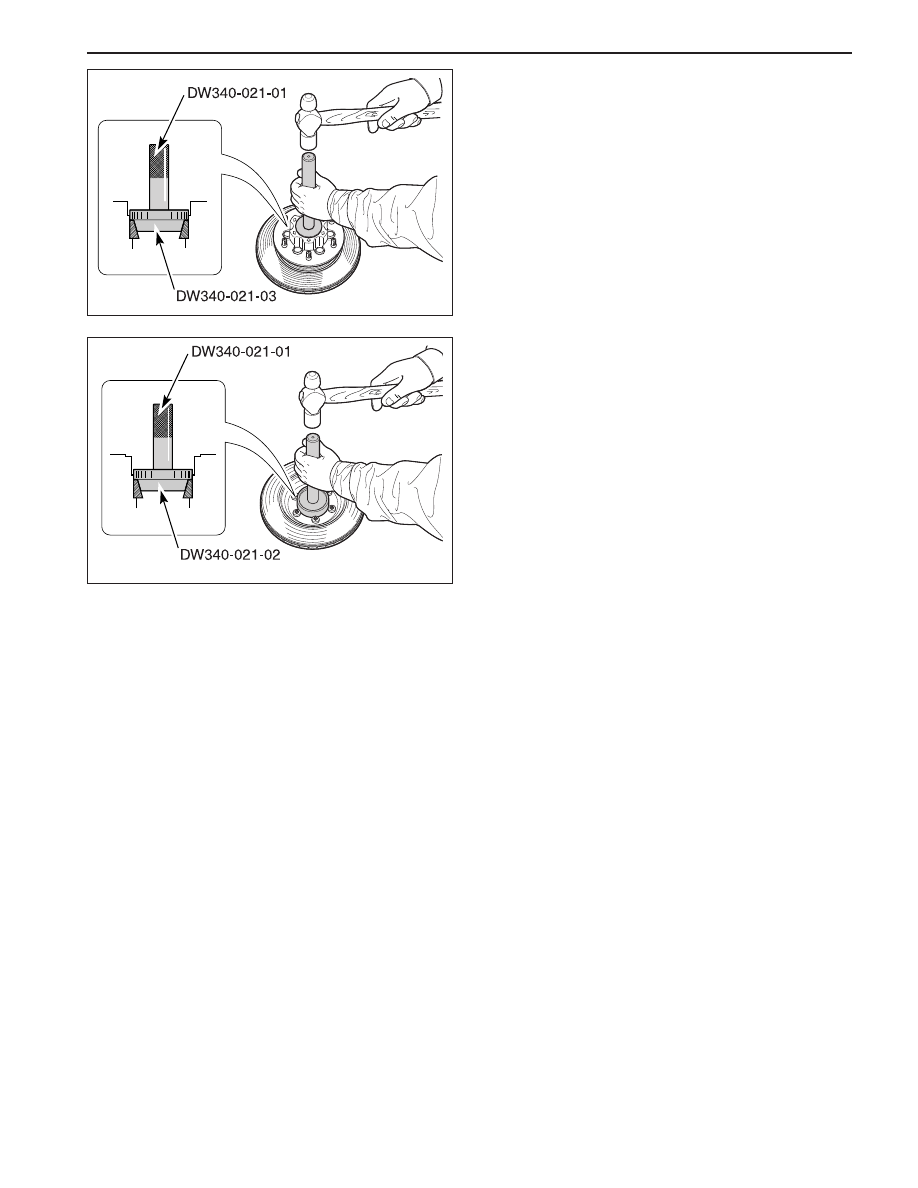

Install the outer bearing race using the front
outer bearing race installer DW340-021-03 and
handle DW340-021-01.

KAA2C300

KAA2C310

•

Install the inner bearing race using the front
inner bearing race installer DW340-021-02 and
handle DW 340-021-01.

SSANGYONG  MY2002

2C-16  FRONT SUSPENSION

58

87

52

28

52

96

-

41

11

26

85

52

89

30

-

14

37/52

85

96

Crossmember Mounting Bolts

Front Axle Housing Mounting Nuts

Front Stabilizer-to-Stabilizer Link Nuts

Front Stabilizer Mounting Bolts

Front Shock Absorber Lower Mounting Nut

Fulcrum Pin Mounting Bolts and Nuts

Front Wheel Speed Sensor Bolt

Hub Flange Bolts

Hub Adjusting Nut

Lower Cover Bolts

Lower Ball Joint Nut

Lower Ball Joint Mounting Bolts

Lower Control Arm Mounting Bolts

Outer Tie Rod Nuts

Splash shield Mounting Bolts

Stabilizer Link-to-Lower Control Arm Nuts

Torsion Bar Fixing Nuts

Upper Ball Joint Nut and Bolts

Upper Ball Joint Mounting Bolts

N

l

m

Application

Lb-In

SPECIFICATIONS

FASTENER  TIGHTENING SPECIFICATIONS

Lb-Ft

78

118

70

38

70

130

5

55

15

35

150

70

120

40

6

19

50/70

115

130

-

-

-

-

-

-

35

-

-

-

-

-

-

-

53

-

-

-

-

FRONT SUSPENSION  2C-17

SSANGYONG  MY2002

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

DW 340-050

Sliding Hammer

Front Hub Cap

KAA2C320

DW 340-070

Front Hub Flange

Remover

KAA2C330

661 589 13 33 00

Ball Joint Remover

KAA2C340

DW 340-021-02

Front Inner Bearing

Race Installer

KAA2C350

DW 340-060

Front Hub Cap

Remover/Installer

KAA2C360

661 589 01 07 00

Front Hub Adjusting

Nut Remover/Installer

2

C

3

7

DW 340-021-01

Handle

KAA2C380

DW 340-021-03

Front Outer Bearing

Race Installer

KAA2C390

KAA2C370
