01-3

3680-01

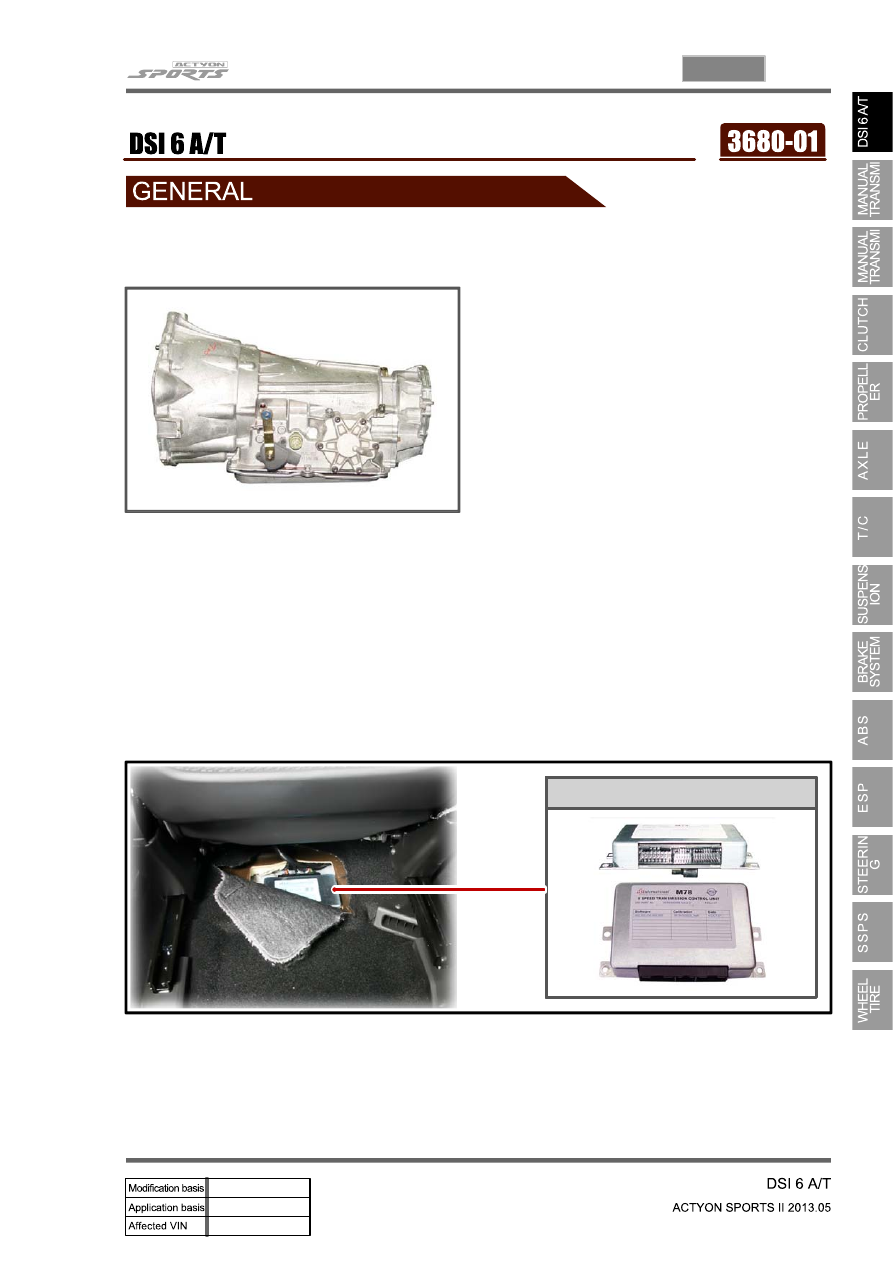

1. GENERAL INFORMATION

Six forward speeds

One reverse gear

A toruqe converter with an integral converter

lock-up clutch

Electronic shift and pressure controls

A single planetary gear-set

A double planetary gear-set

Two hydraulically controlled brake bands

Three multi-plate clutches

All hydraulic functions are directed by electronic

solenoids to control

-

-

-

-

-

-

-

-

-

Automatic transaxle (DSI M78)

▶

TCU

▶

TCU is located under the driver's seat and controls the operations of transmission.

TCU receives the ignition voltage and has three connectors (16-pin, 12-pin, 20-pin).

TCU receives input signals from certain transmission-related sensors, gear select lever and inhibitor

switch. TCU also uses these signals when determining transmission operating strategy. TCU uses

PCAN to communicate with other units. And, TCU communicates with engine ECU, ESP unit, TCCU

and instrument cluster through CAN lines to control the gear shifting and to recognize the current gear

position.

TCU

01-4

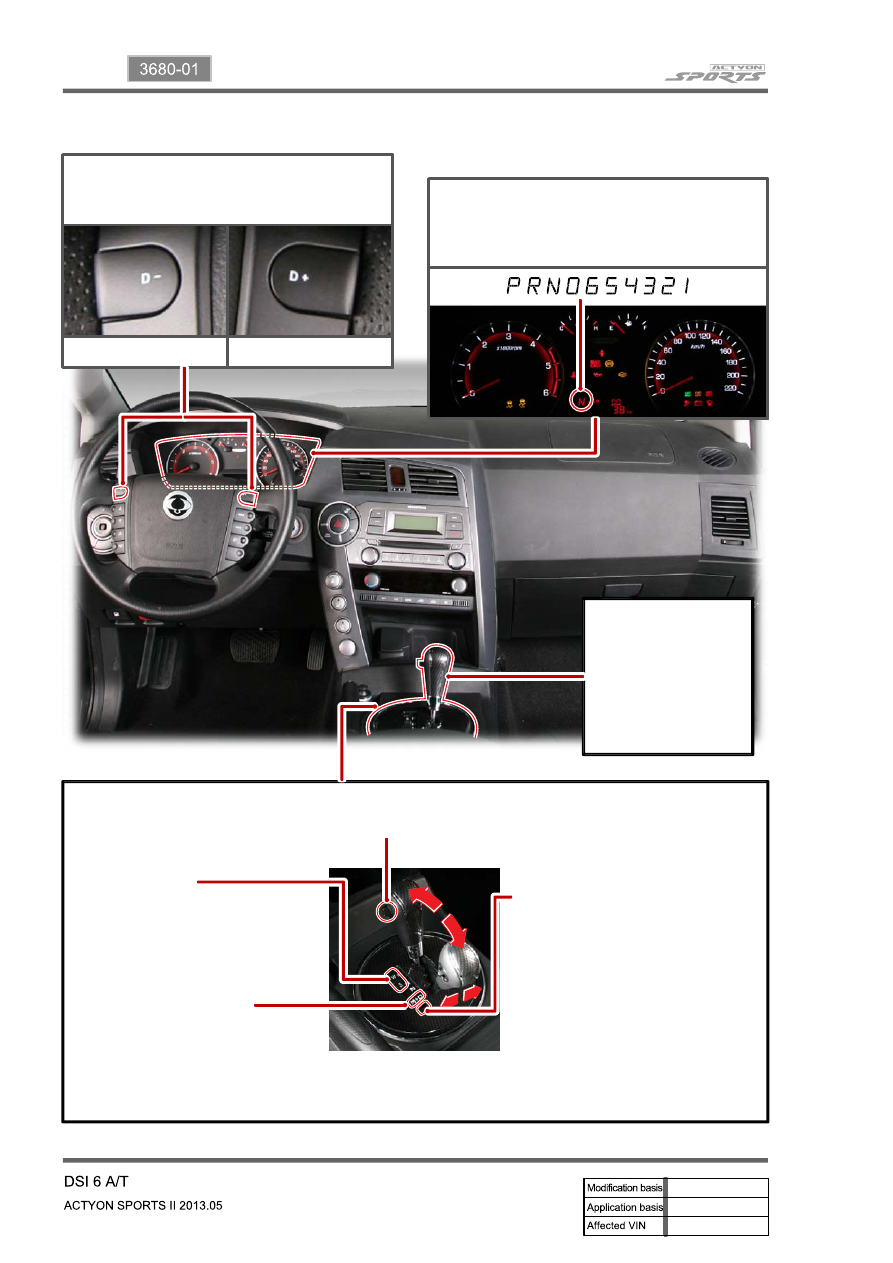

This indicator shows the current position of the
gear.
In normal mode: P, R, N, D
Gear indication in “M” mode: 1, 2, 3, 4, 5, 6

Driving gear can be adjusted by operating the
tip switch after moving the gear select lever in
“M” position.

Shift down

Shift up

Tip switch on steering wheel

▶

Gear position display on instrument

cluster

▶

Gear select lever

▶

Mode Switch

W :

S :

Selection of Manual/

Automatic Shift Function

D :

M :

Shift Lock Release Button Hole

when Locked in the "P" Position

If you cannot move the gear select

lever from the "P" position, try to

move the lever while pushing down

here with a sharp object such as a

ballpoint pen. For your safety, turn

off the engine and depress the

brake pedal before the attempt.

Tip Switch in “M” Position (Manual Gear Shift)

The shiftable gear can be adjusted by moving this switch to forward and rearward when the gear
select lever is in “M” position.

Positions of gear

select lever

P : Parking

R : Reverse

N : Neutral

D : Drive

Winter mode

Standard mode (Use the

standard mode in normal

driving conditions.)

Automatic shift according to

the driving condition

Manual shift

01-5

3680-01

2. FEATURES AND SPECIFICATIONS

1) Specifications

Description

DSI M78 (6-speed)

Remarks

Gear ratio

1st

3.53:1

2nd

2.14:1

3rd

1.48:1

4th

1.16:1

5th

0.87:1

6th

0.68:1

Reverse

3.09:1

Transmission

fluid

Fluid

Fuchs ATF 3292

Capacity

Approx. 9.5 L

Change interval

Check the fluid at every

30,000 km or 1 year, and

change it if necessary.

Under the severe driving

conditions, change the fluid at

every 60,000 km.

Resistance of oil

temperature

sensor

-20

430.7 ~ 533.9 kΩ

0

146.8 ~ 175.7 kΩ

20

56.74 ~ 65.86 kΩ

100

3.201 ~ 3.399 kΩ

Gear position

sensor

1 -

2 -

3 -

D

2.686 kΩ ± 8%

N

5.036 kΩ ± 8%

R

8.953 kΩ ± 8%

P

16.786 kΩ ± 8%

Severe driving conditions?

*

Towing a trailer or off-road driving (Inspect the

leak of fl uid at any time, occasionlly)

Taxi, patrol service or delivery service (extended

idling and excessive driving with low speed)

Frequent stop-and-go traffi c, extended idling,

short driving distance

-

-

-

Driving in a hilly or mountainous terrain,

sandy, or dusty area

Driving frequently at high speed over 170

km/hour

Driving frequently in area where heavy traffi c
under the ambient temperature above 32°C

-

-

-

01-6

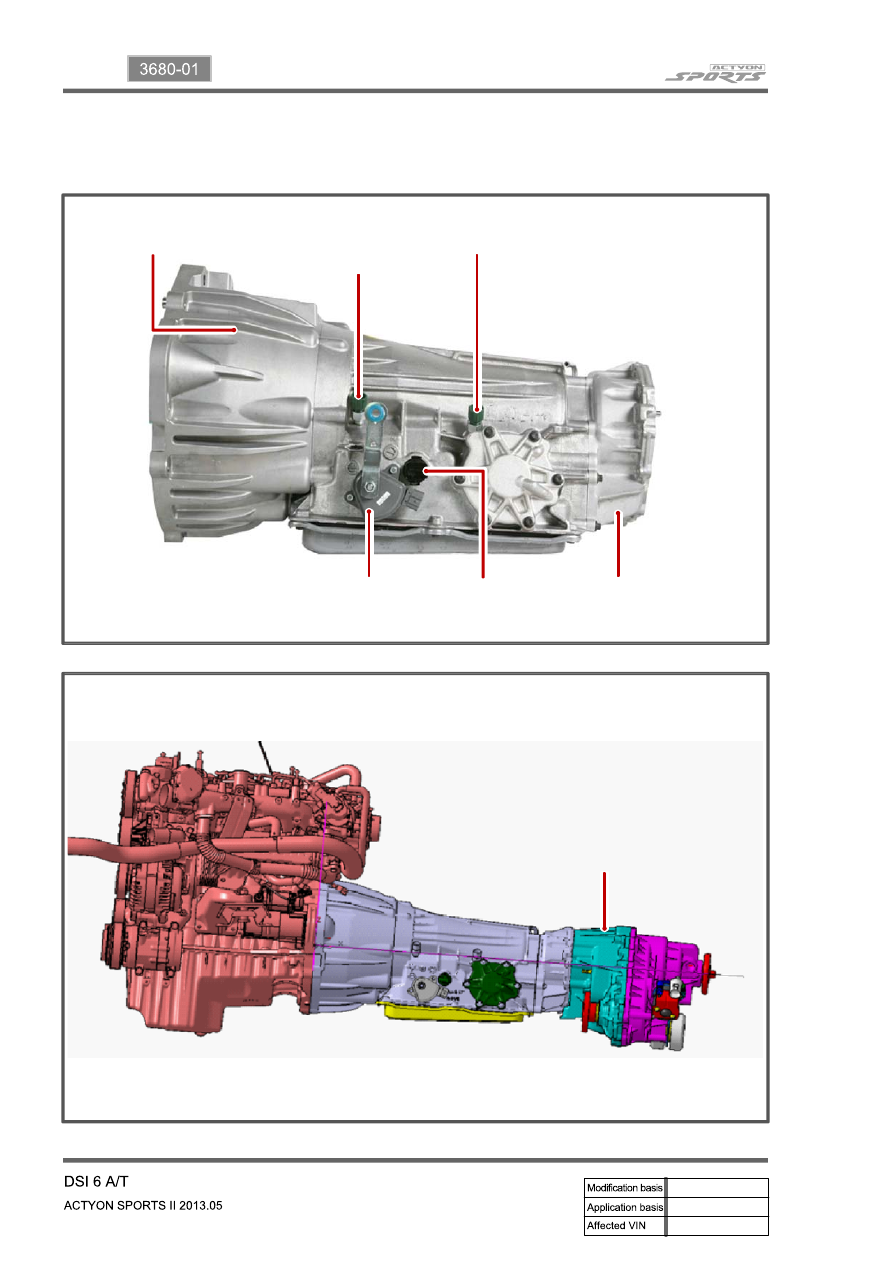

4WD Automatic Transmission

▶

Torque converter

Oil cooler outlet

Oil cooler return

Inhibiter switch

Adapter housing

2) Appearance

Connector plug

Transfer case
