09-7

8790-01

When the ignition switch is in IGN1 position (shift

lever is in "R" position), the sensor will be

diagnosed once. If any malfunction due to an

open circuit in sensor or an error in

sending/receiving signals, the system warns the

driver with audible buzzer sound. If it is normal,

the warning buzzer sounds for 65 ms.

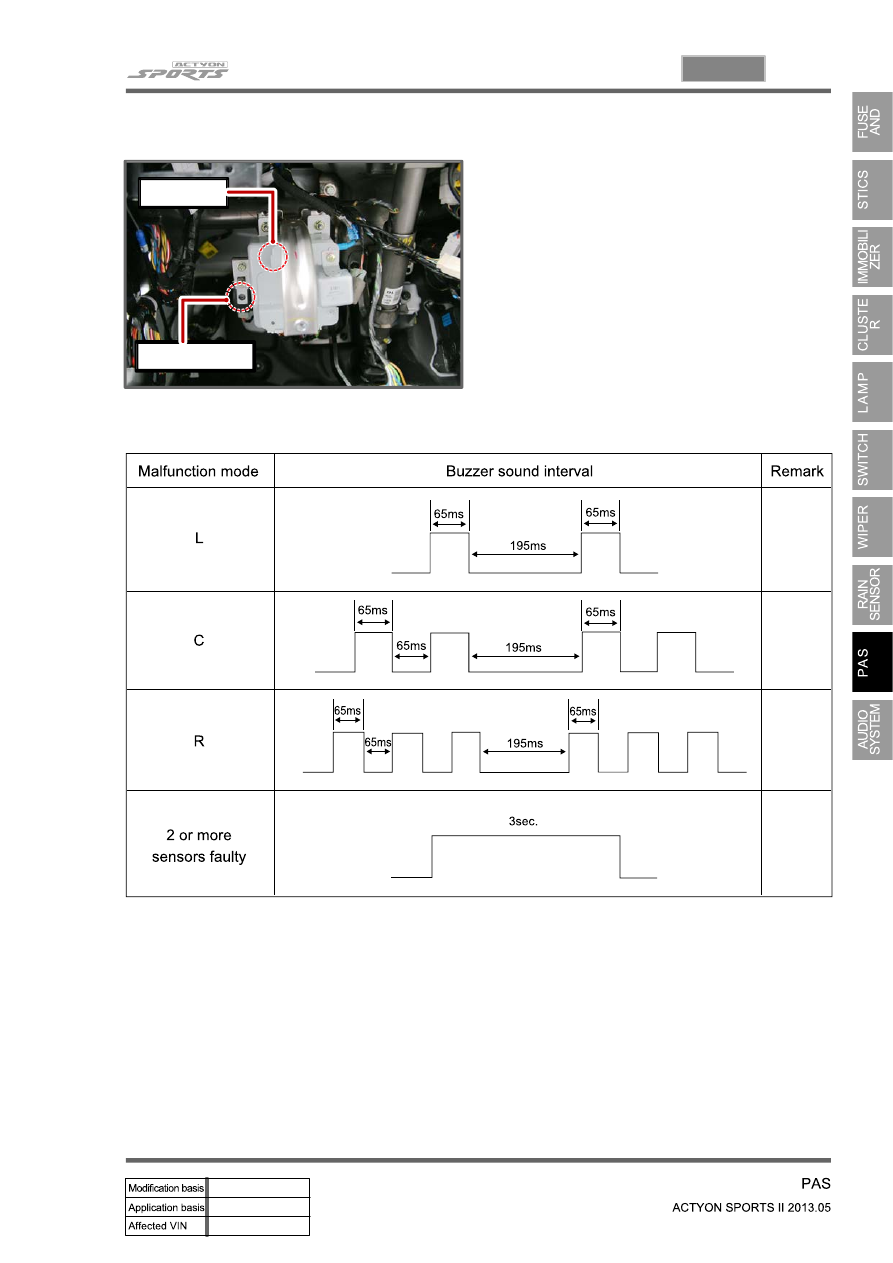

2) Troubleshooting

※ When the sensor failed in self-diagnostics

PAS buzzer

STICS

09-8

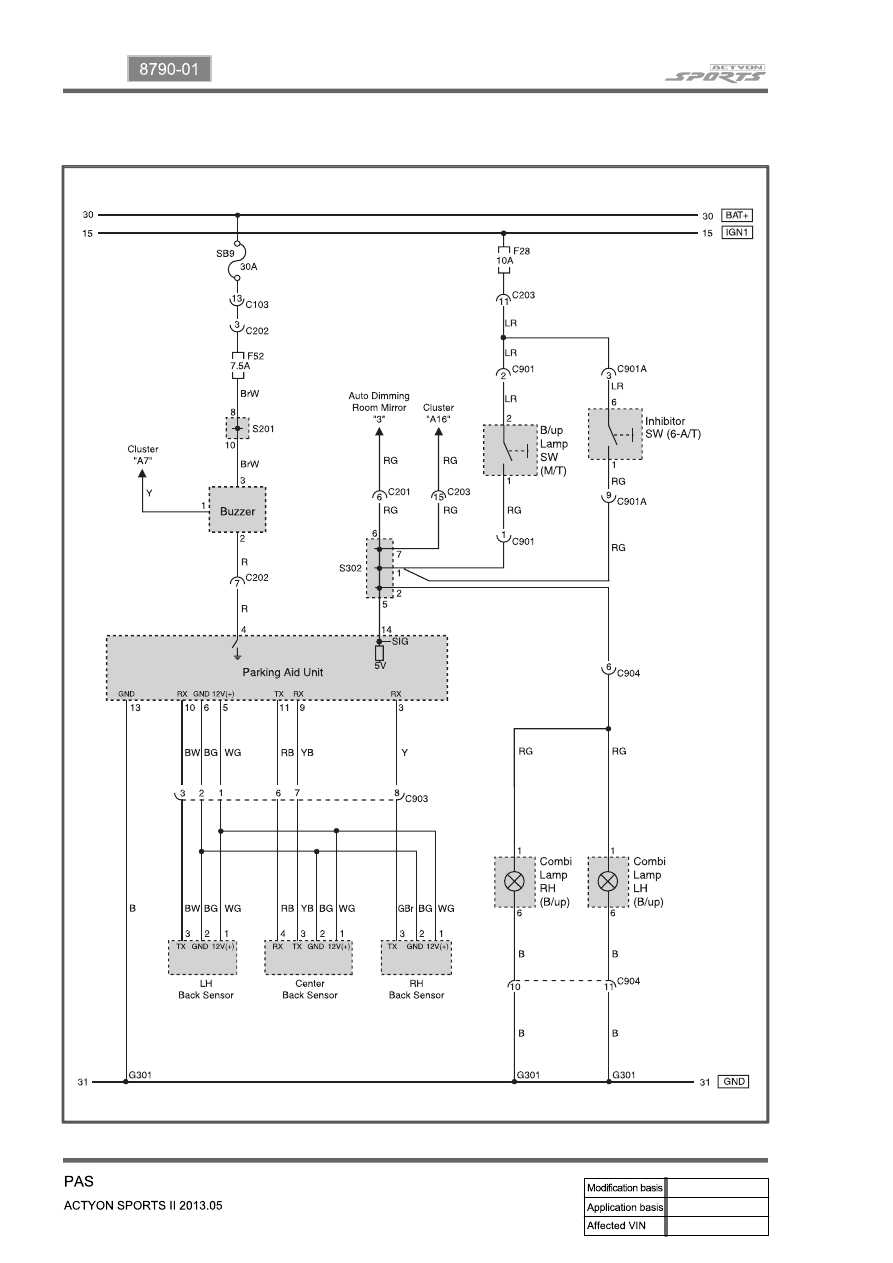

3. CIRCUIT DIAGRAM

10-3

8910-00

Unit

Description

Specification

Micro-pole antenna

Operating current

up to 150 mA

Operating voltage

DC 10.5 ~ 16.0 V

Operating temperature

-30˚C ~ 60˚C

Storage temperature

-40˚C ~ 80˚C

Input/output impedence

75Ω (FM)

1. SPECIFICATION

Unit

Description

Specification

General

Rated voltage

DC 14.4 V

Operating voltage

10.8 ~ 16.0 V

Operating temperature

-20˚C ~ 70˚C

Storage temperature

-40˚C ~ 80˚C

Radio

Frequency range

FM: 87.5 ~ 108 MHz (50 kHz STEP)

MW: 522 ~ 1620 kHZ (9 kHz STEP)

LW: 144 ~ 290 kHz (1 kHz STEP)

Channels

FM1: 6, FM2: 6, MW: 6, LW: 6

Performance

Speaker output

45 W/CH (4Ω)

Speaket impedence

4Ω

Current consumption

below 5 A, max. 10 A

Parasitic current

below 3 mA

Bluetooth

Performance

HFP A2DP.AVRCP

Configuration

MD-5XR

Technology

Bluetooth 2.0 + EDR

LCD

Operating voltage

9.0 V

Operating temperature

-30˚C ~ 75˚C

Storage temperature

-40˚C ~ 80˚C

DOT

132 x 36

10-4

2. CAUTIONS AND WARNING FOR SAFETY

Ssangyong is not liable for any personal injury and material damage, caused by violation of traffic

regulations or neglect of observing actual traffic and driving situations.

Colors on display figures in this manual may differ from actual display due to publication concerns.

-

-

Do not disassemble or modify this system.

If doing so, it may cause an accident, fire or electric shock.

Do not use the system if it is malfunctioning (sound or video output problem).

Doing so may lead to an accident or electric shock.

Please contact a Ssangyong service dealer immediately.

The system should be used only when the engine is started.

Using the system for an extended period of the with the engine off may discharge the battery.

Do not leave beverages or foreign materials around the system.

If they enter the system, they may cause a fire.

The system may break down if a disc not supported by this system is inserted.

Do not apply impact to or drop this system.

It might cause malfunction.

Never leave the system in a hot or cold place for an extended period of time. Therefore, do not park
the vehicle in a hot or cold place. The ambient temperature should be -30℃ ~ +80℃ for

proper operation.

-

-

-

-

-

-

-
