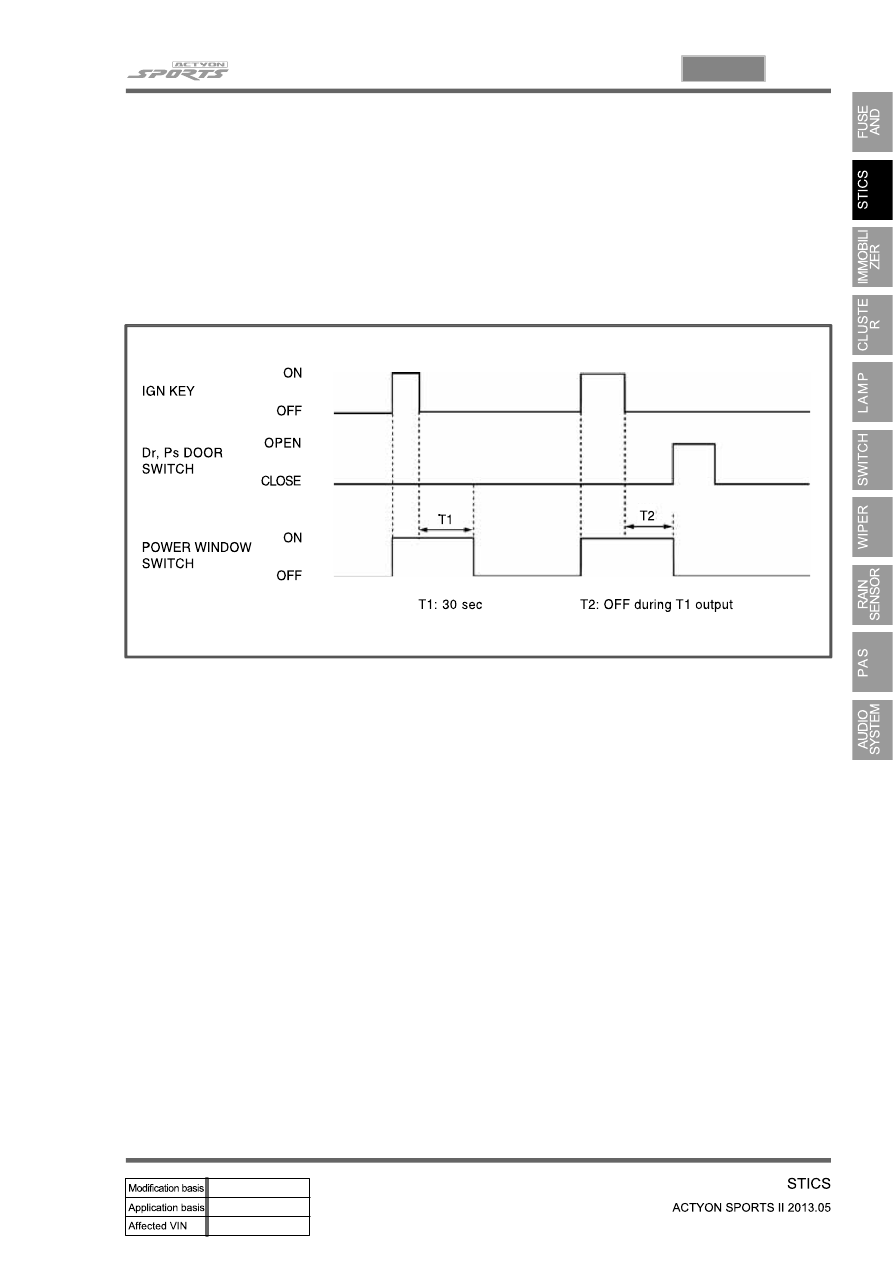

▶Time Lag Power Window Control

The power window relay output is "ON" when turning on the ignition switch.

The power window relay output is "ON" for 30 seconds when turning off the ignition switch.

The power window relay output is "OFF" when opening the driver's door or the passenger's

door.

The power window relay is turned "OFF" when receiving the remote control key lock signal

(armed mode) during its extended operation period of 30 seconds.

1.

2.

3.

02-44

2. STICS CONTROL REGARDING THEFT WARNING ALARM

1) Armed mode

The followings are definition of DOOR OPEN/CLOSE and DOOR LOCK/UNLOCK in respect of theft

deterrent system.

-

DOOR OPEN and DOOR CLOSE

DOOR OPEN:

-

Any of all door switches (including engine hood, driver's door, passenger's door or

rear door) is in "OPEN" position.

DOOR CLOSE:

-

All door switches (including engine hood, driver's door, passenger's door, rear

door and tailgate) are in "CLOSE" position.

The door lock/unlock operation does not affect the engine hood.

OPEN/CLOSE of the dech tailgate does not affect entering the armed mode.

In other words, when the hood and front/rear door are closed even if the dech tailgate is open, the

vehicle can enter the armed mode.

-

-

DOOR LOCK & DOOR UNLOCK

DOOR LOCK:

-

Indicates that driver's, passenger's and rear door and tailgate lock switches are in

LOCK positions.

DOOR UNLOCK:

-

Indicates that driver's, passenger's or rear door or tailgate lock switches are in

UNLOCK positions.

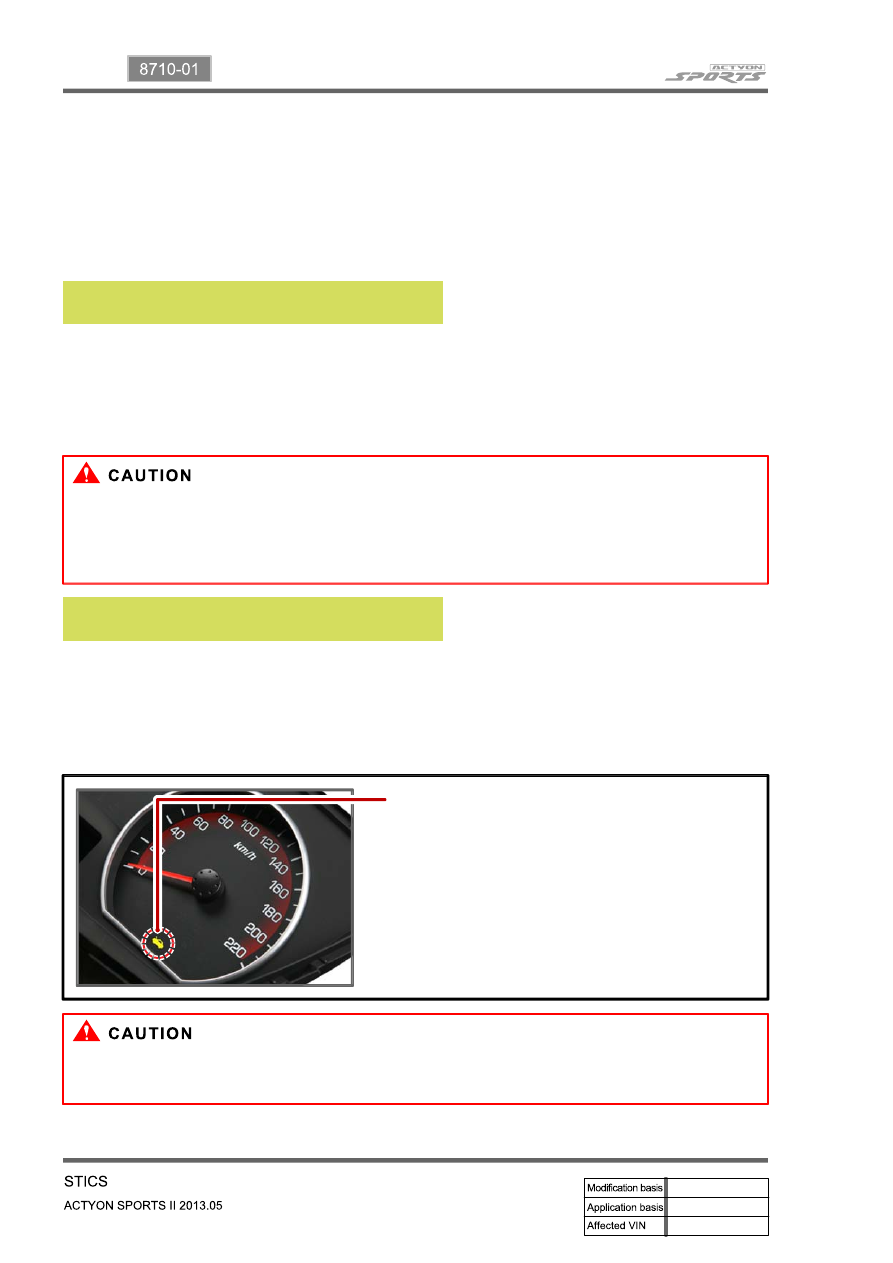

Engine hood open warning lamp
The warning lamp comes on when the engine hood

is open.

Since the luggage room tailgate does not have the door switch, the door ajar warning light does not

come on when it is open.

02-45

8710-01

2) Description of Theft Deterrent Function

(1) Armed mode activation requirements

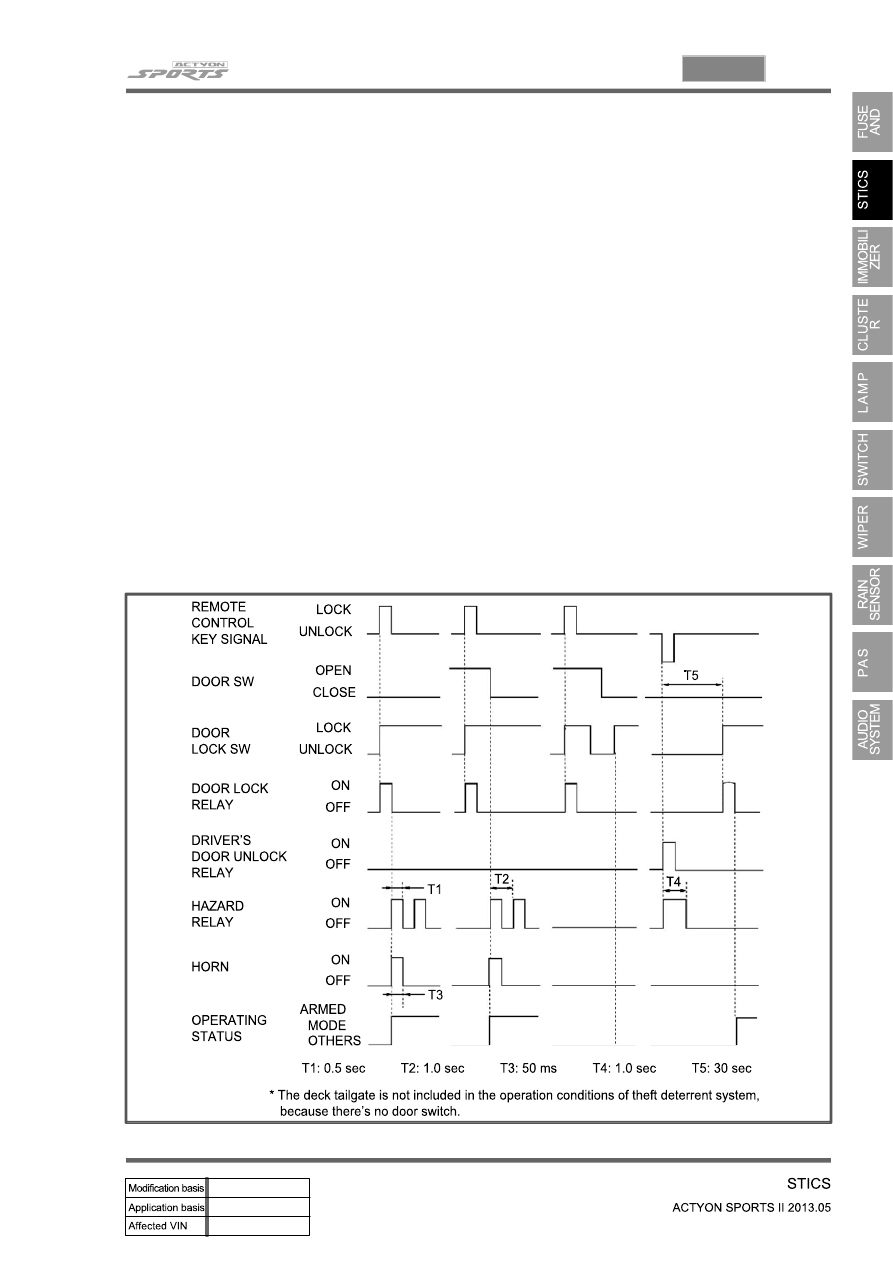

The "LOCK" output is "ON" when the "LOCK" signal is received from transmitter while the ignition

key is removed and all doors are closed.

The armed mode is activated when the door lock switch is locked (hazard warning flasher blink

twice).

The armed mode is still activated and the hazard warning flasher blink twice when the

"LOCK" signal is received from the remote control key again in armed mode.

When the "LOCK" signal is received from the remote control key while any of doors is not closed,

only the "LOCK" output can be done and then activates the armed ready mode

(without theft deterrent horn and hazard warning flasher). At this moment, if the ignition key is

inserted or the door lock switch is unlocked, it cancels the armed mode and activates the normal

mode.

When the door is opened or the ignition key is not inserted into ignition switch within 30 seconds

after receiving "UNLOCK" signal from the remote control key, it outputs "LOCK" and then activates

armed mode (RELOCK operation). Also, at this moment, the system blinks hazard warning flasher

twice.

The armed mode will not be activated except above conditions.

Ex) The armed mode will not be activated when the door is locked by the ignition key.

a.

b.

c.

d.

e.

02-46

(2) Armed mode cancellation requirements

(3) Warning operation requirements

(4) Warning operation

(5) Warning cancellation requirements

(6) Operation when warning is cancelled

Receiving UNLOCK signal from the remote control key or starting the engine.

a.

When opening the door in armed mode

When unlocking the door lock switch in armed mode by other than the remote control key

When closing and then opening the door after completion of warning (27 seconds)

a.

b.

c.

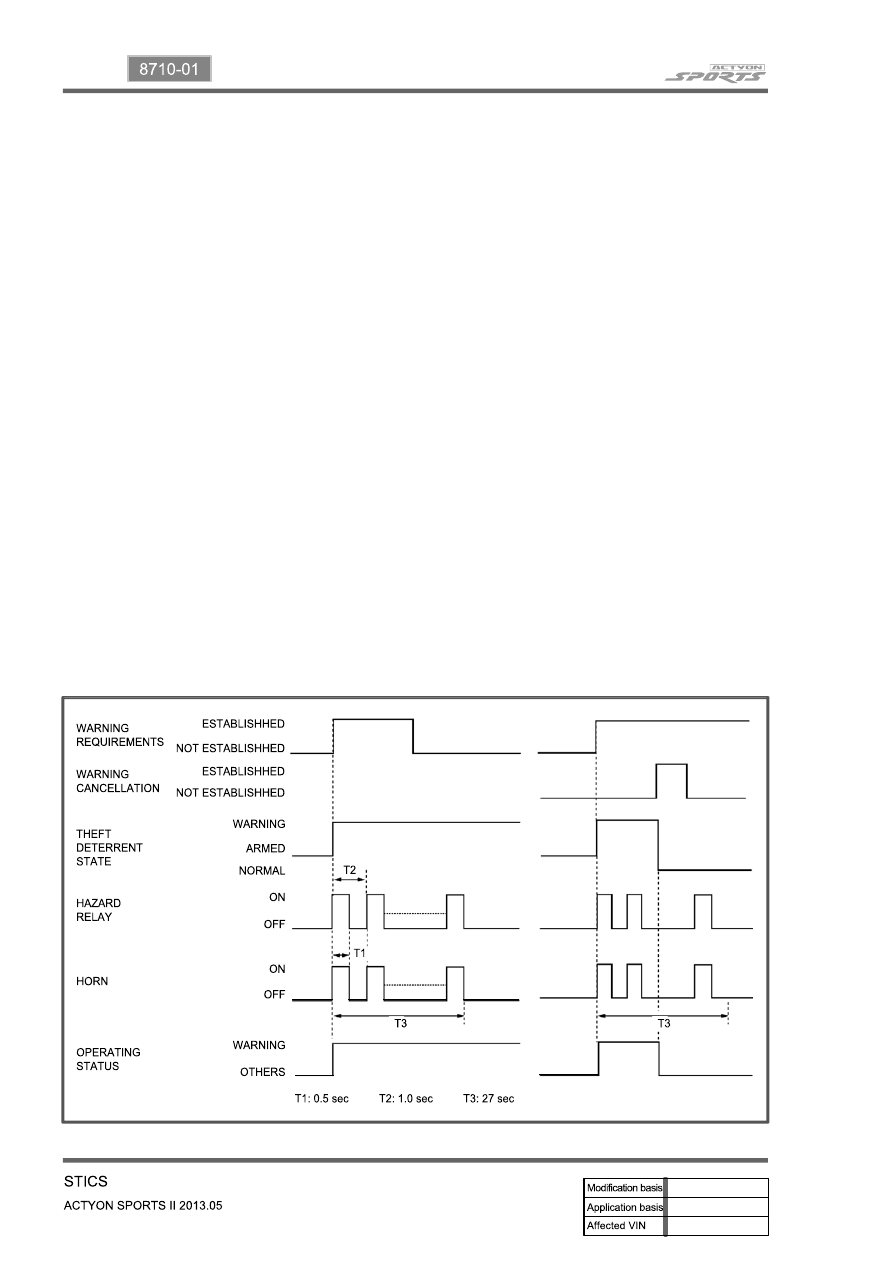

The theft deterrent horn and hazard warning flasher output is "ON" for 27 seconds at the interval of 1

second.

a.

Cancels warning by using any signal from the remote control key (LOCK, UNLOCK, PANIC) during

warning operation.

Cancels warning after 27 seconds (remaining time) while the ignition key is turned to "ON"

position.

If the ignition switch is turned to ON position when the warning is activated in armed mode, the

warning is cancelled immediately and the warning buzzer stops after 27 seconds (remaining time).

a.

b.

c.

The theft deterrent horn and hazard warning flasher outputs are "OFF".

a.
