SsangYong Actyon Sports II. Manual - part 87

02-35

8710-01

The defogger system uses the heated glass to remove the moisture and frost on the windows, which

can disturb safe driving.

The defogger (including de-icer) activates the corresponding switch and the STICS controls the

operating time.

Tailgate and outside rearview mirror
heated glass switch
Pressing switch activates tailgate and outside

rearview mirror heated glass for approx. 12

minutes

Windshield heated glass (de-icer) switch
Pressing switch activates windshield heated

glass for approx. 12 minutes

02-36

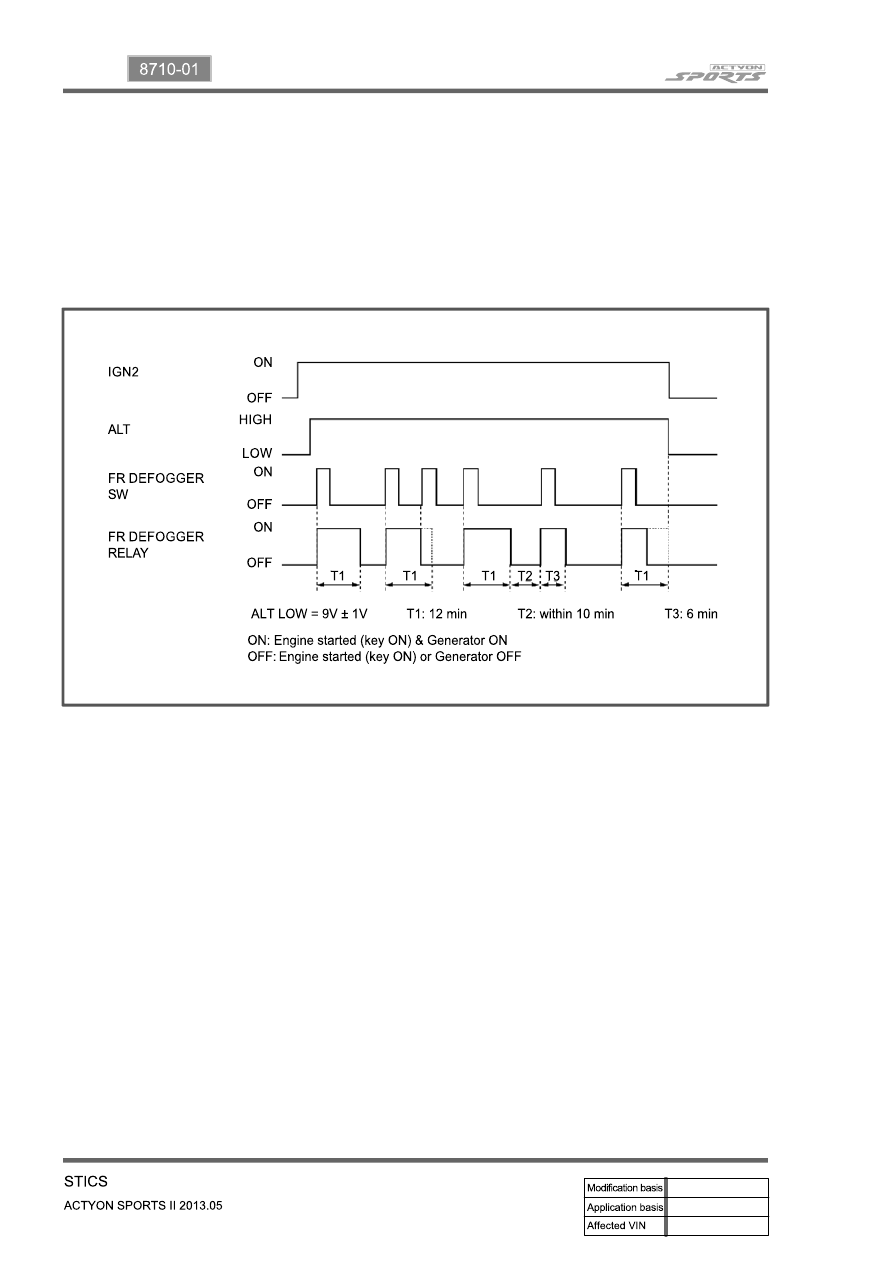

▶Front Defogger Timer

The front defogger output is "ON" when turning on the front defogger switch with the engine

started (IGN ON)

The output stops when turning on the front defogger switch again during its operation.

The output is "ON" only for 6 minutes when turning on the front defogger switch within 10

minutes after completion of output for 12 minutes. This can be done only once.

The output is "OFF" when the ignition switch is "OFF".

1.

2.

3.

4.

02-37

8710-01

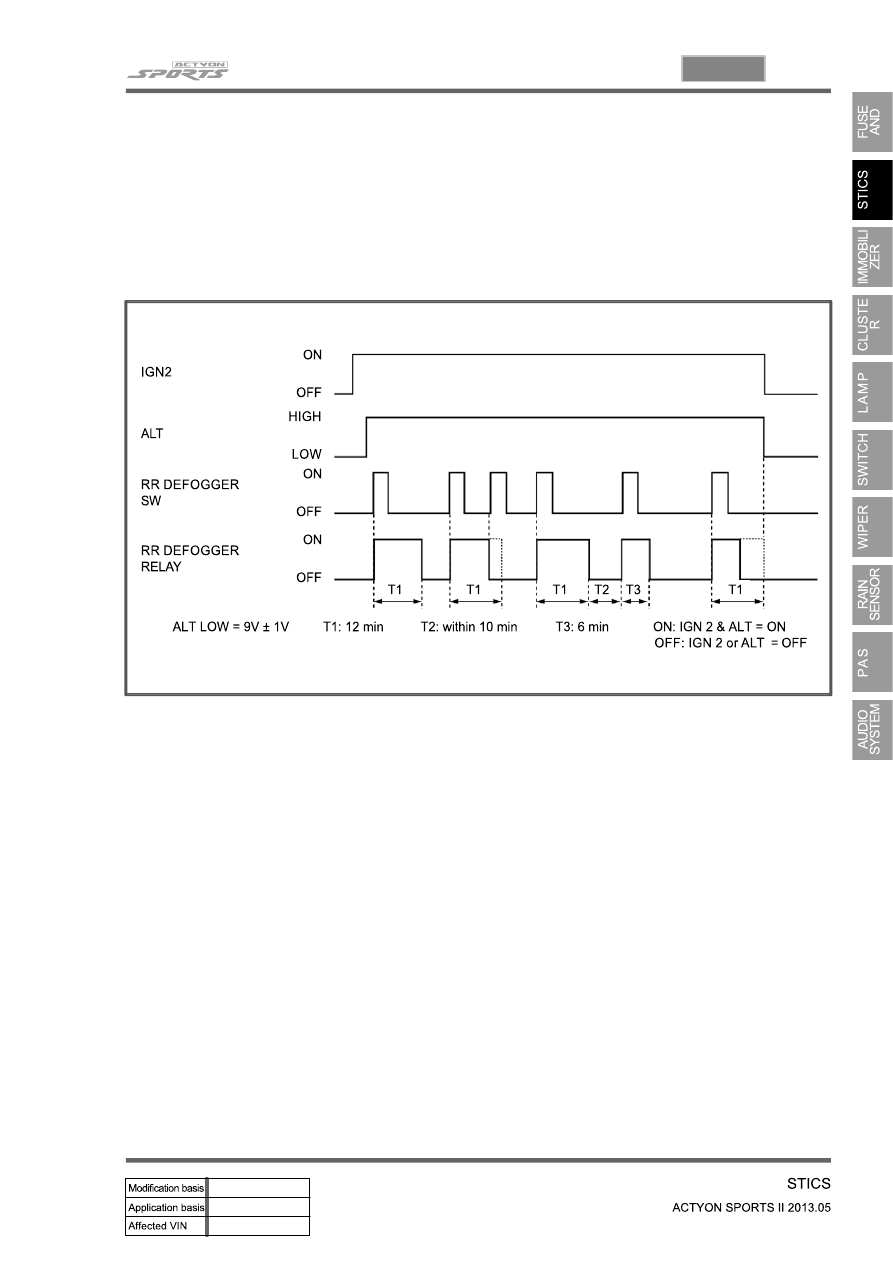

▶Rear Defogger Timer

The rear defogger output is "ON" when turning on the rear defogger switch with the engine

started (IGN ON)

The output stops when turning on the rear defogger switch again during its operation.

The output is "ON" only for 6 minutes when turning on the rear defogger switch within 10 minutes

after completion of output for 12 minutes. This can be done only once.

The output is "OFF" when the ignition switch is "OFF".

1.

2.

3.

4.

02-38

▶Door Lock/Unlock Control by Door Lock Switch

The door lock system outputs "LOCK" signal for 0.5 seconds when positioning the driver's or

passenger's door lock knob to the lock from unlock position.

The door lock system outputs "UNLOCK" signal for 0.5 seconds when positioning the driver's or

passenger's door lock knob to the unlock from lock position.

"LOCK" or "UNLOCK" by the door lock switch is ignored when outputting the "LOCK" or

"UNLOCK" signal by other functions.

All door lock signals are "UNLOCK" for 0.5 seconds just for once when receiving the "LOCK"

signal within 0.5 seconds after closing the driver's or passenger's door while the ignition key is

removed.

1.

2.

3.

4.
