SsangYong Actyon Sports II. Manual - part 44

12-5

8510-23

2. CONFIGURATION

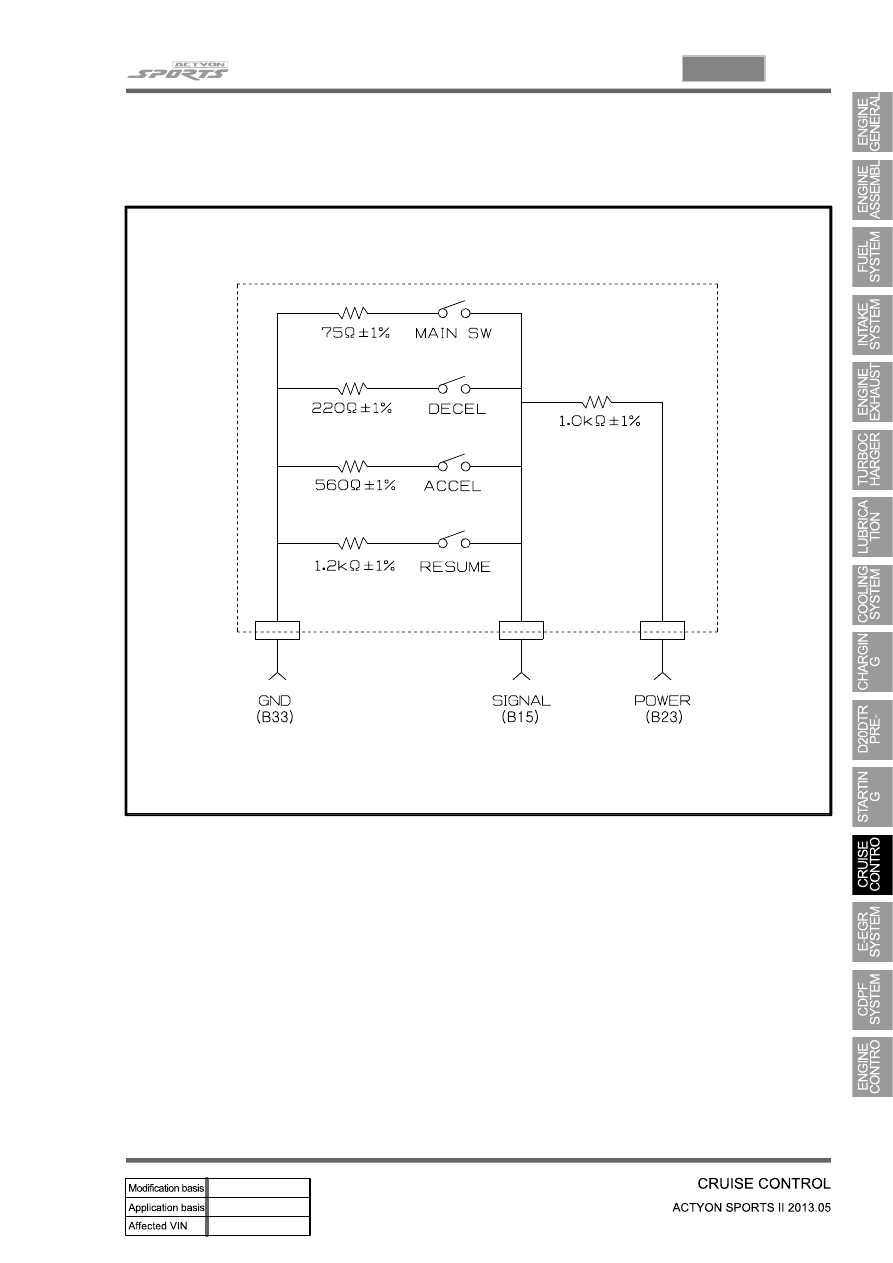

1) Circuit Diagram

The engine ECU detects the operating conditions of cruise control system, and monitors the braking

performance, vehicle speed, road conditions and ESP system operation. If the engine ECU determines

that there are not any problem to drive in cruise control mode, the vehicle can be operated by cruise

switch signals (decelerating, accelerating, cruising).

12-6

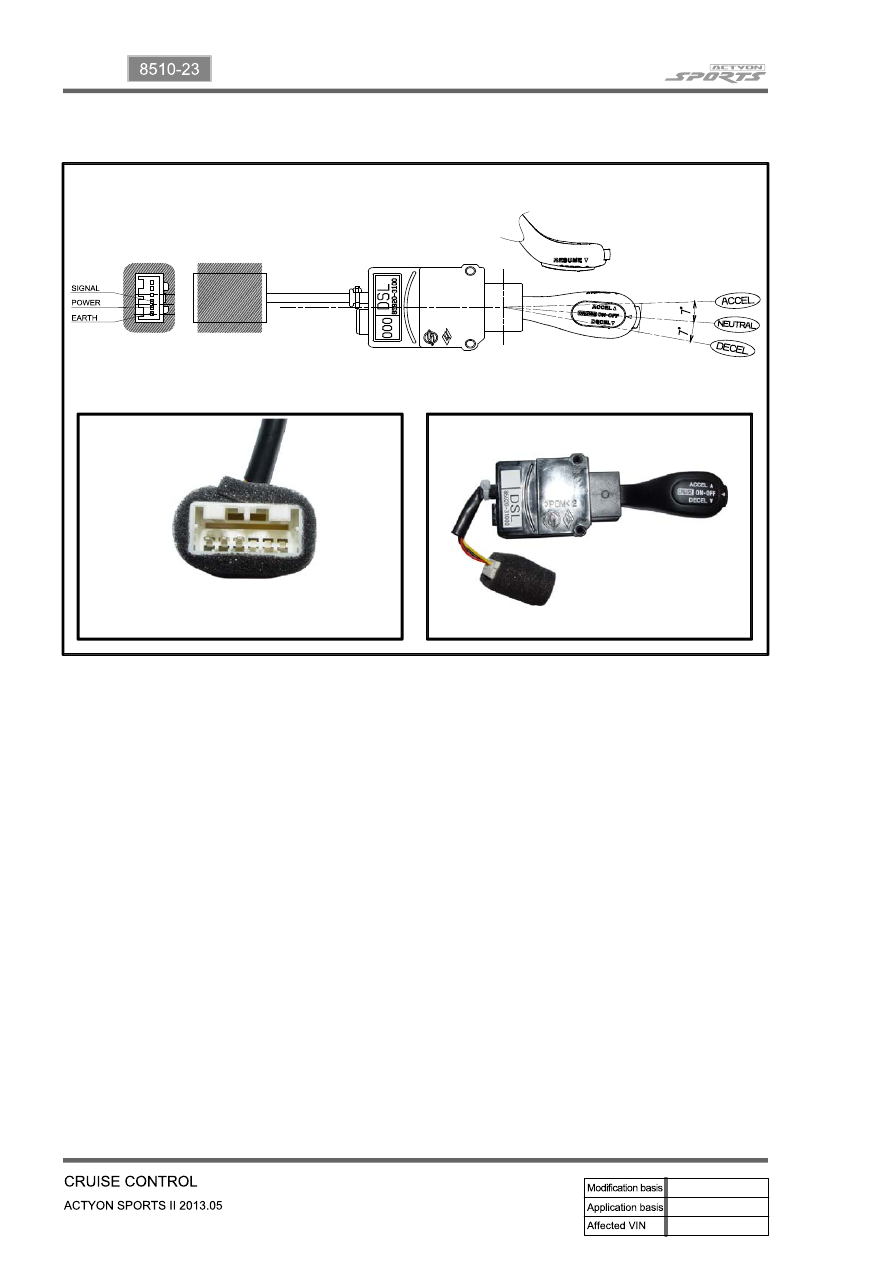

2) Configuration

12-7

8510-23

3. OPERATION

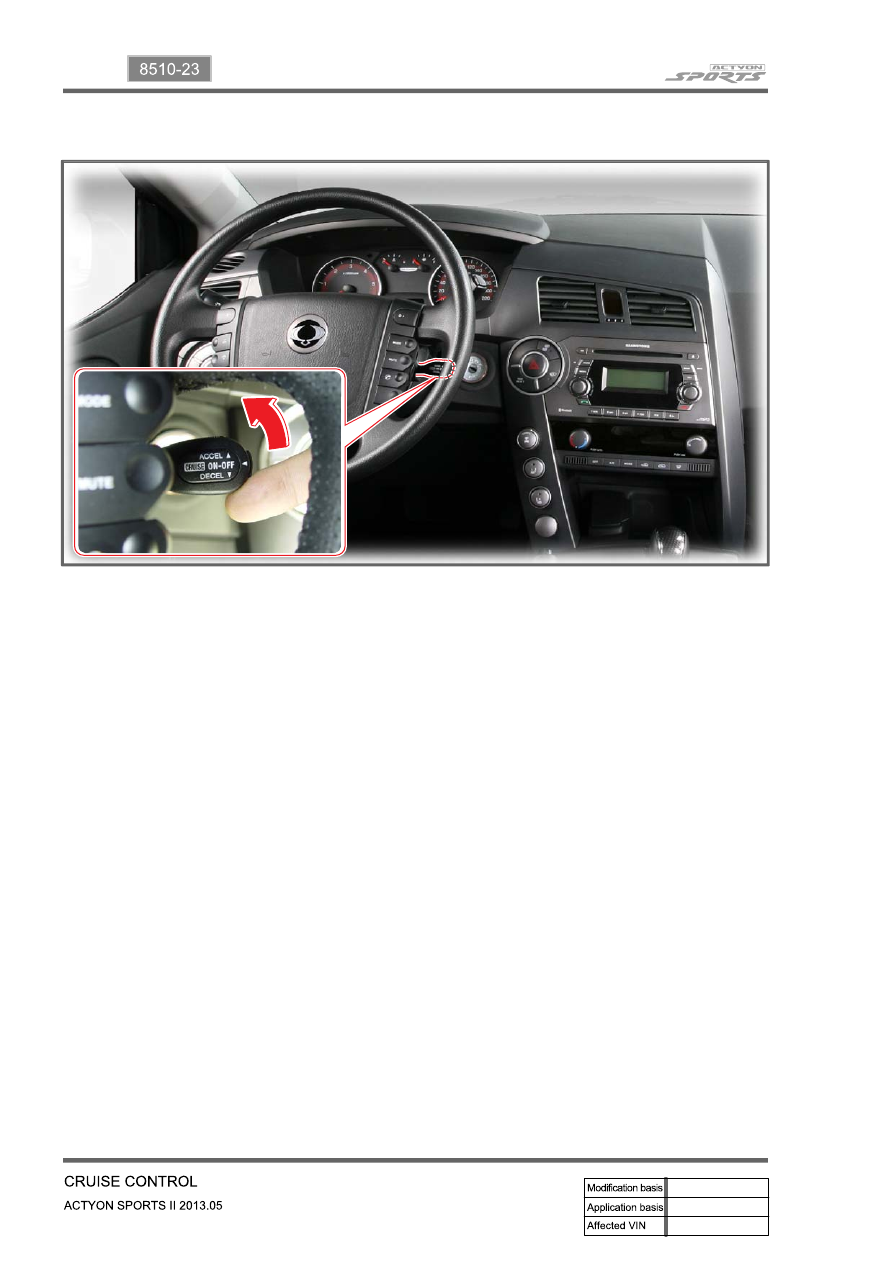

1) Setting a Desired Speed

To operate the cruise control, accelerate to the desired speed, which must be more than 36 km/h and

less than 150 km/h.

When the desired speed is reached, push up the ACCEL switch of the cruise control lever or push

down the DECEL switch for 1 second per one switching and then release the accelerator pedal slowly.

Now, the vehicle is cruised by this system with the set speed. You don't need to use the accelerator

pedal.

Refer to the following pages for details of operation.

1.

2.

3.

4.

Never use the cruise control system until you get used to it.

Improper use or not fully aware of this function could result in collision and/or personal injuries.

12-8

2) Accelerating with the Cruise Control System

(1) While the cruise control system is running

Push up the ACCEL switch of the cruise control lever and hold it until the desired speed is reached

without an accelerator pedal intervention.

When the desired speed is reached, release the lever.

1.

2.

(2) When the cruise control system is not running

To increase the speed with the cruise control system while the system is not running, follow the

procedures below.

Accelerate using the accelerator pedal over 36 km/h.

Push up the ACCEL switch of the cruise control lever and hold it. And then release the accelerator

pedal slowly.

When the desired speed is reached, release the lever.

1.

2.

3.

(3) Tap-up while the cruise control system is running

To increase the vehicle speed in stages while the cruise control system is running, follow the procedures

below.

Push up the ACCEL switch of the cruise control lever less than 0.5 second per one switching while

the cruise control system is running. This is a tap-up switching. When you operate a tap-up switching,

the vehicle is accelerated for 1.3 km/h over the previous set speed.

If you want to accelerate for 13 km/h, operate the tap-up switching ten times without accelerating with

the cruise control system.

1.

2.
