7B/C-16  MANUAL & SEMIAUTO-HVAC

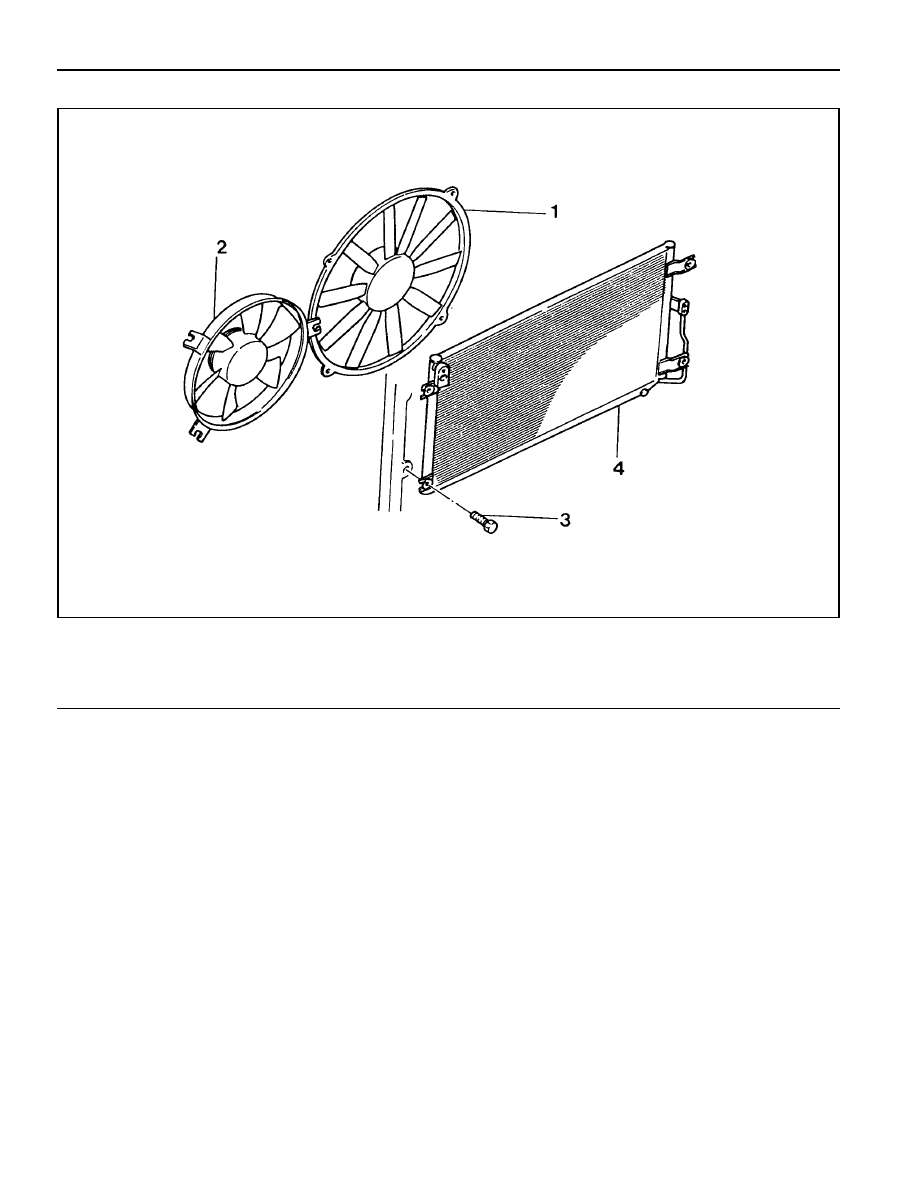

1 Main Condenser Fan
2 Auxiliary Condenser Fan

3 Bolt
4 Condenser

Gasoline Engine

MANUAL & SEMIAUTO-HVAC  7B/C-17

Removal & Installation Procedure

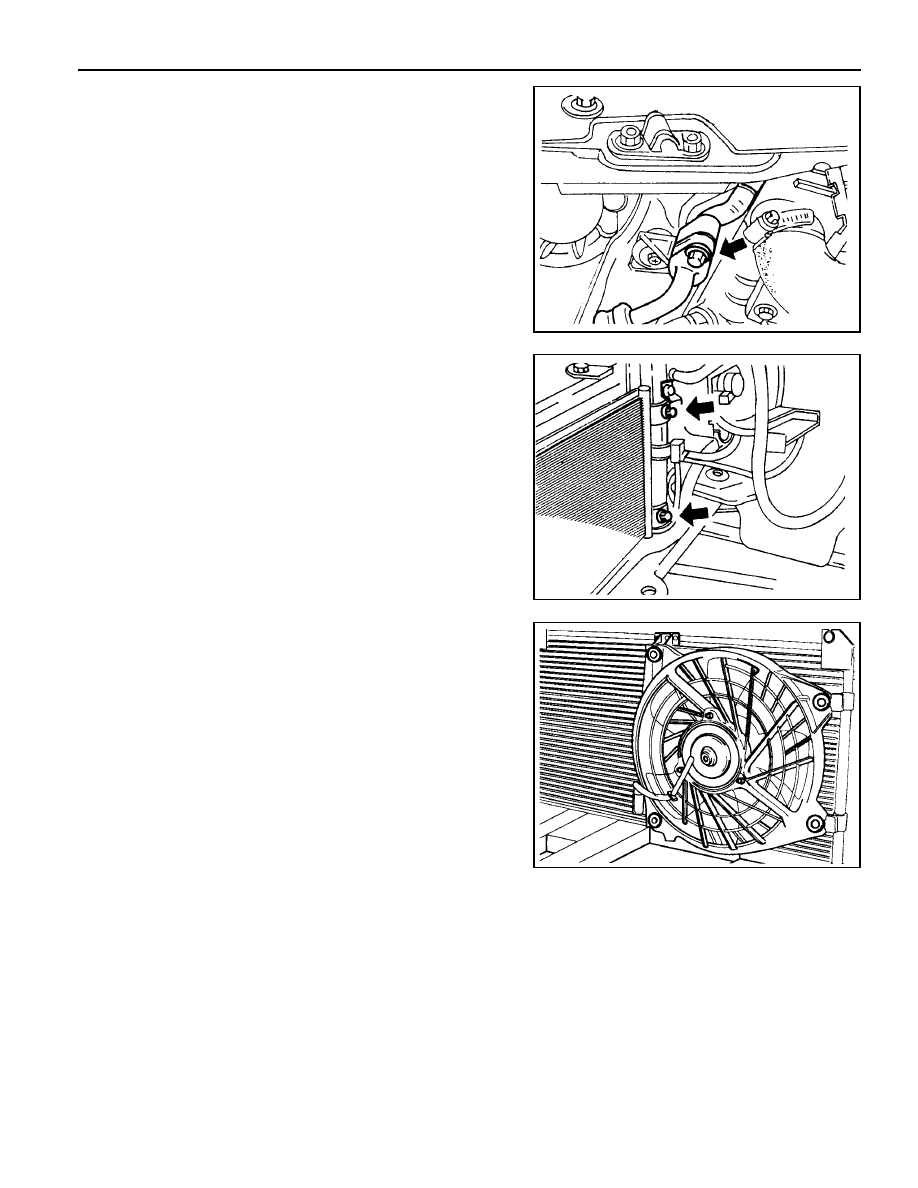

1. Disconnect  the inlet and outlet pipes of condenser.

Notice

Before disconnection, evacuate the refrigerant from the
system.

2. Remove the mounting bolts (4bolts) and condenser

assembly.

3. Remove the main condenser fan from condenser.

4. Installation should follow the removal procedure in the

reverse order.

7B/C-18  MANUAL & SEMIAUTO-HVAC

RECEIVER DRIER

Diesel Engine

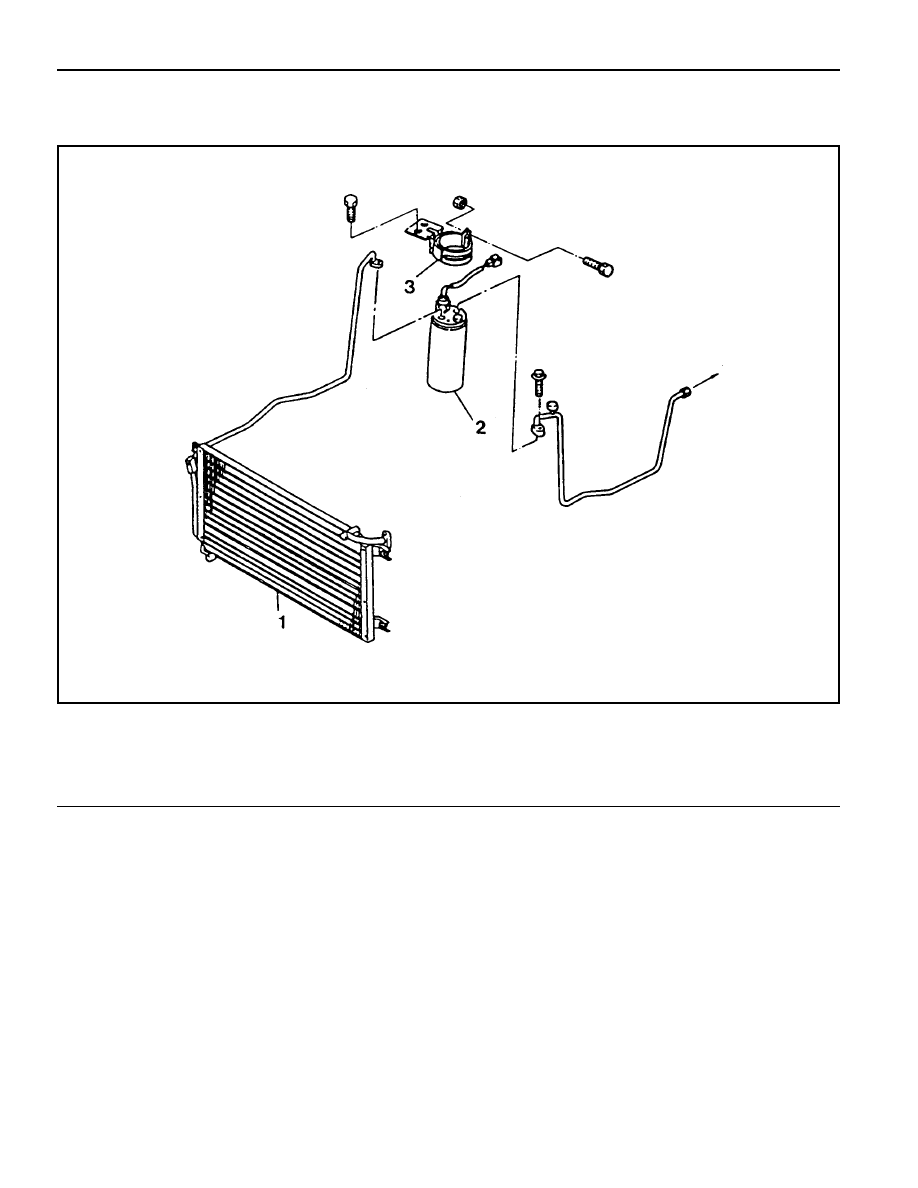

1 Condenser
2 Receiver Drier
3 Bolt .........................................................  4-6 Nm

4 Bolt .......................................................... 5-8 Nm
5 Bracket

MANUAL & SEMIAUTO-HVAC  7B/C-19

Removal & Installation Procedure

1. Disconnect the negative(-) terminal from the battery.

2. Discharge refrigerant from the system.

Notice

By connecting a manifold gauge connection hose to High/
Low pressure line, discharge the refrigerant.

3. Disconnect the inlet and outlet pipes of receiver drier.

Notice

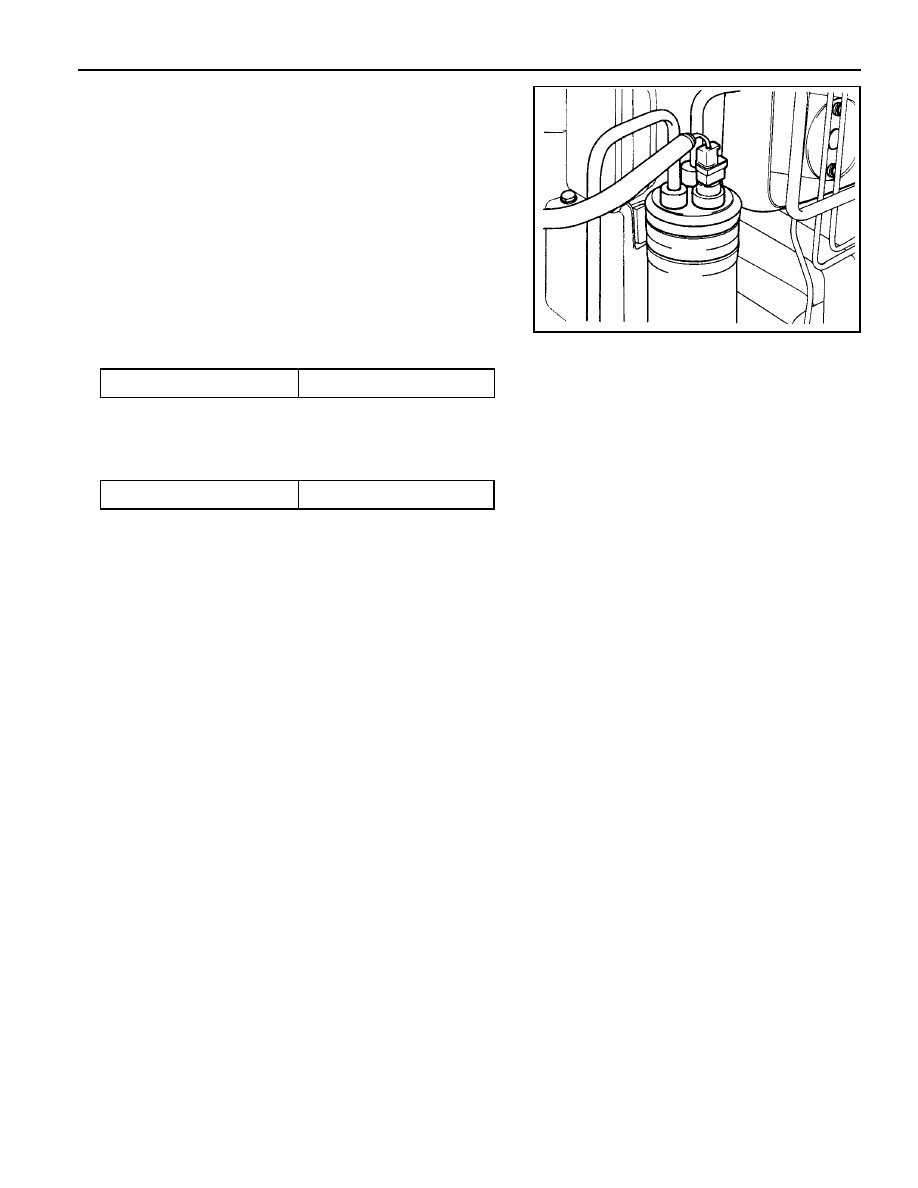

When installing, check the O-ring and apply the compressor
oil.

Installation Notice

4. Remove the bracket bolt and then remove the receiver drier.

Installation Notice

Tightening Torque

4 - 6 Nm

5. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

5 - 8 Nm
