SsangYong Musso. Manual - part 470





AUTOMATIC TRANSMISSION  5A-57

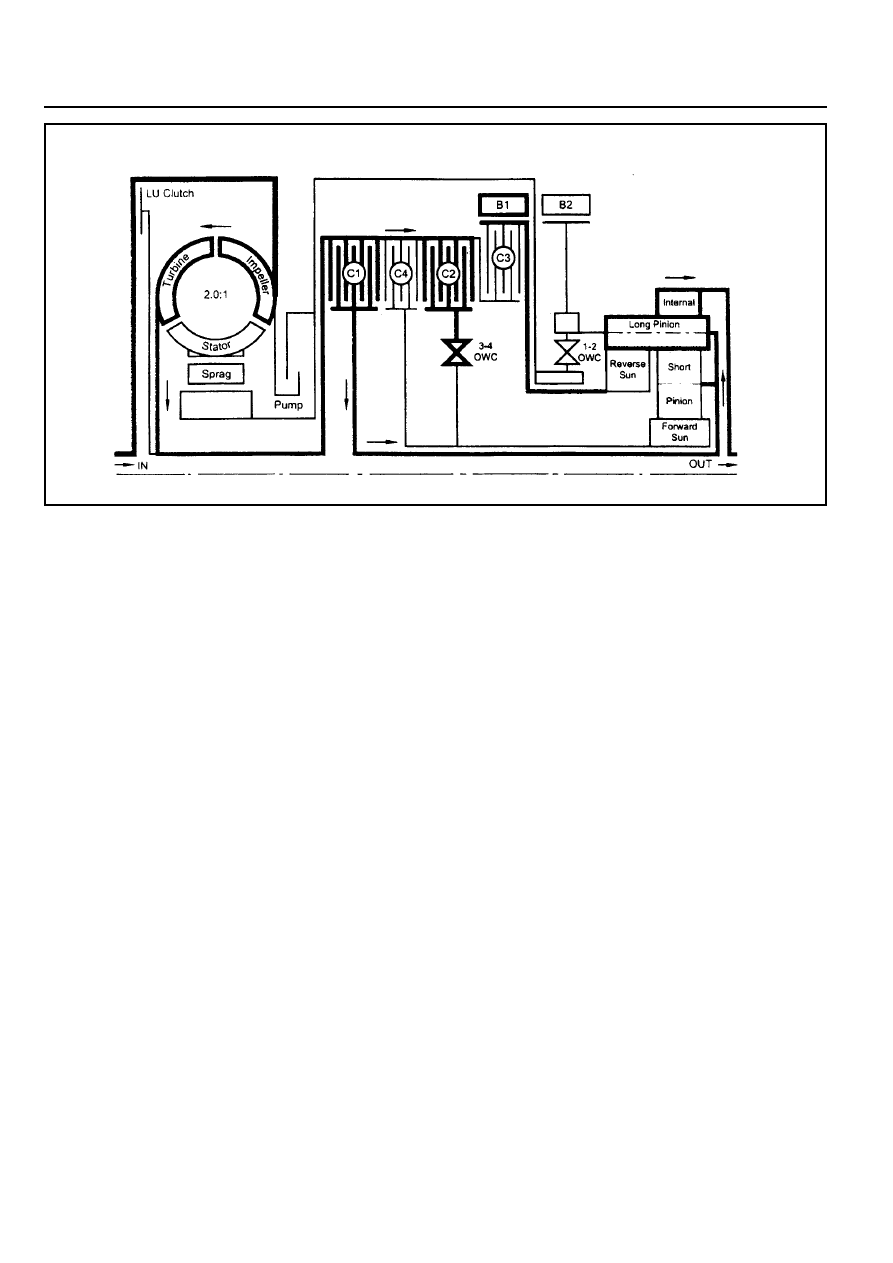

POWER FLOW - DRIVE 4 (OVERDRIVE)

In Drive 4 (Overdrive), transmission drive is via the input shaft to the forward clutch cylinder.

The elements of the transmission function as follows :

!

The C1 clutch is applied to drive the planet carrier clockwise.

!

The B1 band is applied to hold the reverse sun gear stationary.

!

As the planet carrier tuns, the long pinion ‘walks’ around the stationary reverse sun gear and rotates around its

axis driving the internal ring gear and output shaft in a clockwise or forward direction at a speed faster than the
input shaft i.e. in overdrive ratio.

!

The forward sun gear is also driven faster than the input shaft and overruns the 3-4 OWC.

!

The C2 clutch is engaged to reduce the speed differential across the 3-4 OWC.

Control

To maintain this arrangement in the steady state solenoids and valves are activated as follows:

!

Solenoid S1 is switched On. S2 is switched Off.

!

With S1 switched On the 3-4 shift valve is held in the fourth gear position by line 500 pressure on the small end

of the valve.

!

With S2 switched Off the 2-3 shift valve is held in the fourth gear position by line 500 pressure on the large
end of the valve.

!

The 1-2 shift valve is held in the fourth gear position by S2 oil pressure.

!

2nd oil (line pressure) from the 1-2 shift valve is directed to the band apply regulator valve, and to the 2-3 shift

valve.

!

The band apply regulator valve supplies 2nd oil (regulated to line pressure multiplied by the valve ratio) to the

band apply feed (BAF) circuit.

!

Band apply feed oil is directed to:

- the outer apply area of the front servo

- the inner apply area of the front servo piston via the 3-4 shift valve

- the 1-2 shift valve to provide an exhaust port when the transmission is shifted to first gear

!

2nd oil at the 2-3 shift valve is directed to the 3rd oil circuit.

!

3rd oil from the 2-3 shift valve is directed to the clutch apply regulator valve, and to the 4-3 Sequence Valve.

!

The clutch apply regulator valve supplies oil (regulated to line 500 pressure multiplied by the valve ratio) to the

clutch apply feed (CAF) circuit.

!

The CAF oil is directed to:

- the C1 clutch

- the C1 bias valve

- the 4-3 sequence valve

!

Drive oil (line pressure) from the manual valve engages the C2 clutch

Refer to figure 5.8 and table 5.9.

Table 5.9 - Engaged Elements - Drive 4 (Overdrive)

Gear State

Drive 4 (Overdrive)

C1

X

C2

X

C3

-

C4

-

B1

X

B2

-

1-2

OWC

-

3-4

OWC

X

LU

CLUTCH

-

ELEMENTS ENGAGED

5A-58  AUTOMATIC TRANSMISSION

AUTOMATIC TRANSMISSION  5A-59

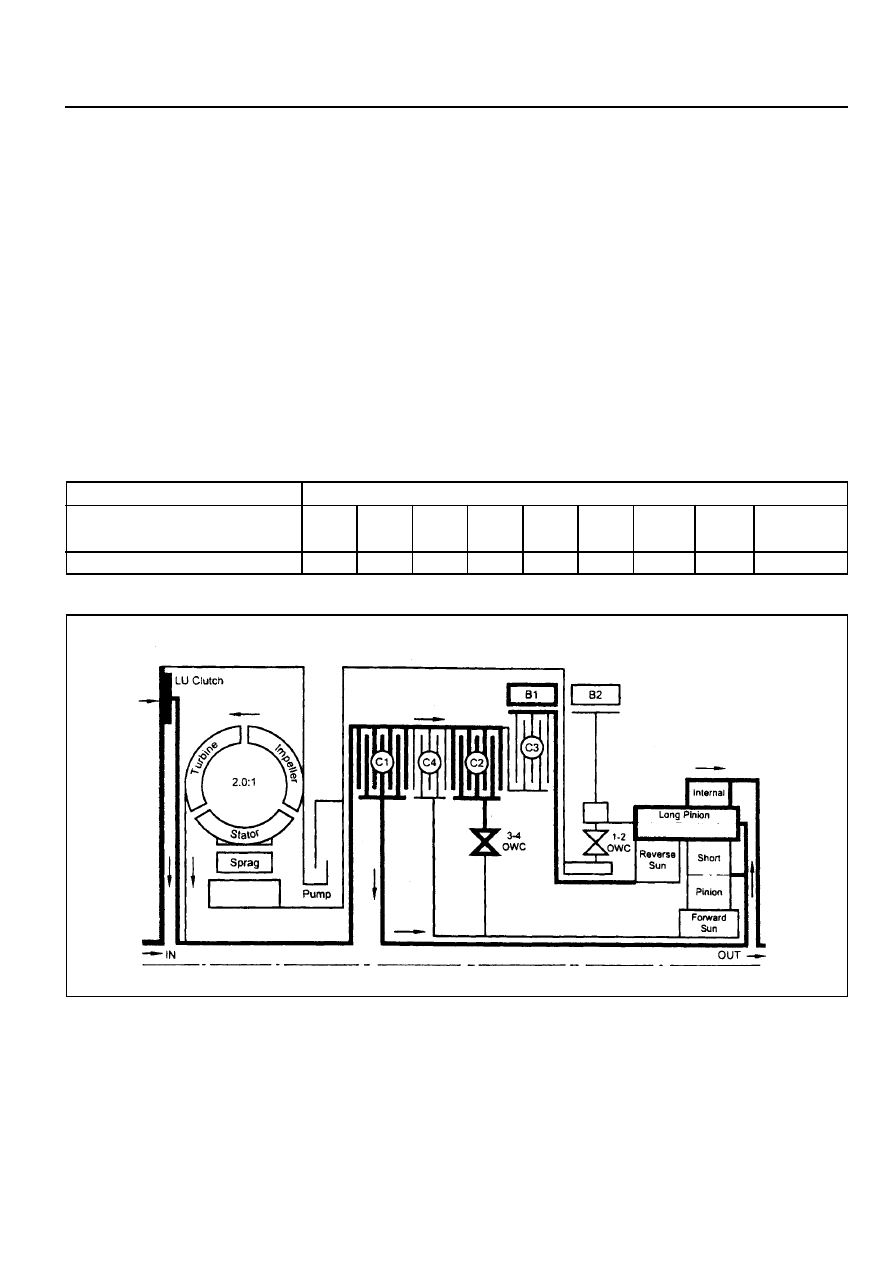

POWER FLOW - DRIVE 4 LOCK UP

In Drive 4 Lock Up, transmission drive is the same as for Drive 4 but with the application of the converter lock up clutch
to provide positive no-slip converter drive.

Control

Control for Drive 4 Lock Up is the same as for Drive 4 with the addition of the converter clutch circuit activated by
solenoid S7.

!

When S7 is switched On, S7 feed oil to the converter clutch control valve is switched off and allowed to exhaust

through the S7 solenoid. This allows the valve to move to the clutch engage position.

!

Regulated apply feed oil, delved from Line 500 oil at the converter clutch regulator valve, is directed by the

converter clutch control valve to the engage side of the converter clutch.

!

Converter clutch release oil is exhausted at the converter clutch control valve.

!

Converter feed oil is re-routed by the converter clutch control valve directly to the oil cooler and lubrication

circuit.

Refer to figure 5.9 arid table 5.10.

Table 5.10 - Engaged Elements - Drive 4 Lock Up

Gear State

Drive 4 Lock Up

C1

X

C2

X

C3

-

C4

-

B1

X

B2

-

1-2

OWC

-

3-4

OWC

-

LU

CLUTCH

X

ELEMENTS ENGAGED

5A-60  AUTOMATIC TRANSMISSION

DIAGNOSIS

DIAGNOSTIC SYSTEM

Recommended Test Equipment and Procedure

The test equipment is designed to be used with the control modules in all vehicles. The components used in the
transmission application are:

!

Multi Function Tester, and

!

Appropriate vehicle for testing.

Multi Function Tester (MFT)

The MFT is programmed with the special vehicle diagnostic software that allows selection of the unit under test.

The program allows the proper communication to the Transmission Control Unit (TCU).

It then requests information from the user via a menu system to select the required set up.

Examples are viewing codes, clearing error codes, and real-time operation. Set up and operation instructions are
detailed in the user manual.

This equipment can be used by trained personnel such as technicians and mechanics to diagnose electronic and
wiring problems relating to the vehicle transmission. Information that is available includes engine and road (shaft)
speed, transmission oil temperature, throttle position, solenoid/gear status and gear lever position. Current and
stored faults detected by the electronics are also available.

TCU Pin Description

The TCU pin descriptions are listed in table 6.1.1.

The wiring loom pins are shown in figure 6.1.1

Pin

No.

1

2

3

4

5

6

7

8

Identification

Common Ground

Do not use

Mode Indicator Lamp -

‘Winter’

Gear Position ‘Park’

Lamp

Gear Position ‘Reverse’

Lamp

Gear Position ‘Neutral’

Lamp

Do not use

Engine Speed Input

Sensor (-Ve)

Type

GND

-

OP

OP

OP

OP

-

IP

Description

Main power ground (or the module. Connects

directly to the battery negative terminal.

Indicates ‘WINTER’ mode shift schedule is se-

lected.

Drives the jewel in the instrument cluster to in-

dicate ‘PARK’ gear lever position.

Drives the jewel in the instrument cluster to in-

dicate ‘REVERSE’ gear lever position.

Drives the jewel in the instrument cluster to in-

dicate ‘NEUTRAL’ gear lever position.

Flywheel/Ring gear pulses to indicate engine

speed.

4WD

(Diesel)

O

O

!

!

!

!

!

4WD

(Gas)

O

O

O

!

!

!

!

!

!

Table 6.1.1 - TCU Pin Description
