PROPELLER SHAFT  3C-3

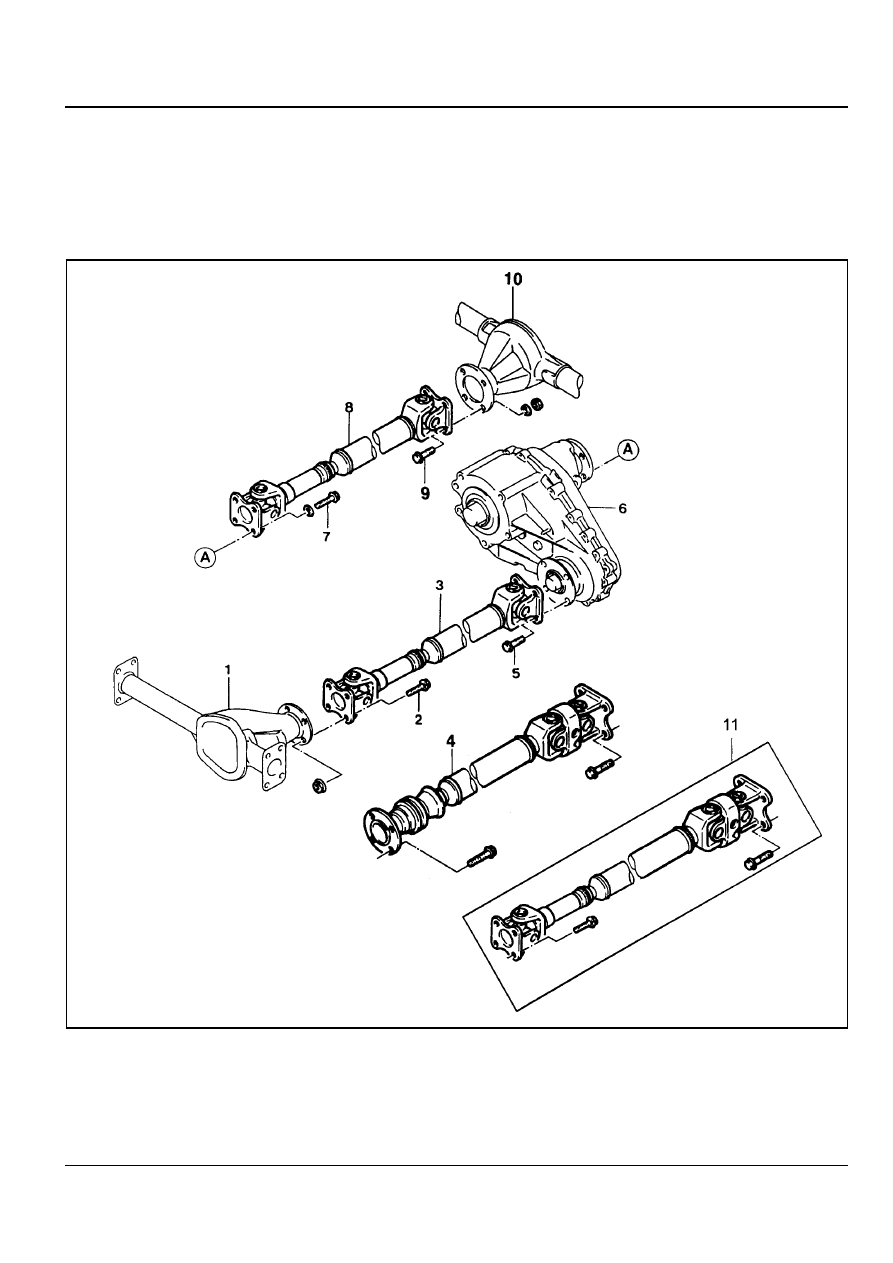

1 Front Axle
2 Bolt ...................................................... 70-80 Nm
3 Front Propeller Shaft (661LA/662LA)
4 Front Propeller Shaft (E32)
5 Bolt ...................................................... 81-89 Nm
6 Transfer Case

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

PROPELLER SHAFT

7 Bolt ...................................................... 81-89 Nm
8 Rear Propeller Shaft
9 Bolt ...................................................... 70-80 Nm

10 Rear Axle

11 Front Propeller Shaft (E20/E23)

3C-4  PROPELLER SHAFT

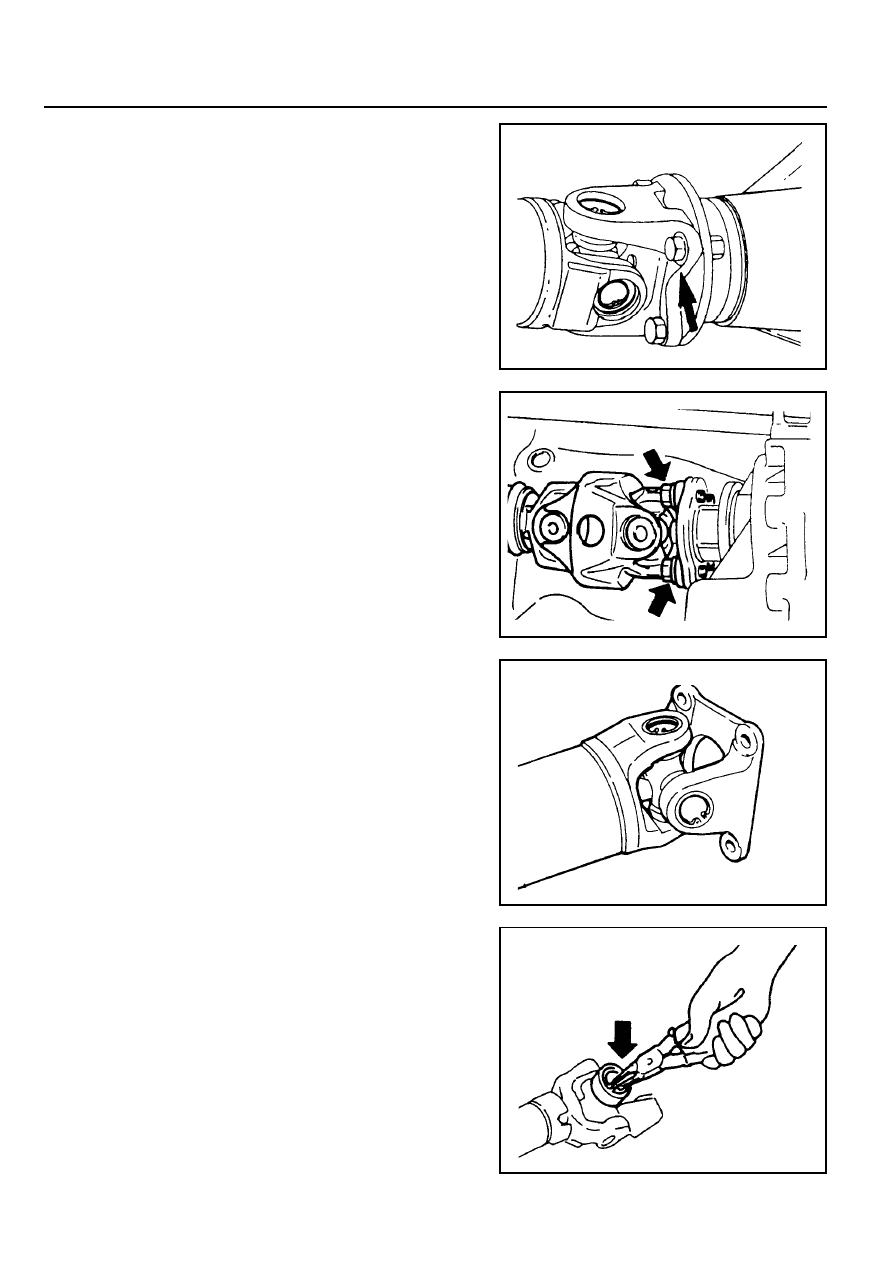

Removal Procedure

1. Place alignment marks and remove the propeller shaft.

2. Place alignment marks before removing the spider.

3. Using a snap ring pliers, remove the snap ring.

Gasoline

Diesel

PROPELLER SHAFT  3C-5

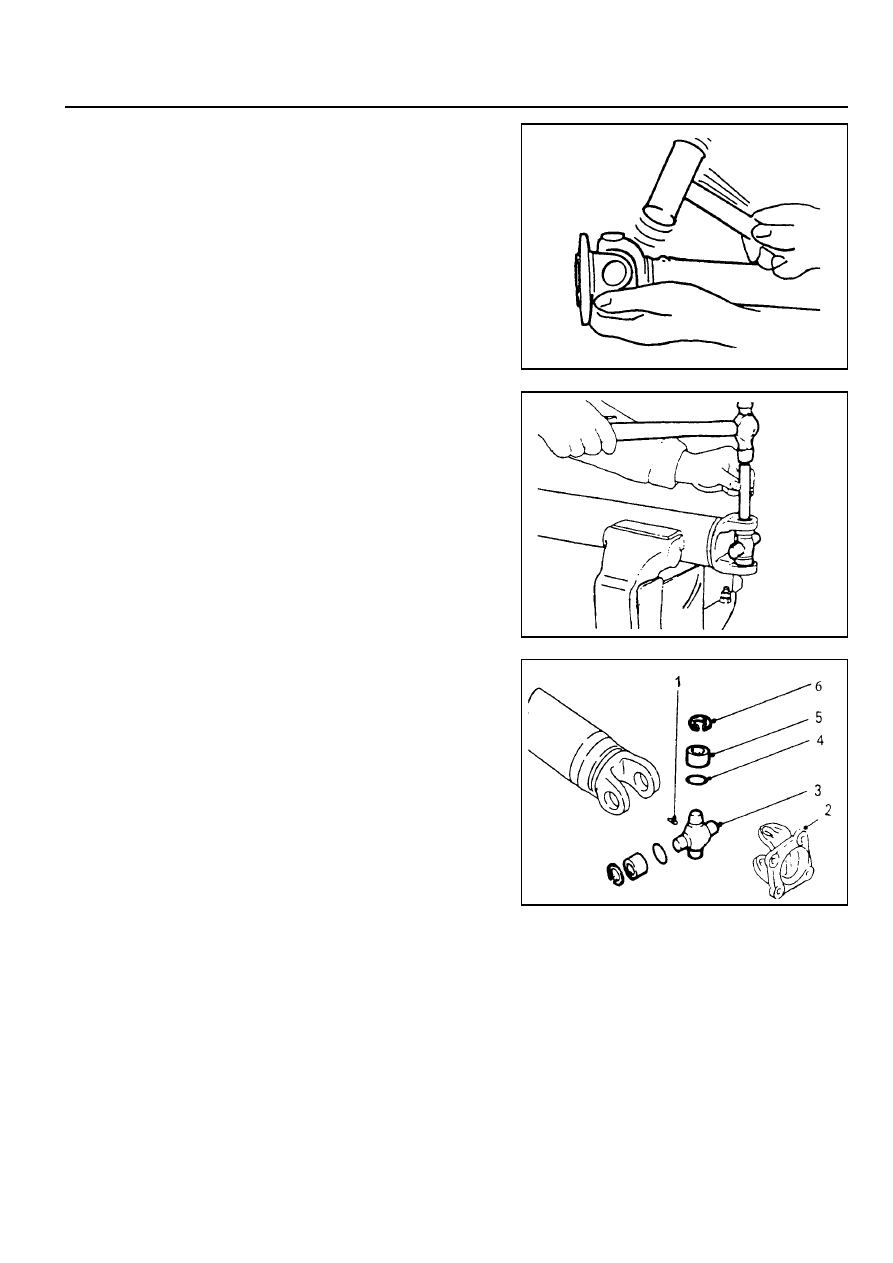

5. If difficult to remove, clamp the yoke side in a vise and tap

off the needle bearing, using a proper tool.

6. Disassemble the universal joint parts.

!

As axles move up and down, universal joints allow drive
angles to change without binding propeller shaft.

1 Grease Nipple
2 Flange Yoke
3 Spider

4 Seal
5 Needle Roller Bearing
6 Snap Ring

4. Slightly tapping the yoke shoulder using a brass hammer,

remove the bearing. Remove the remaining bearings in the
same way.

3C-6  PROPELLER SHAFT

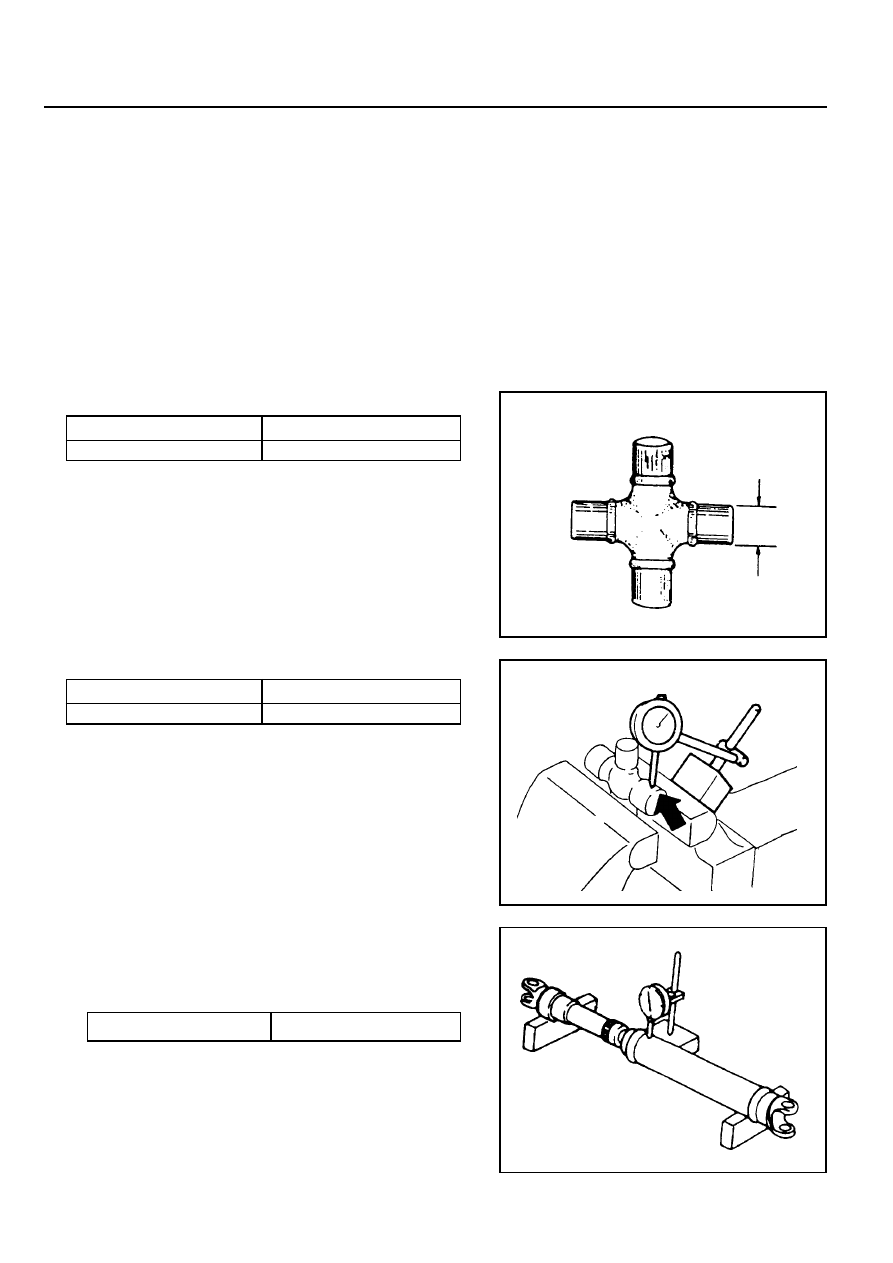

3. Clearance between the spider and bearing.

4. Propeller shaft runout

!

Using a dial indicator, measure propeller shaft runout by
turning the shaft. If runout exceeds limit, replace the
propeller shaft or correct it using a press.

Standard

0.03 - 0.098 mm

Limit

0.25 mm

Inspection Procedure

1. Visual check.

Check the disassembled parts for wear or crack.

Replace them if necessary.

2. Spider outer diameter (mm).

Standard

16.668

Limit

16.647

Limit

0.4 mm
