1B3-174  OM600 ENGINE MECHANICAL

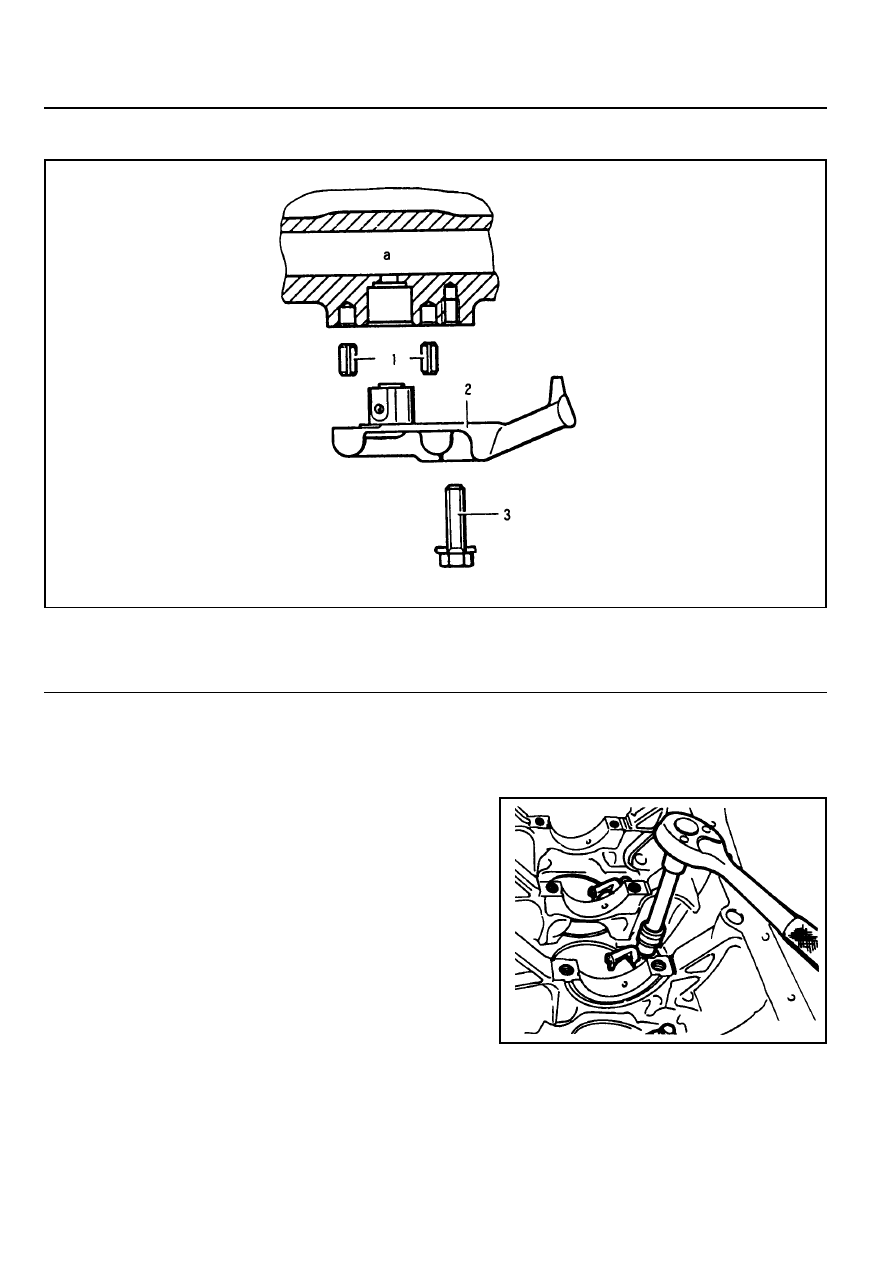

OIL SPRAY NOZZLE

1 Fitting Sleeve
2 Oil Spray Nozzle

Disassembly Procedure

1. Remove oil pan or crankshaft.

2. Loose the bolt and then remove the nozzle.

3 Combination Bolt .....................................  10 Nm

A Oil Duct

OM600 ENGINE MECHANICAL  1B3-175

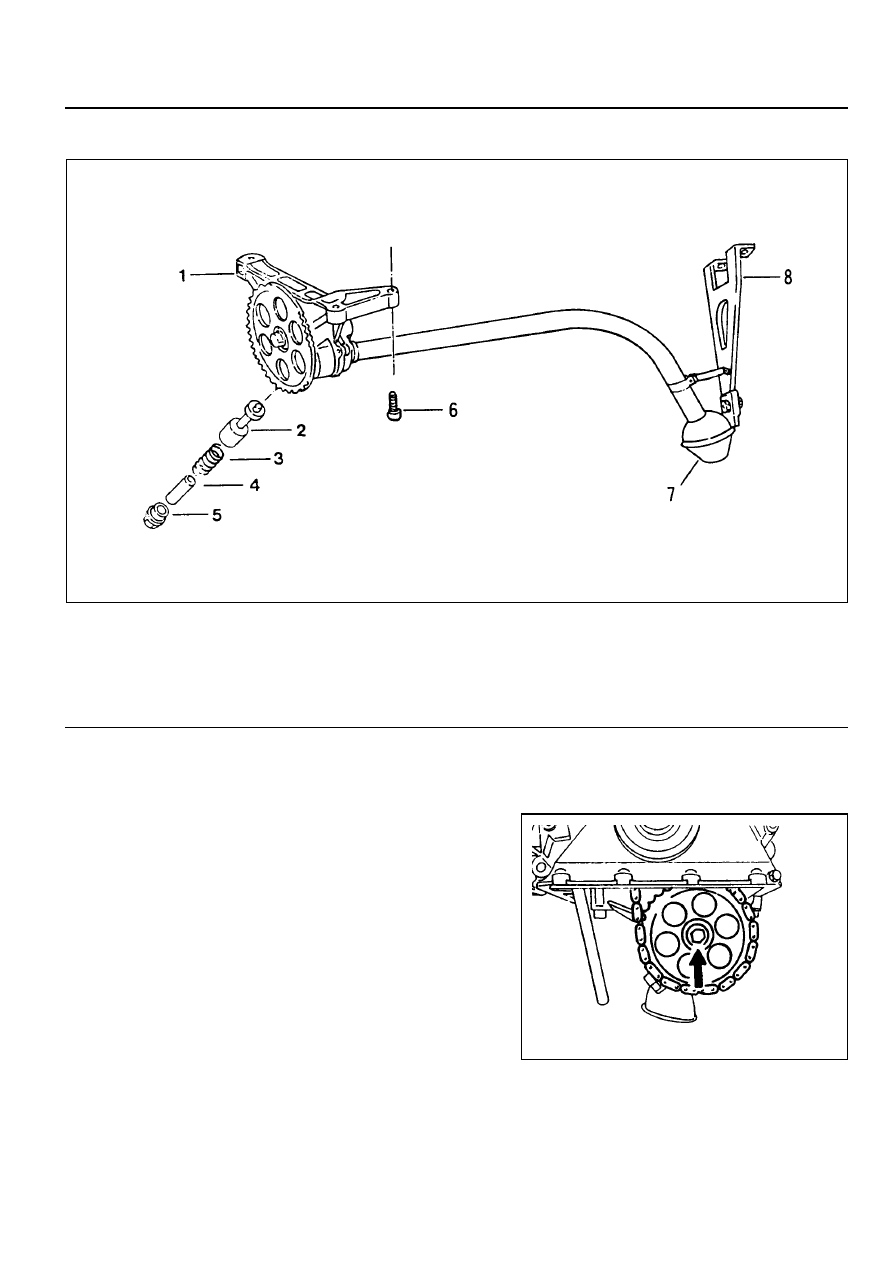

OIL PUMP

1 Oil Pump
2 Piston
3 Pressure Spring
4 Guide Pin

5 Screw Plug ................................................ 50 Nm
6 Combination Bolt ...................................... 25 Nm
7 Oil Strainer
8 Bracket

Disassembly Procedure

1. Remove the oil pan.

2. Unscrew the mounting bolt of spracket.

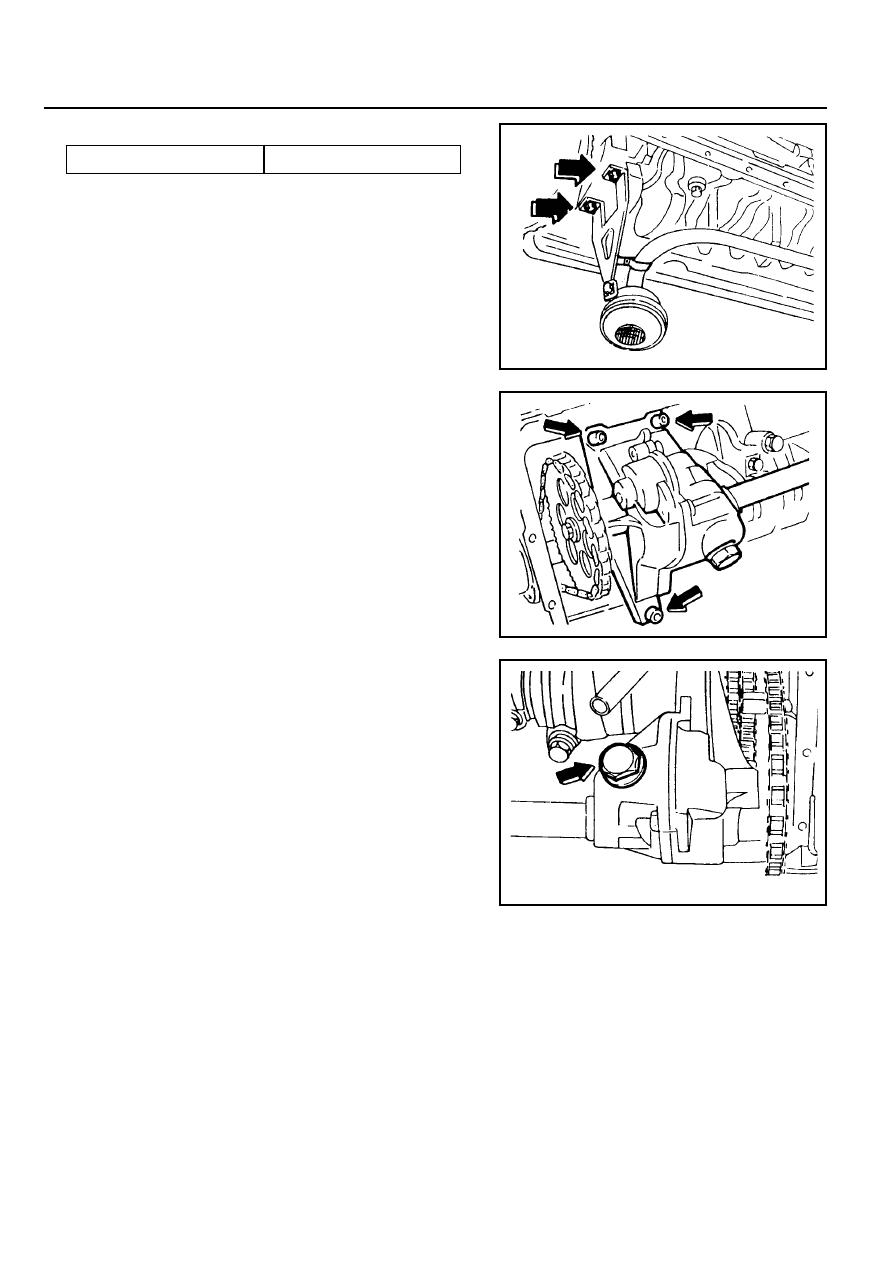

1B3-176  OM600 ENGINE MECHANICAL

Tightening Torque

10 Nm

3. Unscrew the oil strainer bracket bolt.

4. Remove the oil pump.

5. Unscrew the screw plug and remove the relief valve.

6. Installation should follow the removal procedure in the

reverse order.

OM600 ENGINE MECHANICAL  1B3-177

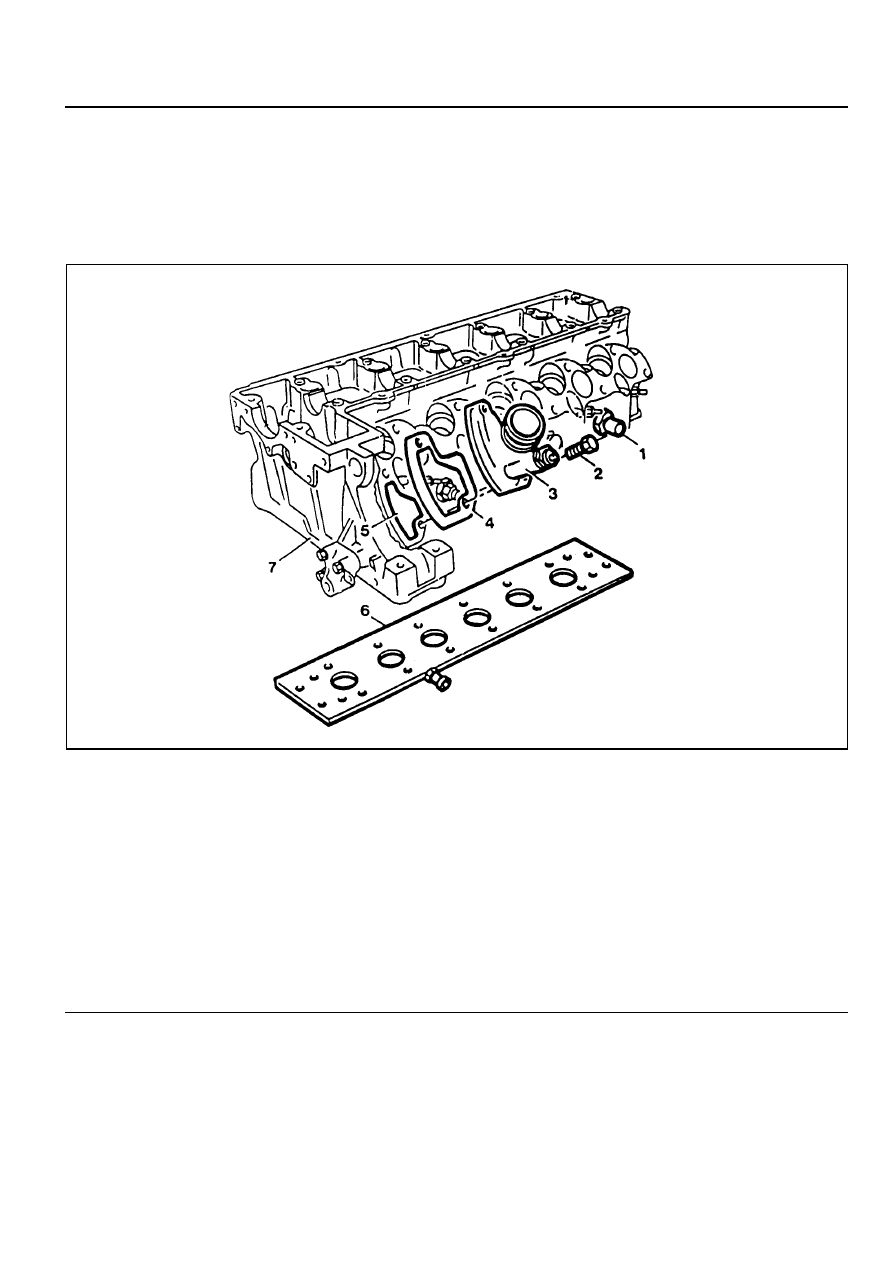

CYLINDER HEAD PRESSURE LEAKAGE TEST

Preceding Work : Removal of the cylinder head

 Removal of the exhaust manifold
 Removal of the valve

1 Feed Pipe
2 Bolt
3 Return Connection
4 Gasket ................................................................ Replace
5 Coolant Gallery ................................................... Sealing
6 Pressure Measuring Plate .................................. Completely tight to the cylinder head
7 Cylinder Head .....................................................

Immerse with pressure measuring plate into warm water of approx. 60°C and pressurize with compressed
airof 2 bar.

Notice

If air bubbles are seen, replace the cylinderhead.

Tools Required

115 589 34 63 00  Pressure Measuring Plate

601 589 00 25 00  Suspension Device
