1B3-170  OM600 ENGINE MECHANICAL

Removal & Installation Procedure

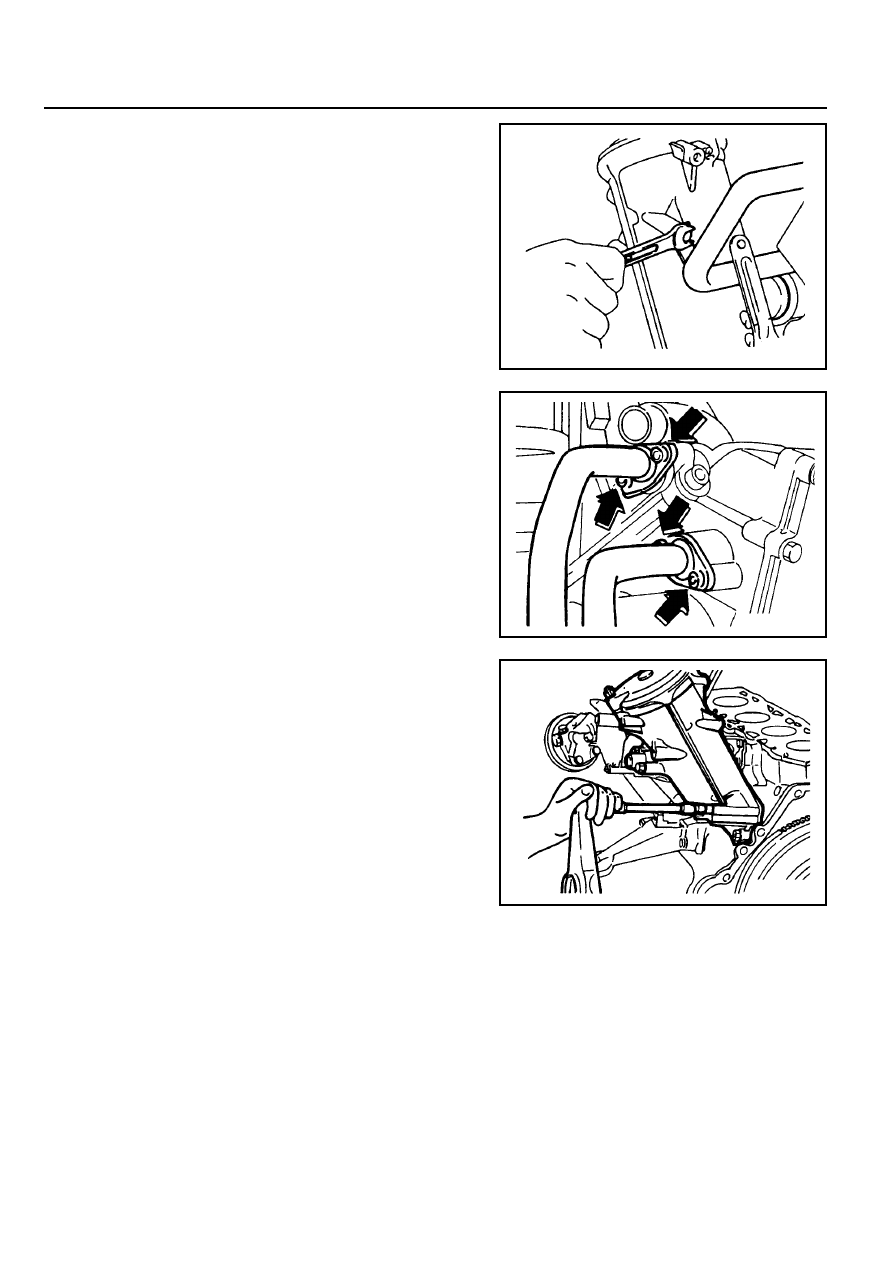

1. Remove the oil filter cover and then drain the oil.

2. Remove the oil pressure switch line.

3. Remove the oil filter housing.

4. Clean the sealing surface.

5. Installation should follow the removal procedure in the

reverse order.

OM600 ENGINE MECHANICAL  1B3-171

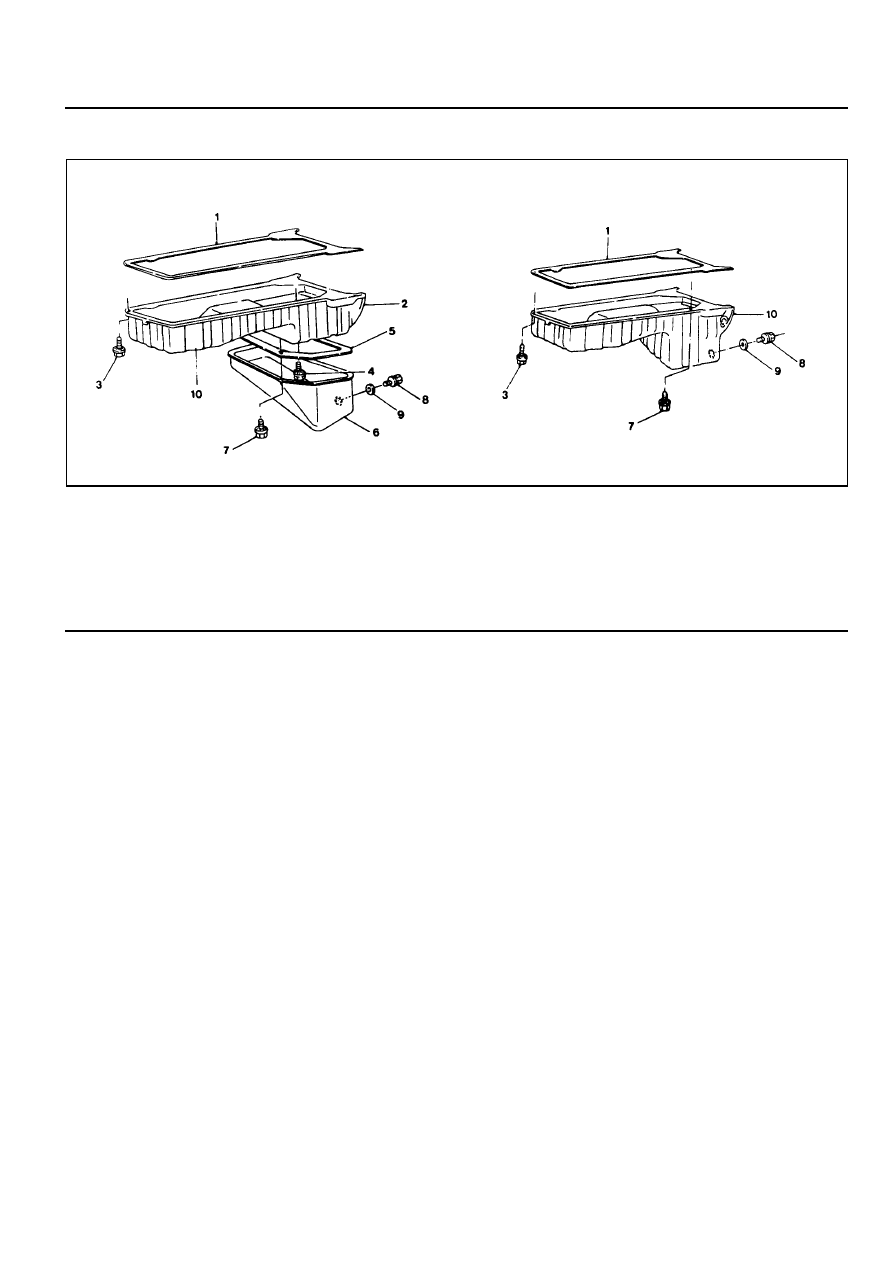

OIL PAN

1 Gasket ................................................... Replace
2 Upper Oil Pan
3 Combination Bolt ...................................... 10 Nm
4 Combination Bolt ...................................... 10 Nm
5 Gasket ................................................... Replace

6 Lower Oil Pan
7 Combination Bolt ...................................... 25 Nm
8 Drain Plug ................................................. 25 Nm
9 Washer Seal .......................................... Replace

10 Oil Pan

*Remove and install as numerical sequence.

Notice

Replace the washer seal with new one.

OM662LA

OM661LA

1B3-172  OM600 ENGINE MECHANICAL

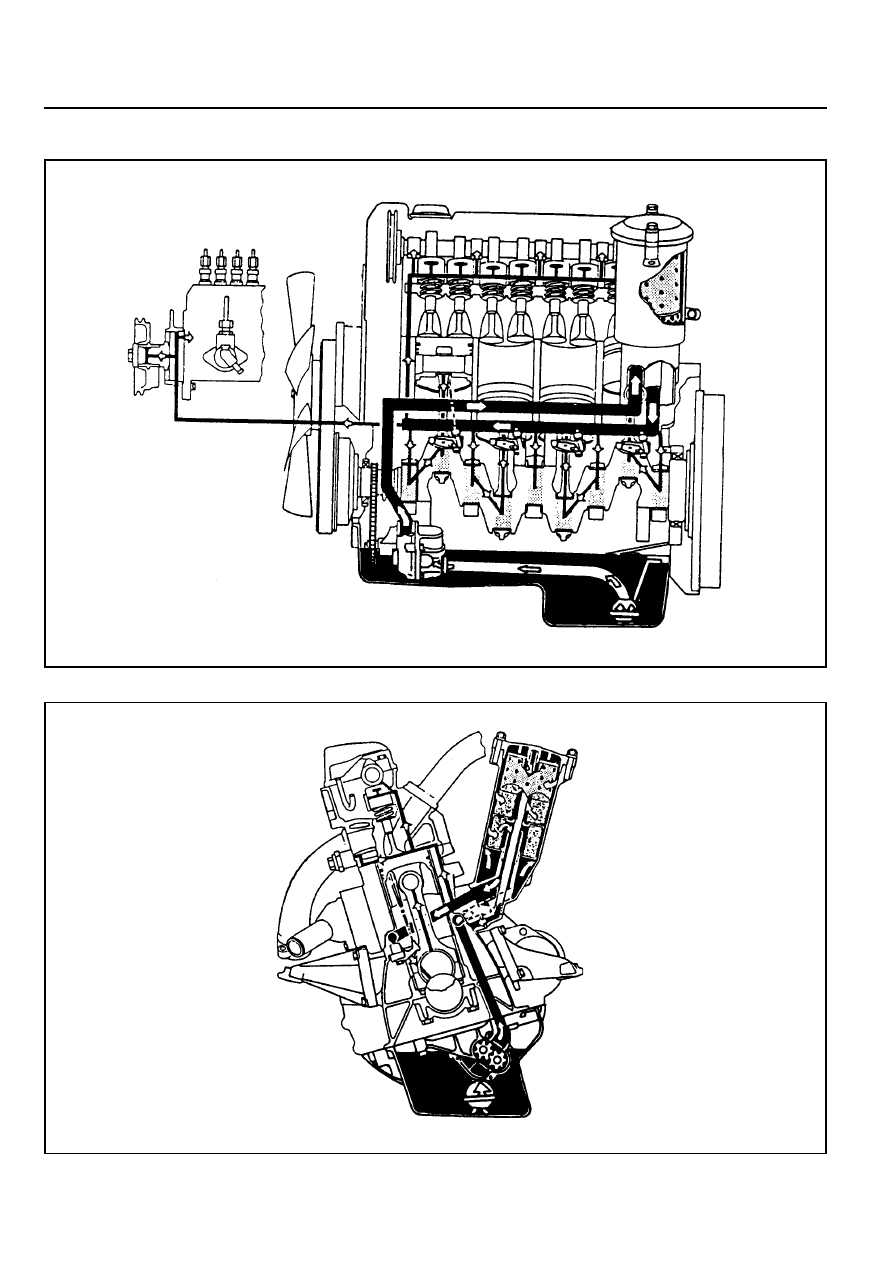

Oil Circulation

OM600 ENGINE MECHANICAL  1B3-173

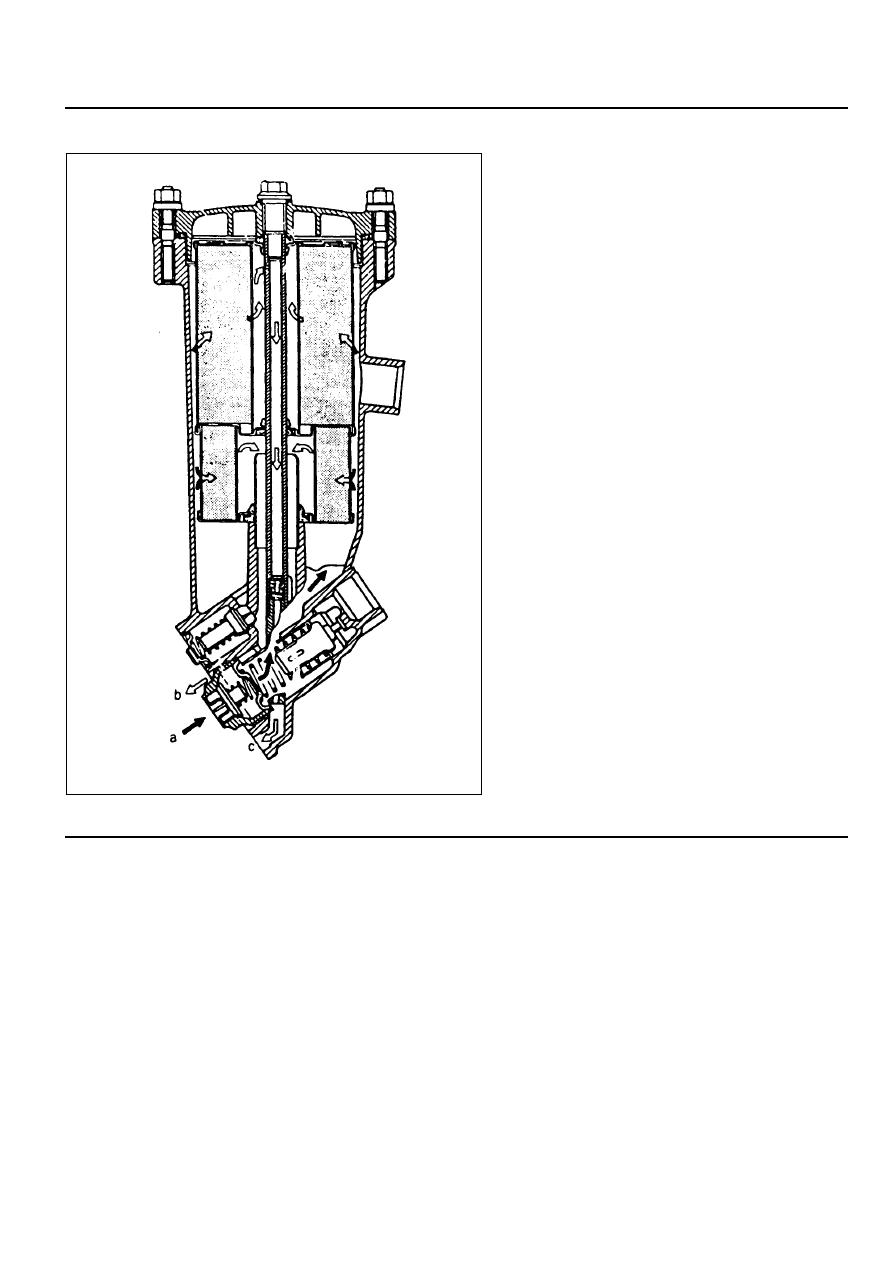

Oil Filter

a From Oil Pump
b To Main Oil Gallery

c To Oil Pan
