1B3-18  OM600 ENGINE MECHANICAL

27. Disconnect the preheating time relay sensor plug.

28. Disconnect the coolant temperature sensor plug.

29. Disconnect the accelerator cable from the control linkage.

Installation Notice

Tightening  Torque

8 - 18 Nm

30. Loosen the connection of control pressure cable (an arrow)

used in auto transmission.

OM600 ENGINE MECHANICAL  1B3-19

33. Disconnect the exhaust pipe flange from the exhaust

manifold.

Installation Notice

35. Remove the shift control cable.

36. Remove the transmission.

Tightening Torque

Axle  70 ~ 80 Nm

T/C  81 ~ 89 Nm

Tightening  Torque

20 - 34 Nm

31. Separate the exhaust pipe flange from the turbo charger.

Installation Notice

32. Loosen the installing bolt of clutch release cylinder and

remove the clutch release cylinder.

Installation Notice

Tightening Torque

30 Nm

Tightening Torque

30 Nm

34. Remove the propeller shaft from the transmission.

Installation Notice

1B3-20  OM600 ENGINE MECHANICAL

37. Loosen the engine mounting bracket nut.

Installation Notice

38. Remove the engine assembly from the vehicle by using a

hoist or crane.

39. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

50 - 75 Nm

OM600 ENGINE MECHANICAL  1B3-21

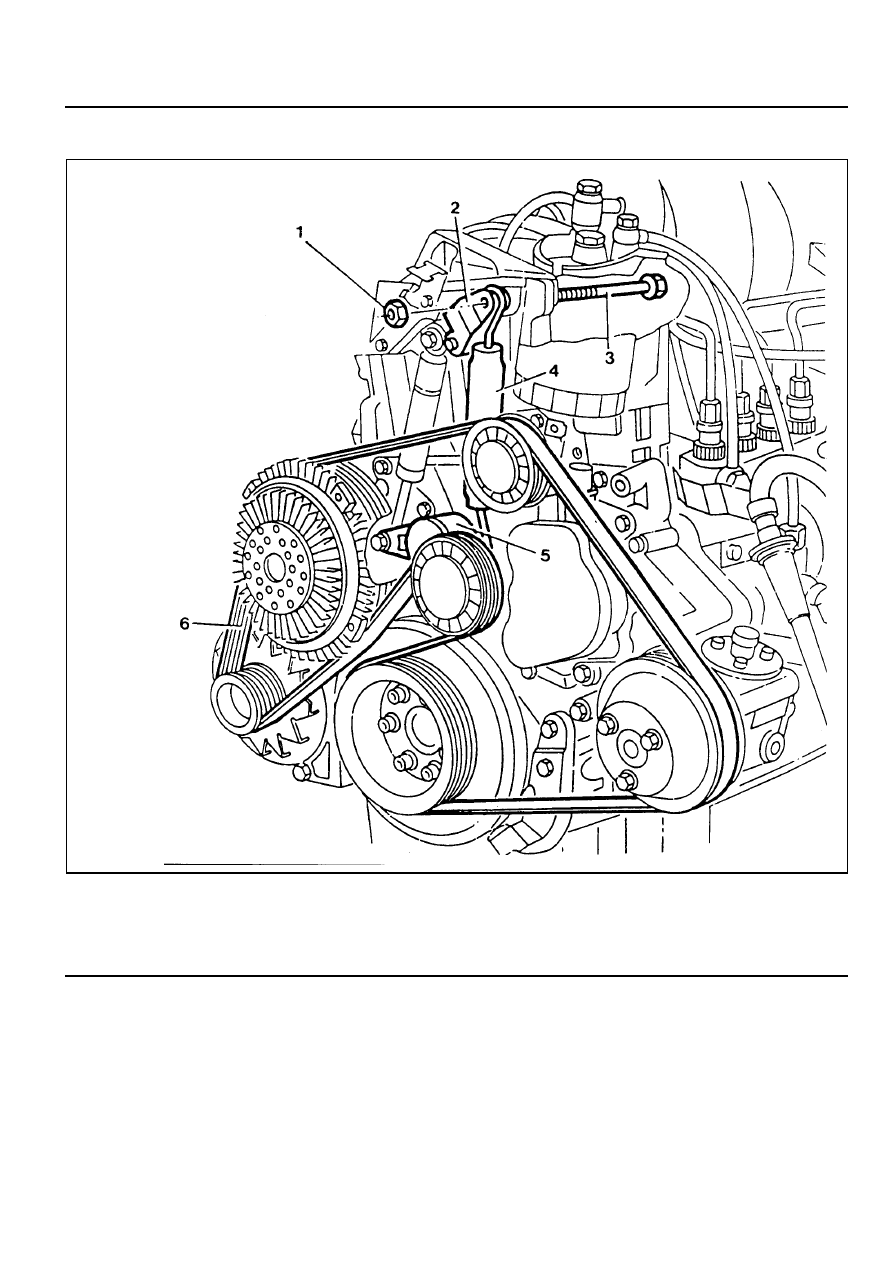

POLY V-BELT

1 Nut ............................................................. 23Nm
2 Tensioning Lever
3 Bolt

4 Spring
5 Tensioning Lever
6 Poly V-Belt
