1B3-10  OM600 ENGINE MECHANICAL

001 589 32 21 00

Dial Gauge

001 589 53 21 00

Dial Gauge

667 589 02 21 00

TDC Pulse Generator

SPECIAL TOOLS TABLE (Cont’d)

124 589 15 21 00

Tester

000 589 58 43 00

Chain Assembling

Device

201 589 13 21 00

Vacuum Tester

617 589 04 21 00

Tester

501 589 73 21 00

Vacuum Pump

OM600 ENGINE MECHANICAL  1B3-11

000 589 14 21 00

Tester

001 589 65 09 00

Serration Wrench

116 589 02 34 00

Thread Bolt

SPECIAL TOOLS TABLE (Cont’d)

000 589 00 68 00

Cleaning Set

601 589 05 21 00

Looking Screw

617 589 08 21 00

Position Sensor

667 589 04 63 00

Retaining Plate

601 589 00 08 00

Flange

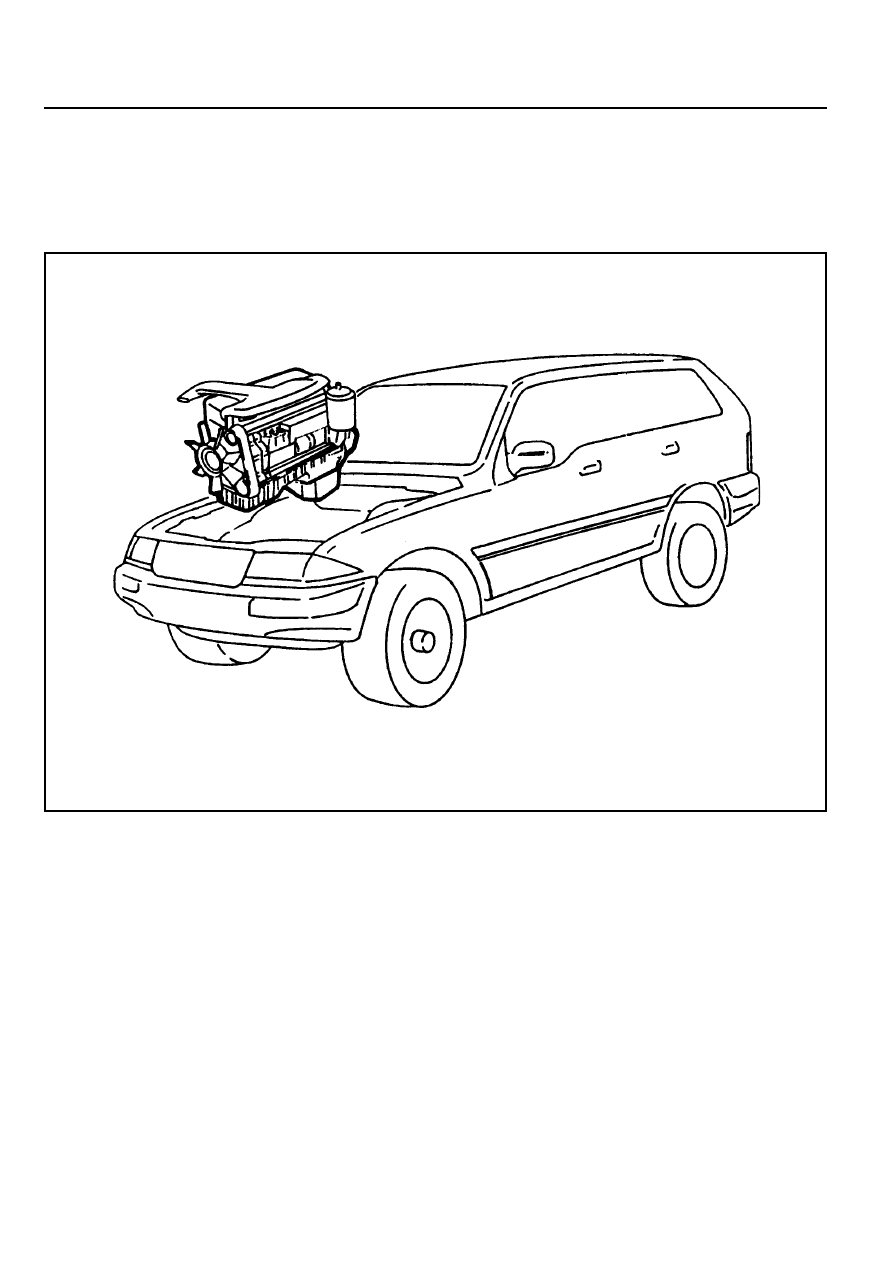

1B3-12  OM600 ENGINE MECHANICAL

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

ENGINE ASSEMBLY

OM600 ENGINE MECHANICAL  1B3-13

4. Remove the radiator drain cock and drain the coolant.

Notice

Open the coolant reservoir tank cap.

3. Remove the skid plate.

Installation Notice

Tightening  Torque

28 - 47 Nm

5. Remove the drain plug (1) and seal (2) from the cylinder

block and drain the coolant completely.

6. After draining, replace the seal and reinstall the drain plug.

Installation Notice

7. Disconnect the lower coolant hose from the radiator.

Tightening Torque

30 Nm

Removal & Installation Procedure

1. Disconnect the negative terminal of battery.

2. Remove the hood.
