SsangYong Musso. Manual - part 356
Application
Engine Type
Displacement (CC)
Cylinder (Bore x Stroke) (mm)
Fuel Injection / Ignition System
Compression Ratio
Number of Cylinders
Camshaft Valve Arrangement
Camshaft Drive Type
Max. Output (ps/rpm)
Max. Torque (kg•m/rpm)
Firing Order
Injection Timing
Valve Timing
Intake
Open/Close
(at 2mm lift)
Exhaust Open/Close
Valve Clearance Adjustment
SECTION 1
ENGINE
SECTION 1A3(OM600 ENGINE)
GENERAL ENGINE INFORMATION
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . 1A3-1
Engine Specifications . . . . . . . . . . . . . . . . . . 1A3-1

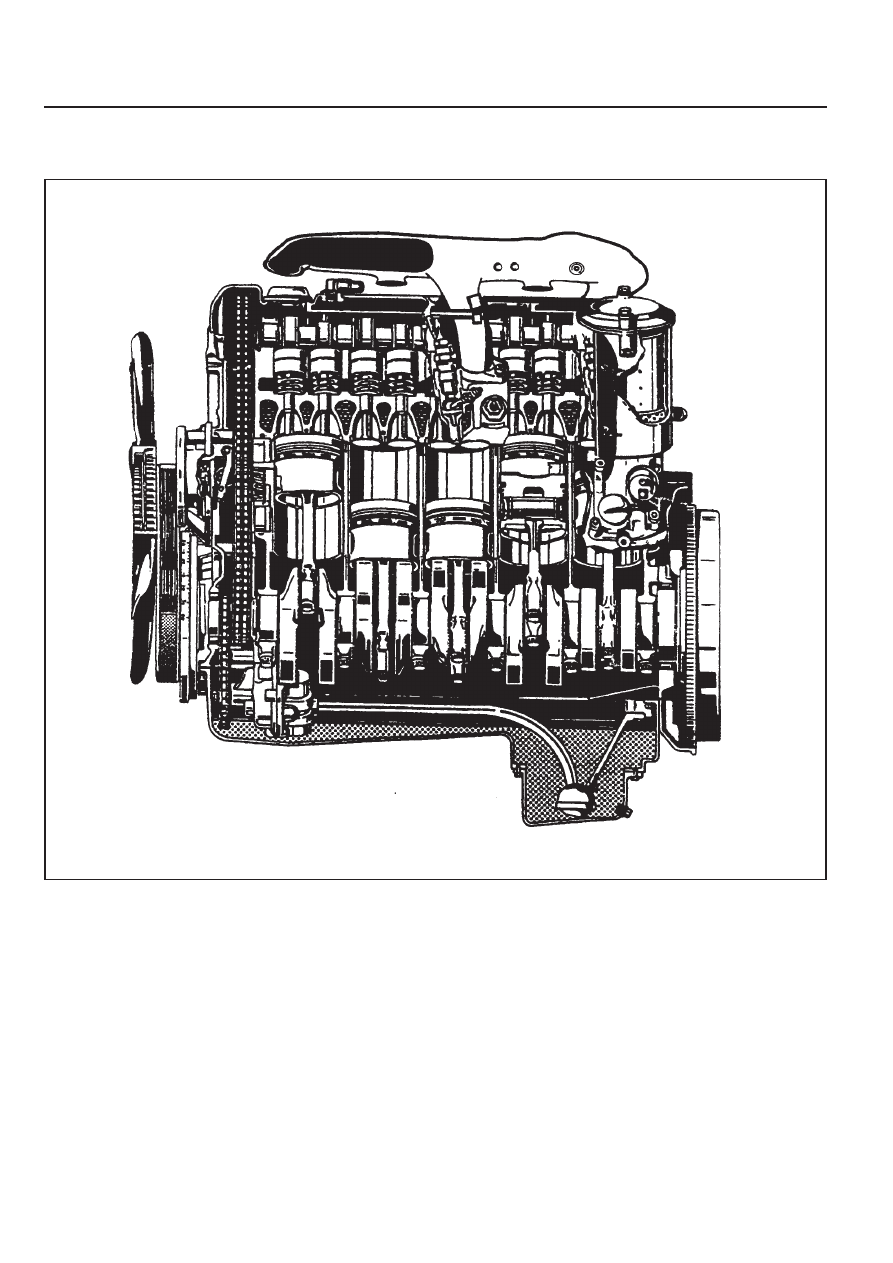

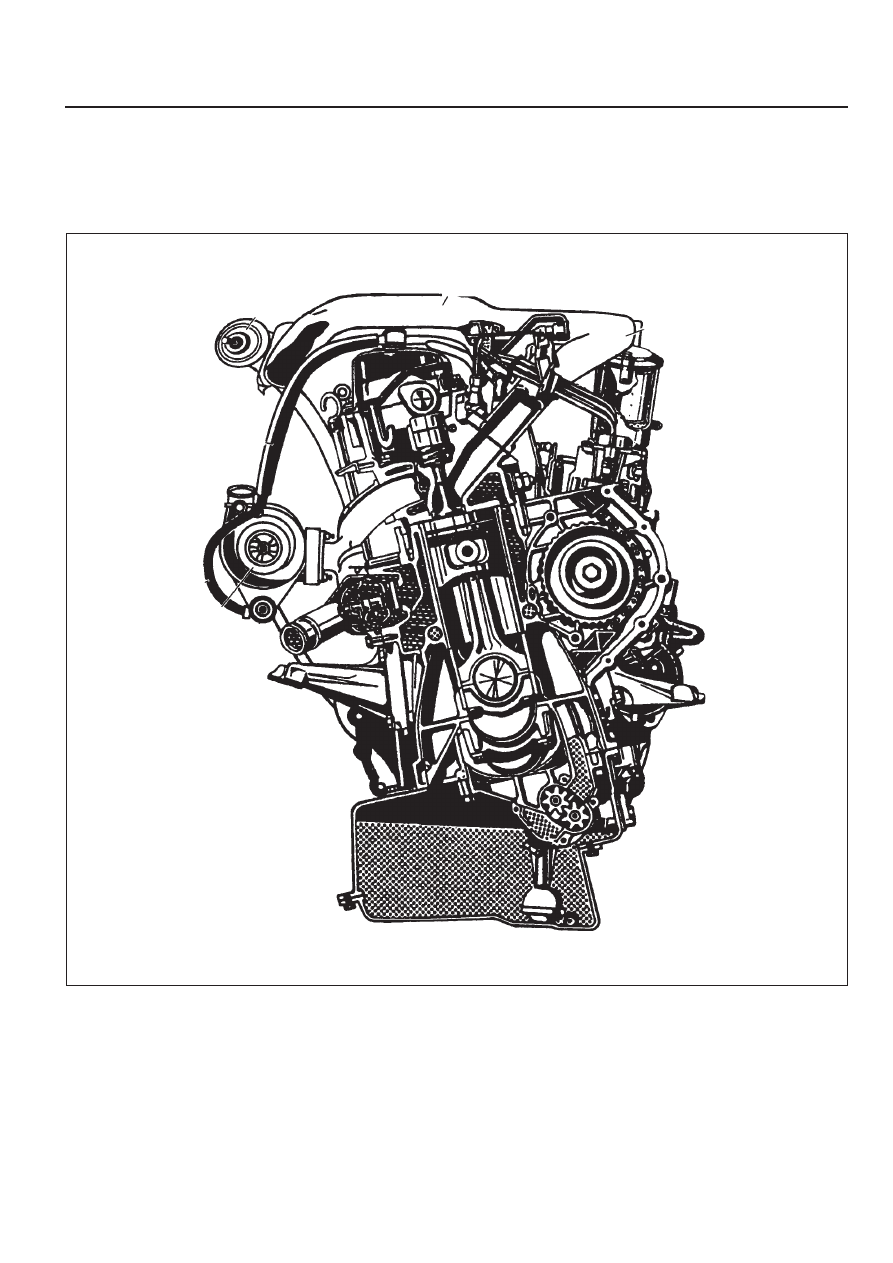

Sectional View . . . . . . . . . . . . . . . . . . . . . . 1A3-3
OM662LA Engine . . . . . . . . . . . . . . . . . . . . . 1A3-3
OM661LA Engine . . . . . . . . . . . . . . . . . . . . . 1A3-5
Performance Curve . . . . . . . . . . . . . . . . . . 1A3-7
OM662LA Engine . . . . . . . . . . . . . . . . . . . . . 1A3-7
OM661LA Engine . . . . . . . . . . . . . . . . . . . . . 1A3-8
Special Tools . . . . . . . . . . . . . . . . . . . . . . . 1A3-9
SPECIFICATIONS
ENGINE SPECIFICATIONS
Special Tools Table . . . . . . . . . . . . . . . . . . . . 1A3-9
Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . 1A3-10
Oil Leak Diagnosis . . . . . . . . . . . . . . . . . . . 1A3-10
Compression Pressure Test . . . . . . . . . . . . 1A3-11
Cylinder Pressure Leakage Test . . . . . . . . . 1A3-13
General Information . . . . . . . . . . . . . . . . . 1A3-15
Cleanliness and Care . . . . . . . . . . . . . . . . . 1A3-15
On-Engine Service . . . . . . . . . . . . . . . . . . . 1A3-15
OM662LA
Four-Stroke Diesel
2874
89 x 92.4
PES 5 M55 C320 RS 168
22:1
5
SOHC
Chain-Drive
120 / 4000
25.5 / 4000
1-2-4-5-3
BTDC 18°± 10°
ATDC 11.33° / ABDC 17°
BBDC 28° / BTDC 15.25°
Automatic Control
OM661LA
Four-Stroke Diesel
2299
89 x 92.4
PES 5 M55 C320 RS 167
22:1
4
SOHC
Chain-Drive
101 / 4000
21.5 / 2400
1-3-4-2
BTDC 18°± 10°
ATDC 11.33° / ABDC 17°
BBDC 28° / BTDC 15.25°
Automatic Control
