1G2-4  M161 ENGINE INTAKE & EXHAUST

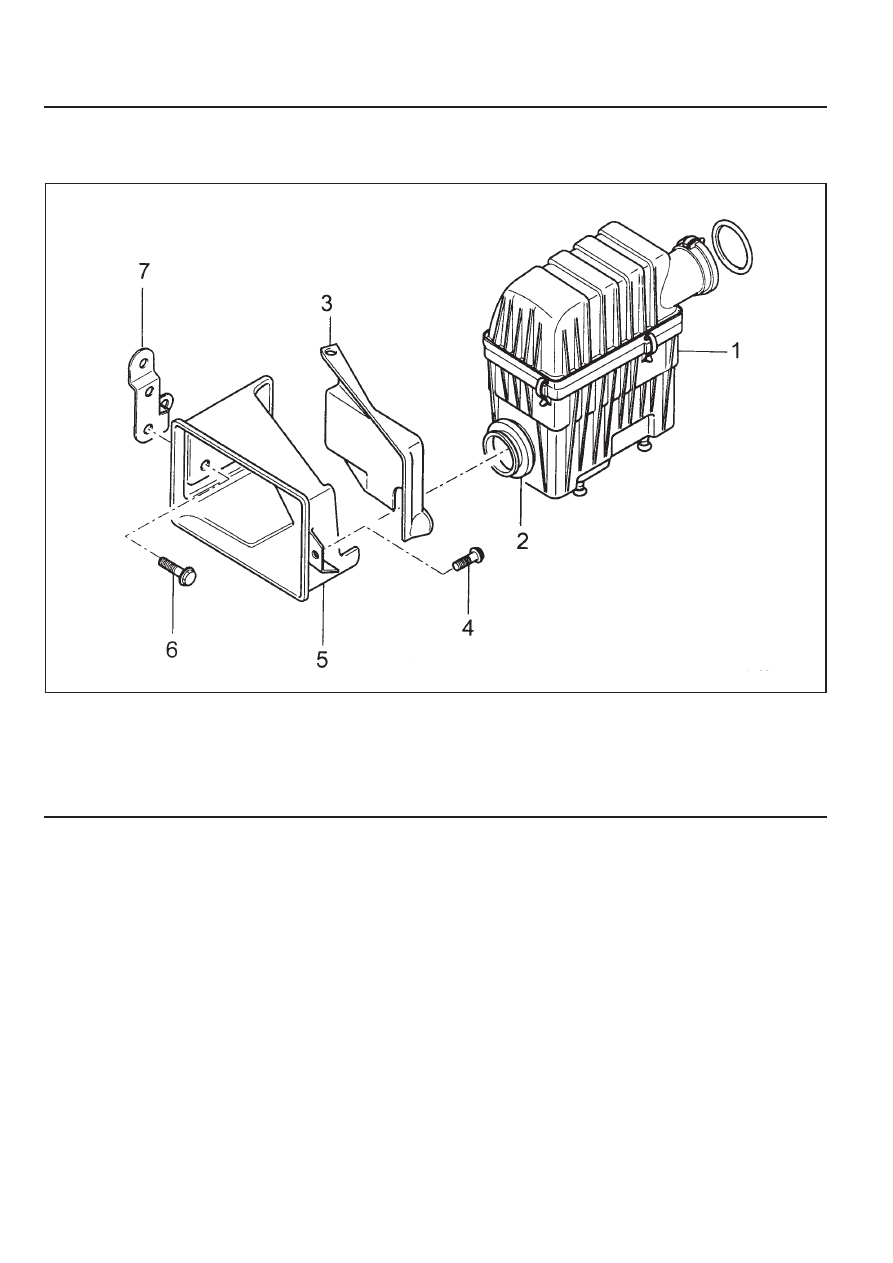

AIR INTAKE SHIELD

Preceding Work : Removal of air cleaner

Removal & Installation Procedure

1. Remove the upper cover (3) from the air intake shield (5)

upper mounting pin.

2. Remove the bolts (4 and 6).

3. Remove the air intake shield (5).

4. Installation should follow the removal procedure in the

reverse order.

1 Air Cleaner
2 Gasket
3 Air Intake Shield Upper Cover
4 Bolt

5 Air Intake Shield
6 Bolt
7 Bracket

 M161 ENGINE INTAKE & EXHAUST  1G2-5

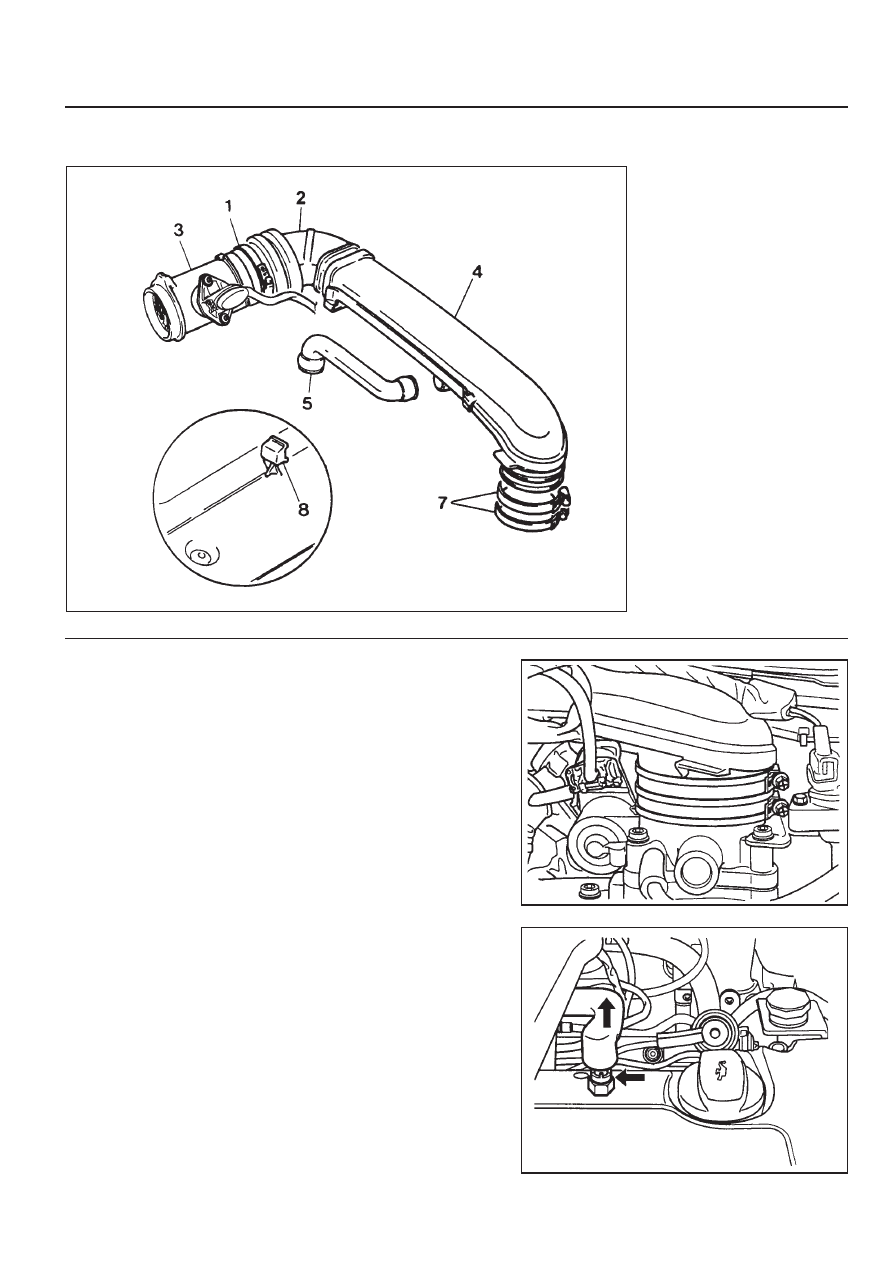

INTAKE AIR DUCT

1 Clamp
2 Sleeve
3 HFM Sensor
4 Intake Air Duct
5 Blow-by Hose
7 Clamp(2 pieces)
8 Intake Air Duct Mounting

Bracket

Removal & Installation Procedure

1. Release the clamp (1) and intake air duct.

2. Remove the Blow-by hose (5) (arrow).

1G2-6  M161 ENGINE INTAKE & EXHAUST

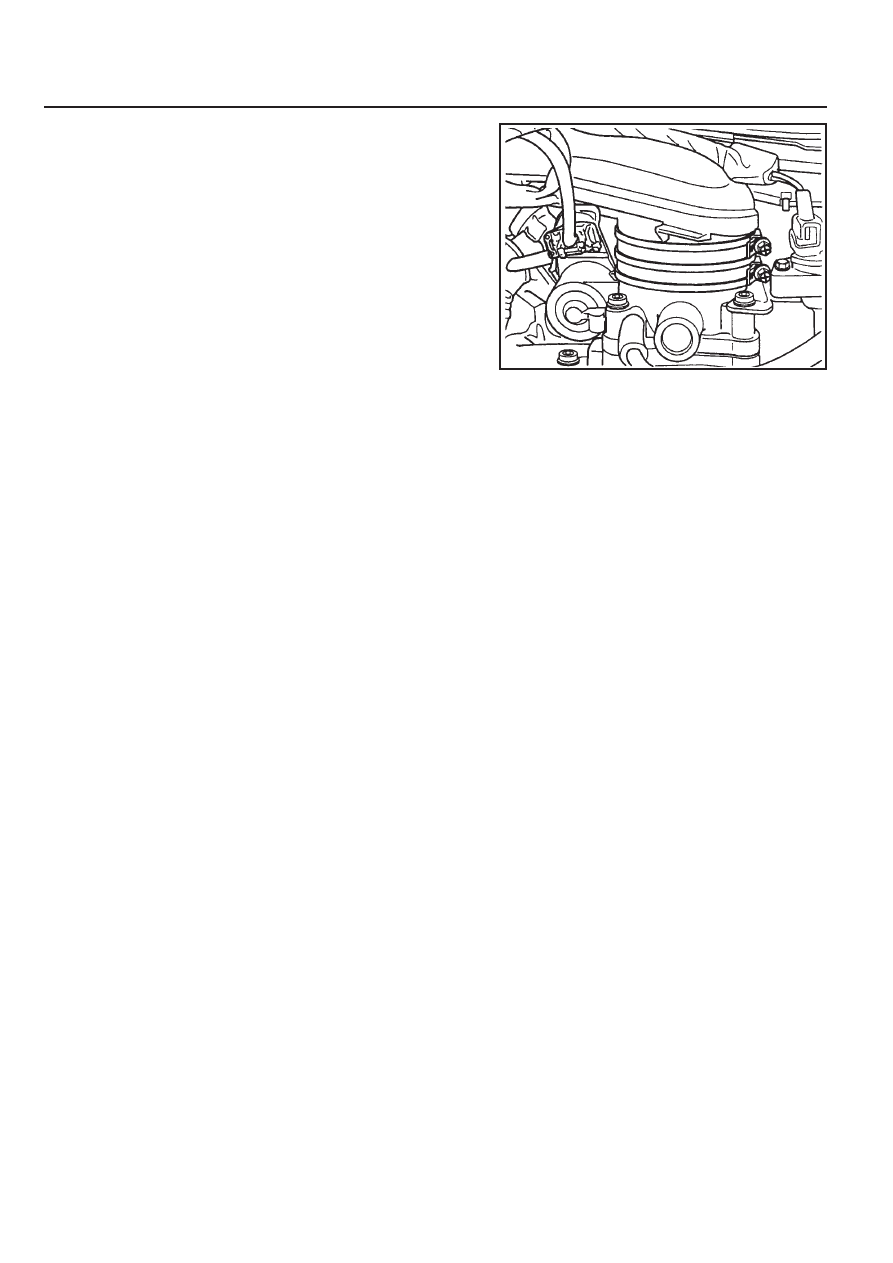

3. Release the clamp (7) and remove the intake air duct.

Notice

Completely fit the intake air duct with the mounting bracket
(8).

 M161 ENGINE INTAKE & EXHAUST  1G2-7

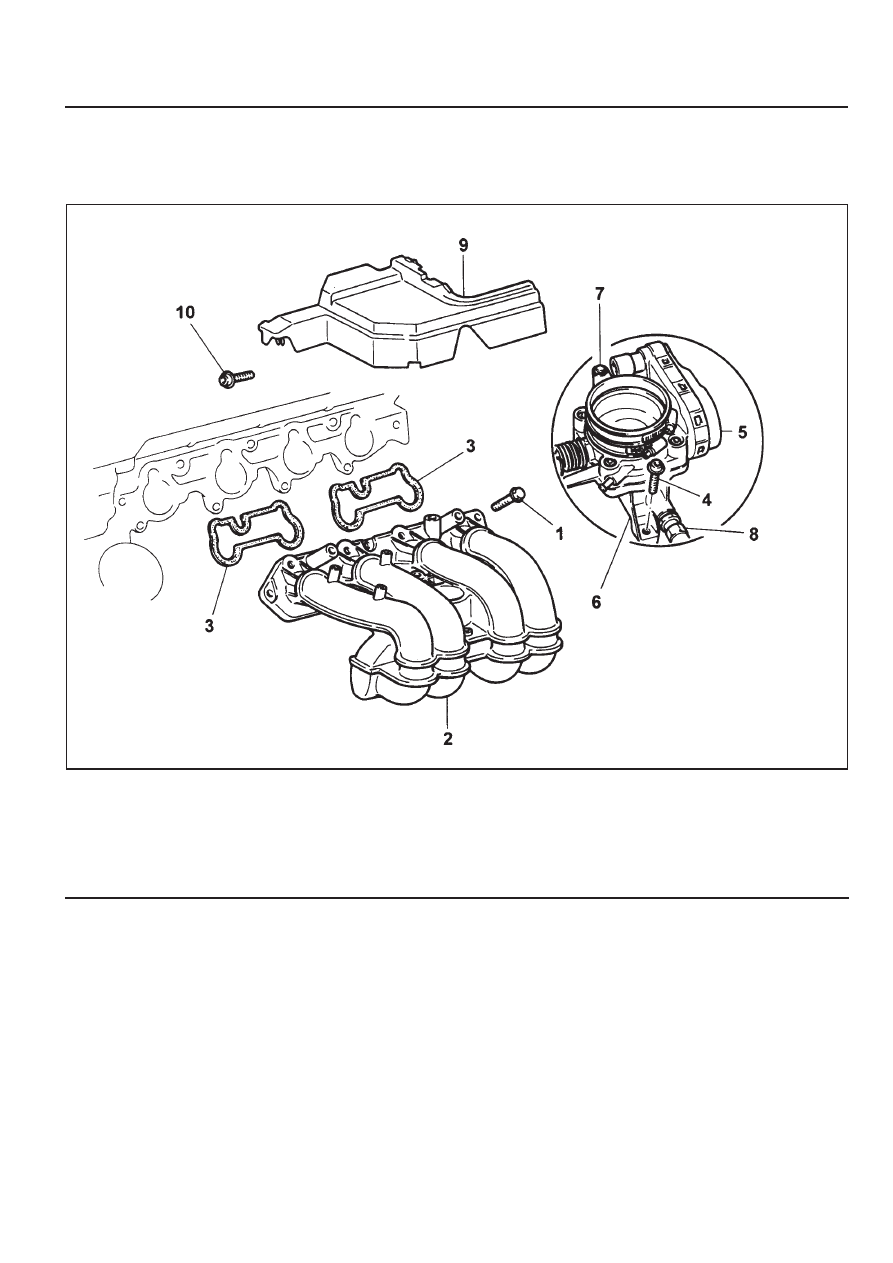

INTAKE MANIFOLD

Preceding Work : Removal of intake air duce

Removal of fuel distributor and injector

1 Bolt (M6 X 40, 6 pieces) ................. 22.5-27.5 Nm
2 Intake Manifold
3 Gasket (2 pieces) .................................. Replace
4 Bolt (M8 X 40, 3 pieces) ................. 22.5-27.5 Nm

5 Idle Regulator
6 Intermediate Flange
7 Bolt (M6 X 35, 4 pieces) ......................... 9-11 Nm
8 Connection Piece With Seal Ring ........ 36-44 Nm
