1F1-62  M162 ENGINE CONTROLS

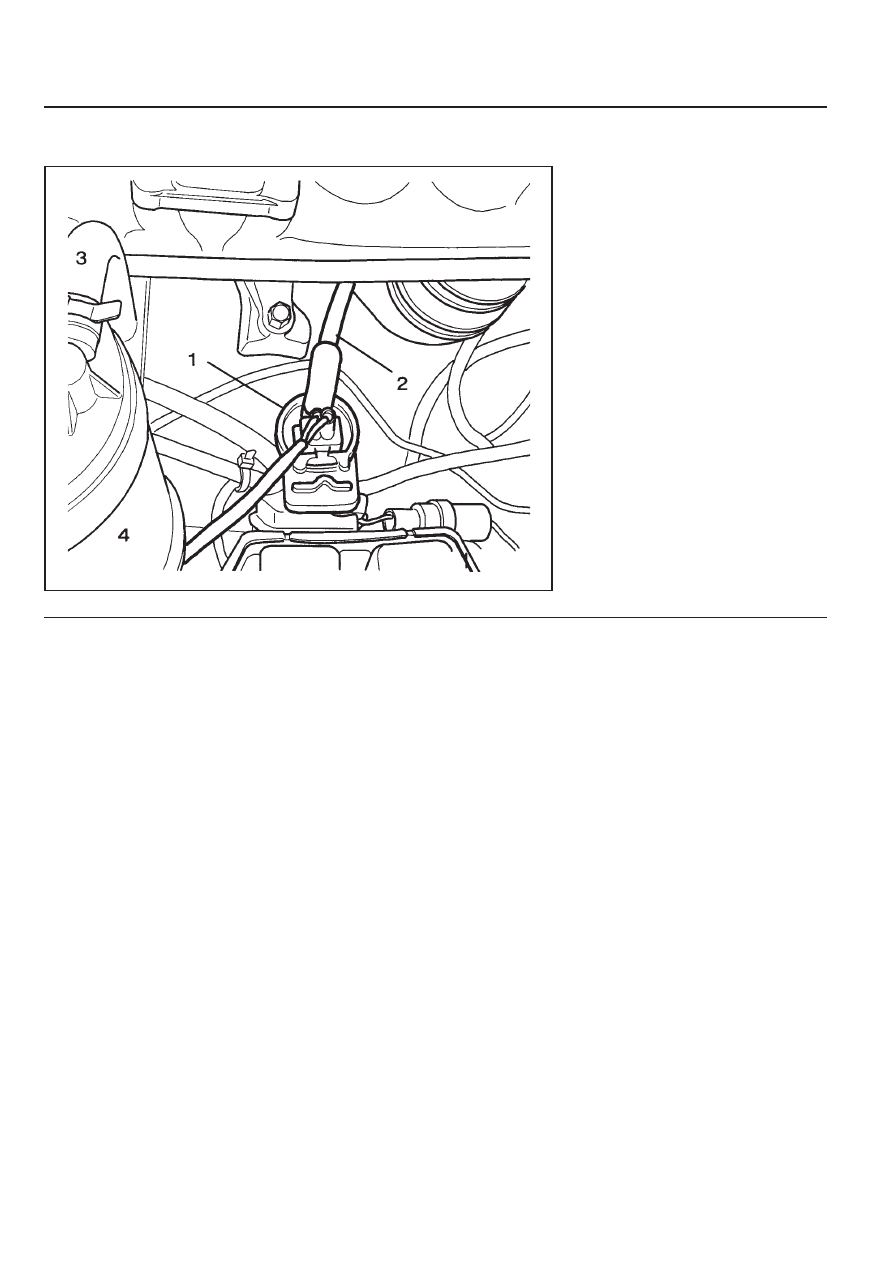

PURGE SWITCHOVER VALVE

1 Purge Switchover Valve
2 Line to Engine
3 Line to Canister
4 Canister

Functions

The fuel vaporization control system is installed to inhibit the
fuel vaporized gas from discharging into the atmosphere.  The
fuel vaporized gas that is accumulated in the canister abstracts
through the purge switchover valve purification during the
engine combustion (except the decreasing mode) and coolant
temperature of over 80

°

C. For this reason, the ECU transacts

the engine speed, air inflow quantity, coolant temperature, and
intake temperature.

The purge switchover valve is activated by the ECU frequency
according with the engine rotating speed to adjust the
purification rate. The purification rate is determined by the
continuous valve opening interval.

The purge switchover valve is activated by the ECU for the
following conditions :

z

Coolant temperature of over 80

°

C

z

Engine speed of over 1000rpm

z

2 Minutes after starting

z

When the fuel cut-off mode is not activated

M162 ENGINE CONTROLS  1F1-63

4. Remove the line to canister and measure the pressure with

the vacuum pressure gauge.

Test

1. Maintain the normal temperature and idling state by

operating the engine.

2. Connect the ECU terminal No.11 and No.34 and check for

normal operation through the output waves using the
scanner.

Notice

Test during purge control switchover valve operation after
the minimum of 1 minute after the engine turned on.

3. Connect the ECU terminal No.34 and No.10 and check for

current consumption during the ignition switch ON.

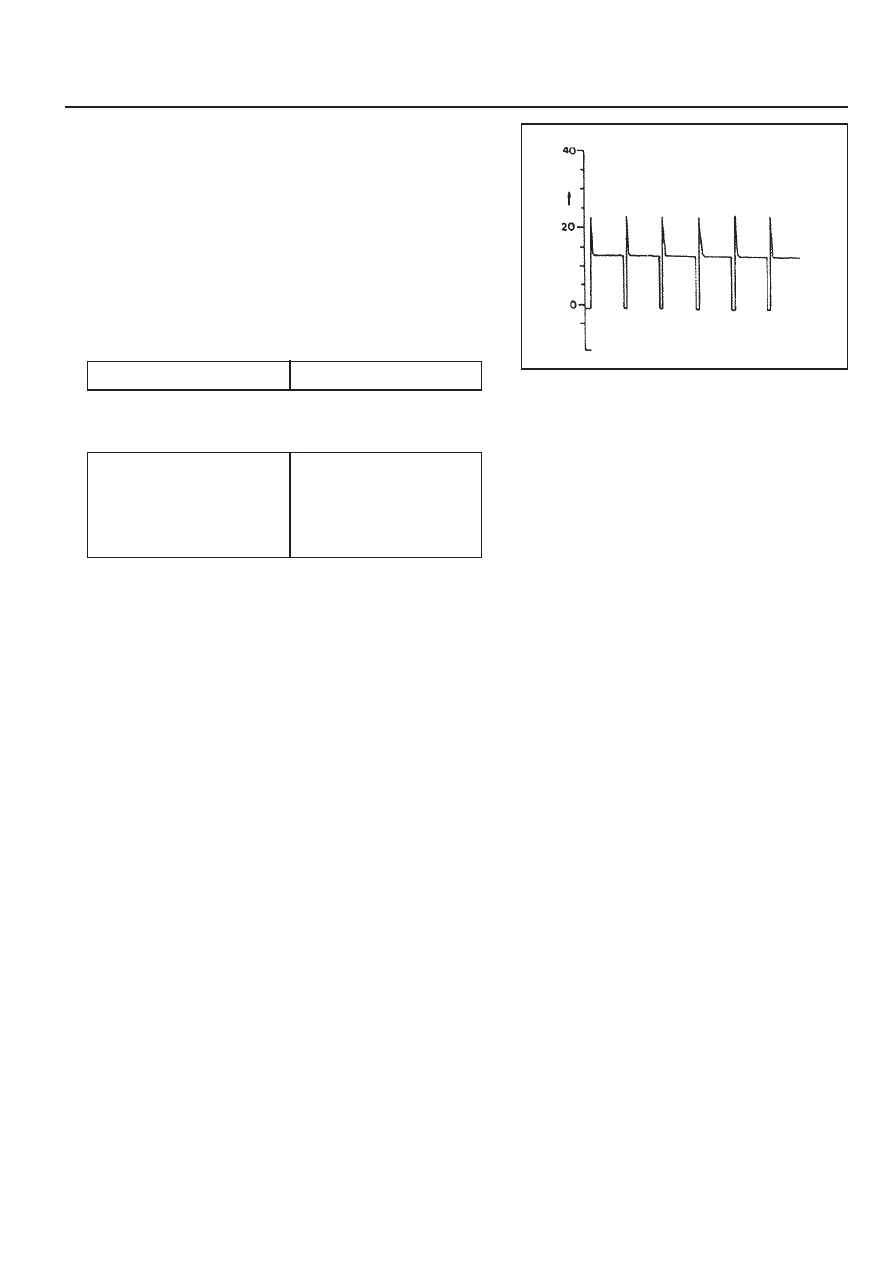

Purge switchover valve output wave

 Specified Value

0.3 - 0.5

 Specified Value

 > 50mbar

  (after approx. 1min.)

 purge switchover valve

operates at this time

Notice

Test while at normal temperature and at idling state by
operating the engine.

1F1-64  M162 ENGINE CONTROLS

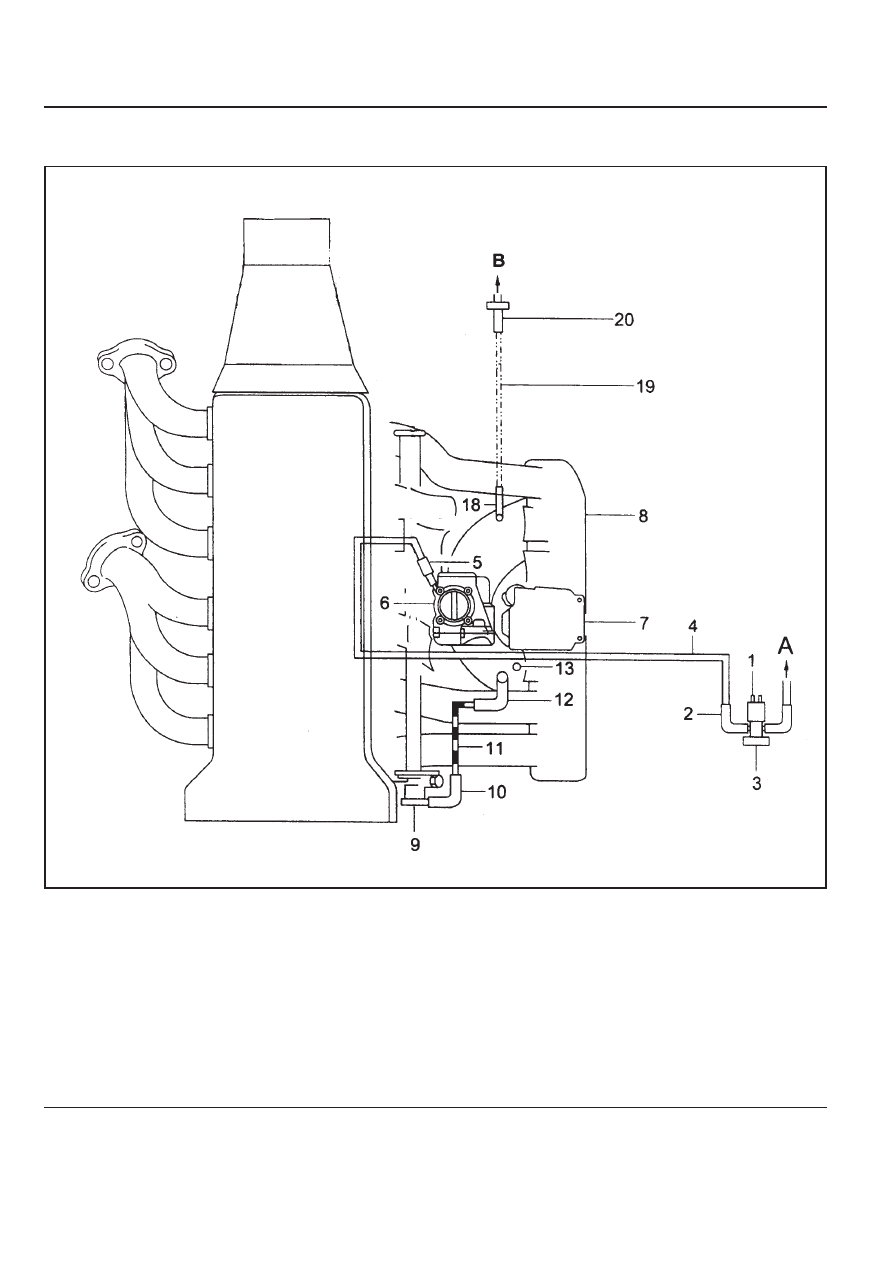

VACUUM SYSTEM

1 Purge Control Valve
2 Molded Hose
3 Insulator
4 Fuel Tube
5 Molded Hose
6 Idle Regulator
7 Resonance Flap
8 Intake Manifold
9 Fuel Pressure Regulator

10 Vacuum Line Rubber Hose

11 Vacuum Tube(Gray, 270mm)

12 Molded Hose
13 Rubber Cap
18 Rubber Hose
19 Vacuum Tube(Brown or Black, 770mm)
20 Rubber Hose

A To Canicter

M162 ENGINE CONTROLS  1F1-65

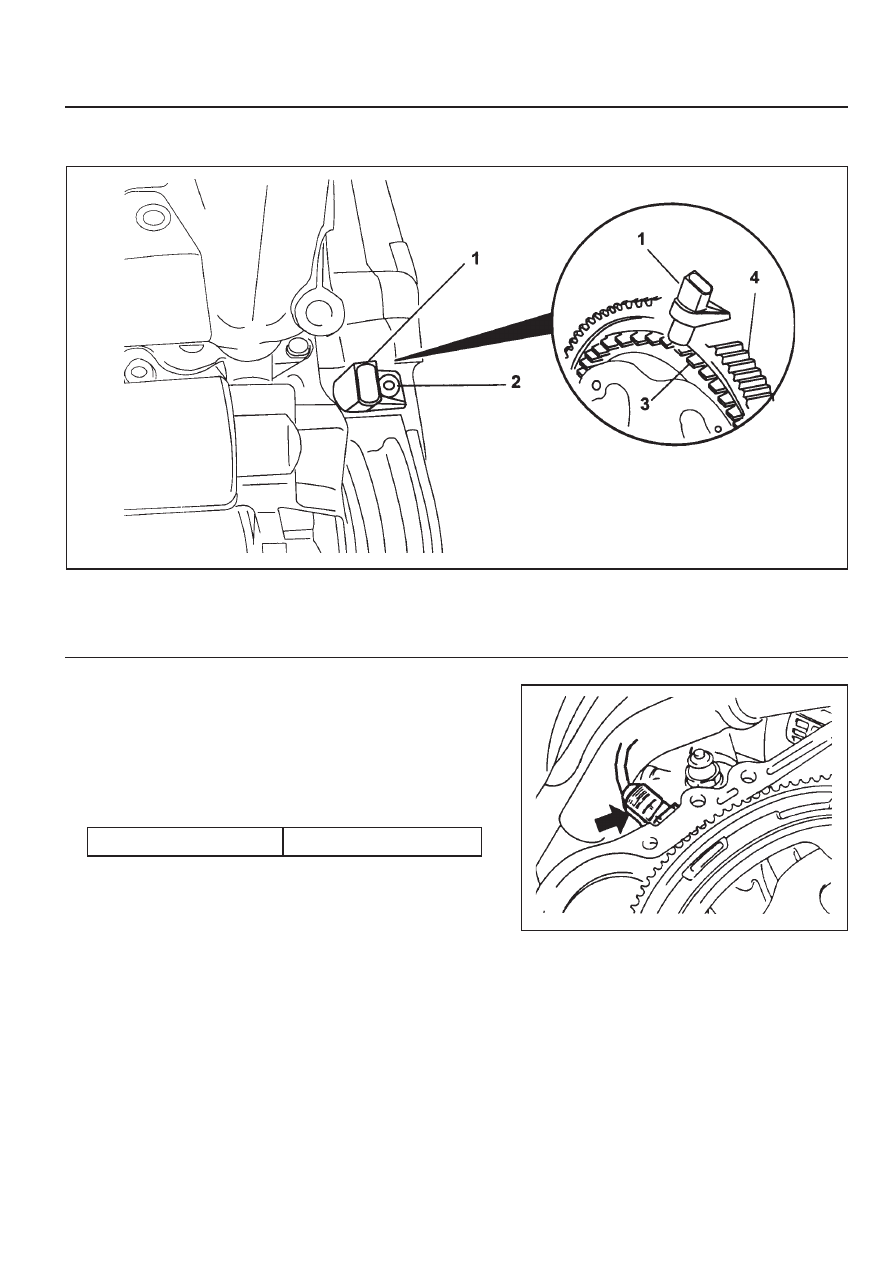

1 Crankshaft Position Sensor
2 Bolt (M6 X 14) ........................................ 9 -11Nm

CRANKSHAFT POSITION SENSOR

Removal & Installation Procedure

1. Disconnect the wiring connector at the crankshaft position

sensor.

2. Unscrew the bolt and remove the crankshaft position sensor

unit.

Installation Notice

3. Installation should follow the removal procedure in the

reverse order.

3 Segment
4 Flywheel

Tightening Torque

9 -11Nm
