SsangYong Musso. Manual - part 283





M161 ENGINE MECHANICAL  1B2-59

Service Data Standard (Crankshaft Main Bearing Gap)

(Connecting Rod Bearing Gap)

Item

Main Bearing Journal

( NO. 1, 5, 7)

Measuring Position

Radial

Axial

Gap (mm)

Static condition :0.015-0.039

Dynamic condition: 0.031-0.051

(Consider the expansion 0.011-0.016)

0.010 - 0.254

Item

Connecting Rod Bearing

Measuring Position

Radial

Gap (mm)

0.020 - 0.065

1B2-60  M161 ENGINE MECHANICAL

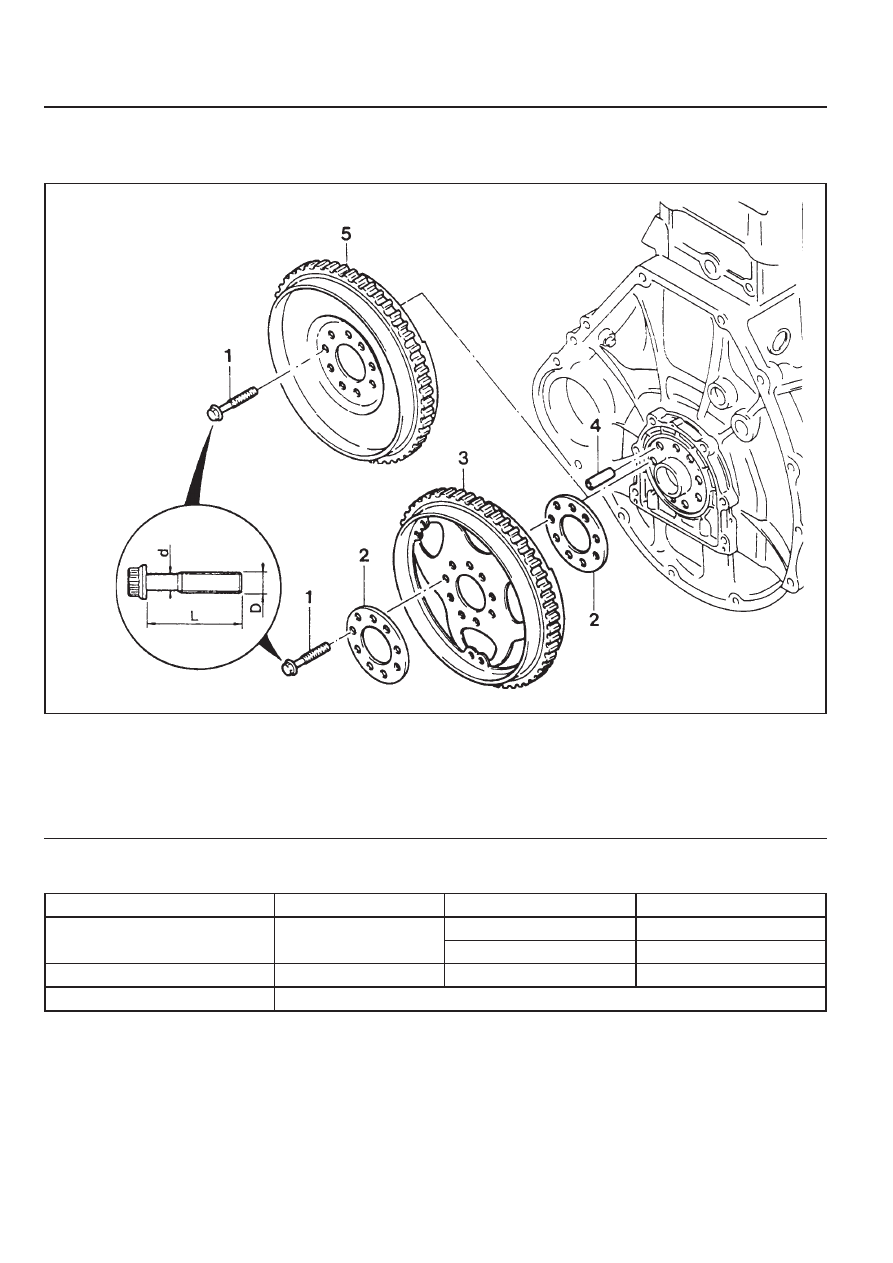

FLYWHEEL/DRIVEN PLATE

Preceding Work : Removal of manual or automatic transmission

1 Flywheel Mounting Bolt

(M10 x 22, 8 pieces) ................ 1st Step  45 Nm

2nd Step 90°+10°

2 Plate

3 Driven Plate (A/T)
4 Dowel Pin
5 Flywheel (M/T)

Service Data Standard (Stretch Bolt)

Nominal Size

Stretch Side Diameter

Bolt Length

Tightening Torque

M x 1.5

8.5 - 0.2 mm

8.0 mm

21.8 - 22.2 mm

-

When New

Min. Diameter

When New

D

d

L

1st step 50 Nm, 2nd step 90°

M161 ENGINE MECHANICAL  1B2-61

Removal & Installation Procedure

1. Unscrew the stretch bolt.

Installation Notice

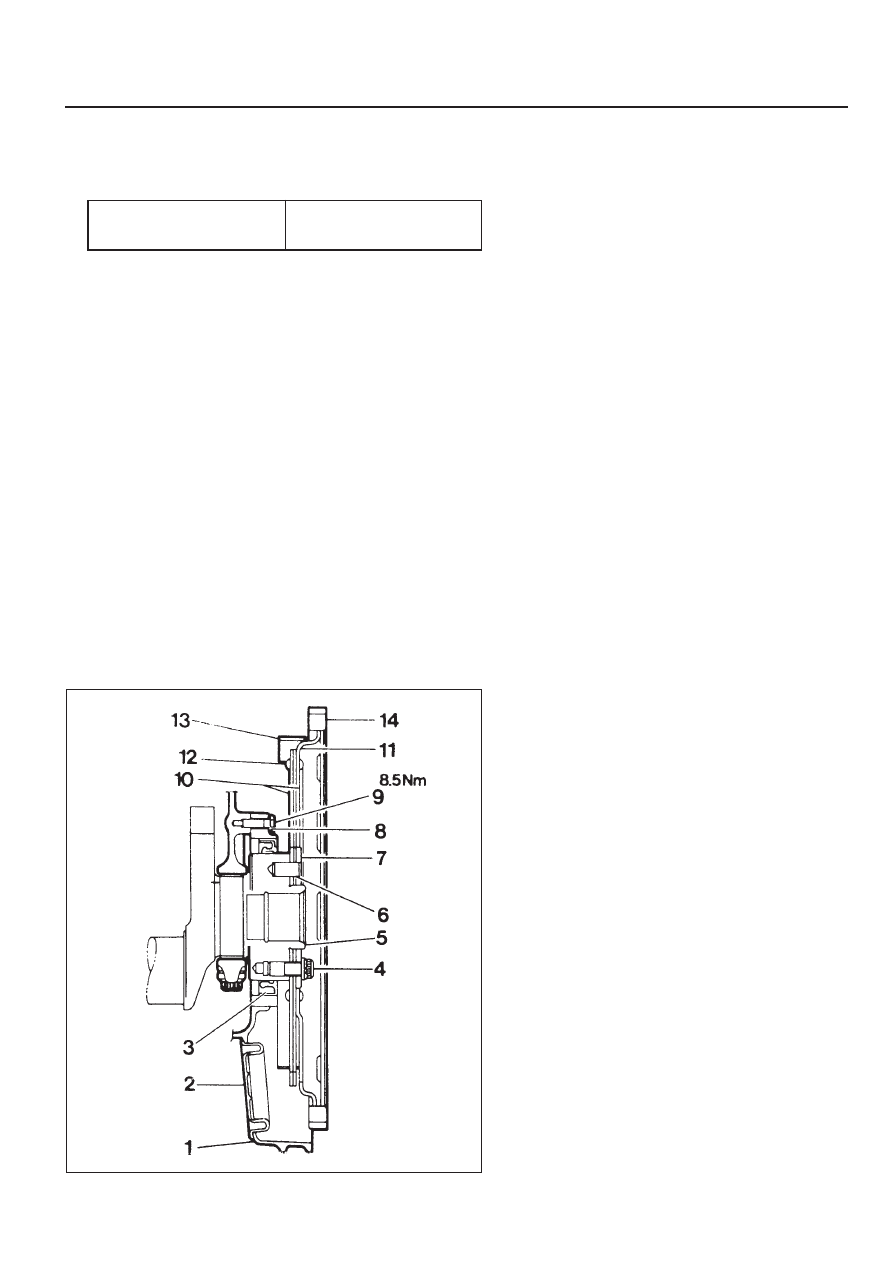

Sectional View

1 Oil  Pan
2 Cover
3 Radial  Seal
4 Bolt
5 Crankshaft
6 Dowel  Pin
7 Washer (Thickness : 3.5 mm)
8 Washer
9 Bolt

10 Front  Drive  Plate

11 Rear  Drive  Plate

12 Rivet
13 Segment
14 Ring  Gear

z

Replace the bolt when the stretch side diameter (d) of

the flywheel mounting bolt is less than 8.0mm.

z

For the stretch bolt tightening, keep the socket wrench

and Tommy-bar to be 90° and tighten as specified.

2. Remove the flywheel for manual transmission vehicles,

or the driven plate (3), and plate (2) for Auto. transmission
vehicle.

3. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

1st step 45 Nm

2nd step 90°+5°

1B2-62  M161 ENGINE MECHANICAL

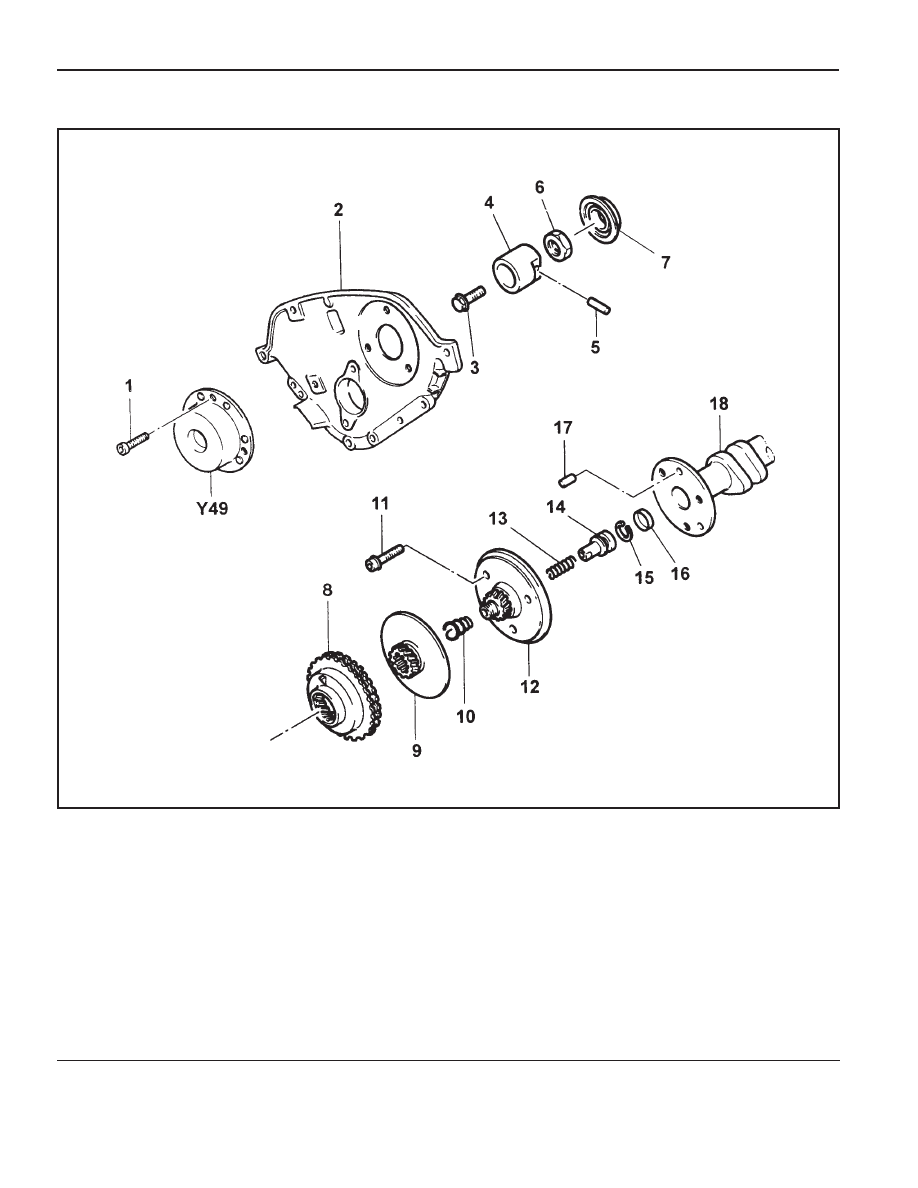

CAMSHAFT ADJUSTER

1 Bolt (M6 X 16, 3 pieces) ......................... 9-11 Nm
2 Cylinder Head Front Cover
3 Bolt ........................................................... 35 Nm
4 Armature
5 Roll Pin
6 Nut (M20 X 1.5) .................................... 60-70 Nm
7 Seal Cover
8 Camshaft Sprocket
9 Adjust Piston

10 Conical Spring

11 Flange Bolt

(M7 X 13, 3 pieces) ................. 1st Step 20±2 Nm

2nd Step 90° ± 5° Rotation Added

12 Flange Shaft
13 Compression Spring
14 Control Piston
15 Circlip
16 Oil Gallery
17 Straight Pin
18 Intake Camshaft

Y49 Magnetic Actuator (2-pin connector)
