M161 ENGINE MECHANICAL  1B2-35

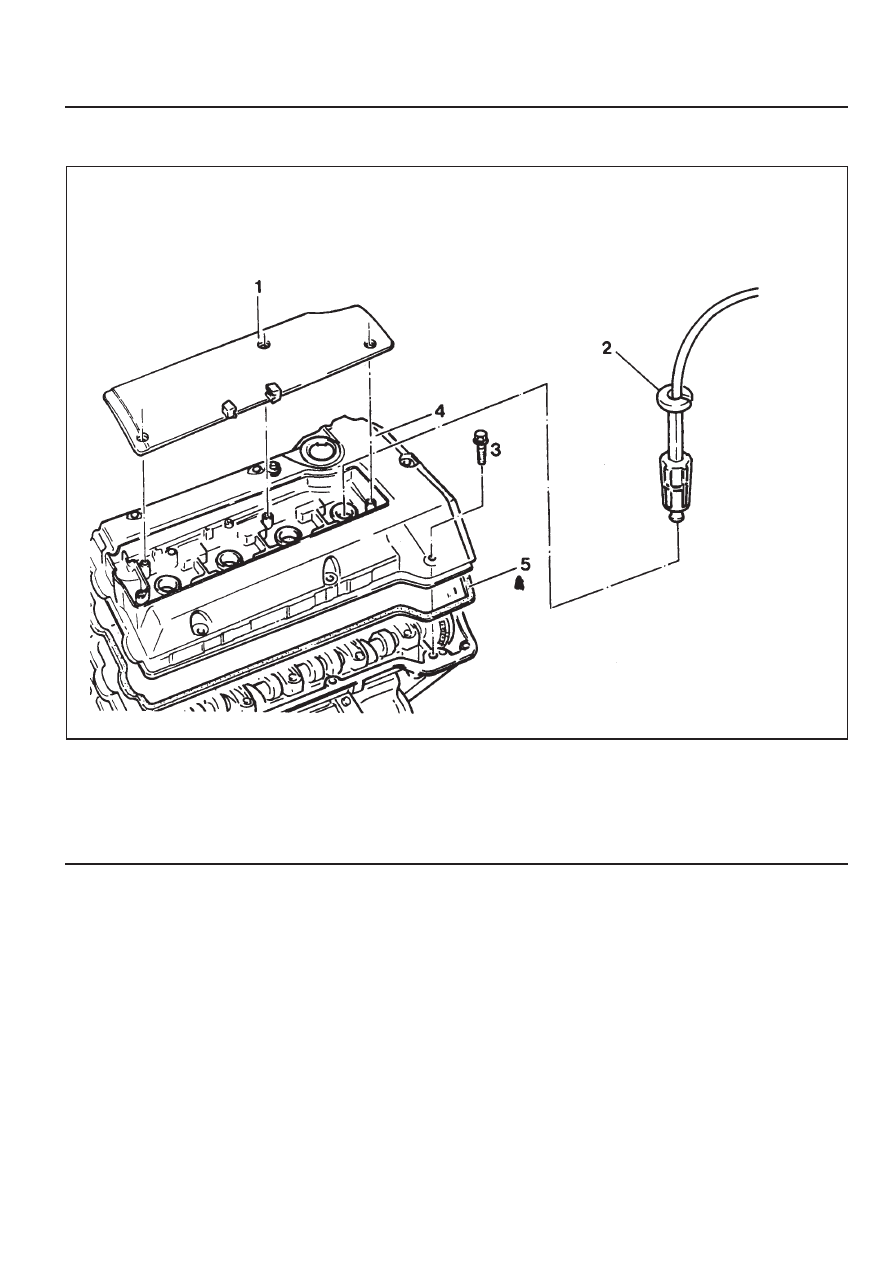

CYLINDER HEAD COVER

1 Ignition Coil Cover
2 Spark Plug Connector
3 Bolt (M6 X 45 : 4 pieces, M6 X 60 :

6 pieces) ............................................. 10 ± 1 Nm

4 Cylinder Head Cover
5 Gasket ................................................... Replace

1B2-36  M161 ENGINE MECHANICAL

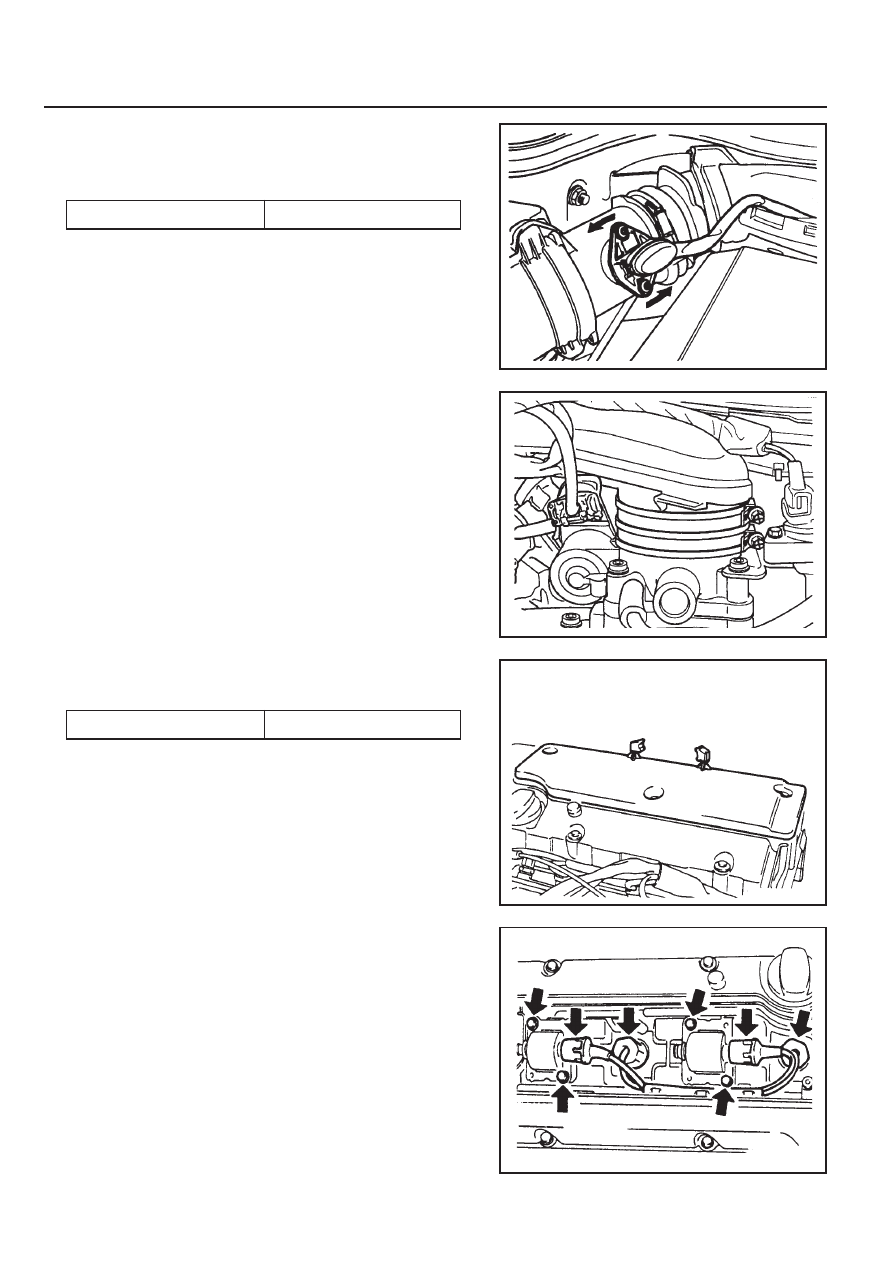

Removal & Installation Procedure

1. Remove the intake air duct.

Installation Notice

2. Remove the ignition coil cover.

Installation Notice

3. Remove the spark plug connector and ignition cable.

Notice

Release 3 screws from the ignition cover and remove the
cover for M161 Engine coil.

Tightening  Torque

9 - 11 Nm

Tightening  Torque

9 - 10 Nm

M161 ENGINE MECHANICAL  1B2-37

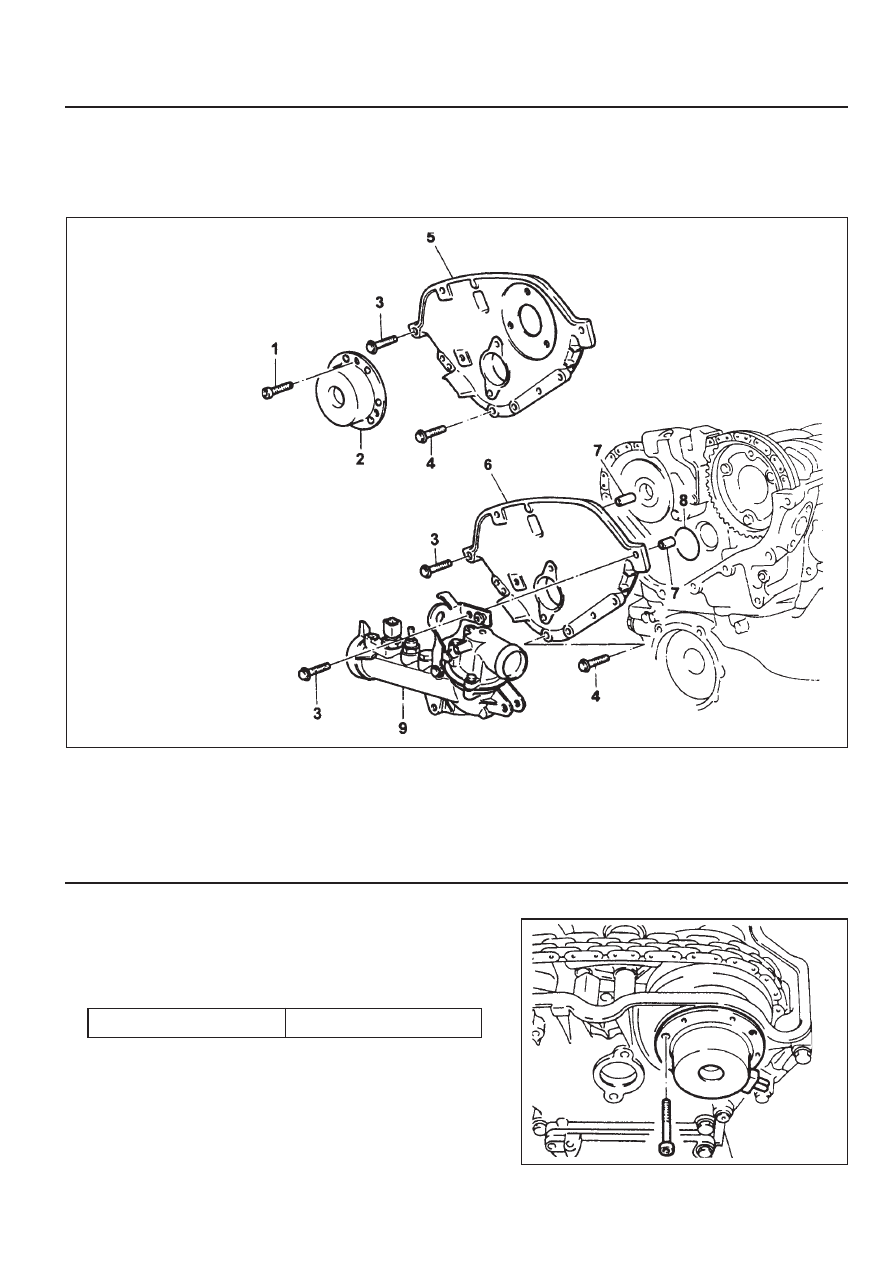

CYLINDER HEAD FRONT COVER

Preceding Work : Removal of cylinder head cover

Removal of thermostat housing assembly
Removal of engine hanger bracket

Removal & Installation Procedure

1. Disconnect the camshaft adjuster connector and remove

the camshaft adjuster (E23 engine only).

Installation Notice

Tightening  Torque

9 - 11 Nm

1 Bolt (M6 X 16, 3 pieces) ......................... 9-11 Nm
2 Camshaft Adjuster
3 Bolt (M8 X 35, 2 pieces) ................. 22.5-27.5 Nm
4 Bolt (M6 X 22, 6 pieces) ......................... 9-11 Nm
5 Front Cover (E23 : M161.973)

6 Front Cover (E20 : M161.943)
7 Sleeve
8 O-ring .................................................... Replace
9 Thermostat Housing

1B2-38  M161 ENGINE MECHANICAL

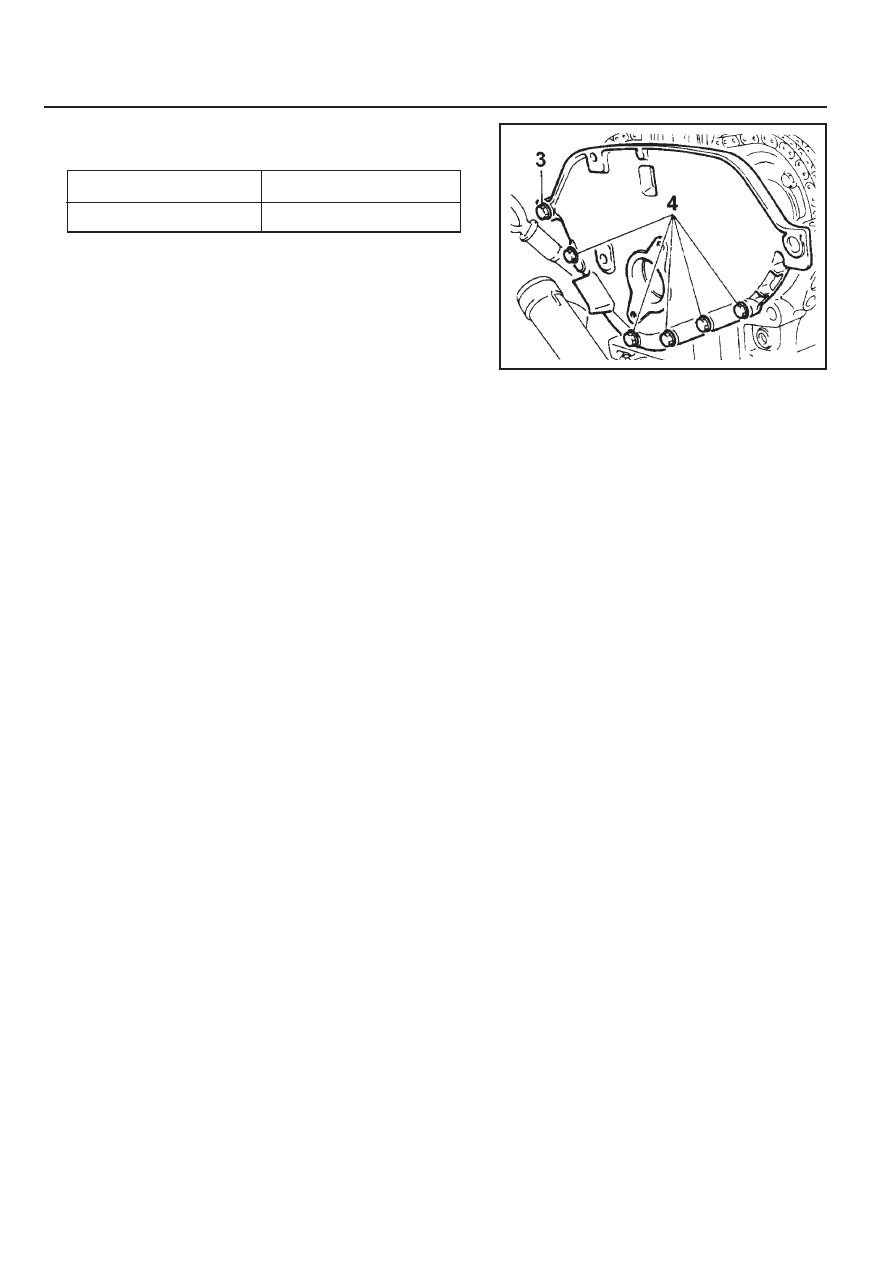

2. Remove the cylinder head front cover.

Installation Notice

Tightening Torque  (3)

22.5 - 27.5 Nm

Tightening  Torque  (4)

9 - 11 Nm

Apply the sealant at the mating surface of the cylinder head
and the front cover.

3. Remove the O-ring.

Installation Notice

Replace the O-ring with new one and apply the sealant.

4. Installation should follow the removal procedure in the

reverse order.
