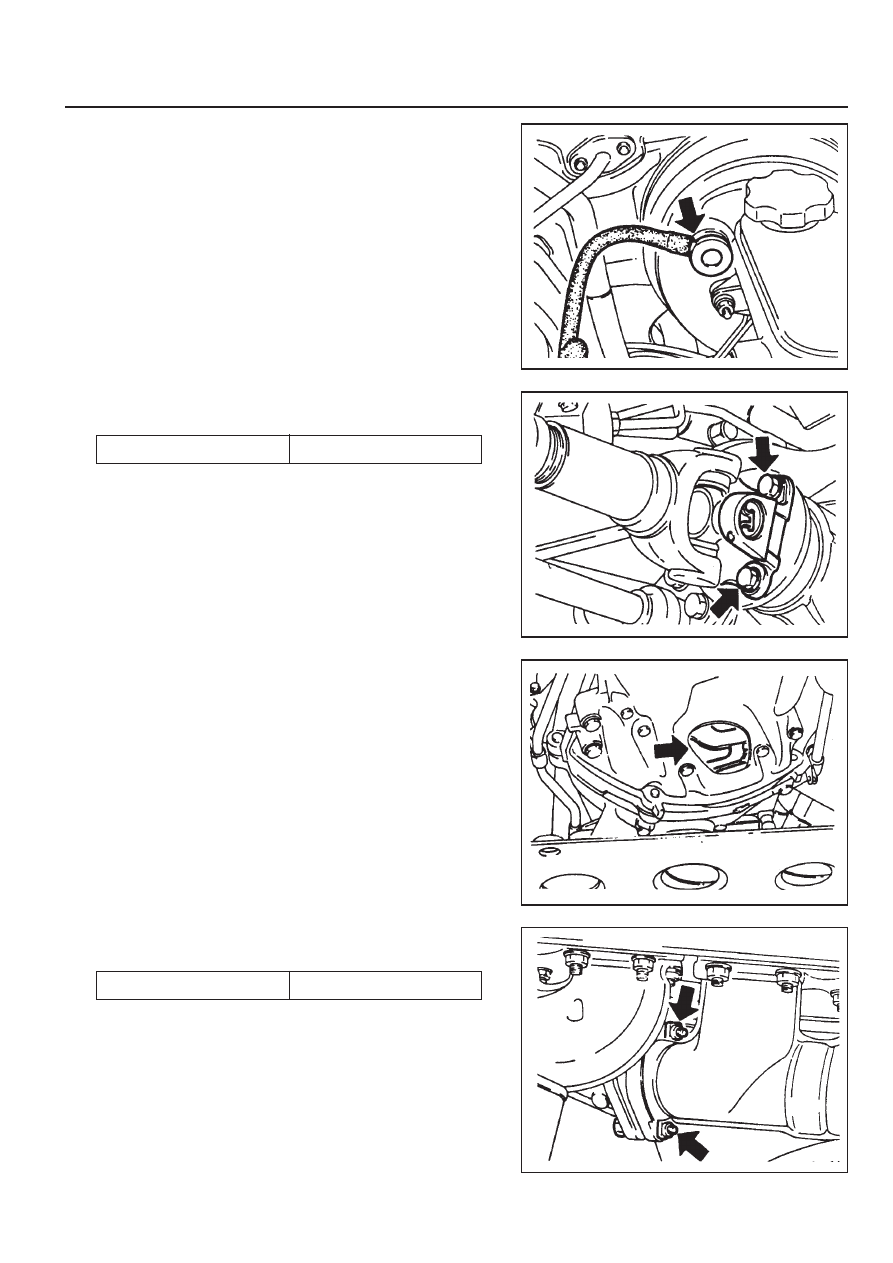

M161 ENGINE MECHANICAL  1B2-15

Tightening Torque

30 Nm

29. Remove the exhaust manifold and exhaust pipe.

Installation Notice

25. Separate the vacuum hose for brake booster.

26. Separate the other vacuum hoses.

27. Remove the propeller shaft from the front axle.

Installation Notice

28. By rotating the crankshaft from the front of engine, remove

the 6 torque converter mounting bolts from the engine
ring gear plate.

Tightening  Torque

81 - 89 Nm

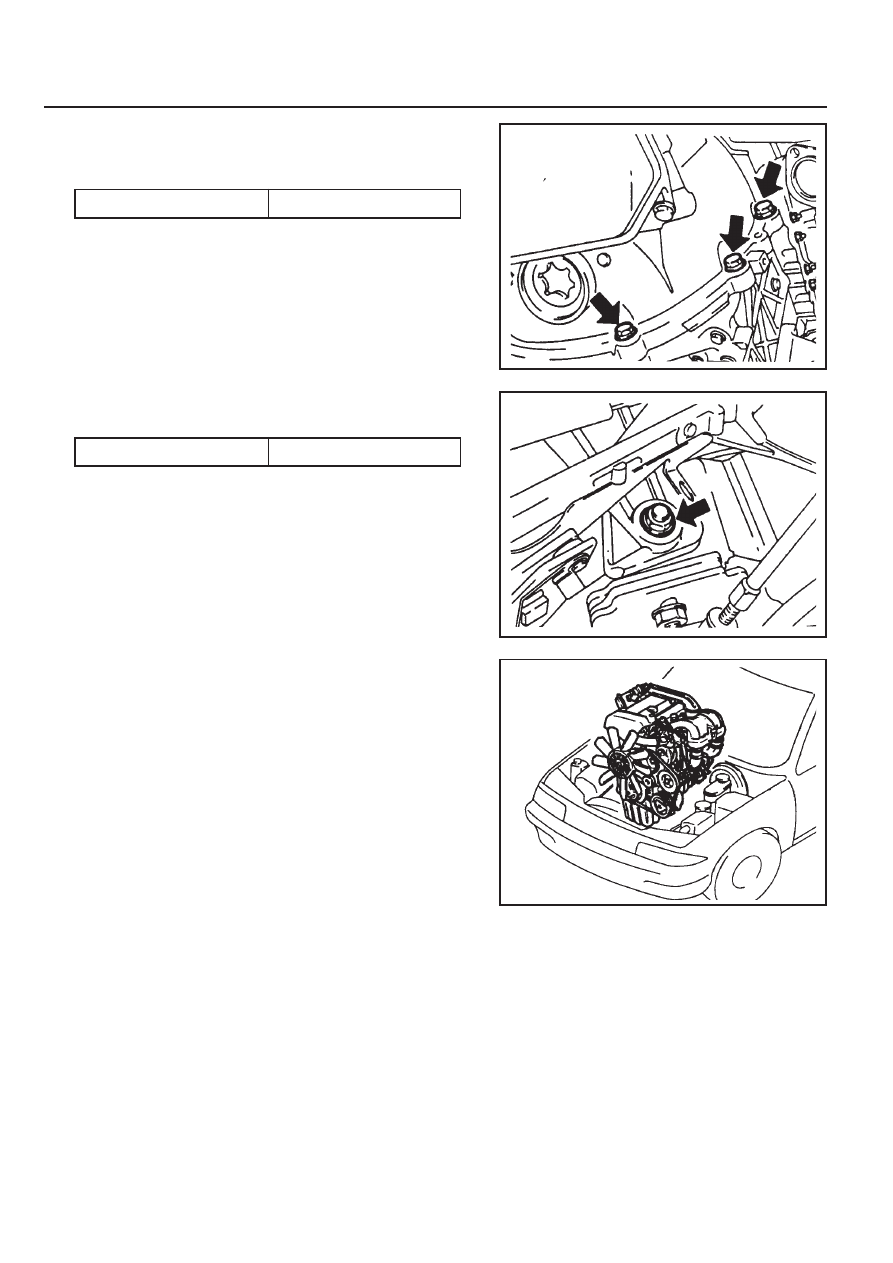

1B2-16  M161 ENGINE MECHANICAL

30. Remove the transmission mounting bolts and separate

the transmission from the engine.

Installation Notice

Tightening Torque

65 Nm

31. Remove the bolts for engine mounting bracket.

Installation Notice

Tightening  Torque

50 - 75 Nm

32. Hook the chain to the bracket of engine and by using a

hoist or crane, carefully separate the engine assembly
from the vehicle.

33. Installation should follow the removal procedure in the

reverse order.

M161 ENGINE MECHANICAL  1B2-17

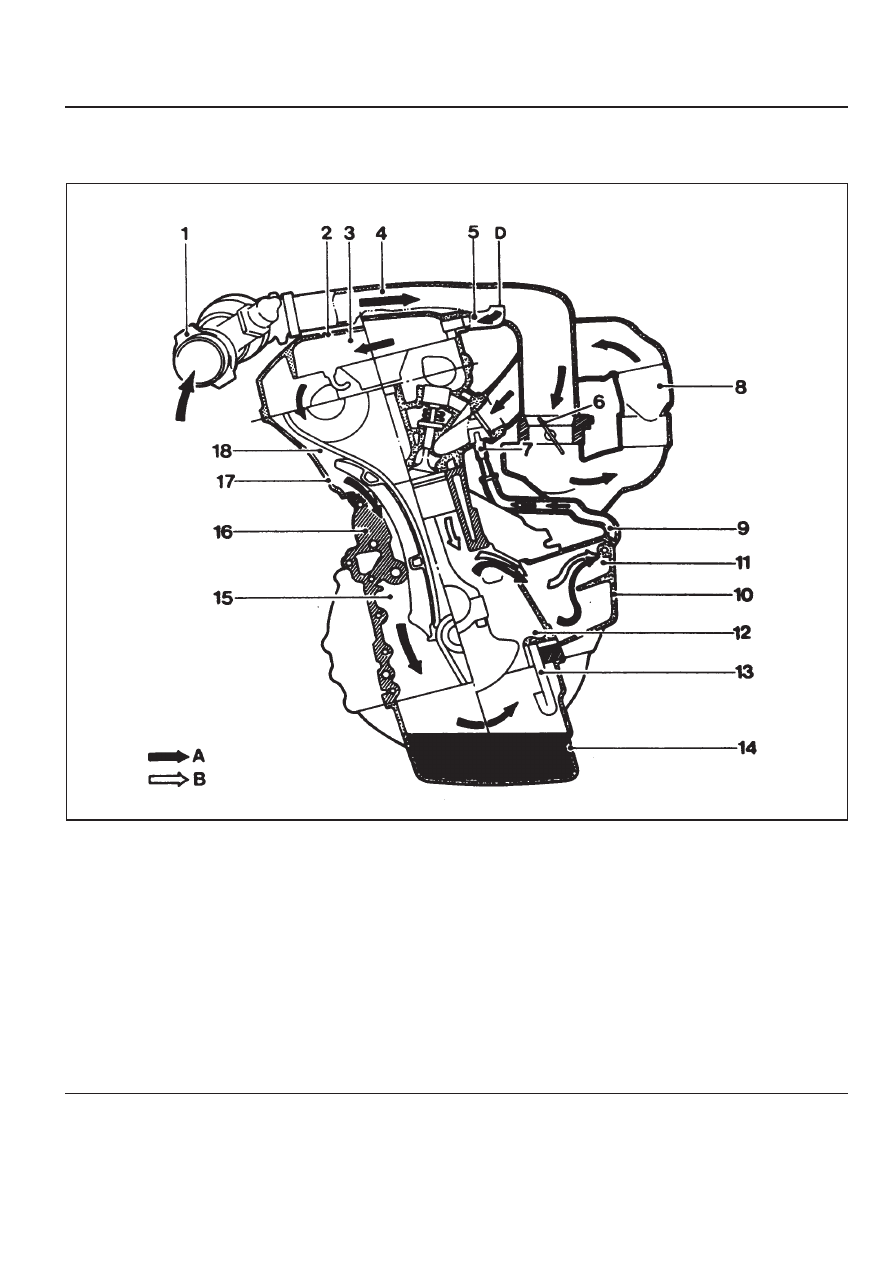

CRANKCASE VENTILATION SYSTEM

Operation at Idling and Mid-Load

1 HFM Sensor
2 Cylinder Head Cover
3 Oil Spearation Chamber (Full-Load or Over

Mid-Load)

4 Intake Air Duct (Cross Pipe)
5 Vent Line (Full-Load or Over Mid-Load)
6 Throttle Valve
7 Restrictor, Diameter 1.1mm (Mid-Load at Idling)
8 Intake Manifold
9 Vent Line (Mid-Load at Idling)

10 Air Conditioner Bracket

11 Oil Separation Chamber (Mid-Load at Idling)

12 Crank Chamber
13 Oil Return Pipe
14 Oil Pan
15 Timing Gear Case Cover
16 Crankcase
17 Chain Housing

A Fresh Air

C Blow-by Gas
D Vent Connection

1B2-18  M161 ENGINE MECHANICAL

Operation at Idling and Mid-Load

z

The throttle valve(6) is closed or very partially opened, and
the vacuum pressure in intake manifold is high.

The blow-by gas and the fresh air that is additionally supplied
through the vent connection(D) in the crankcase in partial
load gets supplied to the combustion chamber from the crank
chamber(12) through the oil separation chamber(11), air-
conditioner bracket(10), vent line(9), and restrictor(7)
mounted to the cylinder head.

The circulated engine oil returns to the oil pan through the
oil return pipe(13) at the bottom of oil separation
chamber(11).

The fresh air gets supplied to the crank chamber(12) through
the HFM sensor(1), intake air duct(4), vent line(5), oil
separation chamber(3), chain housing(17), and the timing
gear case cover(15).

The additional supply of the fresh air is needed to prevent
from forming the residues of the engine oil.
