M161 ENGINE MECHANICAL  1B2-11

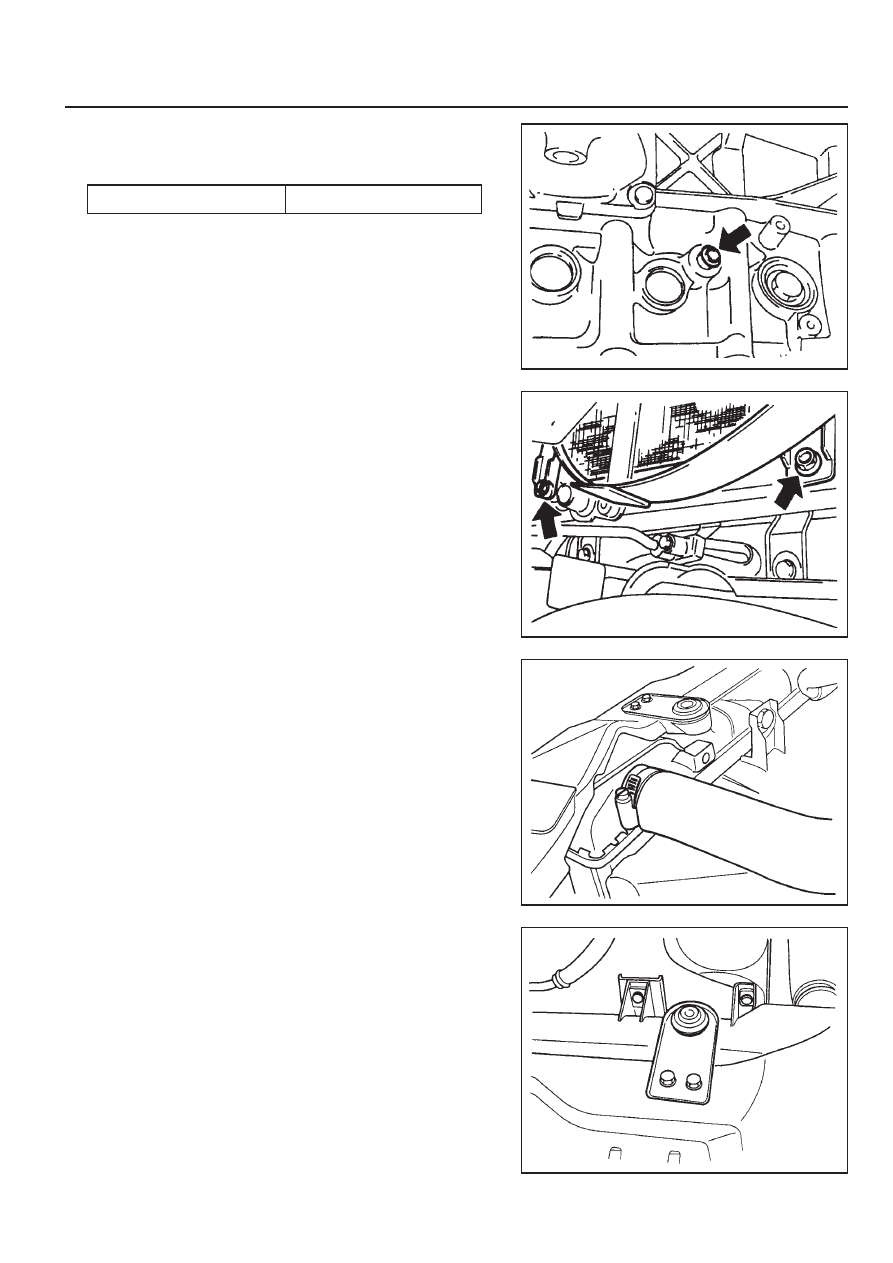

10. Remove the upper mounting bolts of radiator and then

remove the radiator.

7. Loosen the cylinder block drain plug and then drain the

coolant completely.

Installation Notice

Tightening Torque

30 Nm

Notice

Replace the seal before installation of the drain plug.

8. Remove the cooling fan shroud.

9. Disconnect the each hose from radiator.

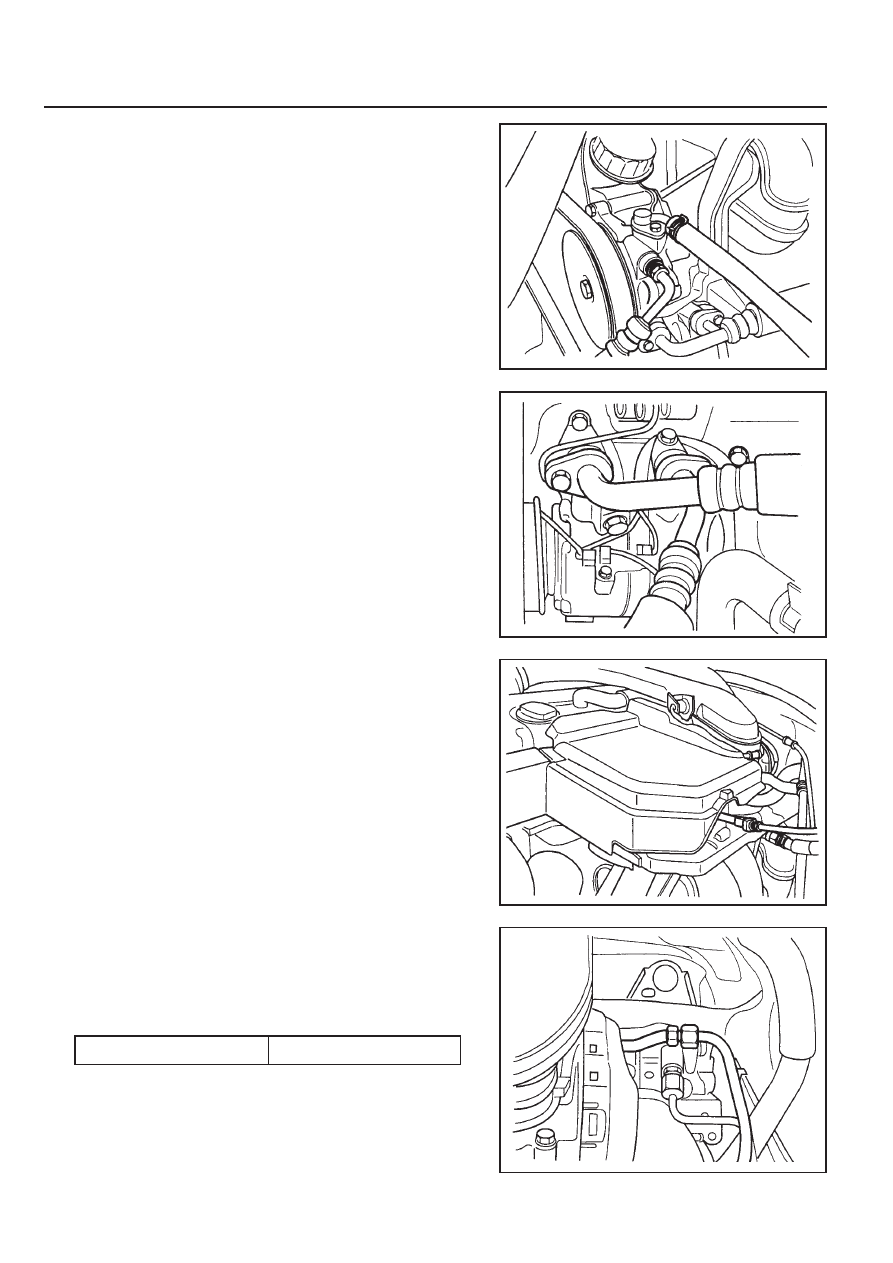

1B2-12  M161 ENGINE MECHANICAL

12. Discharge the refrigerant from A/C system, and disconnect

the discharge pipe and suction pipe from the compressor.

14. Remove the fuel feed and return line.

Notice

Before removing the fuel lines, release the pressure in the
fuel system.

Installation Notice

13. Remove the acceleration control cable and automatic

transmission pressure cable.

11. Remove the hydraulic pipe of power steering.

Notice

Completely drain the oil.

Tightening  Torque

21 - 25 Nm

M161 ENGINE MECHANICAL  1B2-13

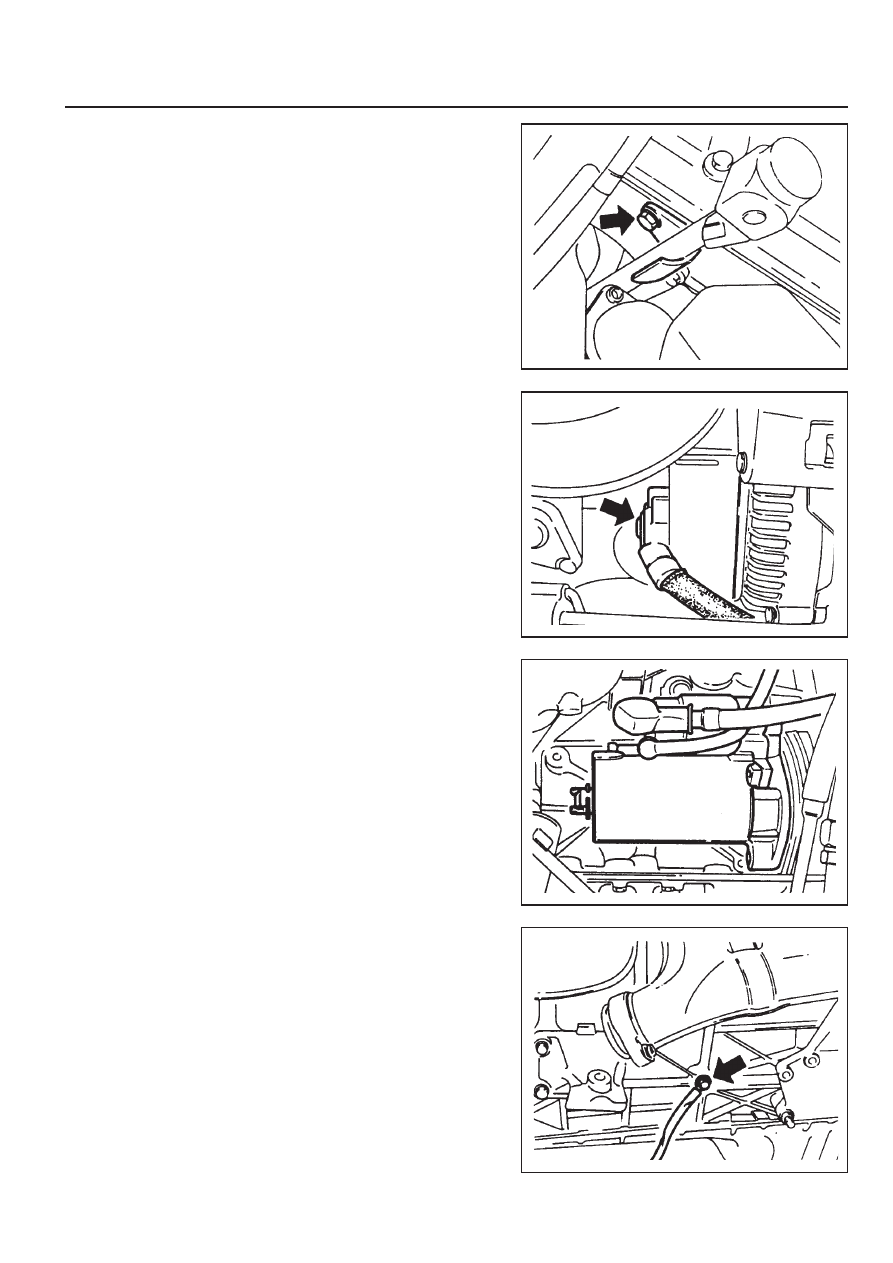

19. Disconnect the engine ground wire.

15. Remove the automatic transmission dipstick guide tube.

16. Disconnect the wire of alternator.

17. Disconnect the wire of starter motor and remove the starter

motor.

18. Disconnect the engine main harness ground.

1B2-14  M161 ENGINE MECHANICAL

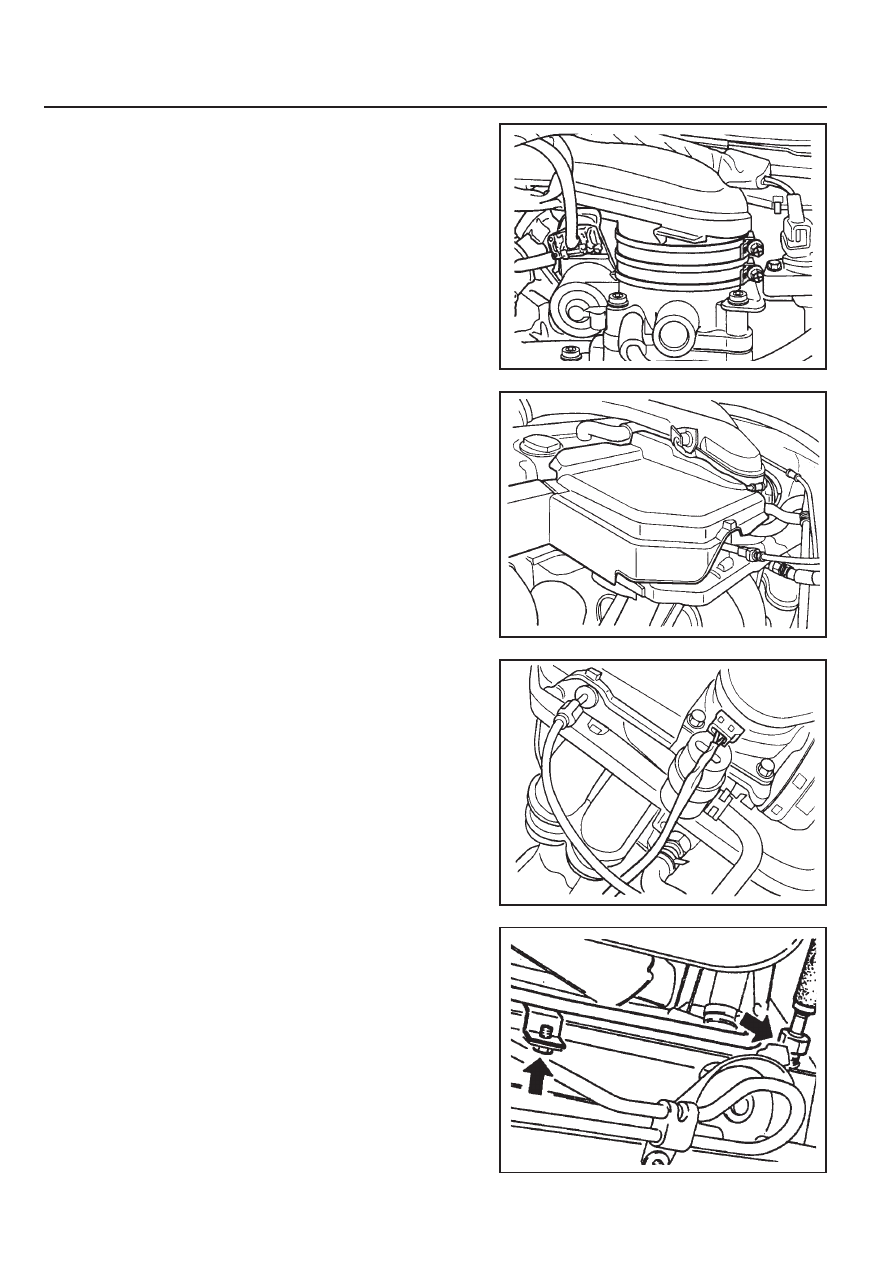

20. Disconnect following sensors connector.

z

HFM sensor.

z

Coolant temperature sensor.

z

2 knock sensors.

z

Camshaft and crankshaft sensors.

21. After removing the ignition coil cover, disconnect the ignition

coil connector.

22. Remove the harness cover and disconnect the 6 injection

valve connectors. Disconnect the main harness.

23. Separate the hose toward engine from canister purge

solenoid valve.

24. Remove the automatic transmission oil cooler line.
